Pulsar AWO528 Casings for recorders

105,93 EUR including 22.00% VAT
Product code: #15301
Manufacturer: Pulsar
  • Casings for recorders, surface mounted
  • External dimensions: 320x430x82mm
  • Tamper: 2x
  • Holder with retaining straps
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fan with temperature sensor 45C Pulsar ARAW45 Pulsar AWO529W Casings for recorders Pulsar AWO529 Casings for recorders Pulsar AWO528W Casings for recorders Pulsar AWO530S DVR/MEDIUM/VERTICAL enclosure Pulsar AWO530WS Casings for recorders Pulsar AWO529WS Casings for recorders Pulsar AWO529S Casings for recorders Pulsar AWO528WS Casings for recorders Pulsar AWO528S Casings for recorders

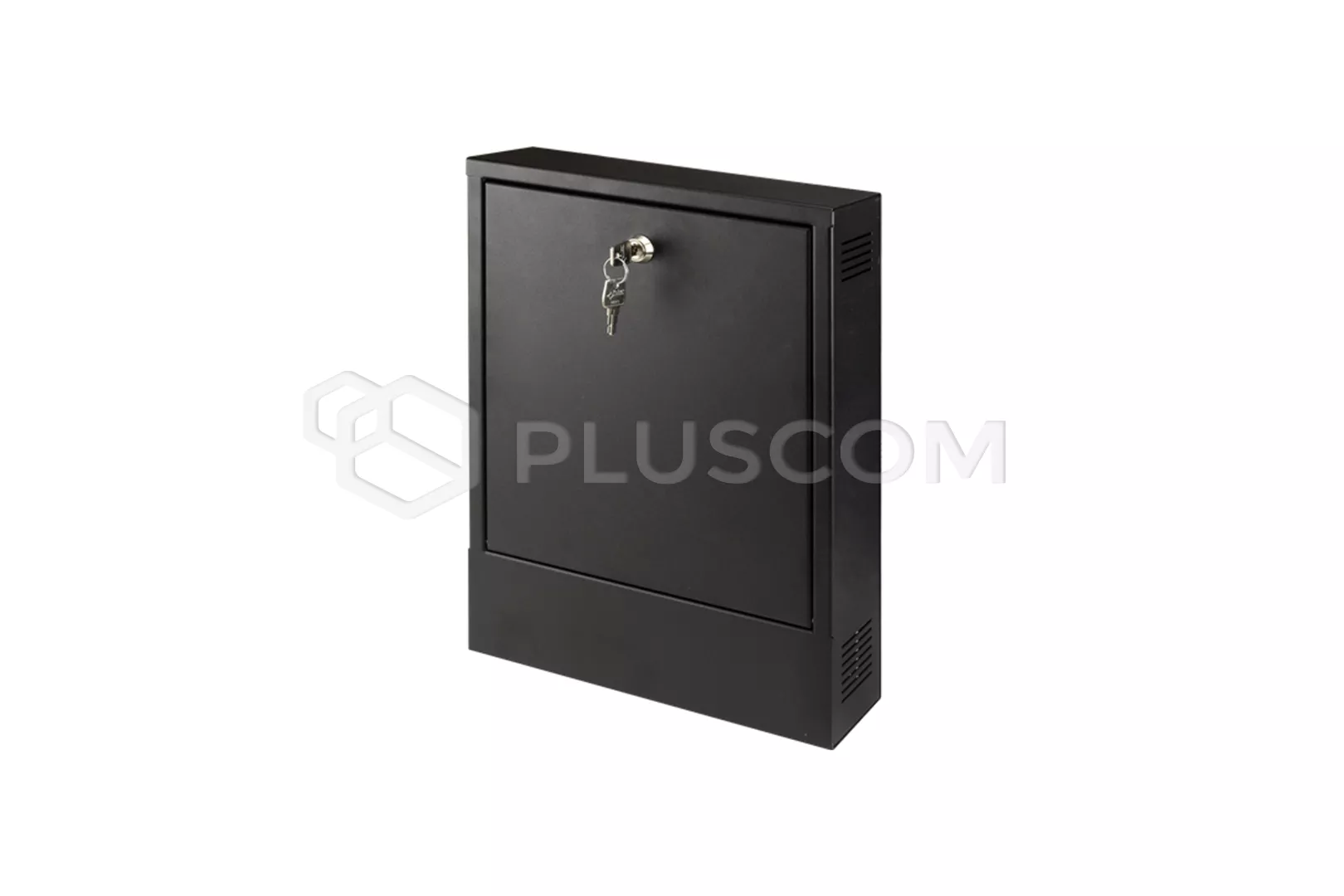

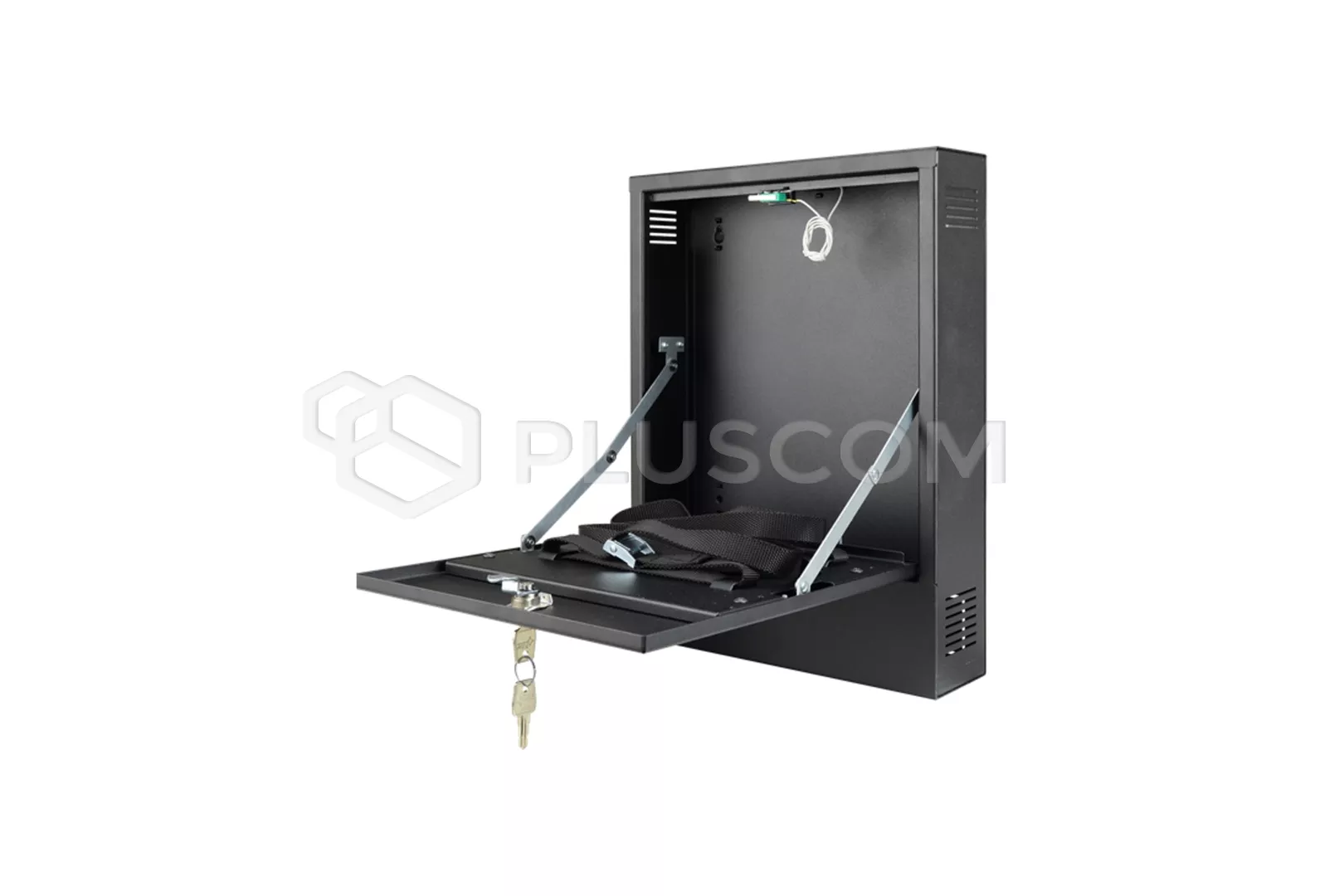

Pulsar AWO528 universal metal casing for video recorders vertical surface

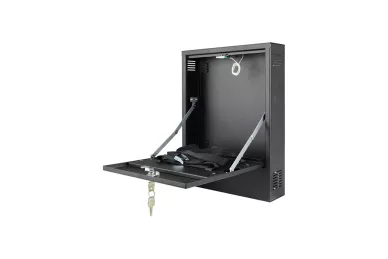

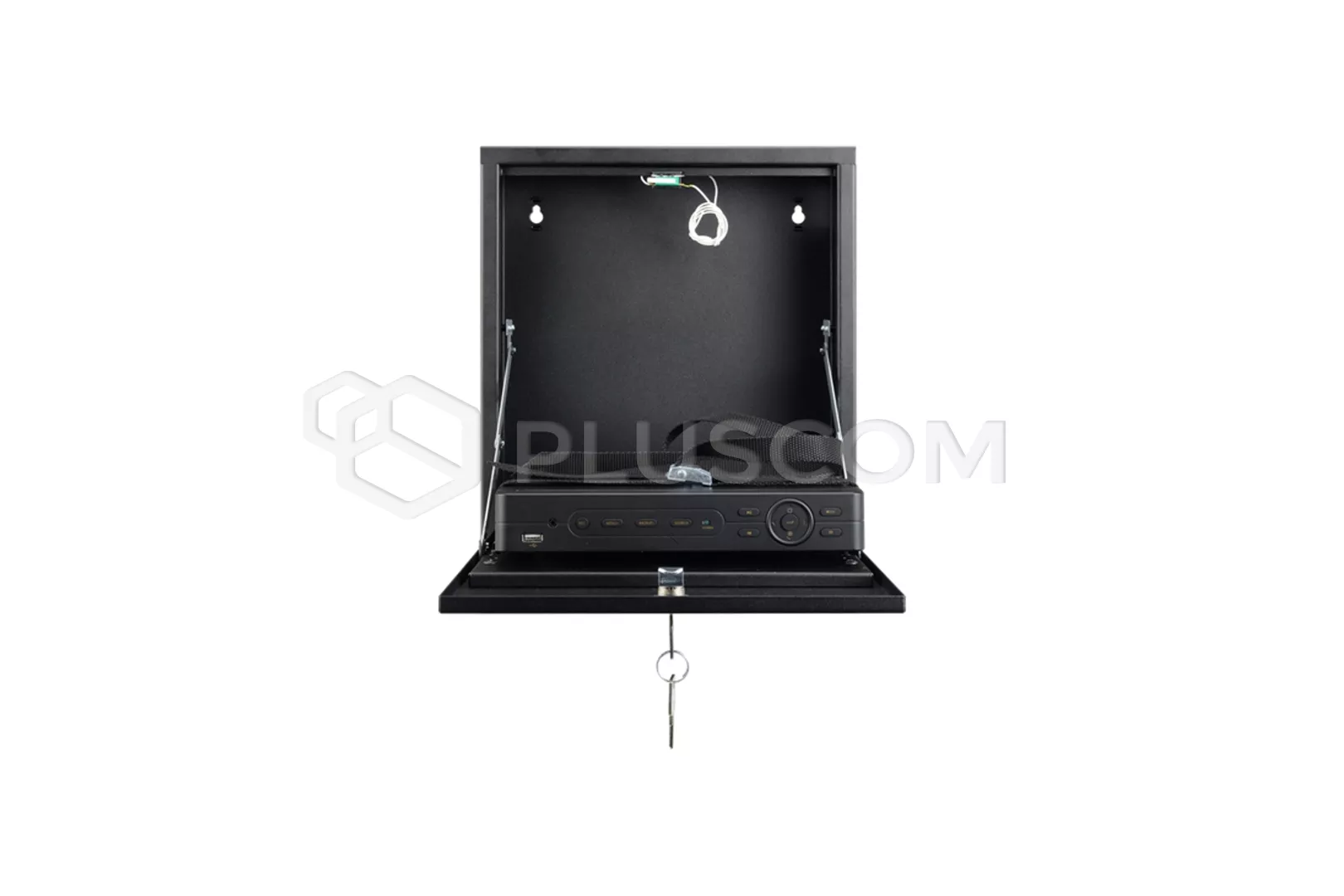

The enclosure protects the recorder against unauthorized access or theft. The enclosure is made of steel with a thickness of 1mm. It is equipped with lock and two tamper switches, indicating enclosure opening and detachment from the wall. Due to the vertical installation and low depth, it is ideal for places where deeper enclosures or cabinets type Rack19" cannot be installed. After opening the enclosure, the front cover is held in a horizontal position, providing easy access to the buttons on the front panel of DVR.
The enclosure has a special holder with retaining straps that allows for the installation of recorders of the following dimensions: Width up to 260 mm, height: up to 62 mm, depth up to 250mm.

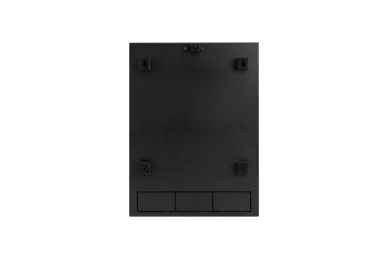

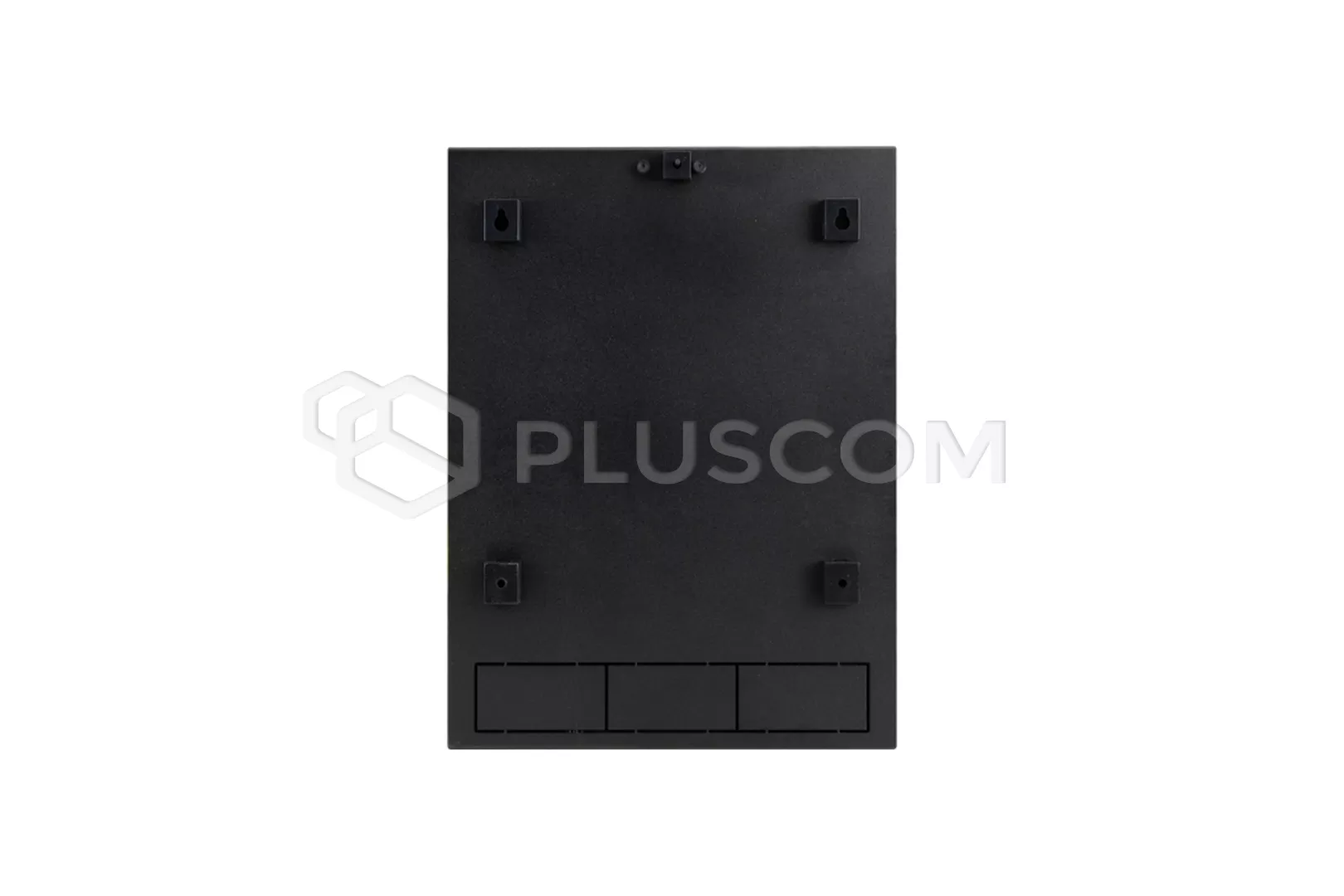

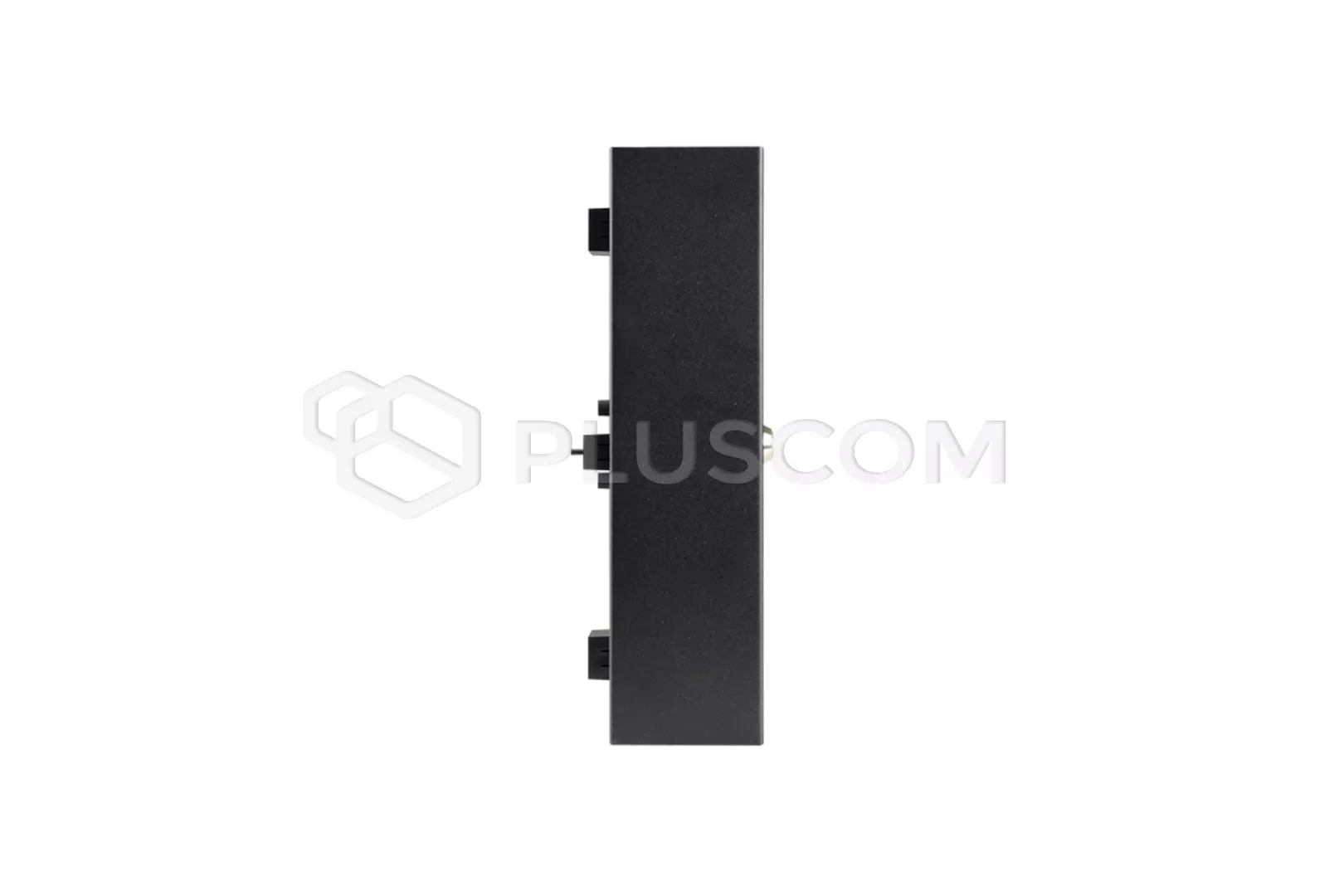

View from the back:

View from the back:

Pulsar AWO528

Pulsar AWO528


SPECIFICATIONS:
  • Dimensions: 200x220x150+8mm
  • Dimensions of the recorder compartment: 260x250x62mm
  • Material: sheet DC01 1mm
  • color: RAL 9005 (black)
  • Weight: 1.5kg
  • Enclosure: IP20
  • Distance from wall: 14mm
  • Tamper protection: 1x microswitch: opening
  • Closing: Lock MR008
  • Destination: indoor

Pulsar AWO528

Pulsar AWO528


Download
Datasheet 0.54 MB
Declaration CE 0.32 MB
Instruction 0.27 MB
