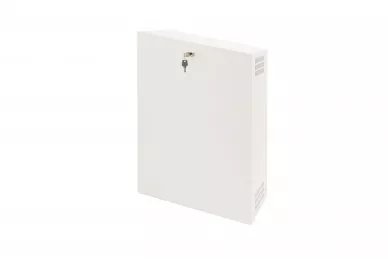

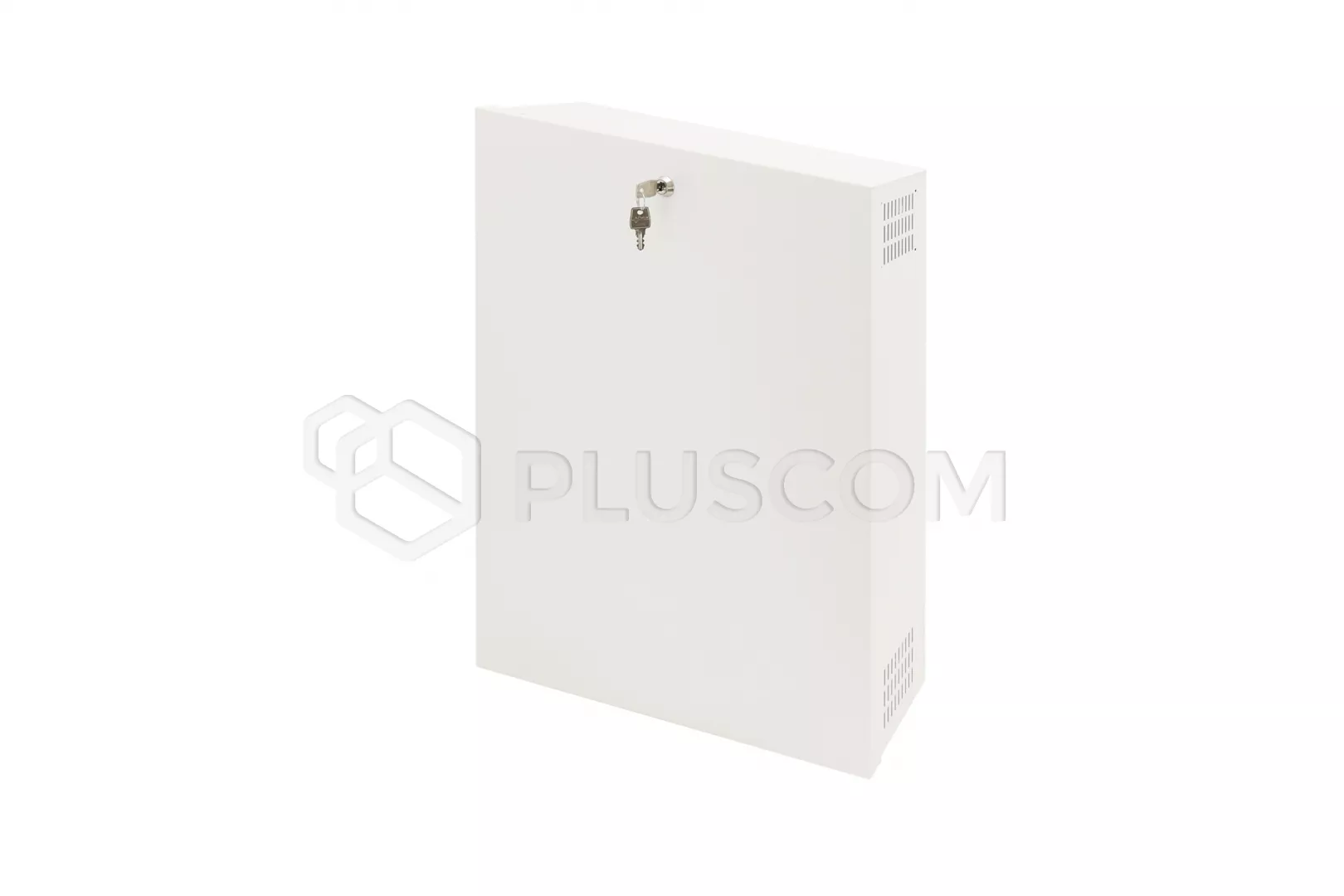

Pulsar AWO530WS Casings for recorders

164,09 EUR including 23.00% VAT
Product code: #27312
Manufacturer: Pulsar
  • Casings for recorders, surface mounted
  • External dimensions: 532 x 651 x 121mm
  • Tamper – opening of enclosure
  • Straps for mounting recorder
  • White color
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fan with temperature sensor 45C Pulsar ARAW45

Pulsar AWO530WS housing for recorders


The housing is used to protect the recorder against unauthorized access or theft.
It is made of 1.2mm thick sheet metal. Due to the vertical mounting of the housing i shallow depth is ideal wherever it is not deep enclosures or RACK19” cabinets can be installed.

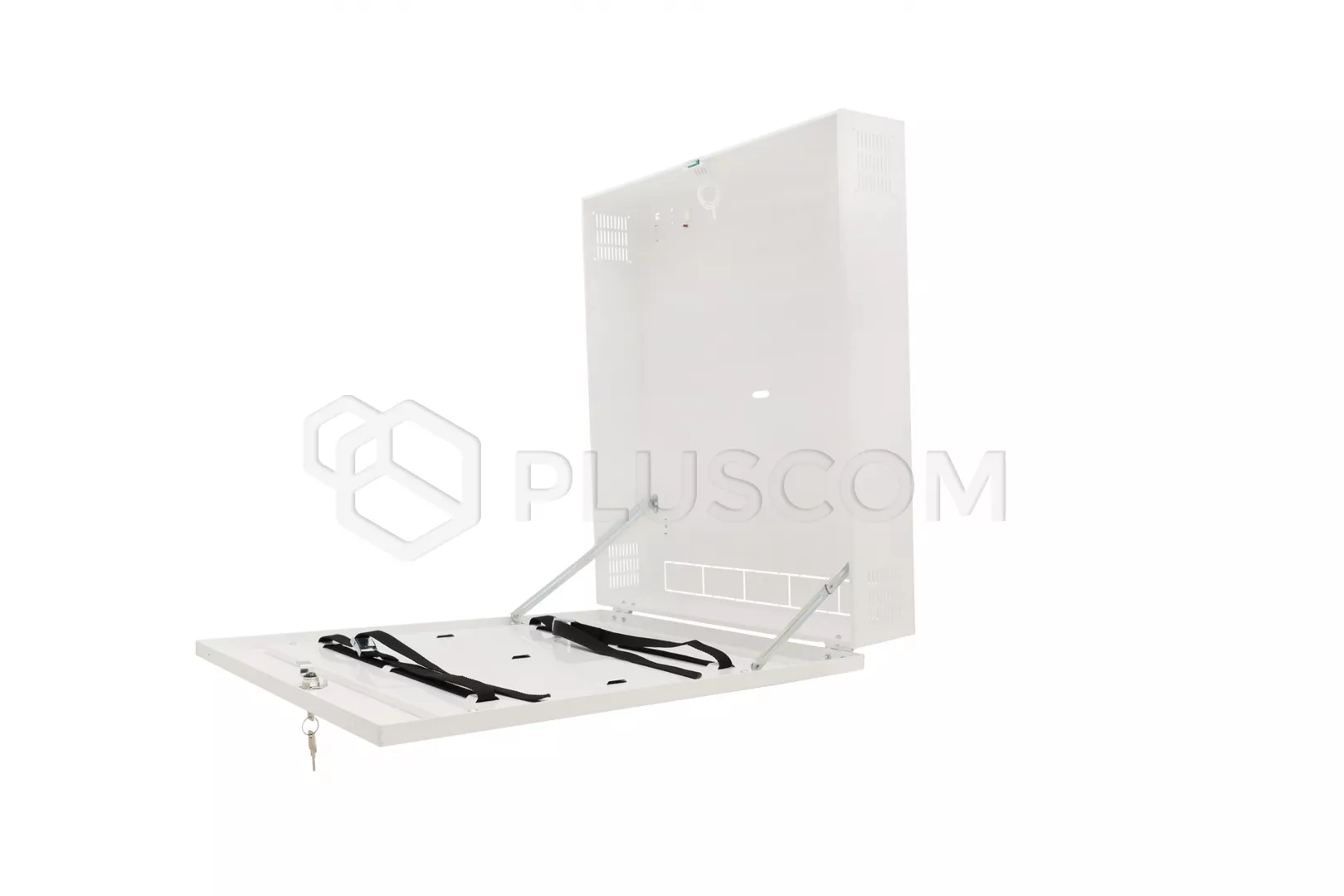

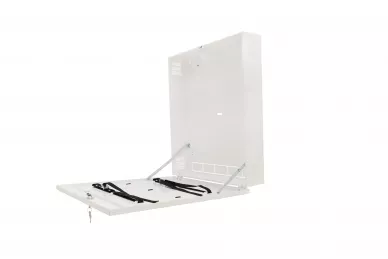

After opening the housing, the headlamp is held in a horizontal position, thanks to which we get easy access to the buttons placed on front panel of the recorder.

The housing uses a special handle with straps for mounting recorders with dimensions of 470x95x485mm.
In addition, a fan with a temperature sensor can be mounted to the housing.

SECURITY
The housing is used to protect the recorder against unauthorized persons access or theft.
It is equipped with a lock (1xMR008, different code) and a tamper for opening the housing. In addition, there is the possibility of mounting the tamper of tearing off from the ground PKAZ067.

TECHNICAL PARAMETERS:
  • external dimensions: 532x651x121mm
  • internal dimensions: 470x95x485mm
  • net weight: 13.342kg
  • execution: DC01 sheet, thickness 1.2mm, color RAL9003 - protection anti-corrosion
  • anti-tamper protection:1 x microswitch: case opening, 0.5 A; 50V DC max. NC - contacts normally closed
  • closing: lock
  • distance from wall (floor) 14mm
