Pulsar AWO220PU Casing for control panels with transformer

32,69 EUR including 23.00% VAT
Product code: #10529
Manufacturer: Pulsar
  • Universal housing
  • Place on the transformer
  • Place on the battery 12V/17Ah
  • Dimensions: 320x305x90mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWO301PU Casing for control panels Pulsar AWO000PU Casing for control panels Pulsar AWO250PU Casing for control panels Pulsar AWO150PU Casing for control panels

Pulsar AWO220PU 17/40/DSPR/S/PUSTA

The AWO 220PU metal casings are designedto the panel  DSC, PARADOX, RISCO, SATEL, PYRONIX, CROW, TEXECOM, TELMOR, ROGER, EBS, PULSAR.
 Transformers which can be mounted in the casing TRP20, TRP40, TRZ20, TRZ40, EI20, EI40.

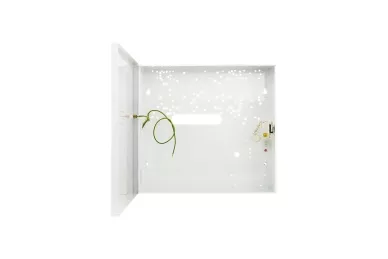

Pulsar AWO220PU Casing for control panels with transformer

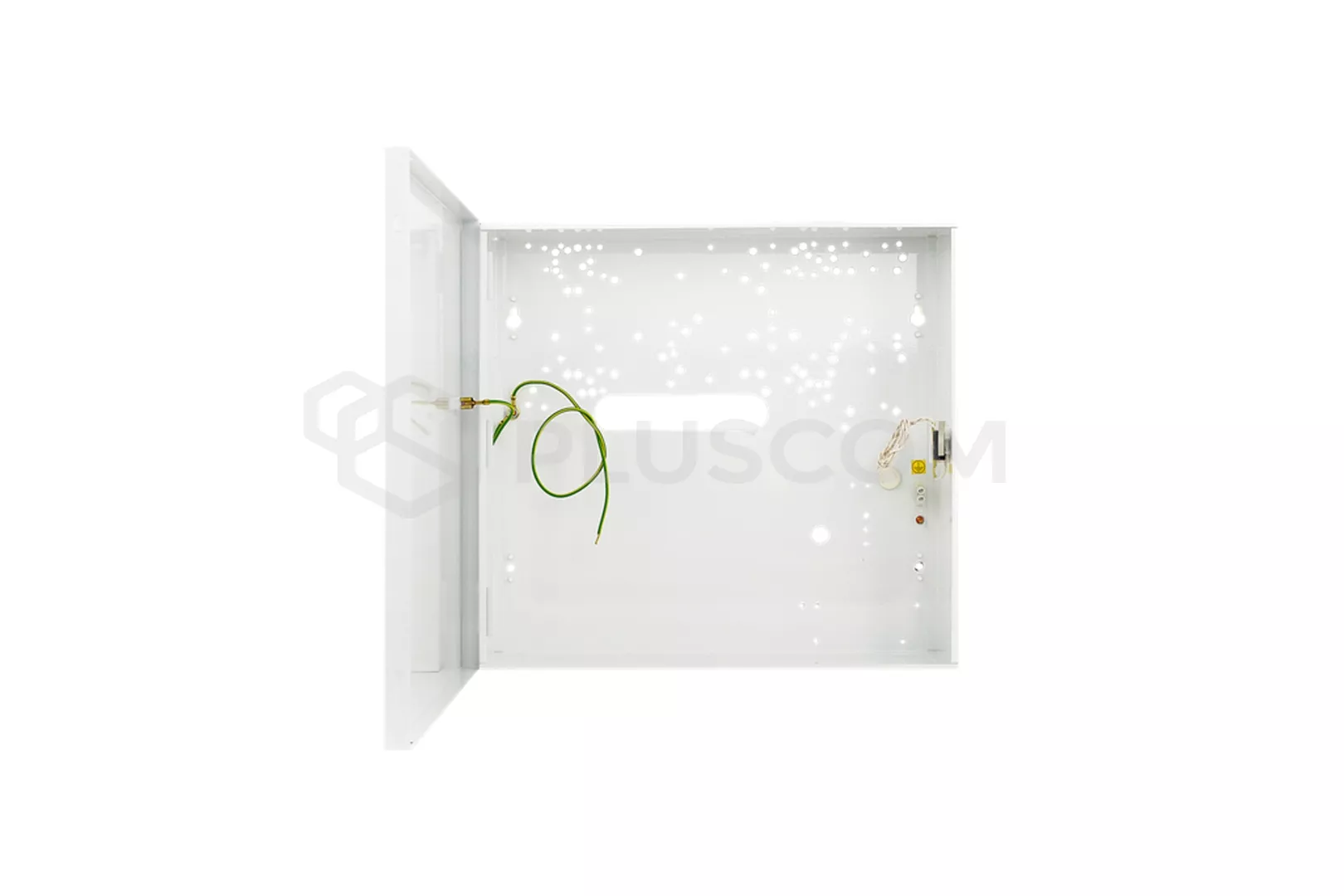

Pulsar AWO220PU Casing for control panels with transformer

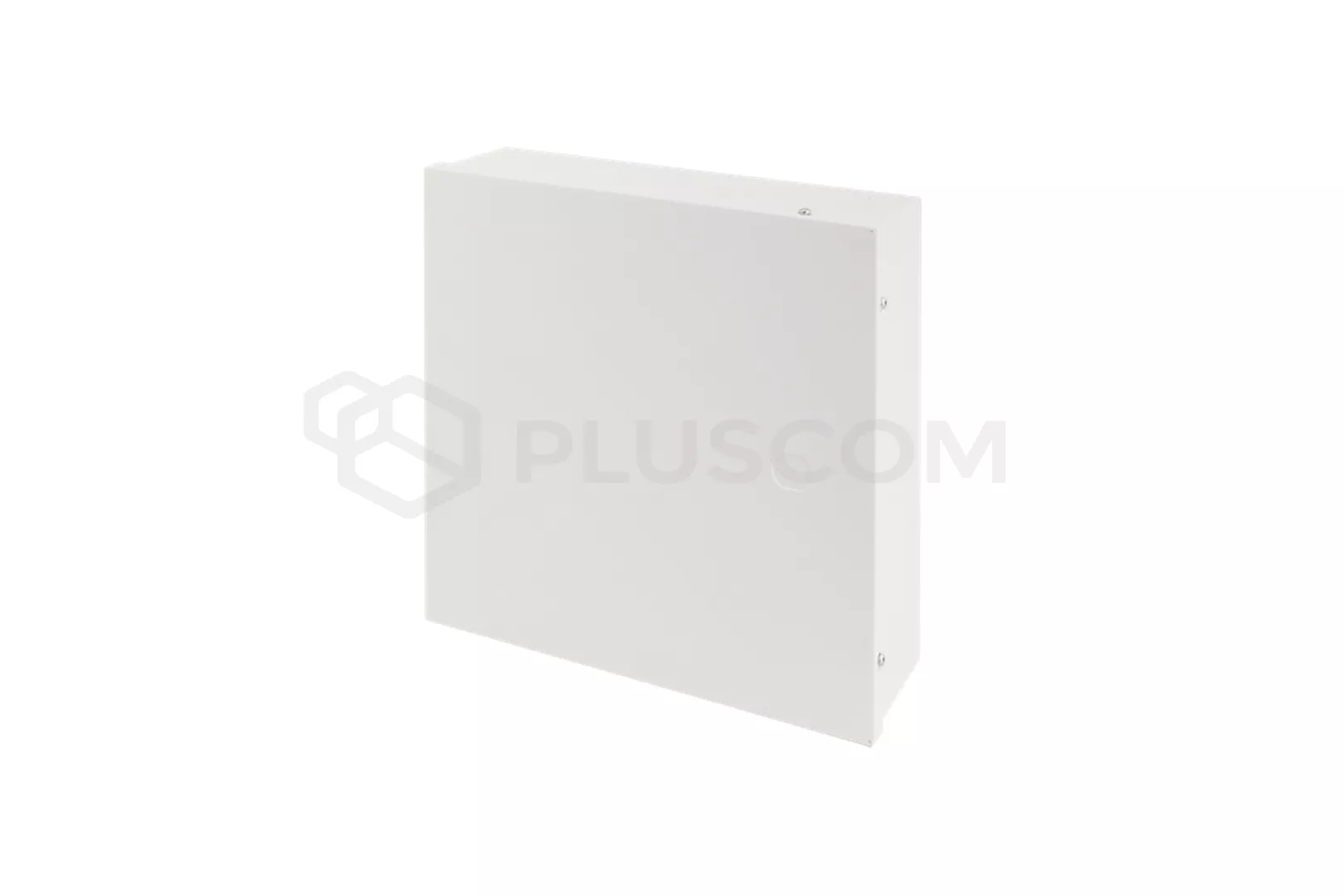

Pulsar AWO220PU

Pulsar AWO220PU


The housing has a place for 12V/17Ah.
The standard is also a tamper protection in the form of the chassis intrusion detector

SPECIFICATIONS:
  • place on transformer
  • place on battery: 12V/7Ah
  • tamper protection: Yes
  • Material: 0.7mm sheet RAL9003 color
  • degree od protection : IP20
  • Internal dimensions: 320x305x90+8mm
  • closing: 4x twisted sheet metal, an optional locking
  • distance from wall 8mm

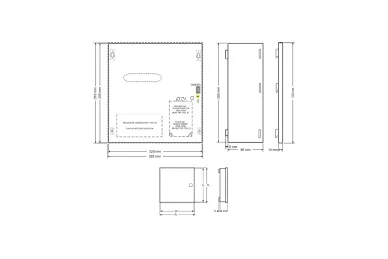

Dimensions:

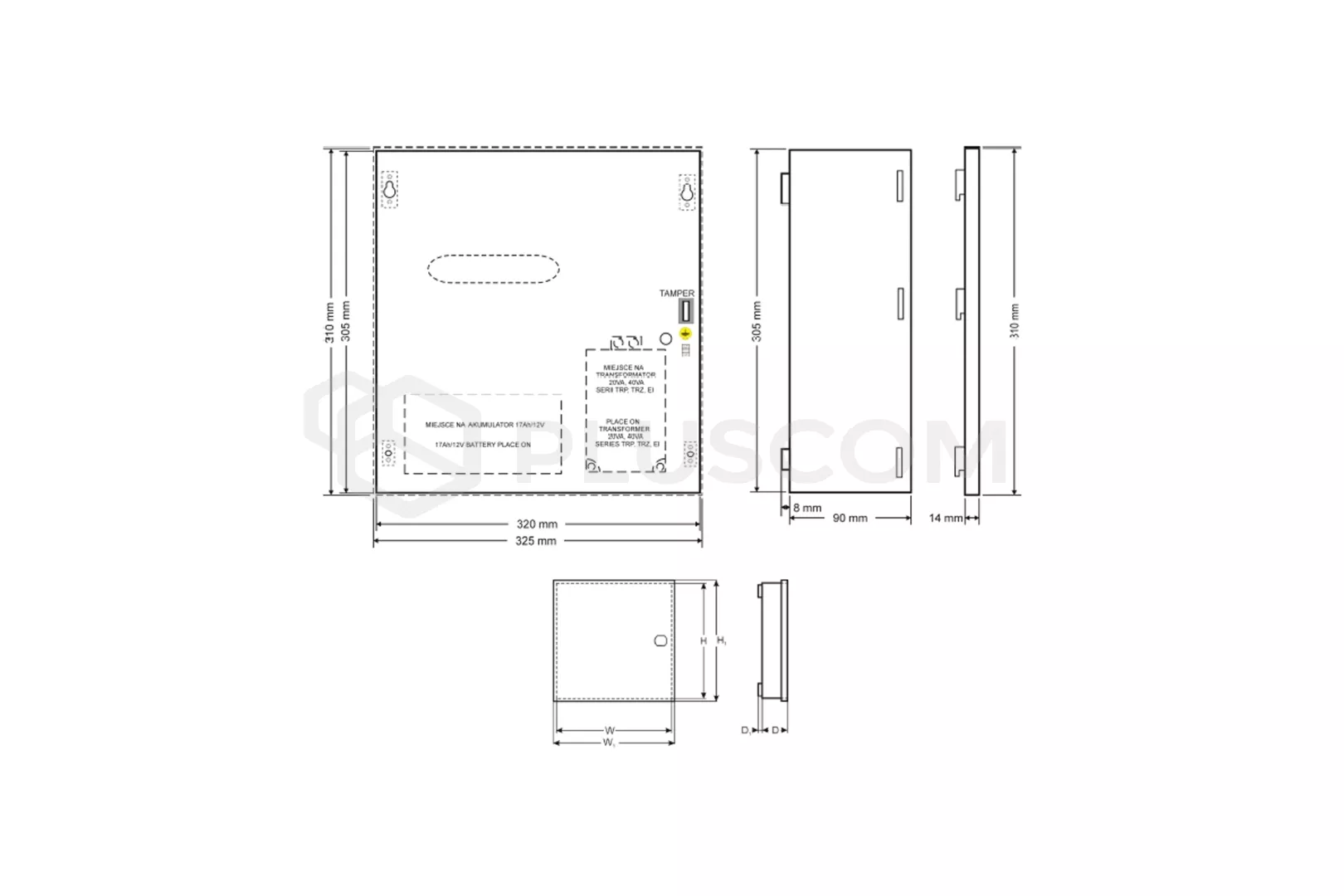

Dimensions:



PANELS WHICH CAN BE MOUNTED:
  • DSC: (PC 1404, 1616, 1832, 1864,4020)+ 5108 (4108, 5208, 5100, 4116), 4020 + 4108 (5108, 5208, 5100, 4116)
    • MODUŁY: ( PC 5204, 5400, 5580, 5200, 4216) + ( 5108, 5208, 4108, 5100, 4116)
      4204 + 4108 ( 5108, 5208, 5100, 4116)
  • PARADOX: ( E55, E65, 728ULT, EVO48, EVO192, SP4000,SP5500, SP6000, SP7000) + Z X 8 ( Z X 4, HUB2, PGM4)
  • RISCO: PRO24 z 17 Ah, PRO116, 128, 140 z 7Ah
  • SATEL: CA4V1, CA5, CA6, (VERSA 5, 10, 15, CA10) + CA10E ( CA 64E, SM, MST1), ( INTEGRA 24, 32) + CA64E ( SM)
    • MODUŁY:CA64 ( PP, EPS, ADR, O-R, O-ROC, O-OC,OPS- OC, OPS- R, OPS- ROC, VGM- 16, SR, PTSA) + CA64E (SM)
  • PYRONIX: MATRIX 424, 6, 816, 832, 832+
  • CROW: RUNNER 4,8
  • TELMOR: TCA- 824 + TEX800
  • TEXECOM: PREMIER 412, 816, 832, 48, 88, 168, 640
  • ROGER: PR402, CPR 32- SE
  • EBS: PX 202A
  • PULSAR: MS1012, MSR1012, MSRK1012, MS2012, MSR2012, MSRK2012
