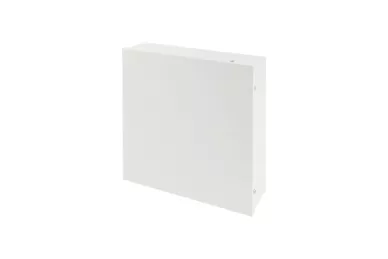

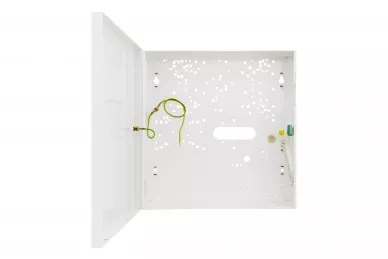

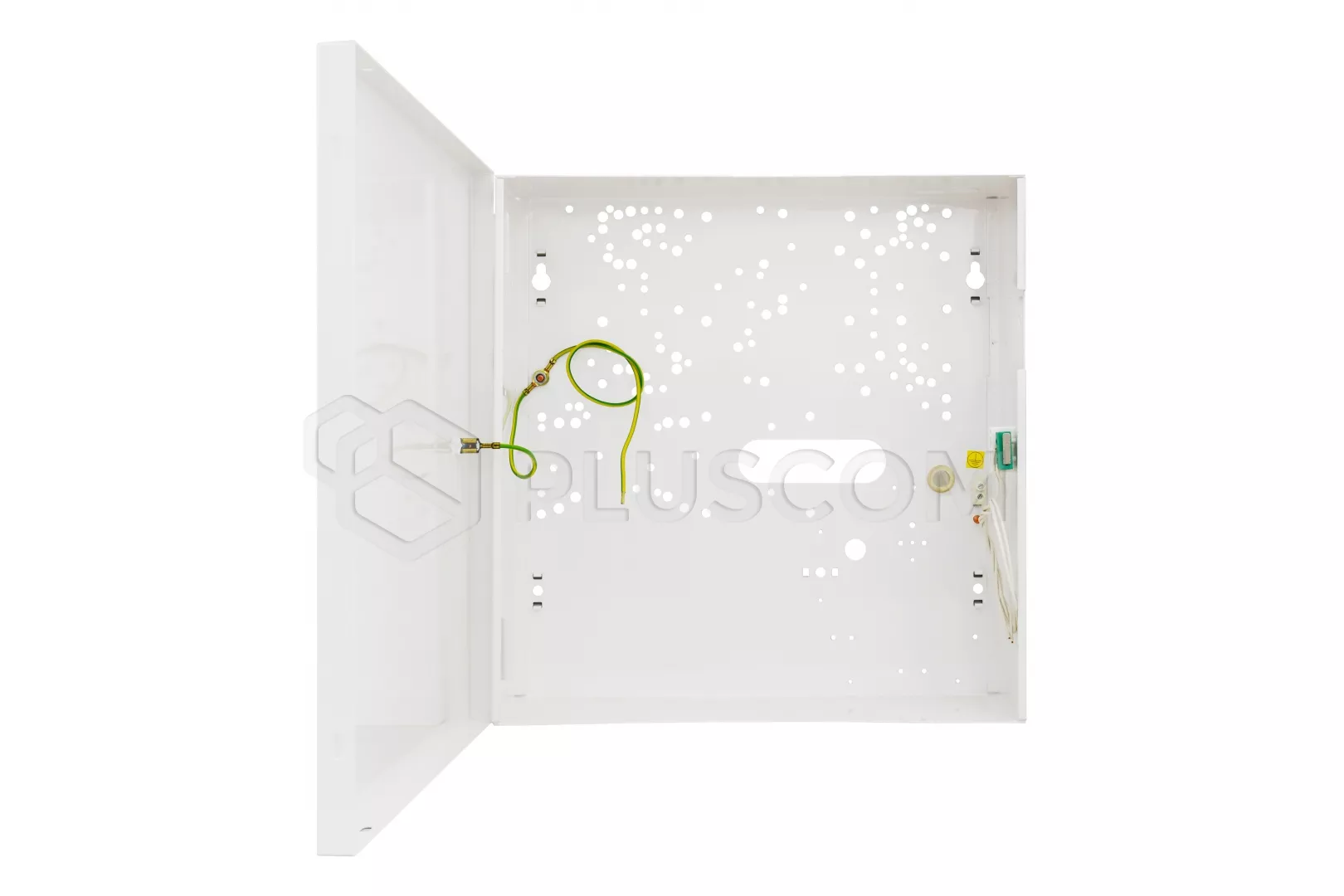

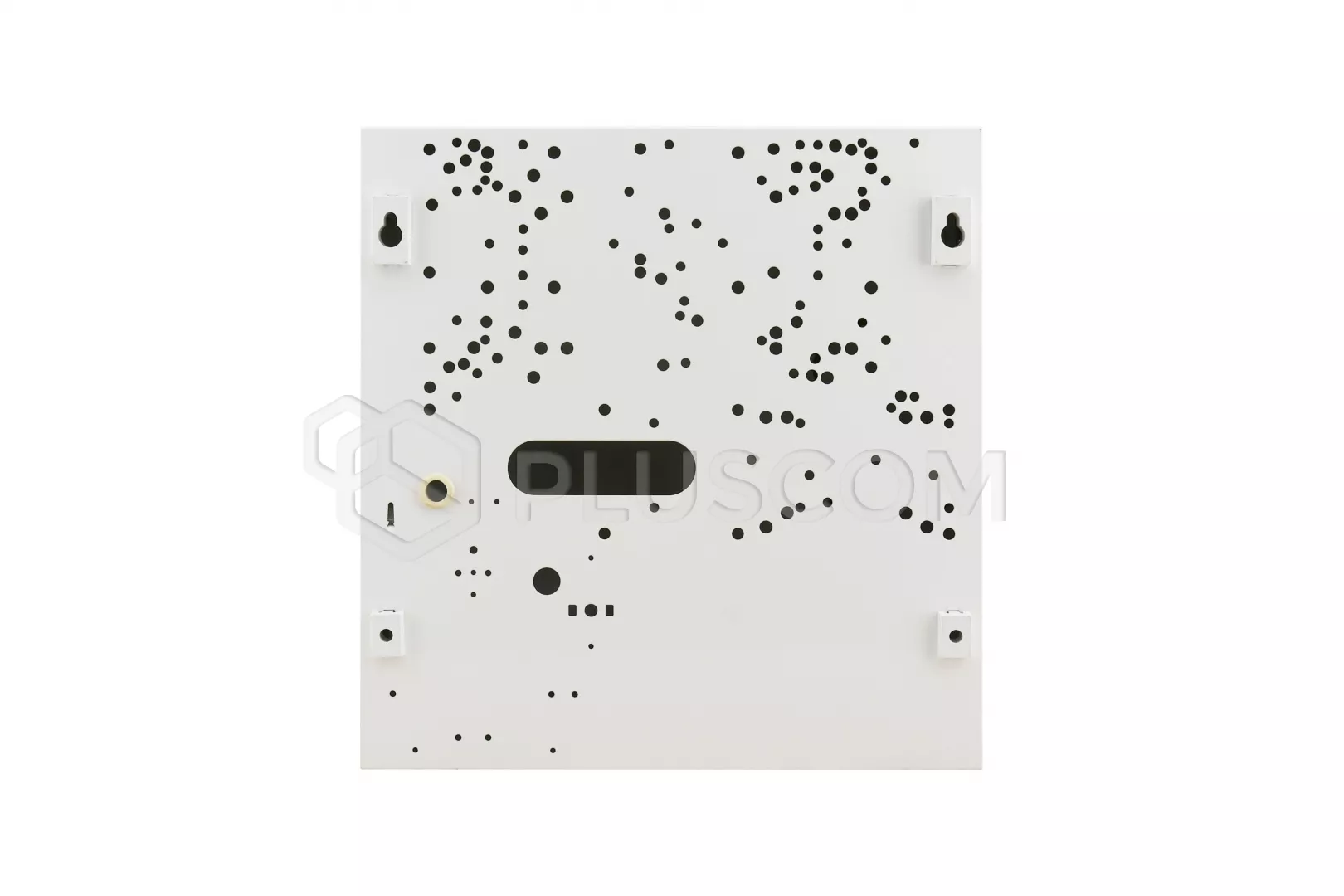

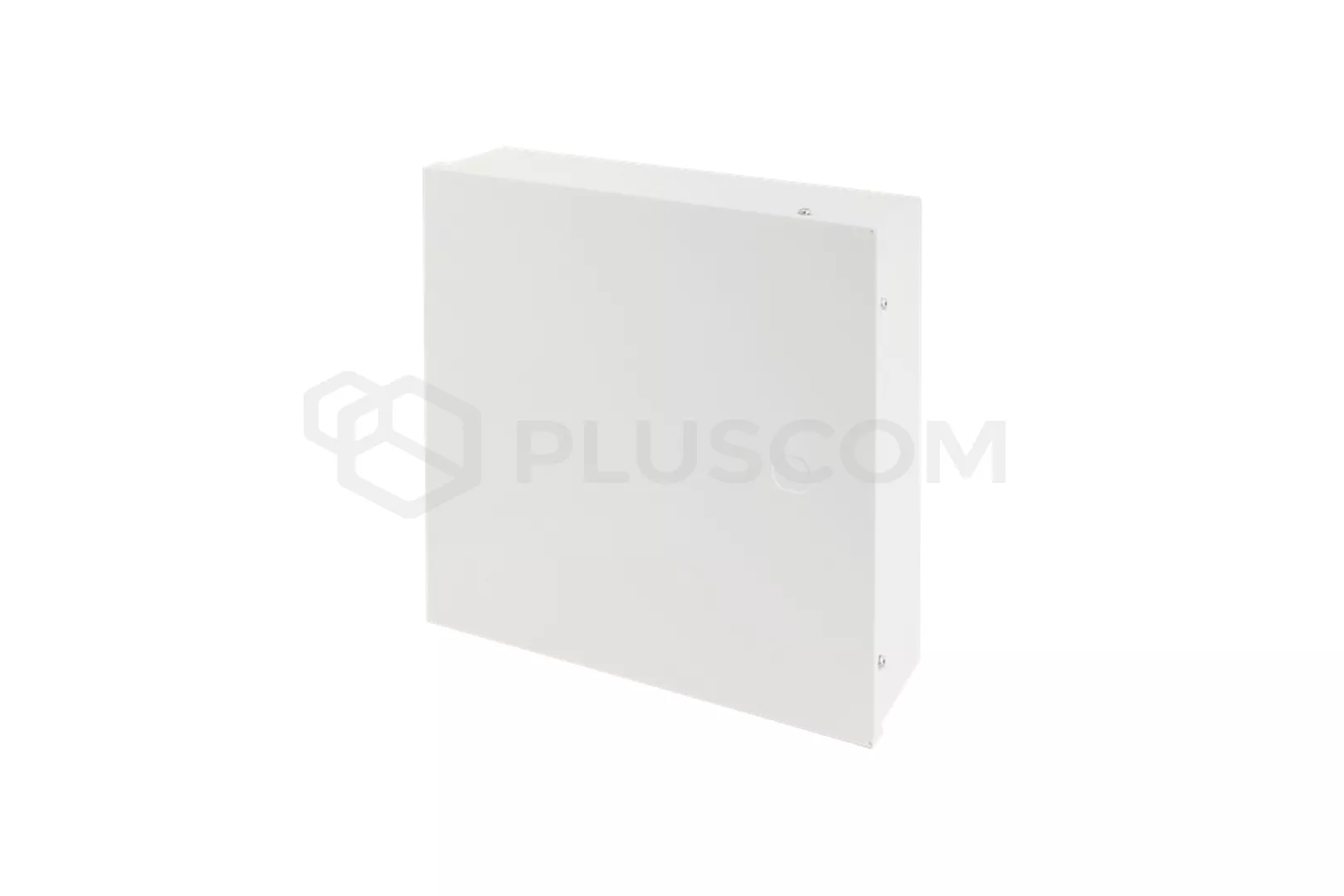

Pulsar AWO150PU Casing for control panels

28,95 EUR including 23.00% VAT
Product code: #10515
Manufacturer: Pulsar
  • Universal housing
  • Place on the transformer
  • Place on the battery 12V/7Ah
  • Dimensions: 285x295x80mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWO301PU Casing for control panels Pulsar AWO000PU Casing for control panels Pulsar AWO220PU Casing for control panels with transformer Pulsar AWO250PU Casing for control panels

Pulsar AWO150PU (v. 1.9) 7/40/DSPR/PUSTA

  • control panel optional with supplementary modules
  • access control controllers with optional modules
  • radio or GSM transmitter with optional module PSU
  • other dedicated devices, components etc.
  • transformers which can be mounted in the casing TRP20, TRP40, TRZ20, TRZ40, EI20, EI40.

Kit contents:

Kit contents:

The housing has a place for 12V/7Ah.
The standard is also a tamper protection in the form of the chassis intrusion detector

SPECIFICATIONS:
  • place ontransformer
  • place on battery: 12V/7Ah
  • tamper protection: Yes
  • Material: 0.7mm sheet RAL9003 color
  • degree od protection : IP20
  • Internal dimensions: 285x295x80mm
  • closing: 4x twisted sheet metal, an optional locking
  • distance from wall 8mm

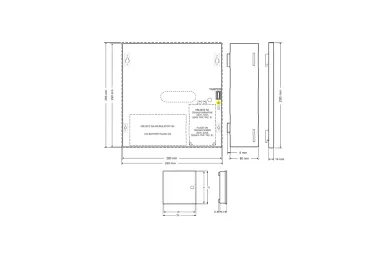

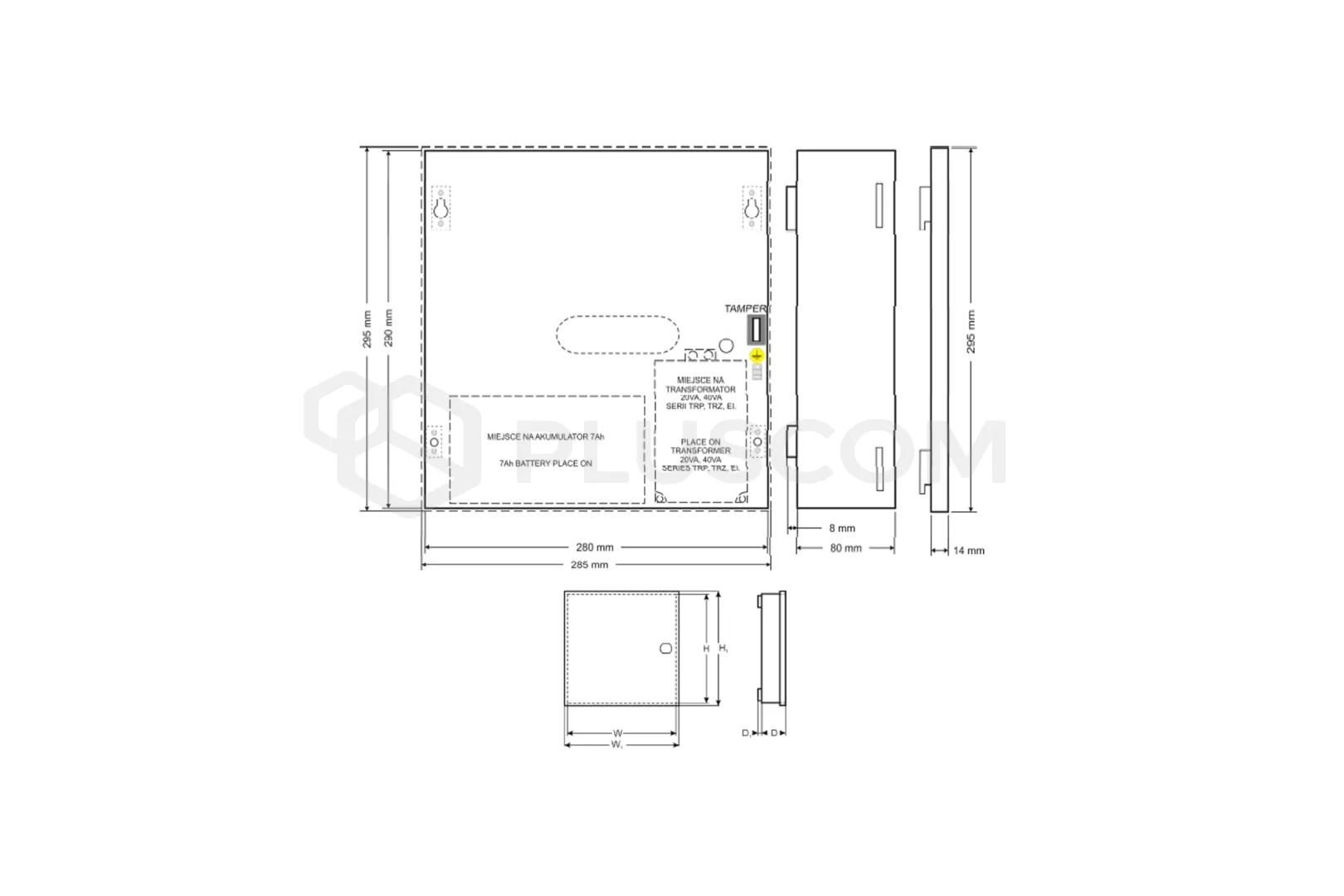

Dimensions:

Dimensions:


PANELS WHICH CAN BE MOUNTED:
  • DSC: (PC 1404, 1616, 1832, 1864,4020)+ 5108 (4108, 5208, 5100, 4116)
    • MODUŁY: 3x (4108, 5108, 5208, 5100, 4116) 1 x (4204, 4216, 4580, 5400, 5204, 5580, 5200)
  • PARADOX: (728ULT, E55, E65, SP4000, SP5500, SP6000, SP7000, EVO48, EVO192) + ZX8 (ZX4, PGM4)
    • MODUŁY: 2x (ZX8, ZX4, APR3- HUB2, PGM4) 1x (APR3- ADM2)
  • RISCO: PRO24 + EZ16 ( E04, EZ8), PRO116, 128, 140
    • MODUŁY: 2x EZ16 ( E04, EZ8)
  • SATEL: CA4V1, CA5, CA6 (VERSA5,10, 15, CA10)+ CA10E ( CA64E, SM, MST1) (INTEGRA 24, 32) + CA64E, (SM)
    • MODUŁY:CA64 ( PP, EPS, ADR, O-R, O-ROC, O-OC,OPS- OC, OPS- R, OPS- ROC, VGM- 16, SR, PTSA) + CA64E (SM)
  • PYRONIX: MATRIX 424, 6, 816, 832, 832+
  • CROW: RUNNER 4,8
  • TELMOR: TCA- 824
  • ROEL: SIGMA 6,12, CERBER
  • ROGER: PR402, CPR 32- SE
  • EBS: PX 202A
  • PULSAR: MS1012, MSR1012, MSRK1012, MS2012, MSR2012, MSRK2012

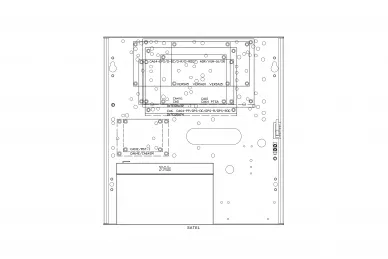

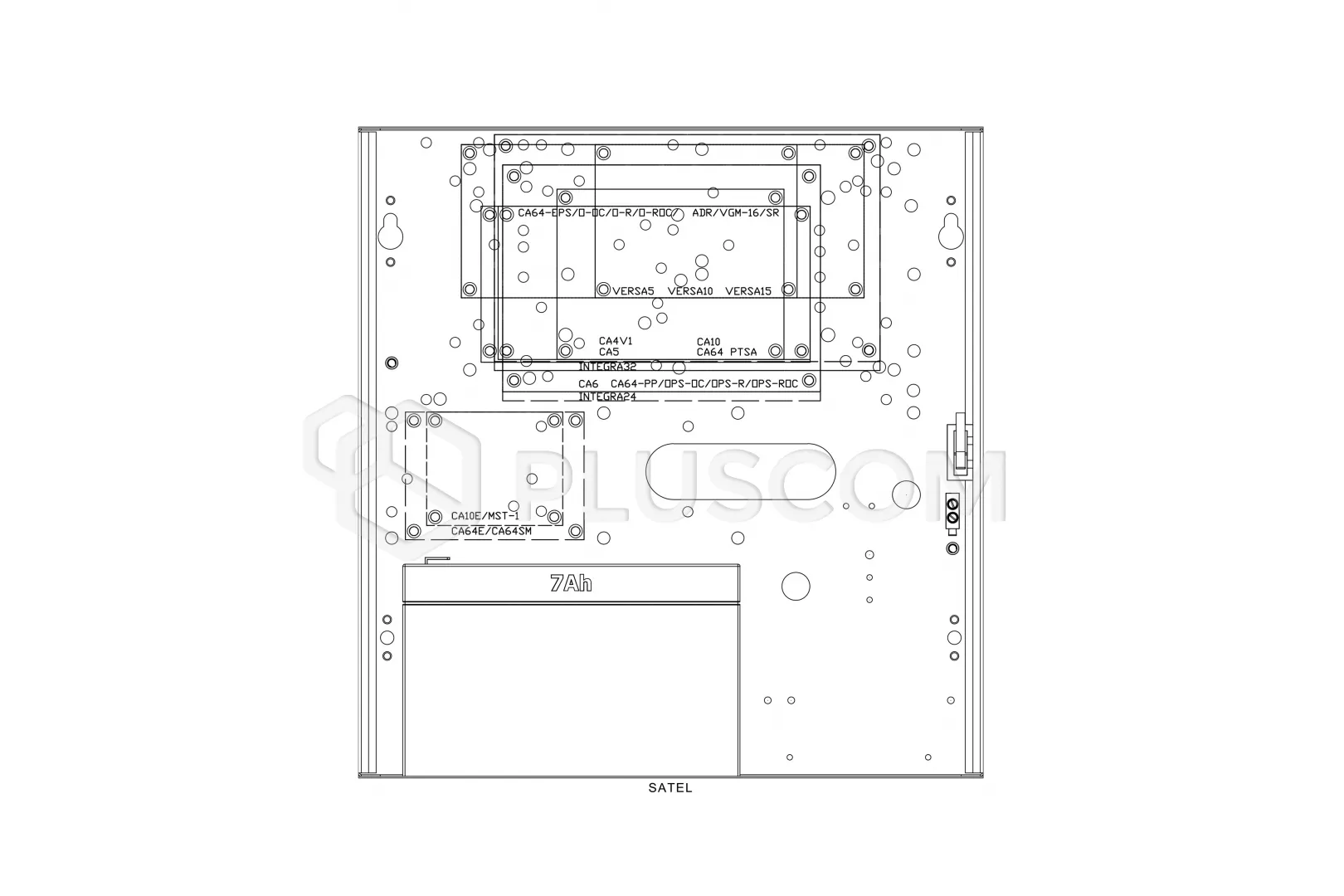

Installation of control panels

Installation of control panels

Download
Datasheet 0.2 MB
CE Declaration 0.14 MB
Instruction 0.47 MB
