Pulsar AWO250PU Casing for control panels

Pulsar AWO250PU 17/50/DSPR/PUSTA

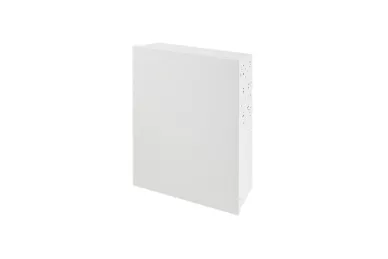

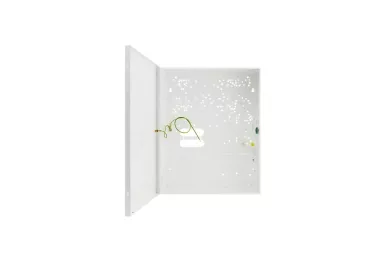

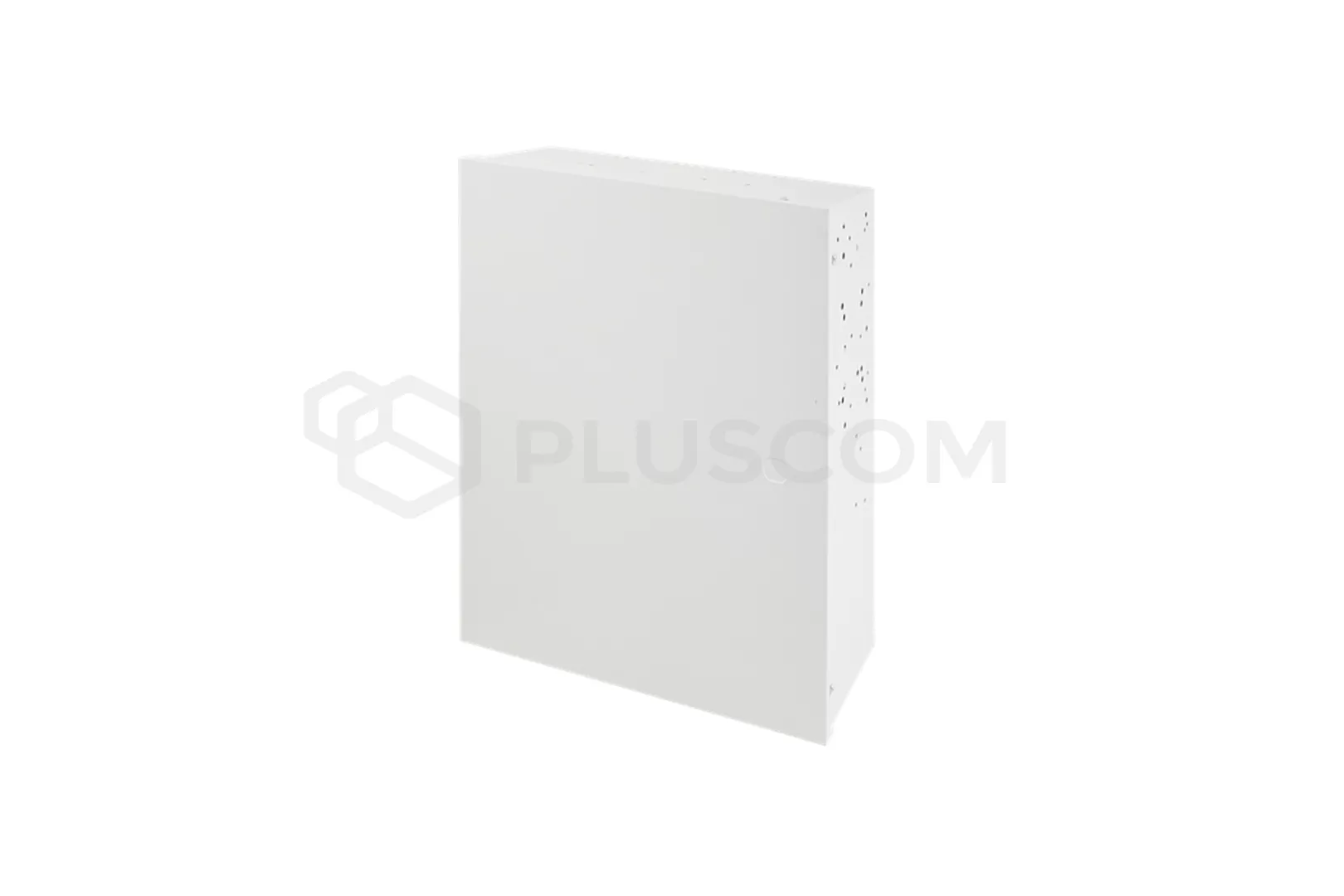

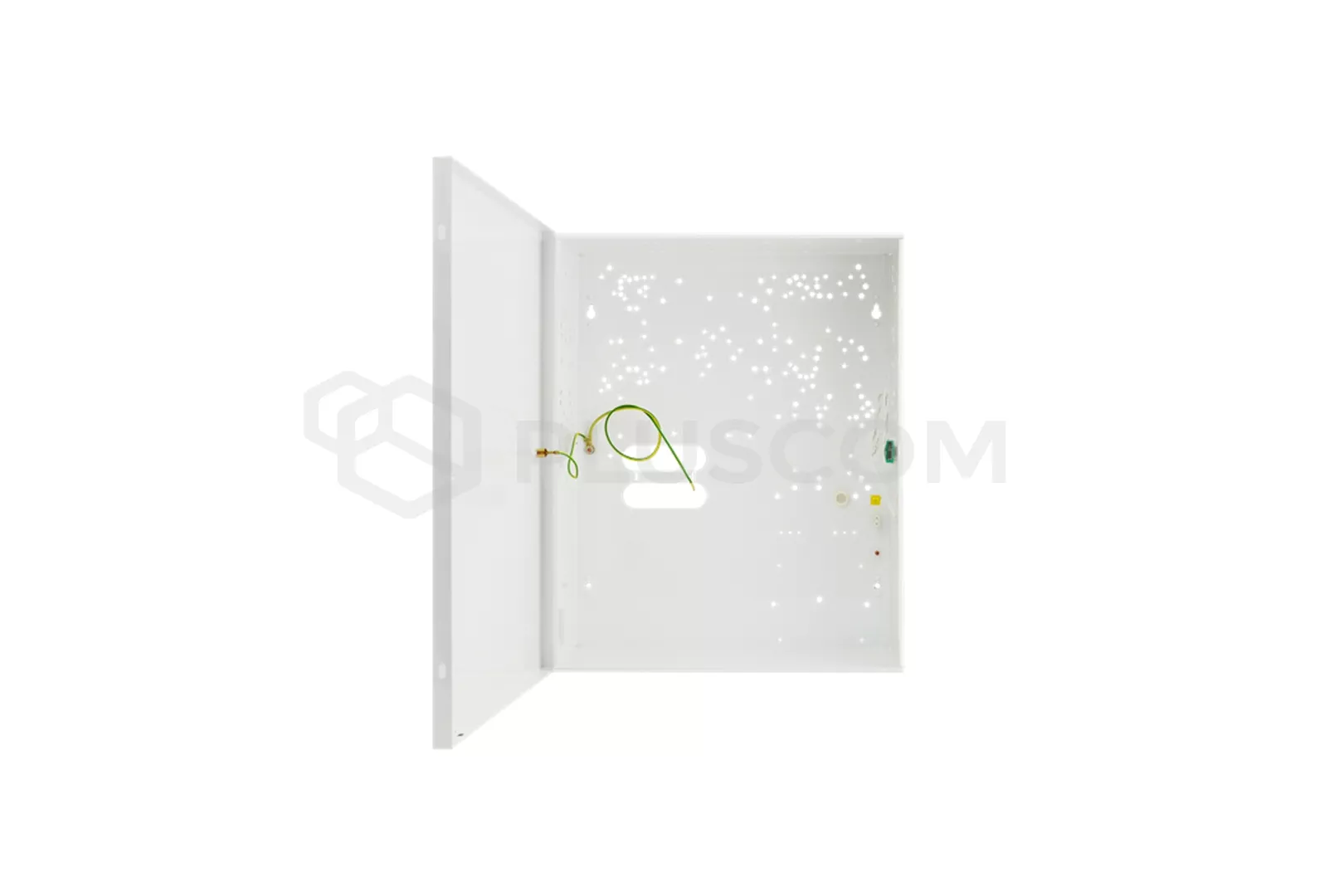

The AWO 250PU metal casings are designedto the panel  DSC, PARADOX, RISCO, SATEL, PYRONIX, TEXECOM, TELMOR, ROGER, EBS, PULSAR.
Transformers which can be mounted in the casing
TRP50, TRP80, TRZ50, TRZ80, TOR50, TOR80, TOR100, TOR150.


The housing has a place for 12V/17Ah.
The standard is also a tamper protection in the form of the chassis intrusion detector

SPECIFICATIONS:

• place ontransformer
• place on battery: 12V/17Ah

• tamper protection: Yes

• Material: 0.7mm sheet RAL9003 color

• degree od protection : IP20

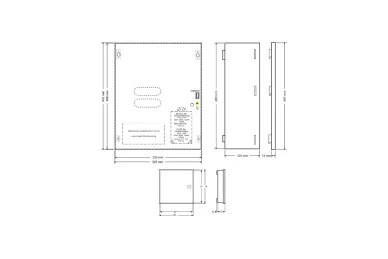

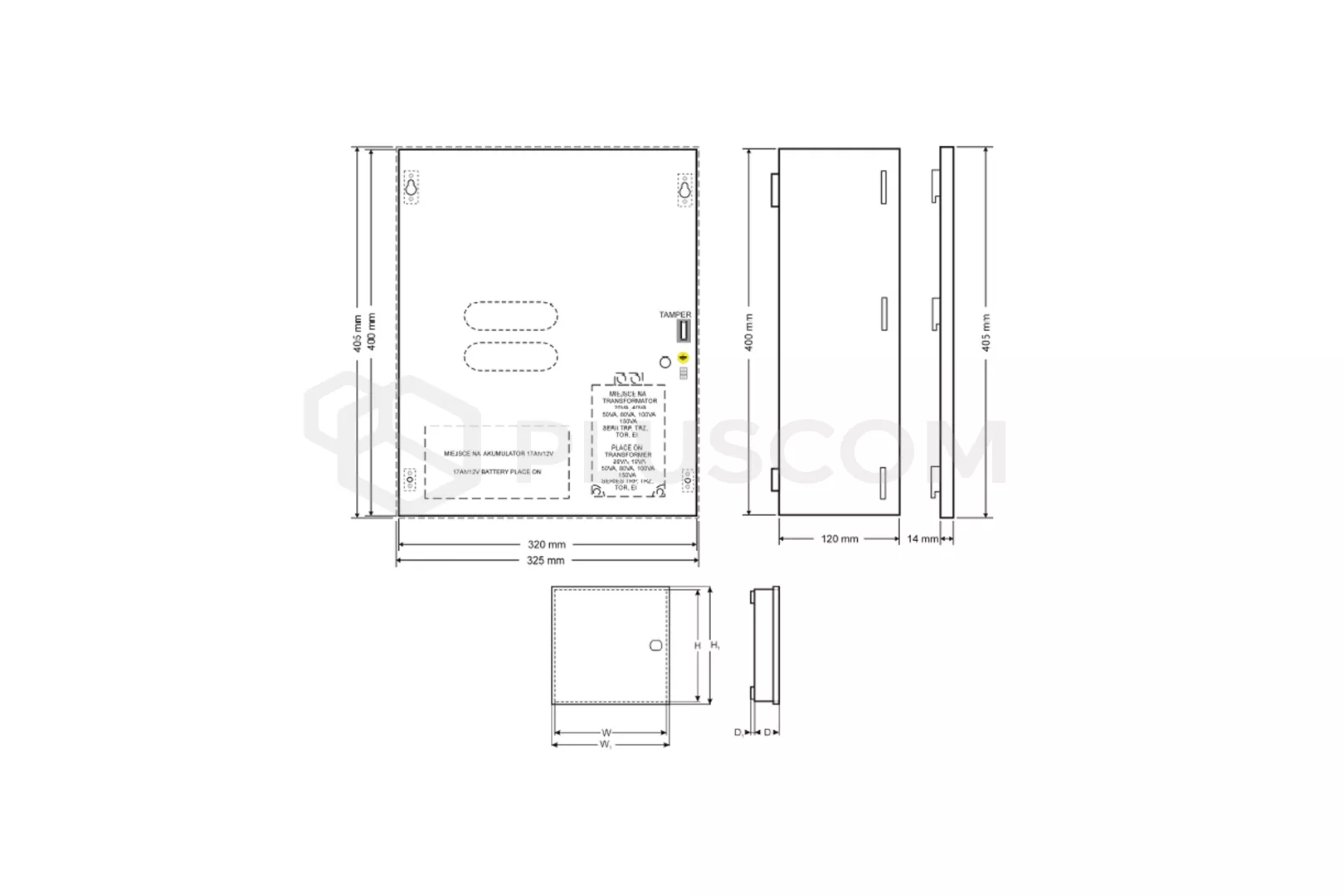

• Internal dimensions: 320x400x120+8mm
• closing: 4x twisted sheet metal, an optional locking

• distance from wall 8mm

PANELS WHICH CAN BE MOUNTED:

• DSC: PC1616, 1832, 1864, 4020 + 7x 5108 ( 4108, 5208, 5100, 4116)
  PC1616, 1832, 1864, 4020 + 2x (5400, 5580, 4216) + 5x ( 4108, 5108, 5208, 5100, 4116)
  PC1616, 1832, 1864, 4020+ ( 5204, 5200) + 6x 5108 ( 4108, 5208, 5100, 4116)

• • MODUŁY: 3x ( 5400, 5204, 5200, 5580, 4216) + 5x ( 5108, 4108, 5100, 4116, 5208)
    4204 + 7x ( 5108, 4108, 5100, 4116, 5208)

• PARADOX: E55, E65, 728ULT, EVO48, EVO192, SP4000, SP5500, SP6000, SP7000) + 4x ZX8 ( APR3- ADM2, APR3- HUB2, PGM4)

• RISCO: PRO24, 116, 128, 140+ RP296EPS ( RP128 EPS) + 3x EZ16 ( E04, EZ8)
• SATEL: CA4VI, CA5, CA6, VERSA 5,10 15, CA10 + 4 x CA10E ( CA64E, SM, MST1), INTEGRA 24, 32 + 4x CA64E ( SM), INTEGRA 64, 128 + 3x CA64E ( SM)
• • MODUŁY: CA64 ( PP, EPS, ADR, O-R, O- ROC, O-OC, OPS- OC, OPS- R, OPS- ROC, VGM- 16, SR, PT SA)+ 4x CA64E (SM)
• PYRONIX: MATRIX 424, 816, 832, 832+
• TELMOR: TCA- 824+ 2x ( TEX800) + TMT1

• TEXECOM: PREMIER 412, 816, 832, PREMIER 48, 88, 168, 640 + COM 300 (ISDN)
• ROGER: PR402, CPR 32- SE, 2x blacha KD ( AWO432)
• EBS: PX 202A
• PULSAR: MS1012, MSR1012, MSRK1012, MS2012, MSR2012, MSRK2012, MSRK3012
