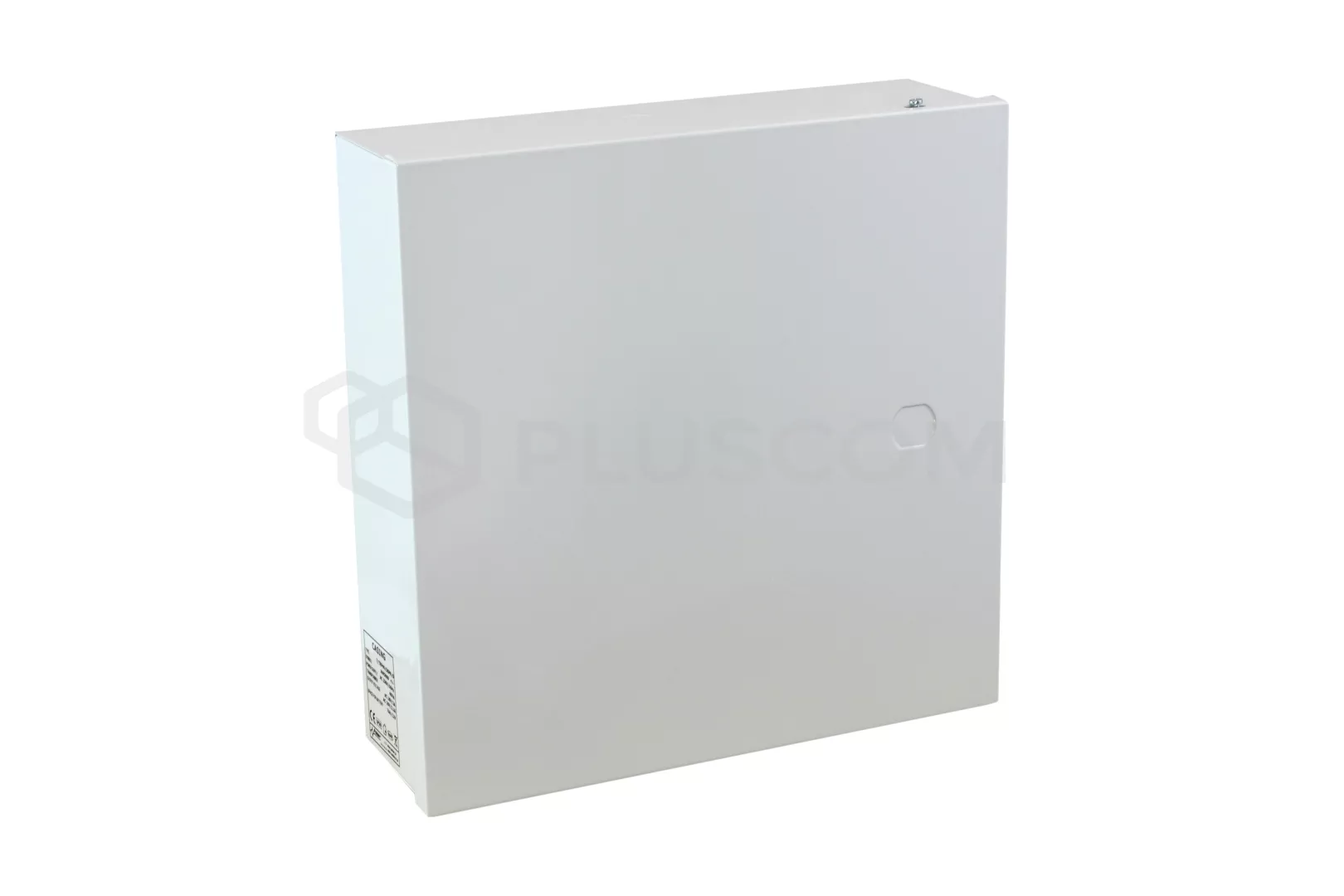

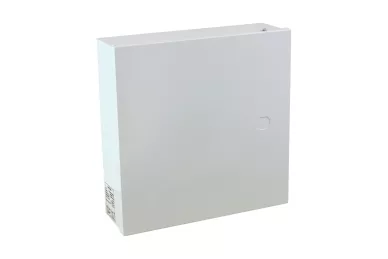

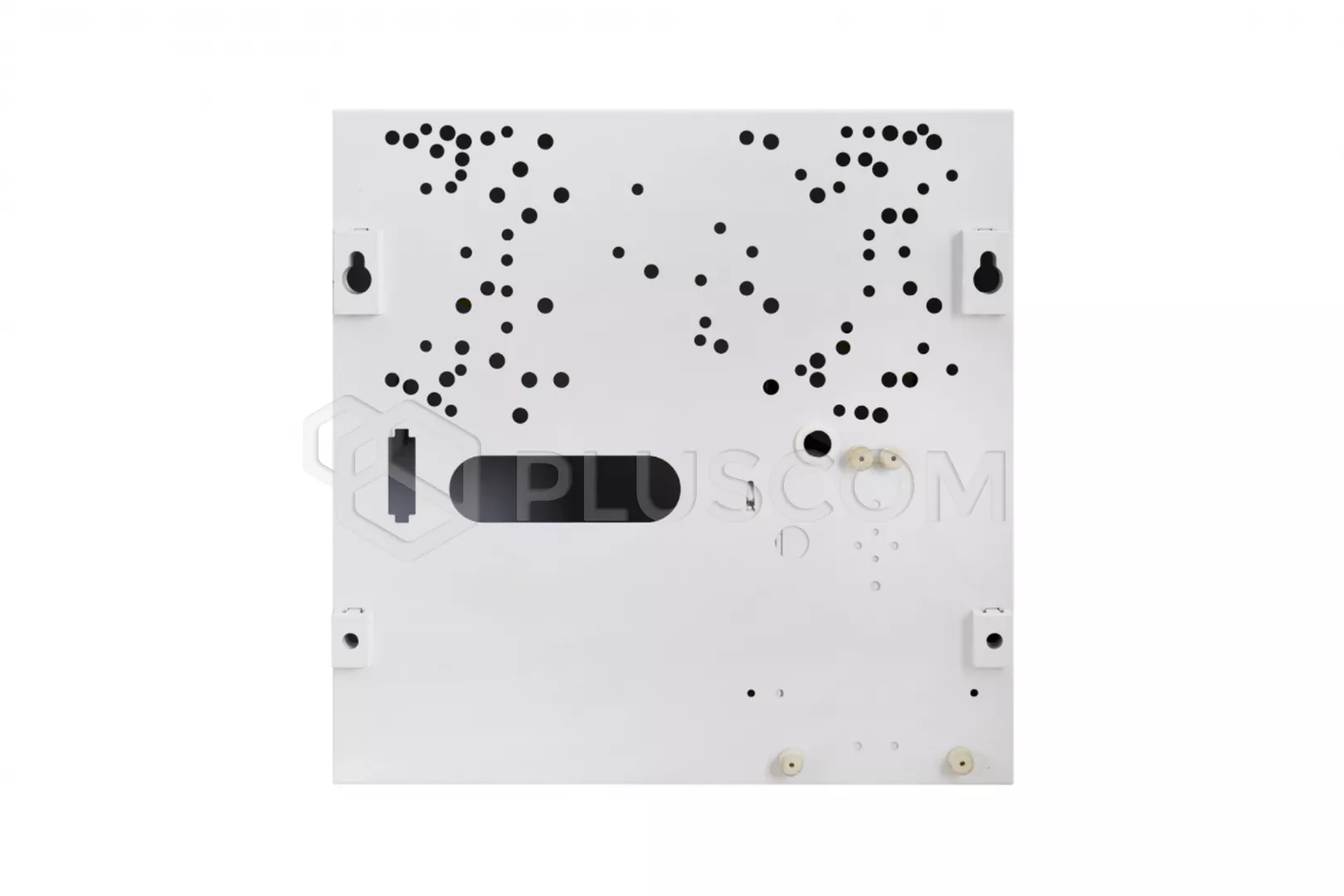

Pulsar AWO009 Casing for control panels with transformer

48,27 EUR including 23.00% VAT
Product code: #6493
Manufacturer: Pulsar
  • Universal housing, surface-mounted
  • Transformer: TRP 40VA/16V/18V
  • Place on the battery 12V/7Ah
  • Internal dimensions: 250x250x80mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWO200 Casing for control panels with transformer Pulsar AWO300 Casing for control panels with transformer Pulsar AWO000 Casing for control panels with transformer Pulsar AWO301 Casing for control panels with transformer Pulsar AWO150 Casing for control panels with transformer Pulsar AWO250 Casing for control panels with transformer Pulsar AWO220 Casing for control panels with transformer
Pulsar AWO009 (v. 1.2)
7/TRP40/DSPR/S surface mounted housing is designed for mounting:
  • panel boards and optional additional modules control
  • controllers and additional modules
  • radio transmitter, GSM
  • module PS
  • other dedicated devices

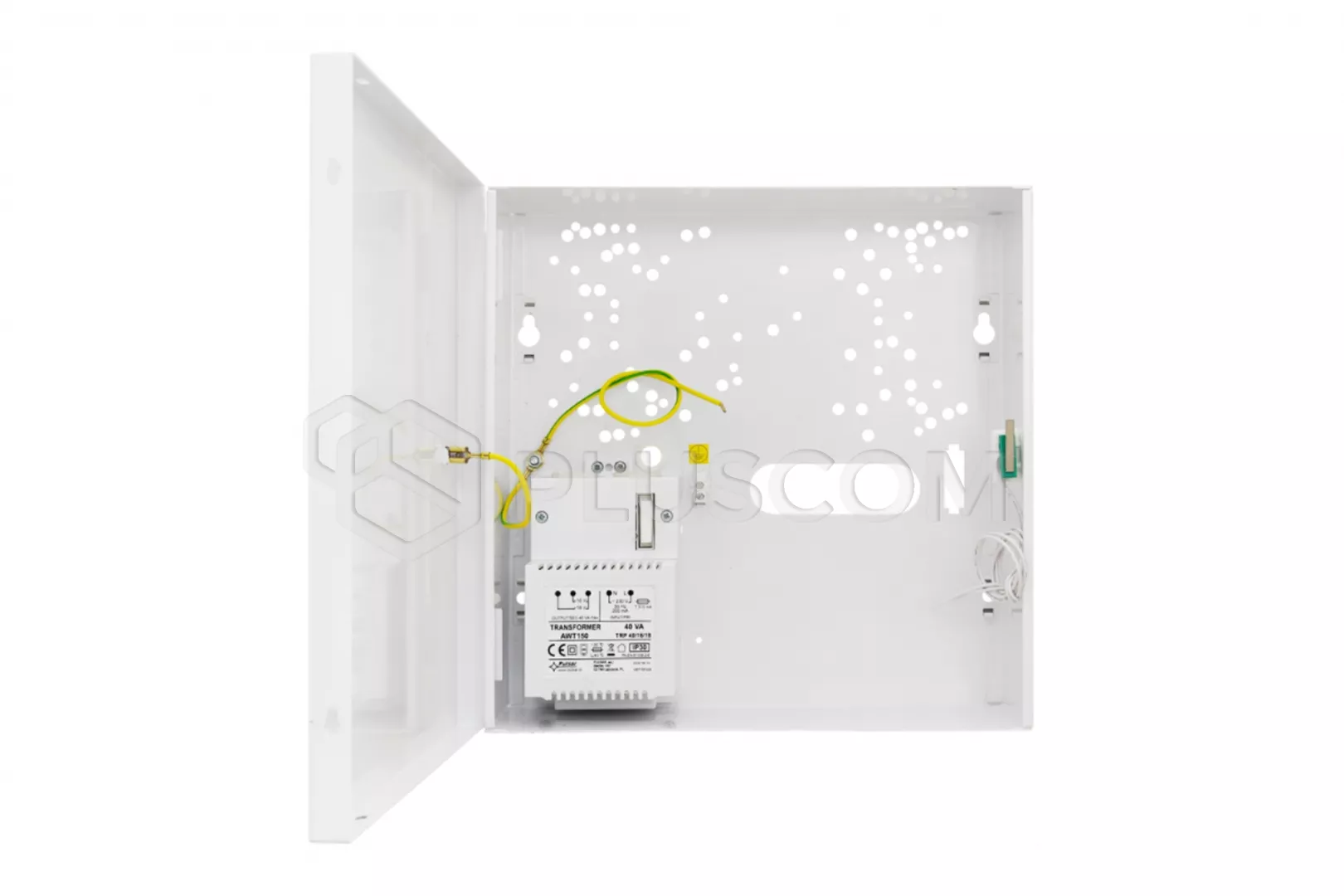

The housing includes a transformer TRP 40VA/16V/18V, in the housing PC/ABS, IP20
The housing has a place for 12V/7Ah. The standard is also a tamper protection in the form of the chassis intrusion detector.

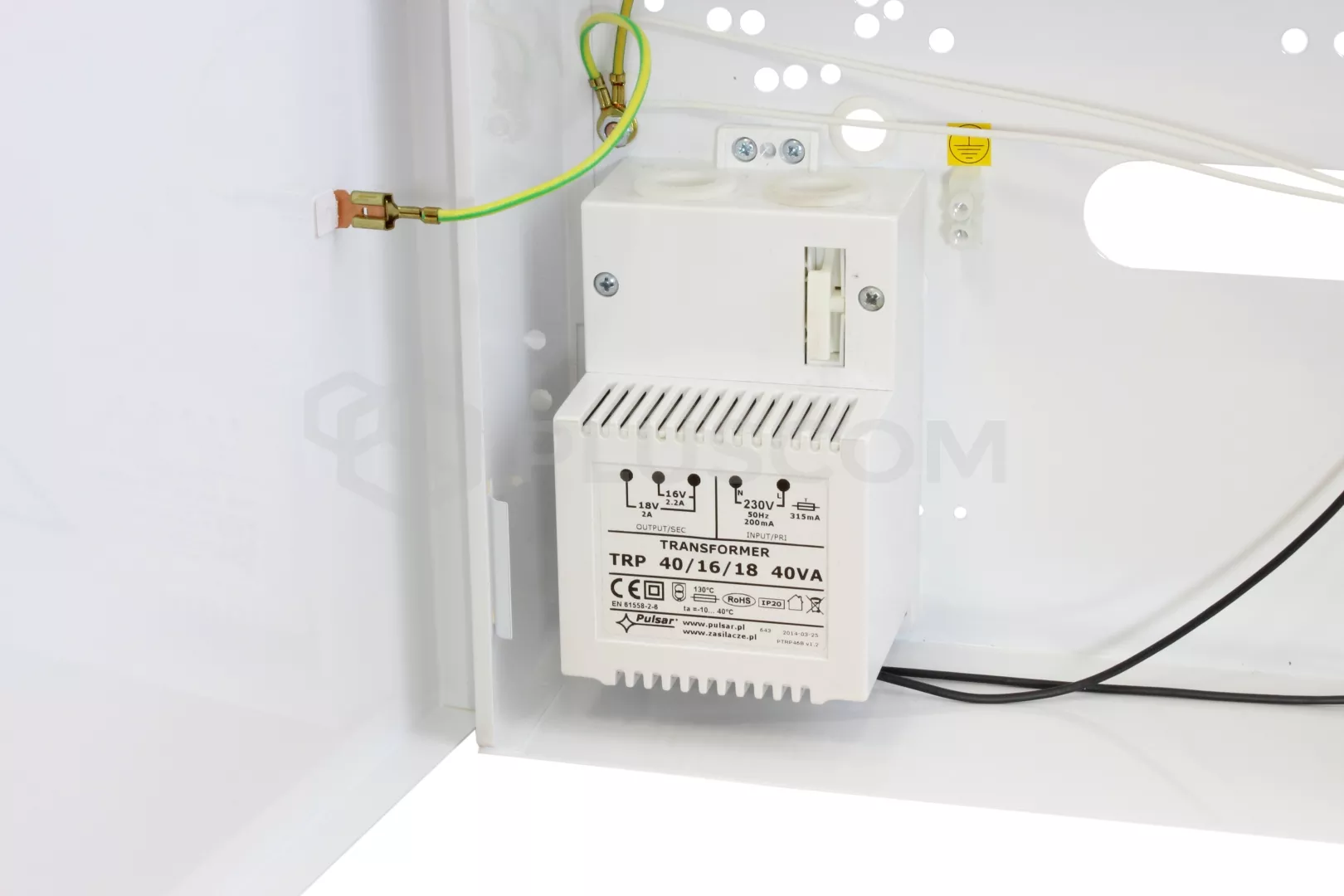

Built-in transformer Pulsar TRP 40/16/18

Built-in transformer Pulsar TRP 40/16/18



SPECIFICATIONS:
  • transformer TRP 40VA/16V/18V
    • power supply 230V/AC 50Hz
    • output voltage: 18V/2A, 16V/2,2A
  • place on battery: 12V/17Ah
  • tamper protection: Yes
  • material: 0.7mm sheet RAL9003 color
  • degree od protection : IP20
  • internal dimensions: 250x250x80mm
  • closing: 4x twisted sheet metal, an optional locking
  • distance from wall 8mm

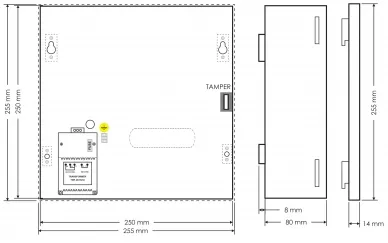

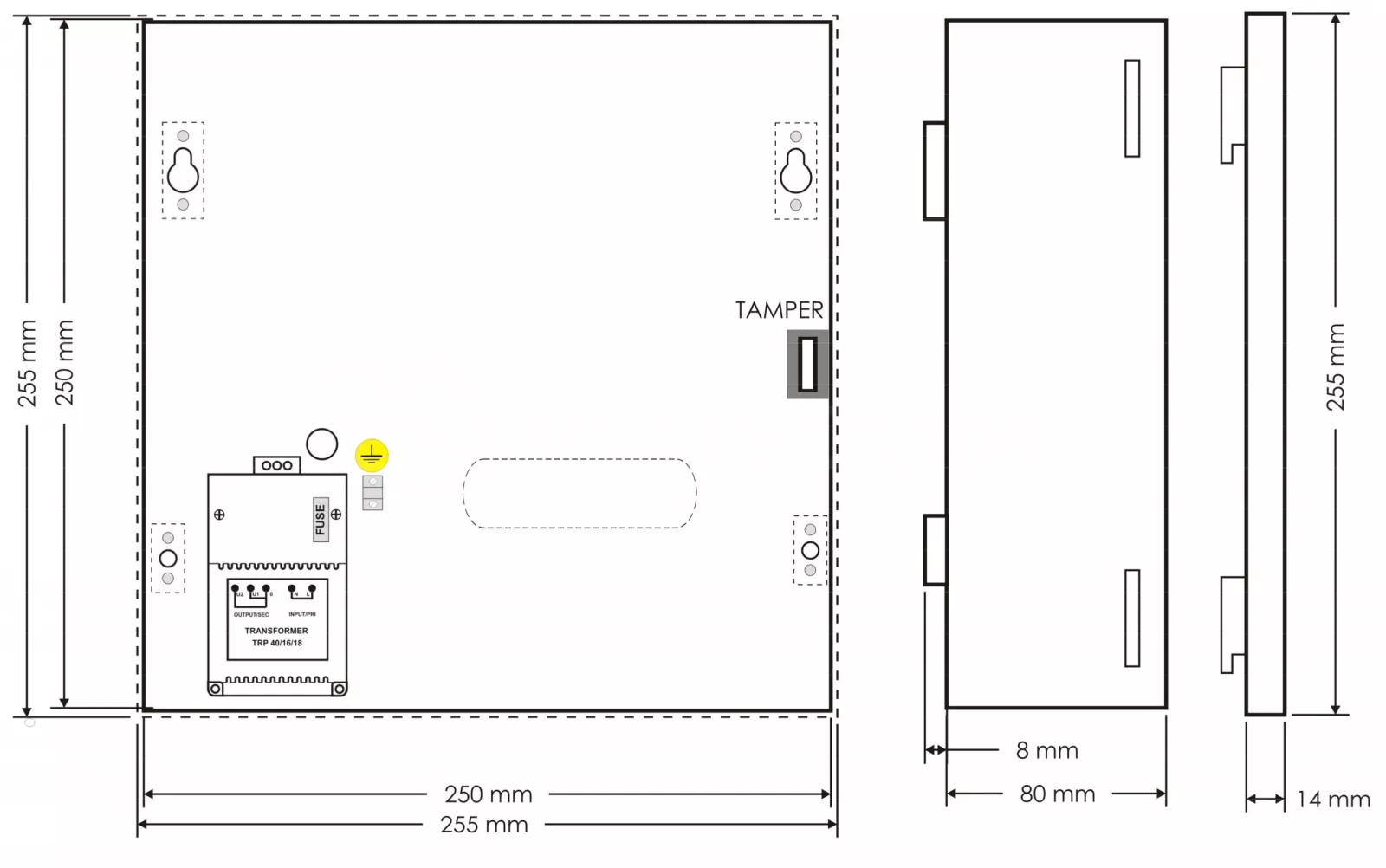

Pulsar AWO009 Dimensions:

Pulsar AWO009 Dimensions:



Housing is ideal for panel and modules installation SATEL

Panels:

  • CA4V1, CA5, CA6, CA10,VERSA5,10, 15, INTEGRA 24, 32

Modules:

  • CA64 ( PP, EPS, ADR, O-R, O-ROC, O-OC,OPS- OC, OPS- R, OPS- ROC,
    VGM- 16, SR, PTSA)

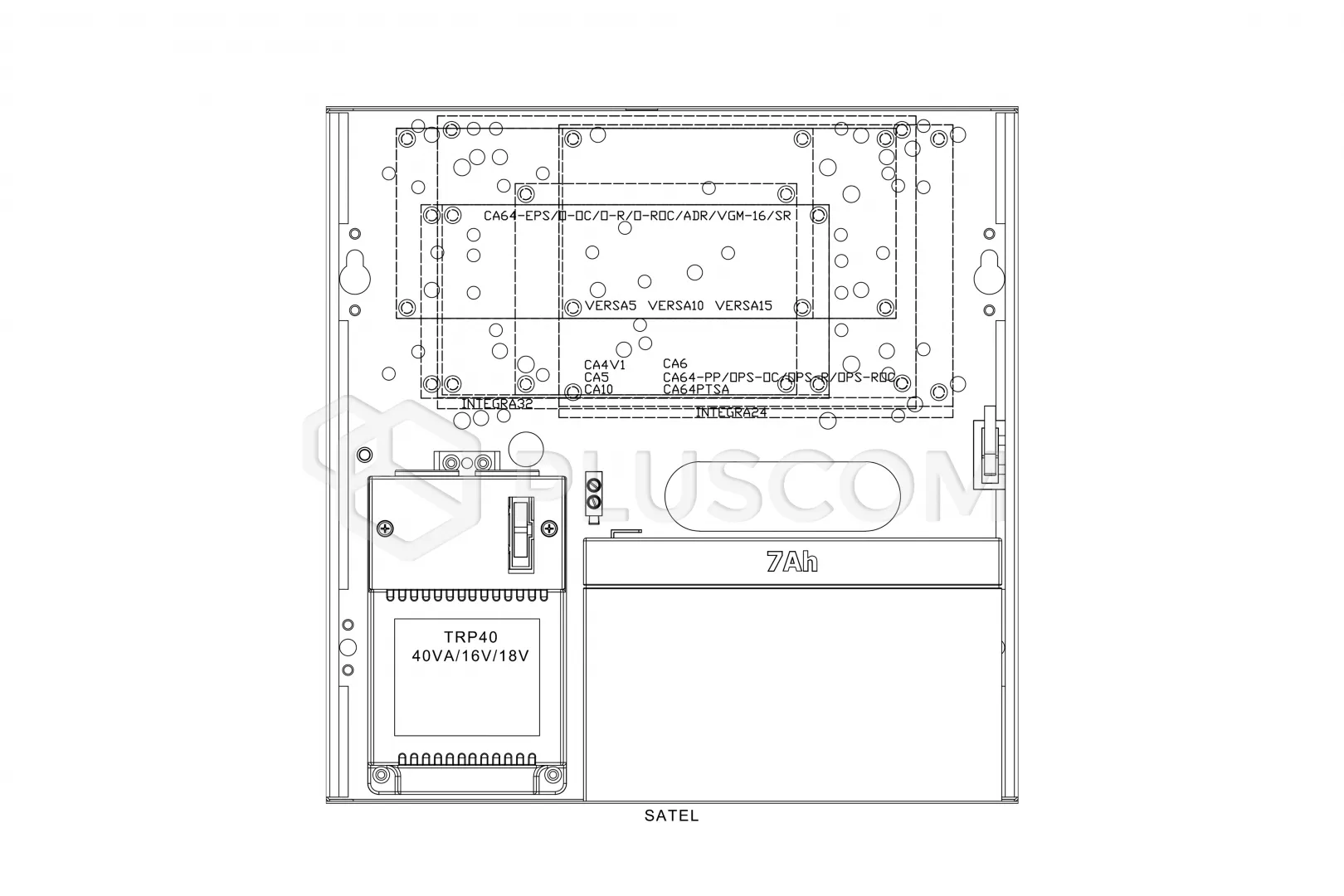

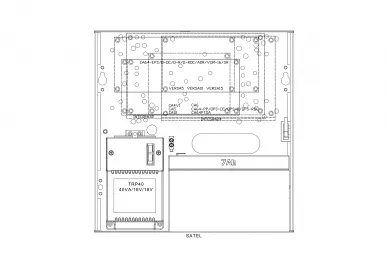

Sample distribution panel in the housing SATEL

Installation of control panels

Installation of control panels



Other panels that can be mounted in the enclosure:

DSC, PARADOX, RISCO, PYRONIX, CROW, TELMOR, SUMMIT, ROEL, EBS
