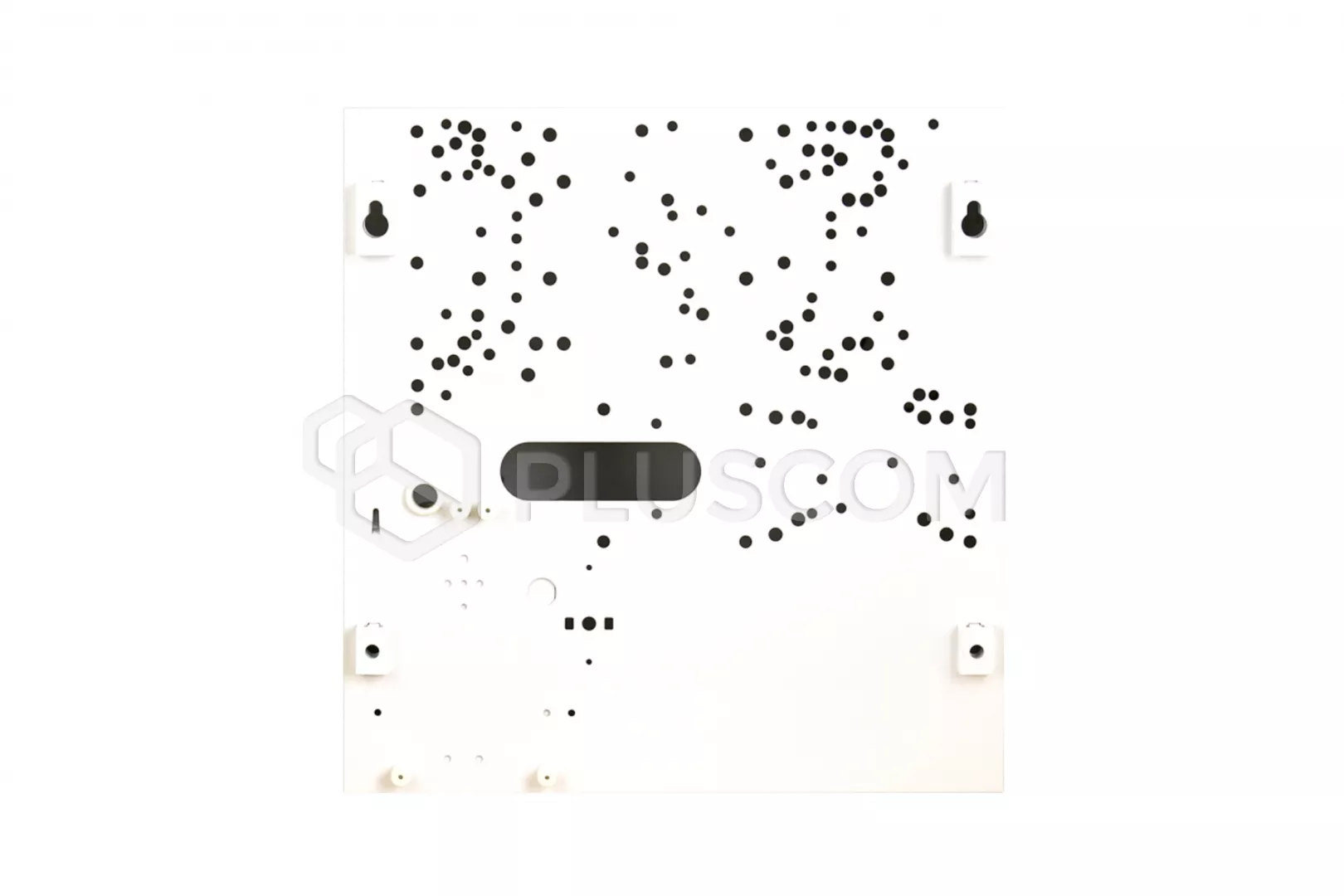

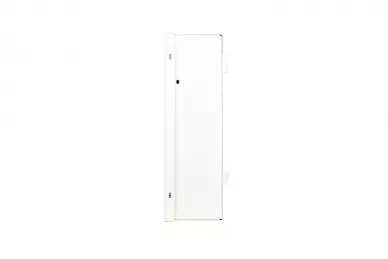

Pulsar AWO150 Casing for control panels with transformer

Pulsar AWO150 (v. 1.8) 7/TRP40/DSPR

Surface mounted housing is designed for mounting:

• panel boards and optional additional modules control

• controllers and additional modules

• radio transmitter, GSM

• module PS

• other dedicated devices

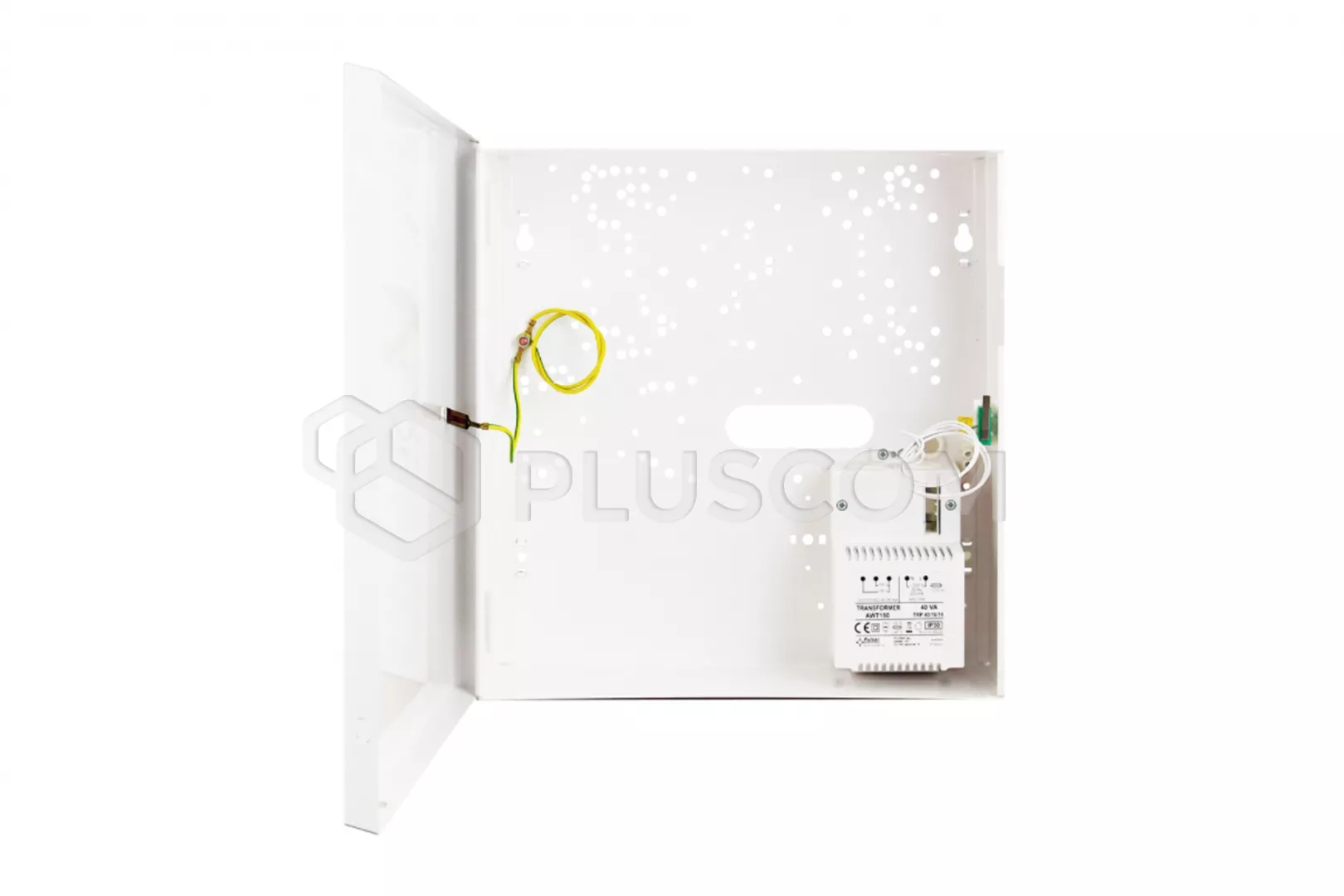

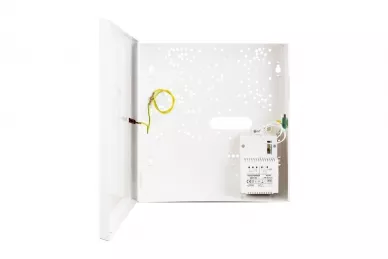

The housing includes a transformer TRP 40VA/16V/18V, in the housing PC/ABS, IP20

The housing has a place for 12V/7Ah. The standard is also a tamper protection in the form of the chassis intrusion detector

SPECIFICATIONS:

• transformer TRP 40VA/16V/18V

  • power supply 230V/AC 50Hz
  • output voltage: 18V/2A, 16V/2,2A
• place on battery: 12V/7Ah

• tamper protection: Yes

• material: 0.7mm sheet RAL9003 color

• degree od protection : IP20

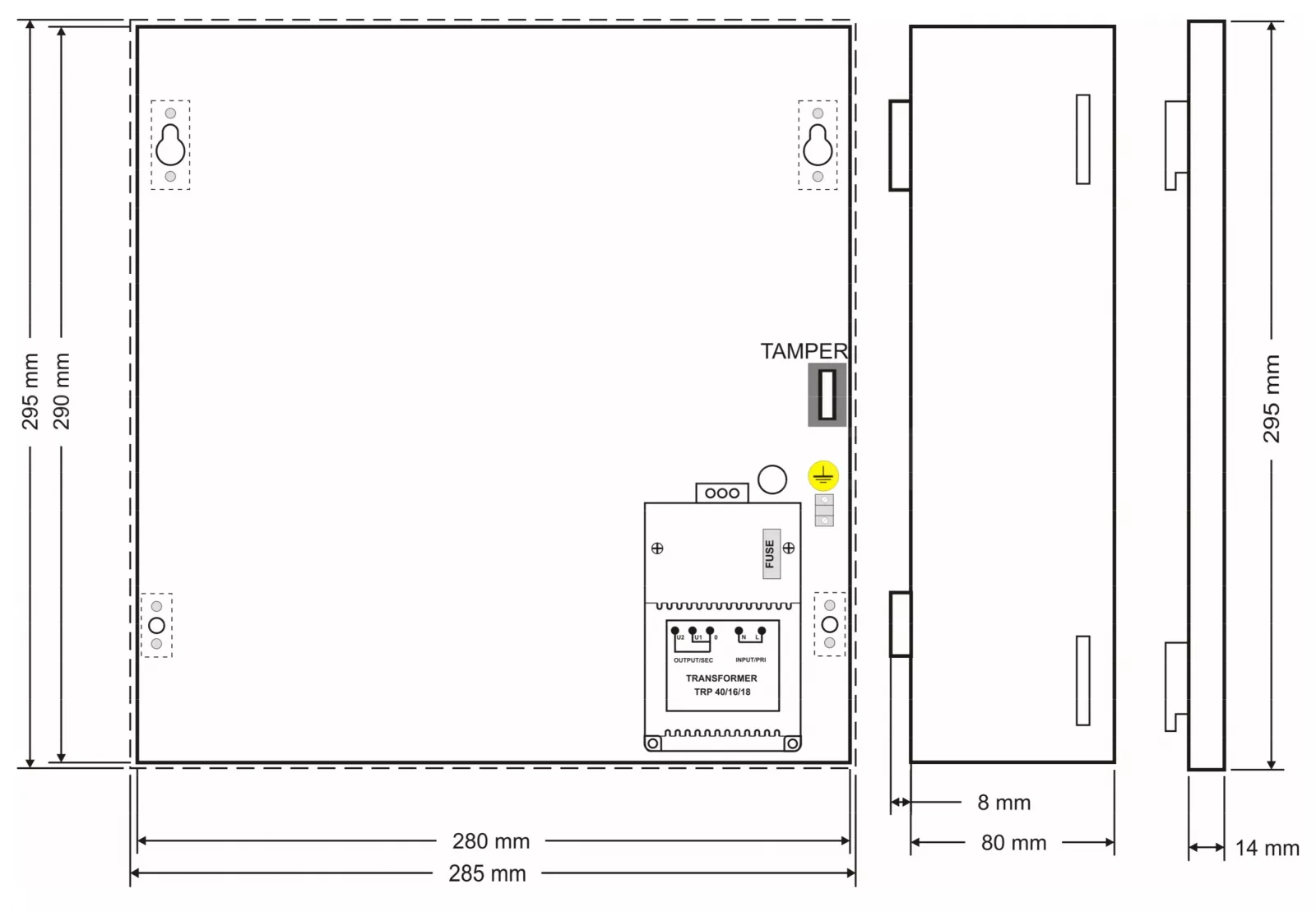

• internal dimensions: 280x290x80mm

• closing: 4x twisted sheet metal, an optional locking

• distance from wall 8mm

Housing is ideal for panel and modules installation SATEL

Panels:

• CA4V1, CA5, CA6
• VERSA 5, 10, 15, CA10) + CA10E ( CA 64E, SM, MST1)
• (INTEGRA 24, 32) + CA64E ( SM)


Modules:

• CA64 ( PP, EPS, ADR, O-R, O-ROC, O- OC,OPS- OC, OPS- R, OPS- ROC, VGM- 16, SR, PTSA) + CA64E (SM)

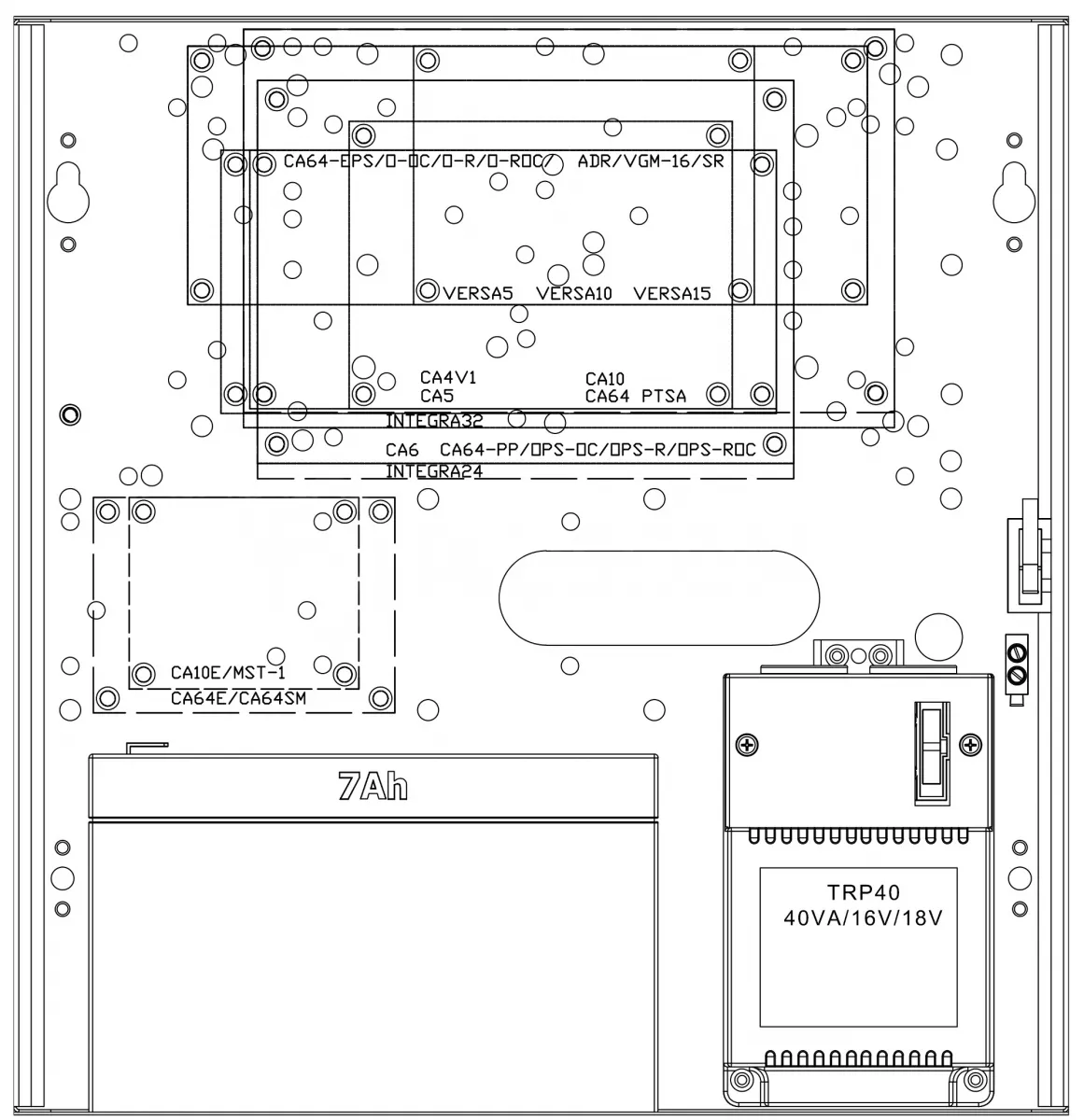

Sample distribution panel in the housing SATEL



Other panels that can be mounted in the enclosure:

DSC, PARADOX, RISCO,  PYRONIX, CROW, TEXECOM, TELMOR, ROEL, ROGER, EBS, PULSAR,
