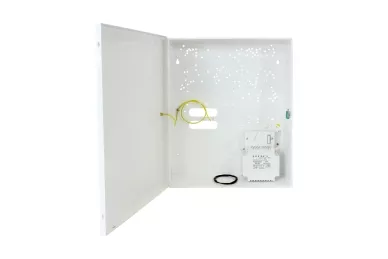

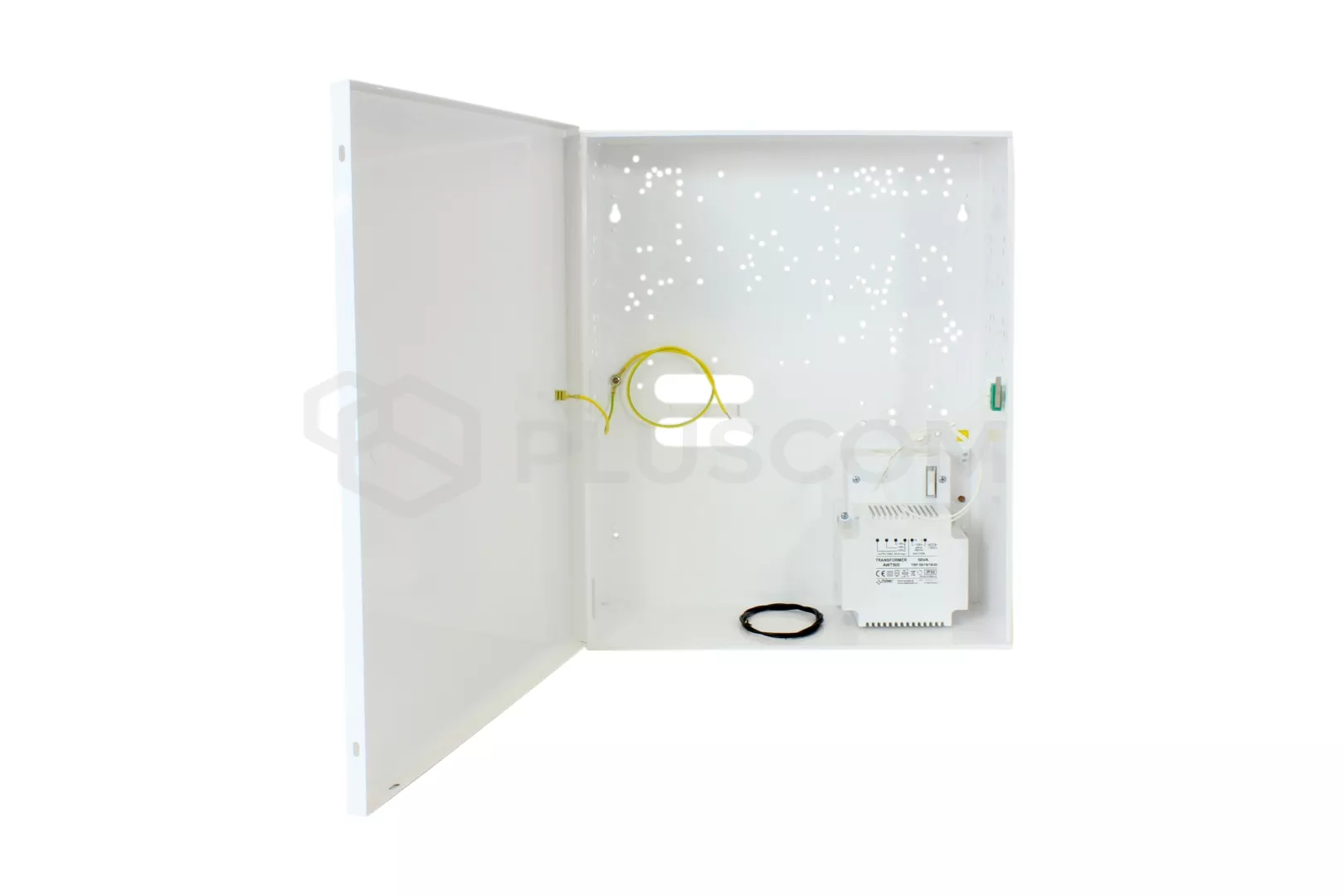

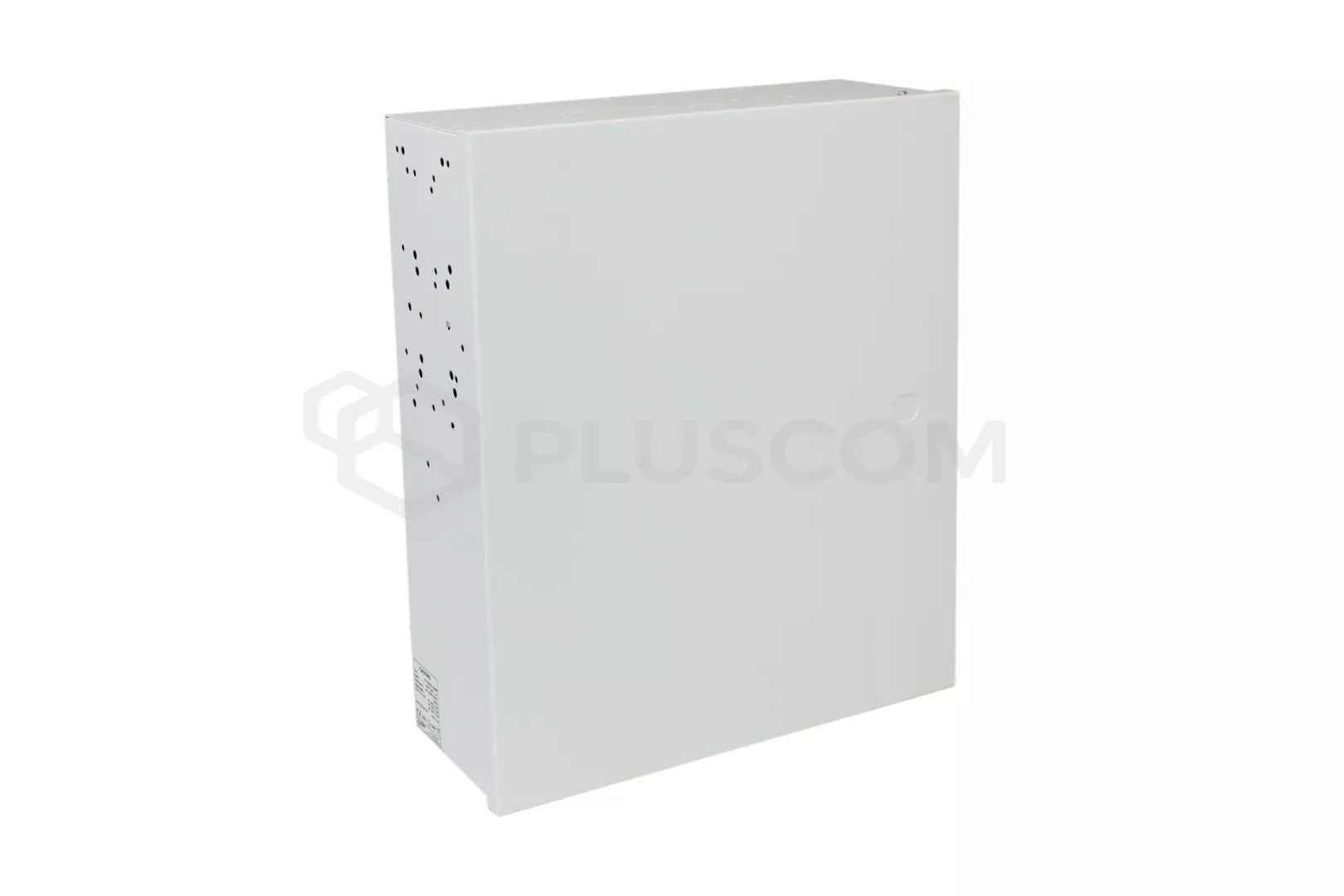

Pulsar AWO250 Casing for control panels with transformer

80,33 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #10535
Manufacturer: Pulsar
  • Universal housing
  • Transformer: TRP 50VA 16V/18V/20V
  • Place on the battery 12V/17Ah
  • Dimensions: 320x395x120mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWO300 Casing for control panels with transformer Pulsar AWO200 Casing for control panels with transformer Pulsar AWO000 Casing for control panels with transformer Pulsar AWO009 Casing for control panels with transformer Pulsar AWO301 Casing for control panels with transformer Pulsar AWO150 Casing for control panels with transformer Pulsar AWO220 Casing for control panels with transformer
Pulsar AWO250 17/TRP50/DSPR surface mounted housing is designed for mounting:
  • panel boards and optional additional modules control
  • controllers and additional modules
  • radio transmitter, GSM
  • module PS
  • other dedicated devices

The housing includes a transformer TRP 50VA/16V/18V/20V, in the housing PC/ABS, IP20

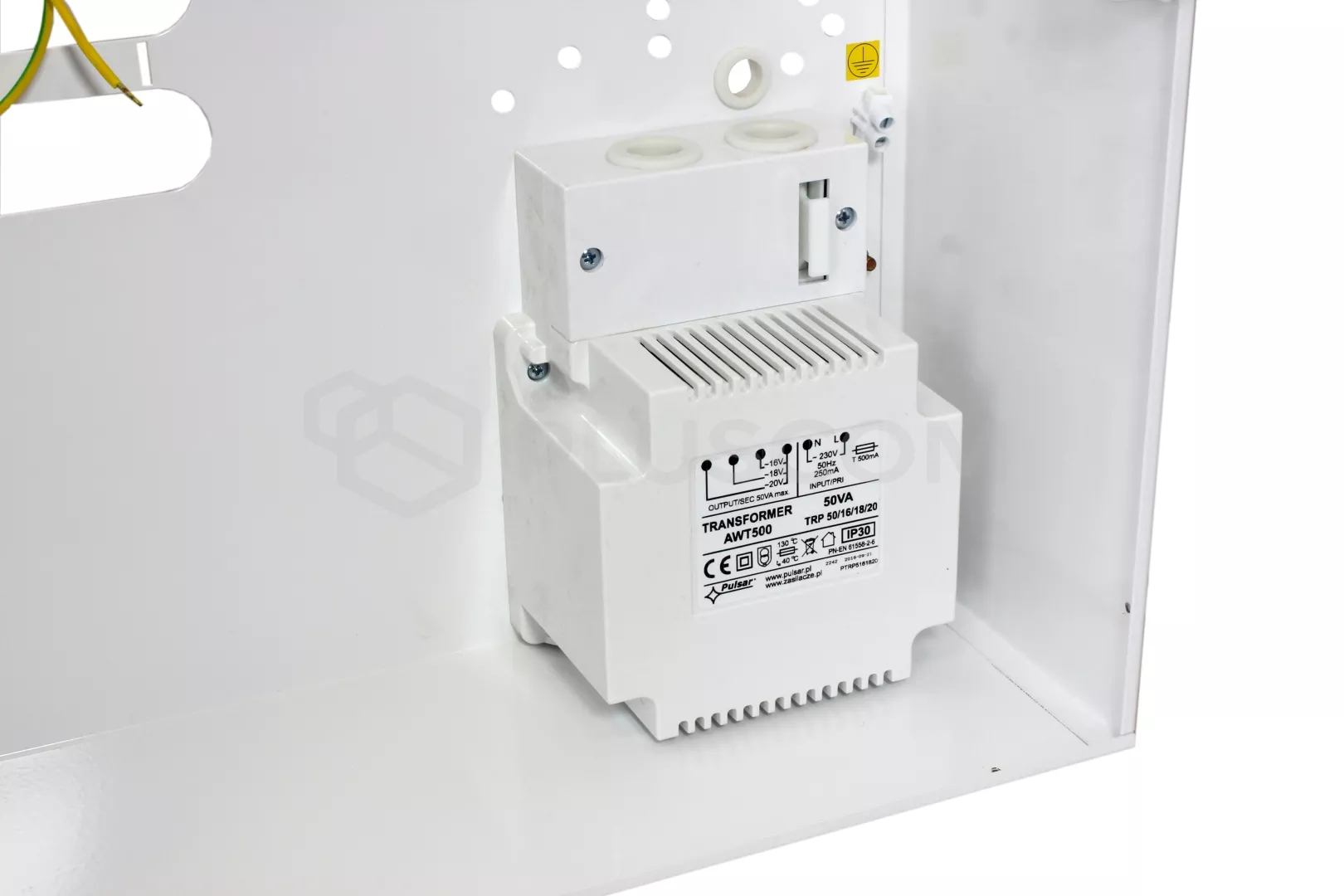

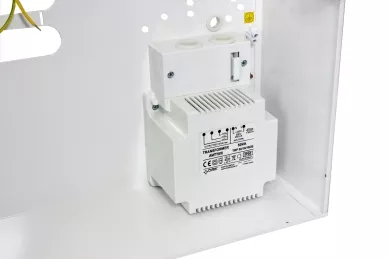

Transformer TRP50VA/16V/18V/20V:

Transformer TRP50VA/16V/18V/20V:


The housing has a place for 12V/17Ah. The standard is also a tamper protection in the form of the chassis intrusion detector


SPECIFICATIONS:
  • transformer TRP 50VA/16V/18V/20V
    • power supply 230V/AC 50Hz
    • output voltage: 20V/2,5A, 18V/2,8A, 16V/3A
  • place on battery: 12V/17Ah
  • tamper protection: Yes
  • material: 0.7mm sheet RAL9003 color
  • degree od protection : IP20
  • internal dimensions: 320x395x120mm
  • closing: 4x twisted sheet metal, an optional locking
  • distance from wall 8mm

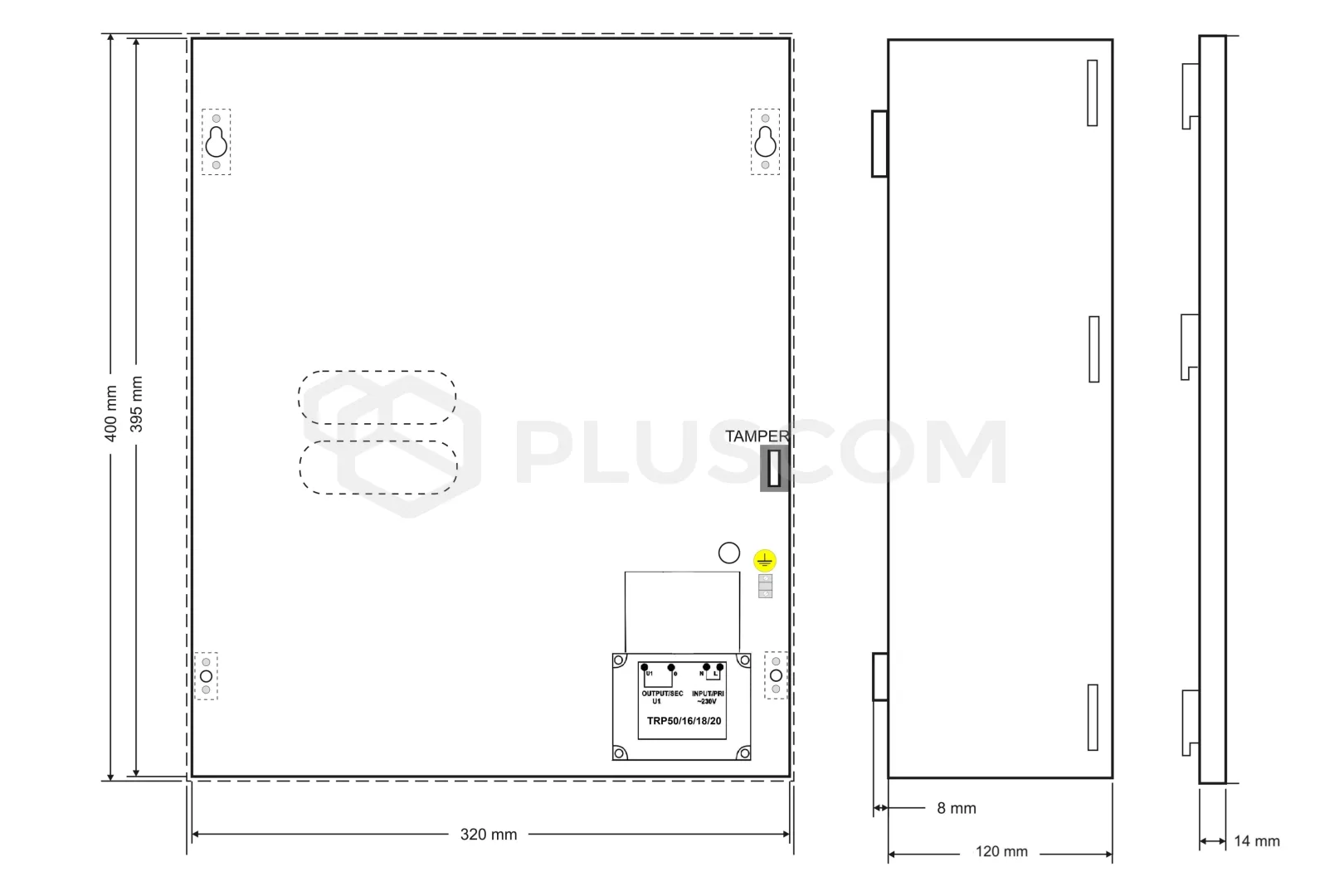

Pulsar AWO250 Dimensions (mm):

Pulsar AWO250 Dimensions (mm):



Housing is ideal for panel and modules installation SATEL

Panels:

  • CA4VI, CA5, CA6
  • VERSA 5,10 15, CA10 + 4 x CA10E ( CA64E, SM, MST1)
  • INTEGRA 24, 32 + 4x CA64E ( SM)
  • INTEGRA 64, 128 + 3x CA64E ( SM)

Modules:

  • CA64 ( PP, EPS, ADR, O-R, O- ROC, O-OC, OPS- OC, OPS- R, OPS- ROC,VGM- 16, SR, PT SA)+ 4x CA64E (SM)
Sample distribution panel in the housing SATEL

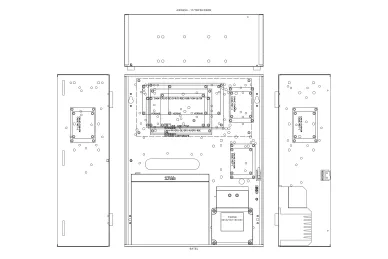

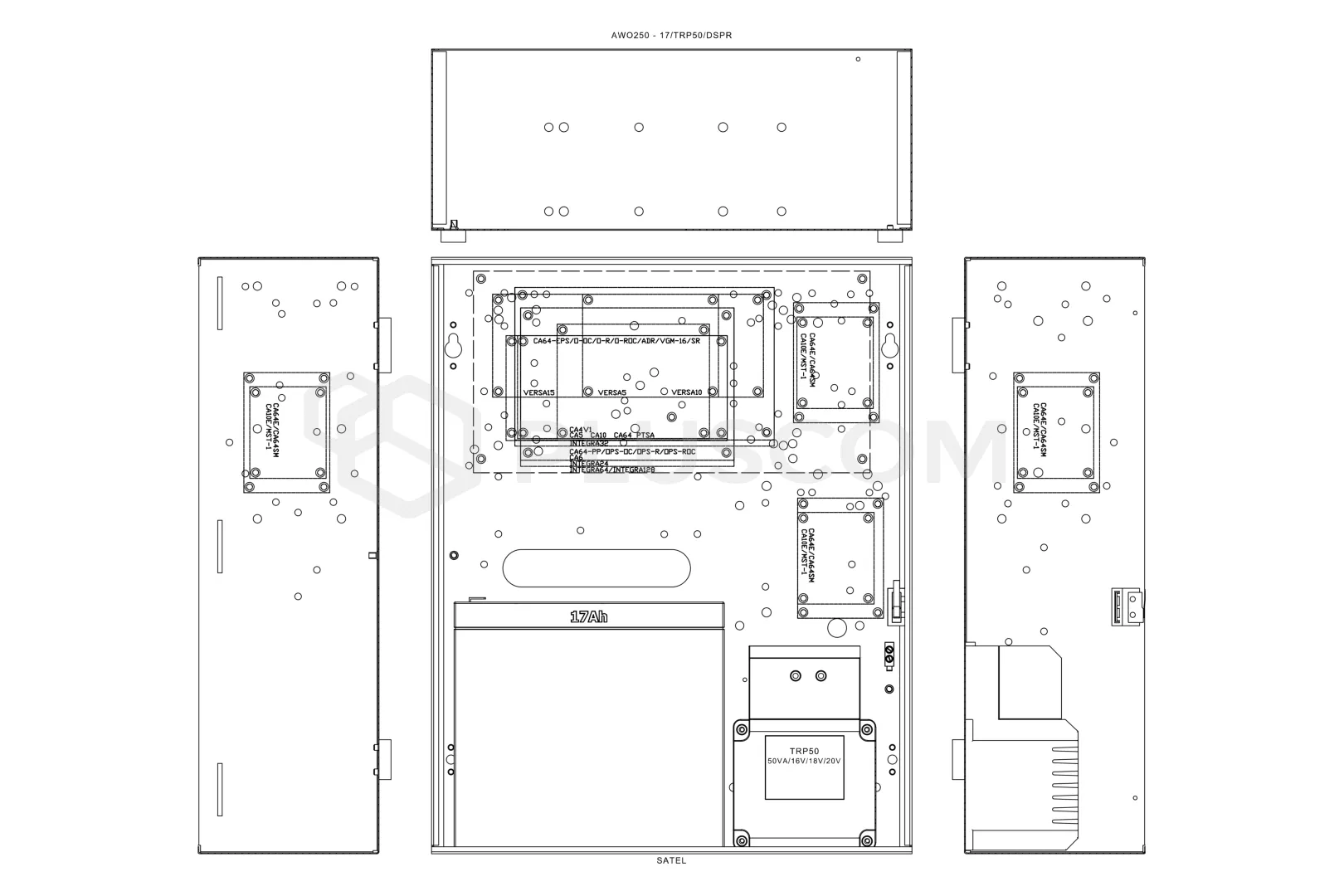

Possible arrangement of modules SATEL

Possible arrangement of modules SATEL



Other panels that can be mounted in the enclosure:

DSC, PARADOX, RISCO,  PYRONIX, TEXECOM, TELMOR, ROGER, EBS, PULSAR,
Download
Datasheet 0.07 MB
CE Declaration 0.16 MB
Instruction 1.06 MB
SATEL Instalation 0.06 MB
