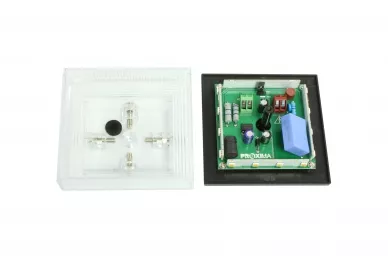

Proxima LED signal bollard lamp

Proxima LED signaling bollard lamp 12-24V AC/DC or 230V AC with built-in breaker

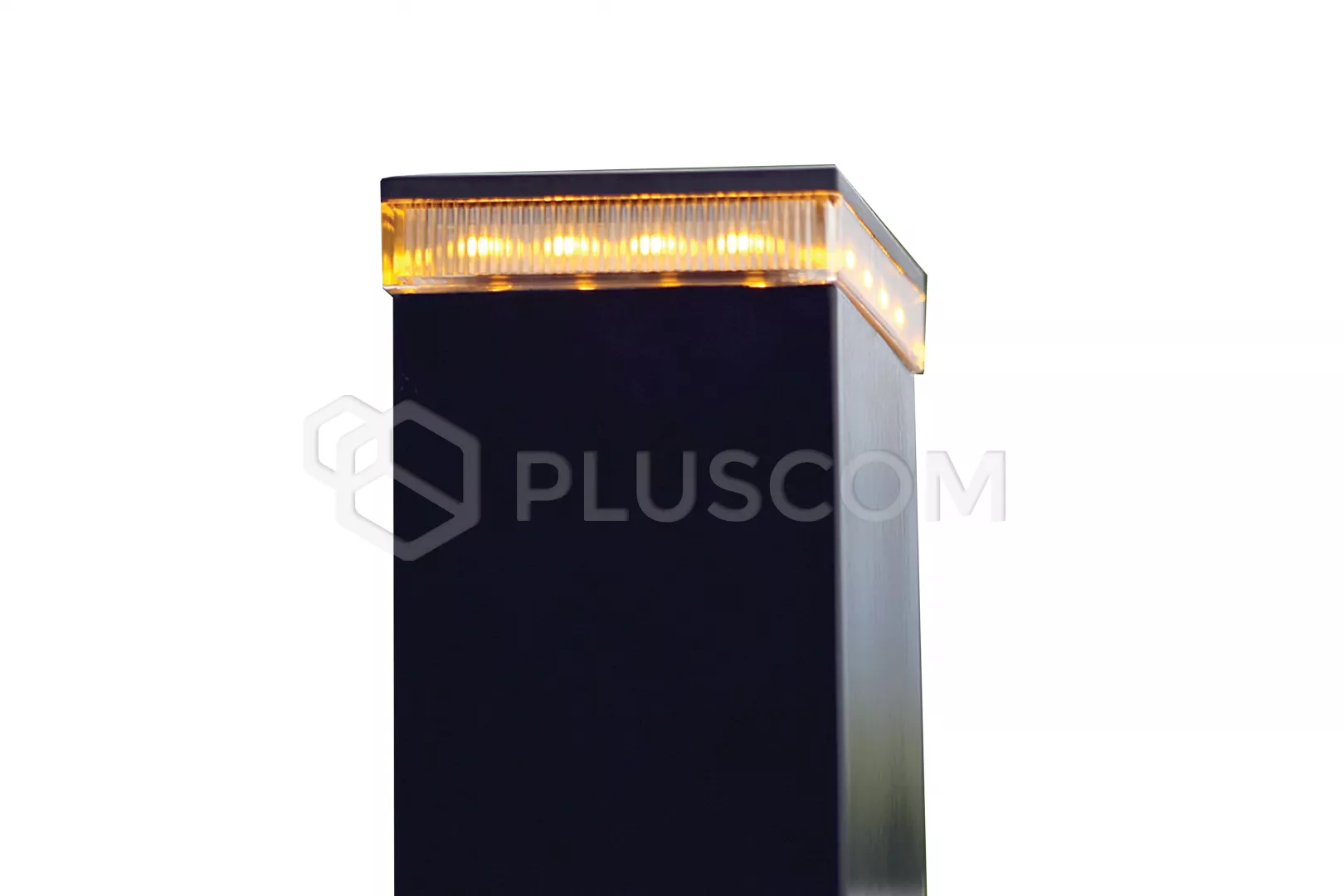

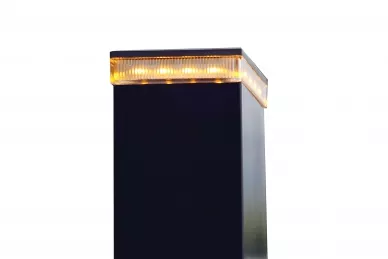

The post signal lamp is an effective finish to the gate post with universal power supply. It is a practical and functional element of home automation. It informs and warns about the operation of the drive, performs functions security not to approach the gate leaf.
The lamp has a LED light source and is powered by 12-24V AC/DC or 230V AC. Built-in interrupter by what the device may blink or stay lit.

Lamp installation

• the lamp is the end of a rectangular post 100x100mm, 80x100mm or 80x80mm
• the lower part of the 73x73mm lamp must fit inside the post

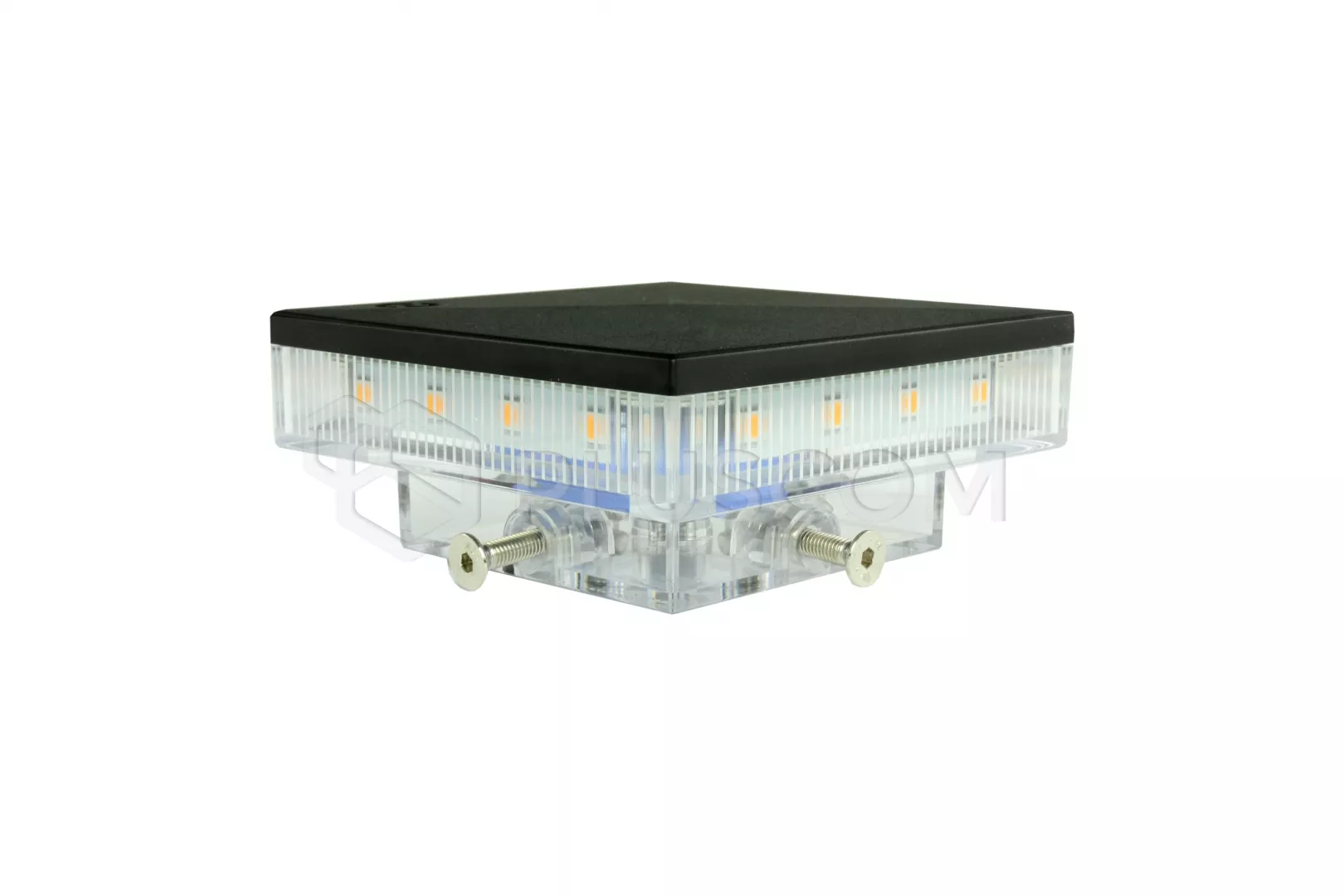

• unscrew the tapered Allen screws as far as they will go so that the lower one can be inserted with a slight resistance part of the lamp with screws inside the post
• on the least visible side of the post be precise drill a hole with a diameter of 4mm
• in the extension of the hexagon socket of the screw

TECHNICAL PARAMETERS:

• Power supply: 12-24V AC/DC or 230V AC
• Power consumption: 230V AC: 2.5W
• Power consumption: 12-24V: 12V; 300mA, 24V; 150mA
• Light source: LED
• Blinking frequency: 1 Hz
• Operating temperature: -20º to +60º C
• Rating: IP54
• Dimensions: above the post; 103 x 103 x 26 mm, in a post 72 x 72 x 20 mm
• Weight: 253g
