Nice HO7124 single actuator 24V with built-in POA3 control unit

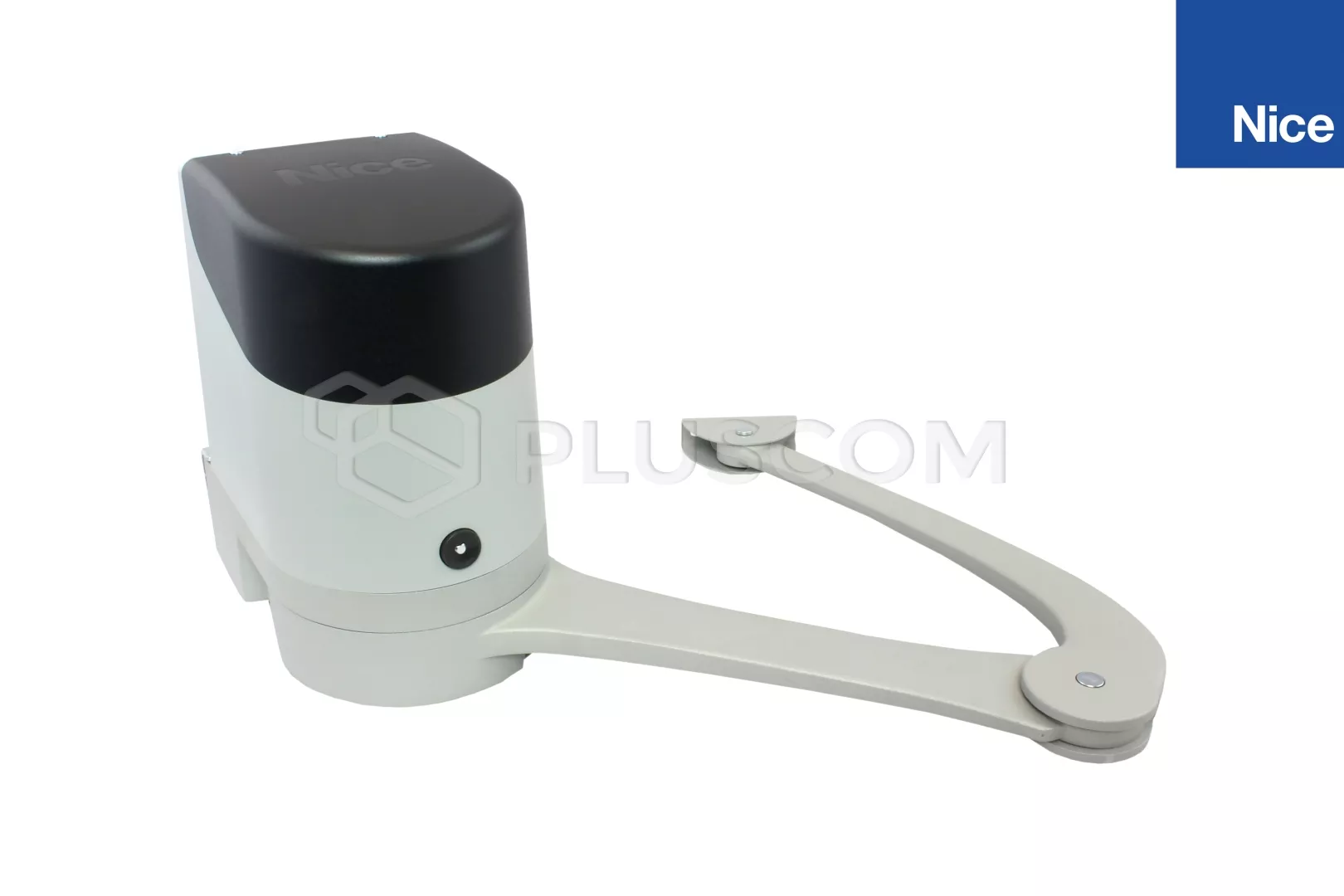

Nice HO7124 R10 Electromechanical gear motor for swing gates 2.4m / 250kg

Resistant and compact: 180mm in width, ideal for any kind  of post. Small shockproof body with aluminium base. Sturdy, aluminium anti-shearing arm.

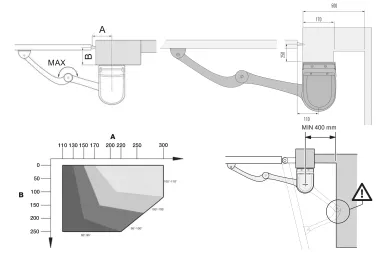

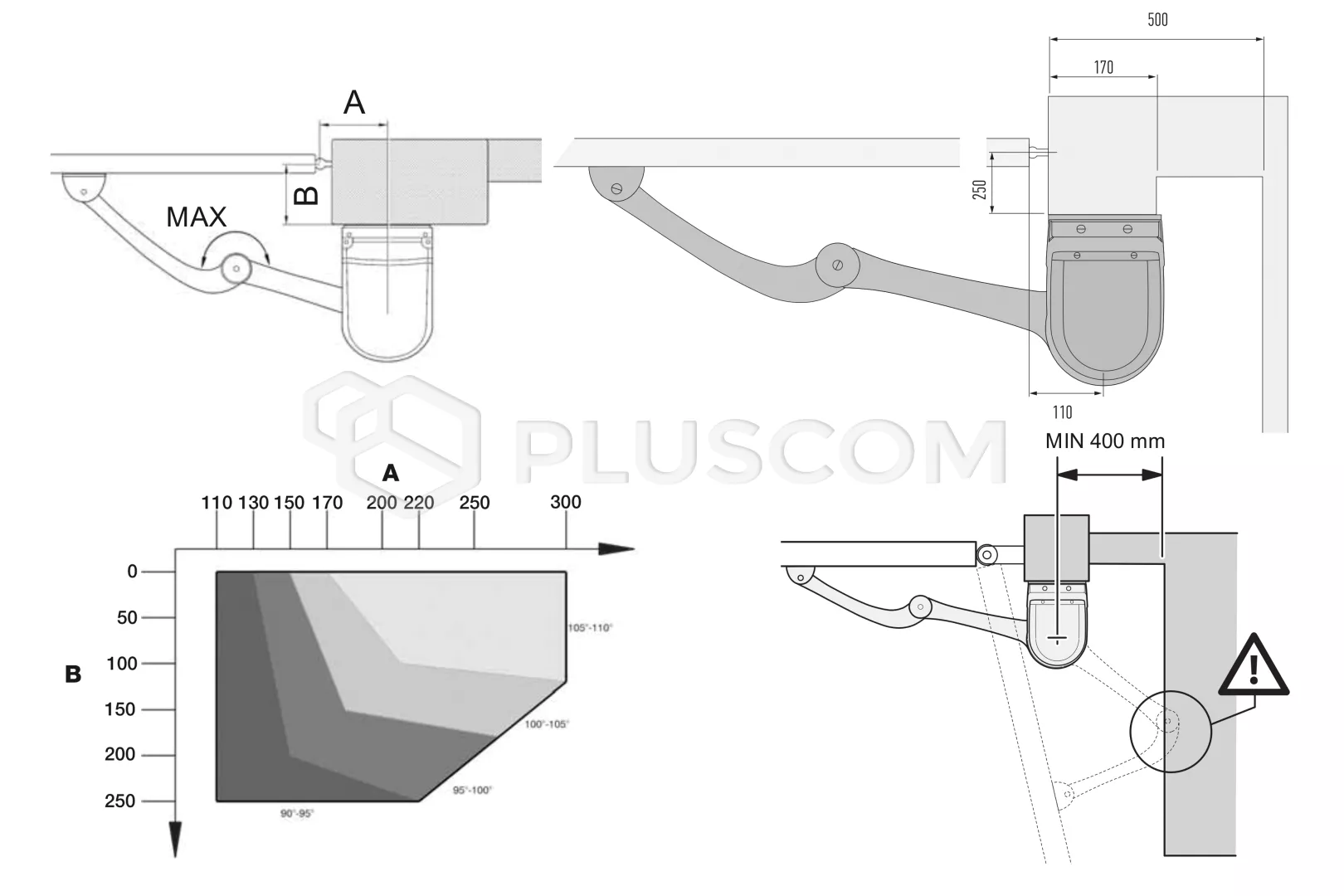

Easy to install: thanks to the new fixing bracket with quick connector for the motor. No welding.

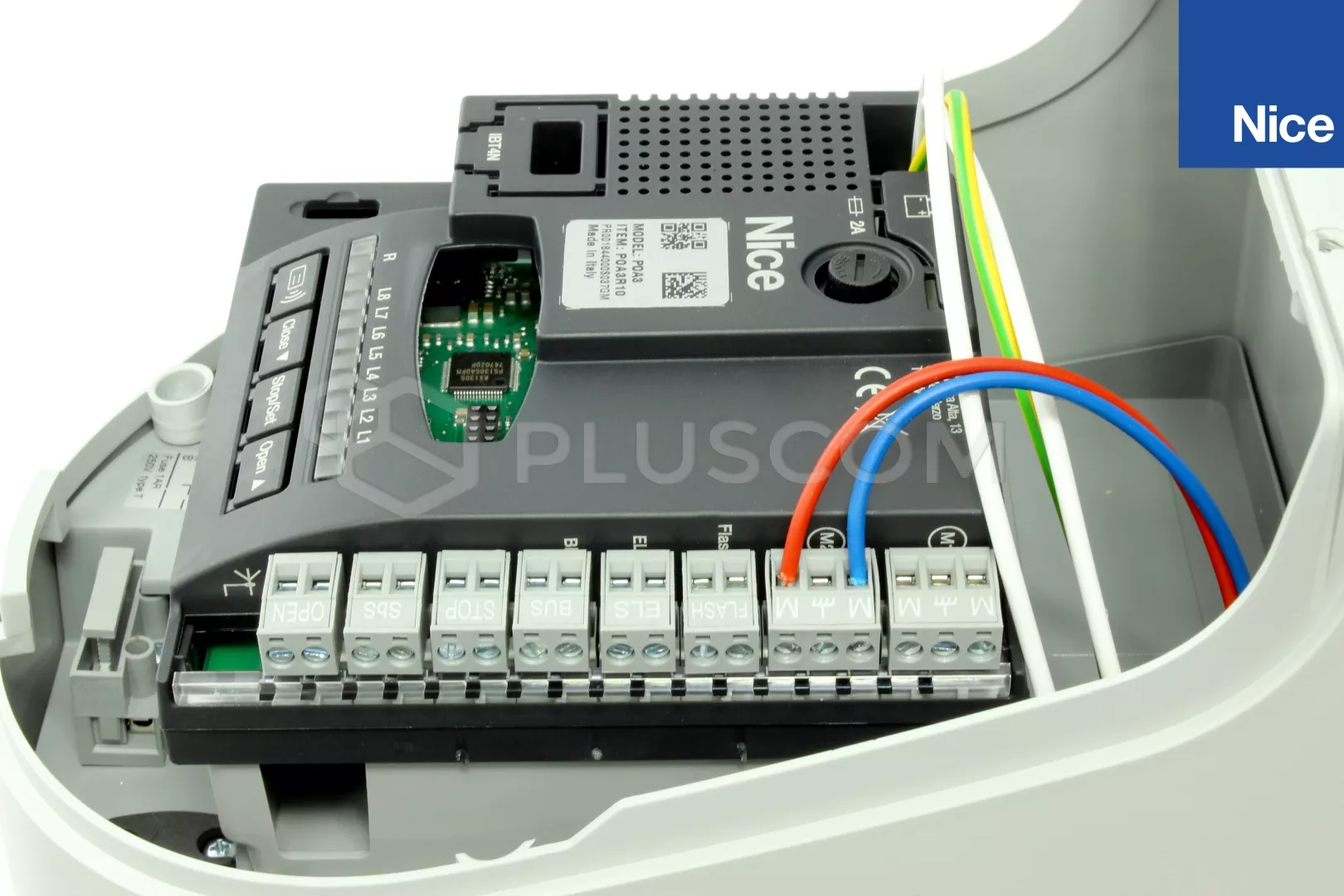

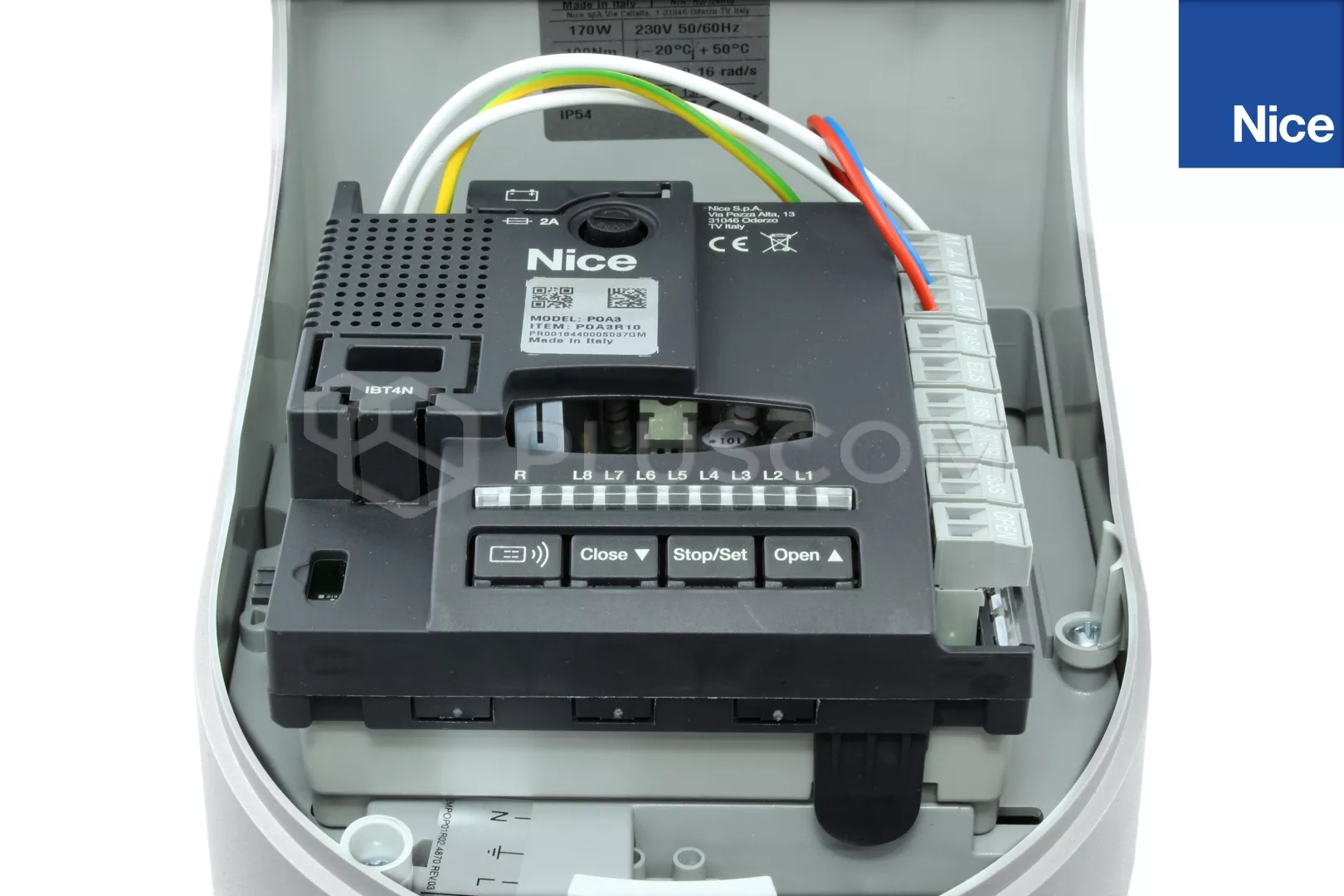

Sophisticated electronics with the built-in control unit,  just 3 keys to manage all programming operations:

• obstacle detection and possibility of connecting to 8,2KΩ sensitive edge, fototest
• automatic fault diagnostics
• memorisation of opening and closing travel limits   in self-learning mode
• possibility of configuring the stop input in self-learning mode, NO, NC and the latest generation 8,2 KΩ resistive sensitive edges
• deceleration on opening and closing
• simple connection of pairs of additional photocells, foto2
• programming of pause time
• pedestrian open and partial open
• clutch with anti-crushing safety mechanism

Energy saving with no black outs: 3 standby modes to reduce mains consumption, or battery power consumption if connected to the Solemyo kit.  Operation in the event of a power failure thanks to the optional  batteries (PS124).

Everything under control: thanks to compatibility  for operation with Opera system bus T4, the unit can be used to expand the options of programming, control  and diagnostics of the automation on site and remotely.
