Nice WINGO2024 INTI Kit for Swing Gates up to 2m (Base)

496,94 EUR including 23.00% VAT
In stock. Ships today!
Product code: #18327
Manufacturer: Nice
  • Maximum leaf length 2m
  • Maximum leaf weight 200kg
  • Power supply/Motor 230V/24V
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice FLO2RE 2-channel remote Nice ELDC LED flashing signal light 12/24V Nice PLA14 Bracket to the post for Wingo 2024 (STP200) Nice PLA15 Bracket for gate leaf for Wingo 2024 (STA200) Nice PRMB06S Mechanical limit switch assembly TO24V, MB24V Photocell Nice EPM ERA Medium

Nice WINGO 2024 Kit for swing gates  witch MC424LR10 control panel

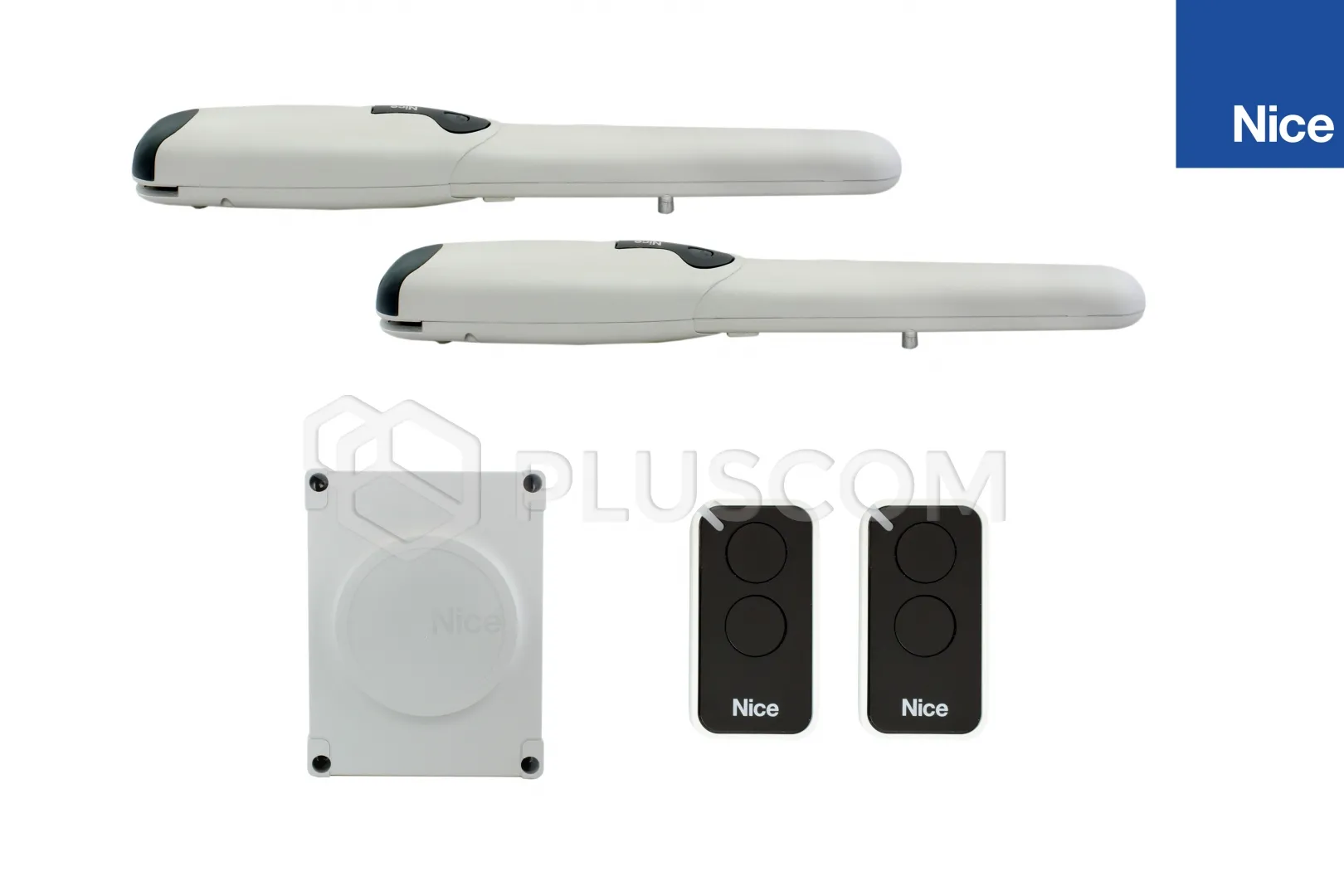

The kit contains:
Nice WINGO 2024 ERA FLOR Set

Nice WINGO 2024 ERA FLOR Set


Reliable and quiet drive for estate and home gates. Patented system of internal components, simple construction in which the number of moving parts has been reduced to a minimum and high quality of materials used make the drive will serve for many years.

The drive, after closing, locks the gate preventing it from opening, there is no need for additional locks. In addition, both actuators are equipped with end stops that define the opening limit of the wing.

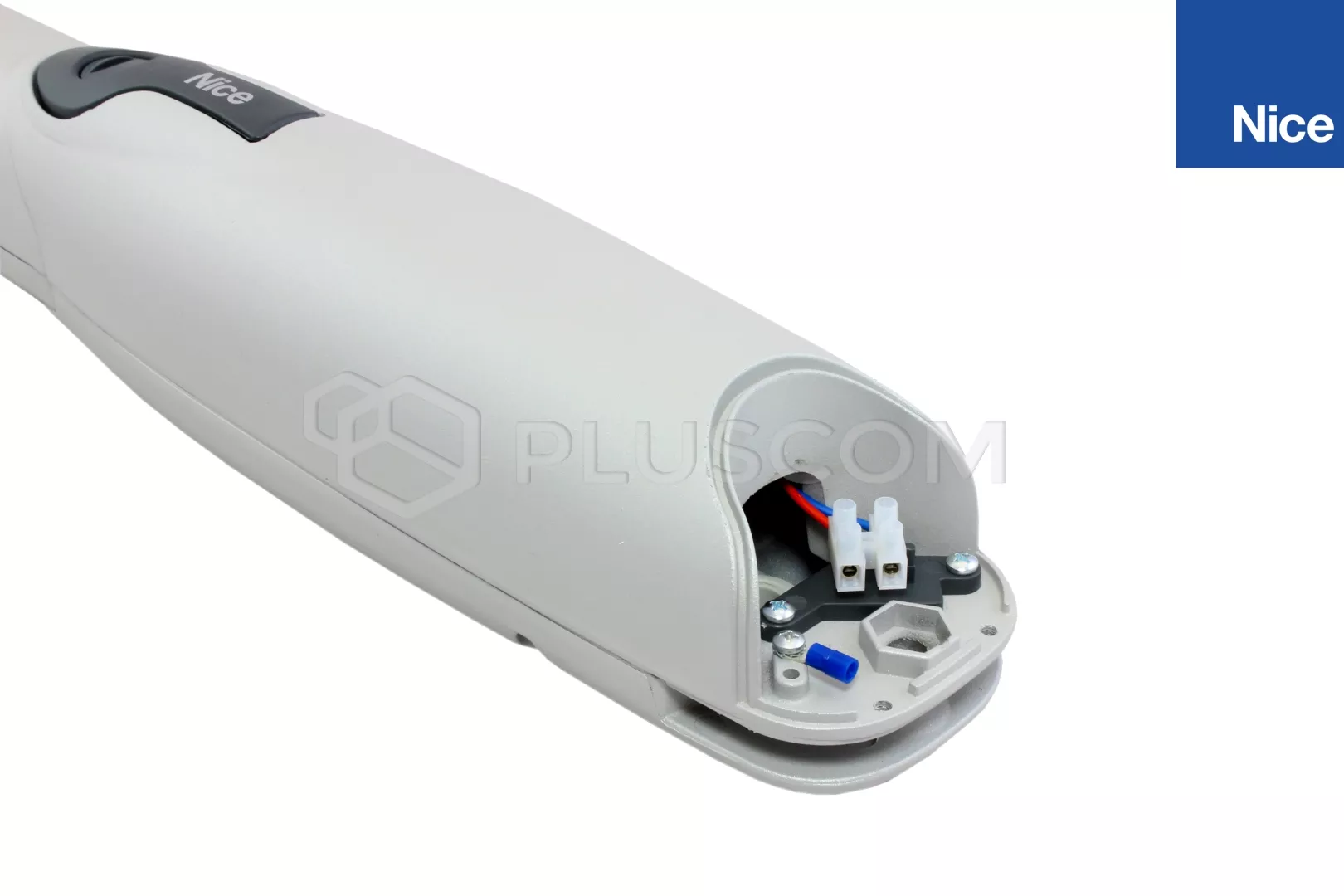

Screw terminals:

Screw terminals:

WINGO2024 has an amperometric obstacle detection system - it is used to detect any obstacles that may occur during normal gate movement. Thanks to this function, when the obstacle is encountered, the drive stops the gate and changes its direction.
To avoid a strong jerk when opening or closing the door, the actuators have a smooth release function during closing and soft start.

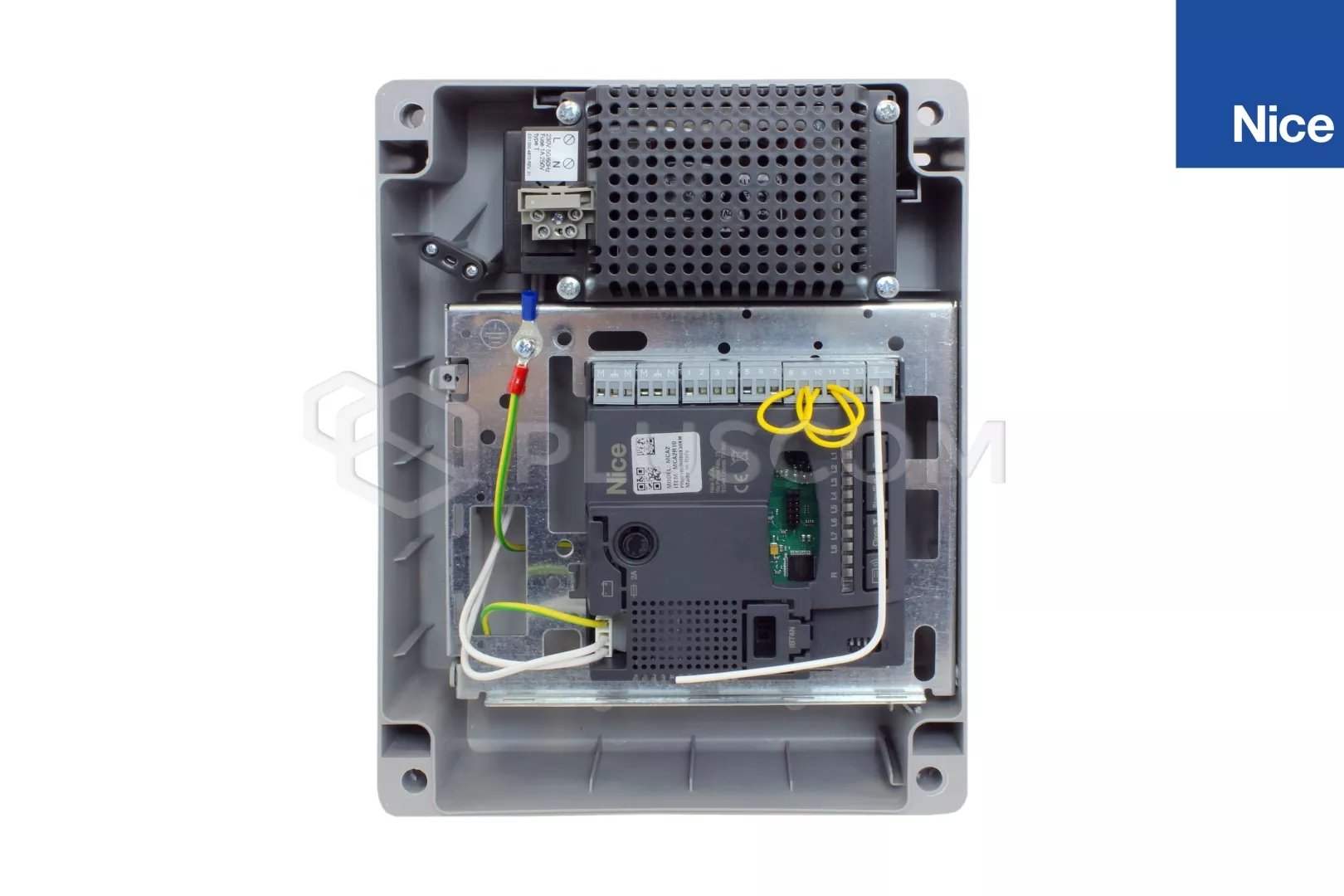

MC424LR10 control unit:

MC424LR10 control unit:



Moonclever control unit (MC424LR10):
  • simple programming, wirks with Oview programmer
  • built-in radio receiver FLO FLOR SMILO OPERA
  • clutch with anti-crush safety feature
  • automatic memorization of limit switches on opening and closing with self-learning function
  • programming of pause time
  • pedestrian pass door
  • deceleration on opening and closing
  • obstacle detection system
  • can be linked to the 8.2 KOhm resistive sensitive edge
  • continues to work even during power failures using optional (PS124) batteries that fit inside the control unit

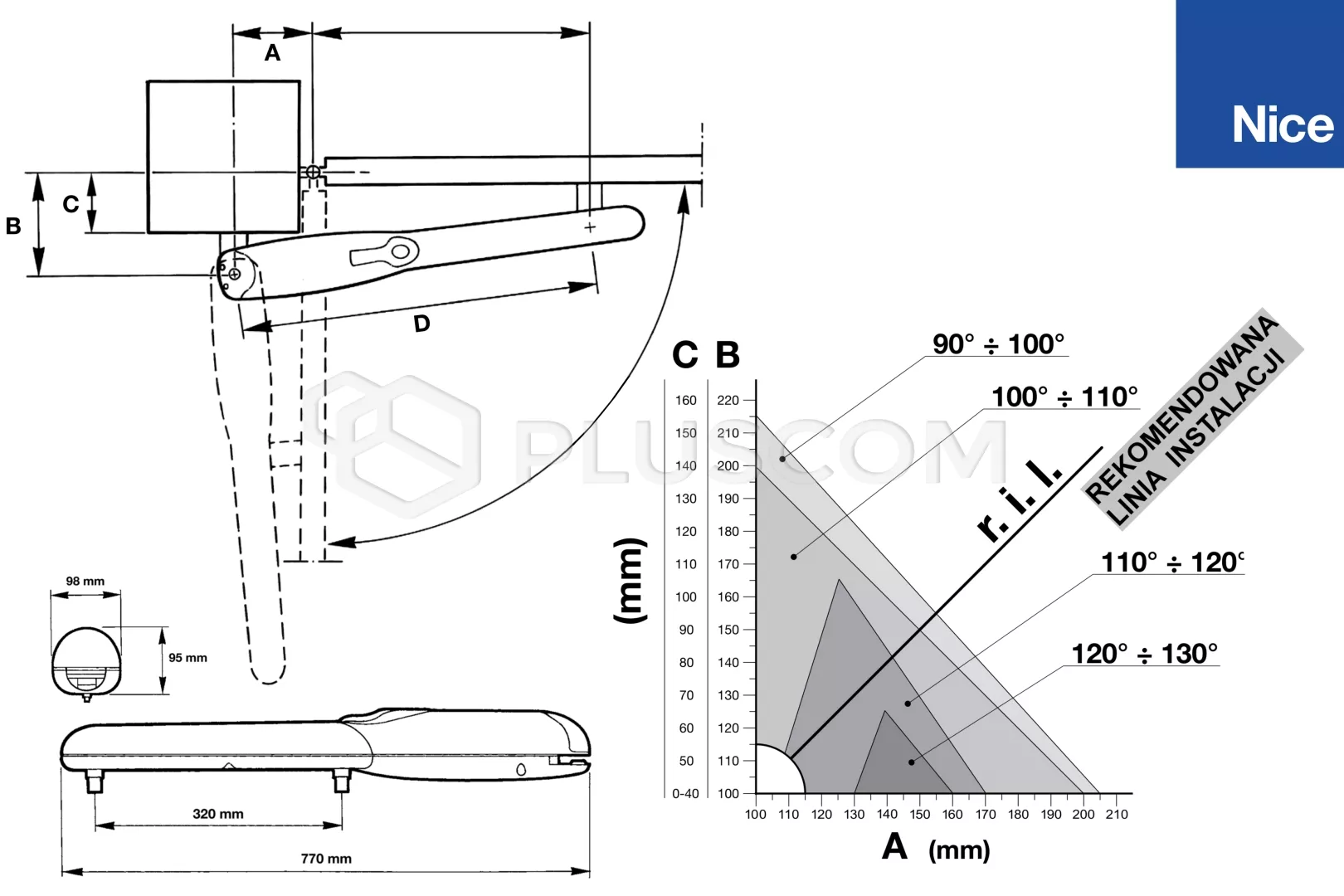

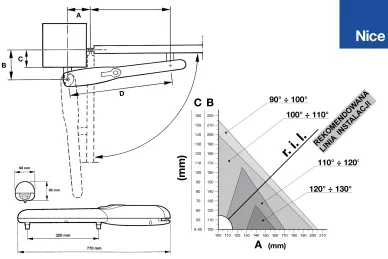

Dimensions:

Dimensions:


Download
Instruction 1.31 MB
User Manual 6.51 MB
Addendum to manual 0.08 MB
