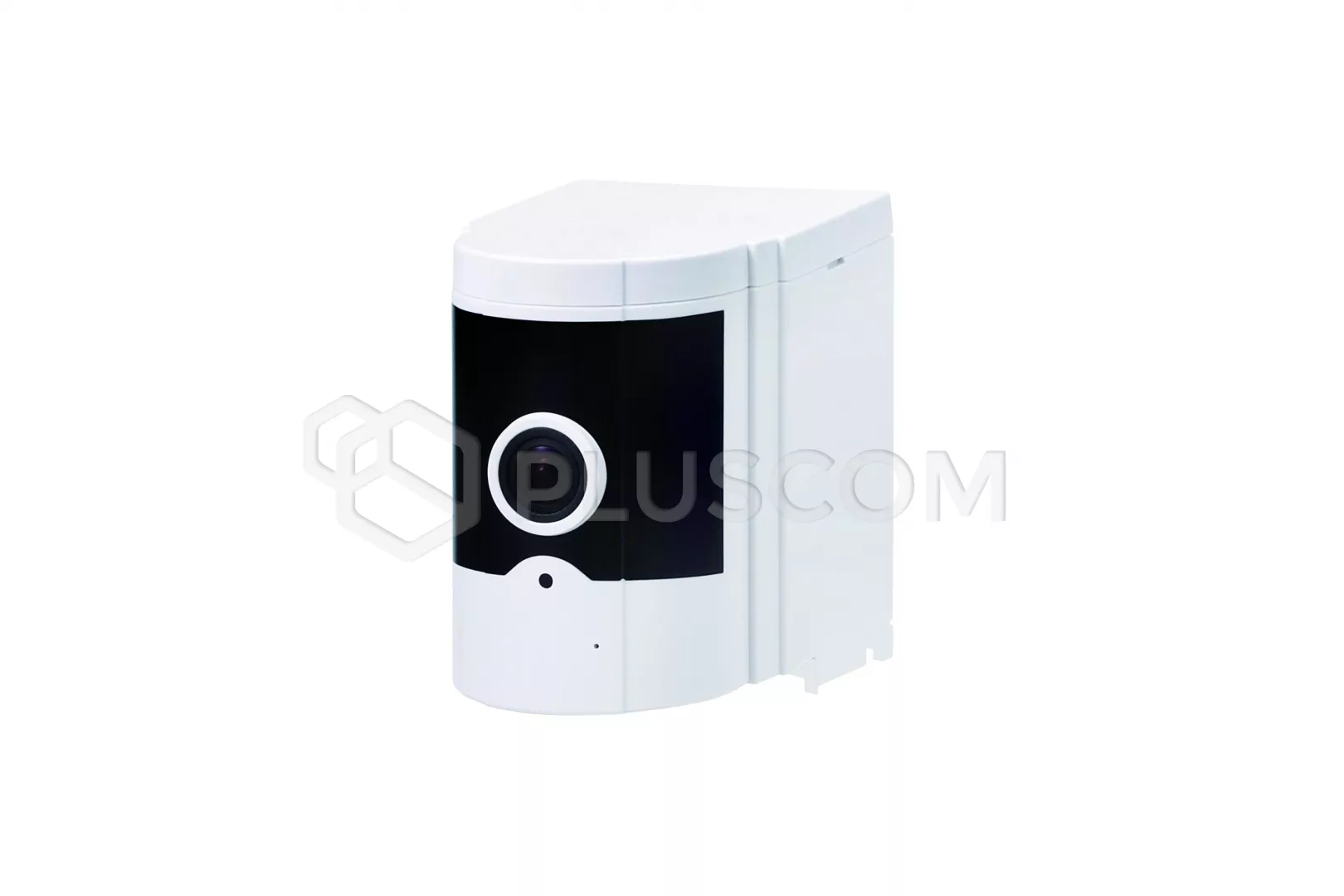

Optex VXI-CMOD WiFi camera for VXI-ST/AM/DAM

OPTEX VXI-CMOD Wireless HD camera module with panoramic viewing angle 180 ° and night vision

The VXI-CMOD is a wireless HD camera module with 180° panoramic angle and night vision that easily integrates with VX Infinity sensors to create a complete intruder detector with visual verification.
The VX Infinity sensors provides a very reliable approach detection with a range of up to 12m and 90 degree for early warning to intrusion.

The VXI-CMOD can be retro-fitted onto any existing wired VXI models (VXI-ST, AM, DAM), fitting snugly on top, creating a single unit visual verification system. When the sensor detects an intruder, the integrated camera module is activated: it records the event and sends a notification through an app called “OPTEX Vision” to the paired mobile phone(s).
VXI-CMOD features a 180-degree high definition panoramic field of view, with built-in infrared LEDs for enhanced vision at night and is also equipped with a microphone. The must-have accessory to your VX Infinity sensor, VXI-CMOD takes outdoor detection to another level.

SPECIFICATION:

• Wireless connectivity: IEEE 802.11 b/g/n
• Data encryption: AES 128-bit data encryption via proprietary P2P connection protocol
• Security: WEP/ WPA/ WPA2 (TKIP, 128-bit AES)
• Simultaneous viewers:
• • Max.3 concurrent viewers
  • Performance may be impacted when connecting to multiple mobile devices simultaneously
• Image sensor: 2 Megapixel or Full HD
• Image resolution: 1,080 P/ 720 P/ VGA (Selectable by APP)
• Viewing angle: H: 180° V: 100°
• Minimum illumination: 0 lux (with IR illumination)
• Night vision: IR LED with IR-Cut switcher
• Image compression: H.264 High profile
• Image resolution: Full HD
• Frame rate: 15 FPS
• Recording period: 30 sec. (inc. 2 s pre-record)
• Memory Storage: microSD card (32 GB max.)
• Power supply: 9.5 to 24 V DC
• Power consumption: IR low mode : 400 mA max. / IR high mode : 1.0 A max.
• Wake up time: 2 min.
• Recording trigger1: Alarm, Tamper, Trouble (N.O./N.C.)
• LED indicator: 1 LED (red and blue)
• Microphone: 1 input
• Mode selector: high/low
• Internal/ External antenna selector: Internal/ External selectable External antenna [CMOD-ANT] is separate option
• Location: Outdoor/Indoor
• Operating temperature: -10°C to +50°C
• IP rate: IP 55
• Weight: 280 g
