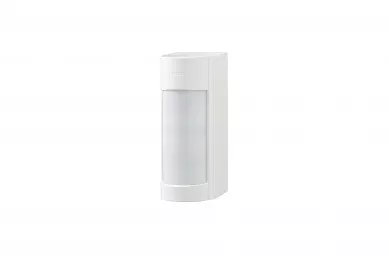

Optex VXI-AM advanced detector with range adjustment and anti-masking

160,98 EUR including 23.00% VAT
Product code: #14317
Manufacturer: Optex
  • PIR detector, range: 12m, angle of 90 ° / 16 zones
  • Mount height: 0.8 - 1.2 m
  • Antimasking IR
  • Pet immunity, IP55
  • Digitally enhanced signal recognition logic SMDA
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Optex VXI-CMOD WiFi camera for VXI-ST/AM/DAM Optex VXI-T BRACKET Bracket for mounting 2 detectors Optex WRS-02 WALL TAMPER

OPTEX VXI-AM advanced detector with range adjustment and anti-masking


It provides a very reliable approach detection with a range of up to 12m for residential and commercial applications. The sensor which should be mounted at ca 1.2m height includes two PIRs providing a double layered detection area, the sensor will only trigger when both layers are activated. The VXI sensors feature digital analysis to exclude causes of false alarm, they are weather resistant (IP55 rated) and have double conductive shielding to reduce the impact of sunlight . The VXI-AM is the hardwired model with antimasking.

Digital analysis for enhanced reliability
The VXI sensors features a digital microprocessor which analyses the infrared emissions received and differentiate the ones generated by human from the ones generated by sunlight, animals, vegetation sway, or weather conditions. This intelligence makes the risk of false alarm very low.

Flexible detection coverage
The detection length of the VXI sensors can be set to 12m, 8.5m, 6m, 5.5m or 2.5m to adapt to the site configuration. The sensor comes as well with a choice of pre-cut masking templates to modify the detection areas and only focus on the points of interest.

Key Features
  • 12m PIR for approach detection
  • Animal tolerance and digital analysis
  • End of line resistors option
  • Active infrared antimasking
SPECYFICATION
  • Detection method: passive infrared
  • PIR range: 12m, angle 90 ° / 16 zones
  • PIR range adjustment: 2.5-12m (5 steps)
  • Movement speed performed: 0.3 - 1.5 m/s
  • Tenderness: 2 ° C at 0.6 m / s
  • Power: 9.5 - 18V DC
  • Power consumption: 24 mA (max.) At 12V DC
  • Alarm duration: 2 (±1) s
  • Trouble output: NC 28V DC 0.1 A (max.)
  • Preparation to work: approx. 60 s (LED flashes)
  • Alarm output: NC / NO switch set 28 V DC 0.1 A (max.)
  • Tamper contact: NC 28V DC 0.1 A (max.) Open when the cover is removed
  • Signal diode: Red: work preparation, alarm, masking
  • Noise immunity: No 10V / m alarm
  • Working temperature: -30°C~60°C
  • Humidity: 95% max.
  • Housing tightness: IP55
  • Mounting height: 0.8 - 1.2 m
  • Dimensions:
  • Weight: 500 g
