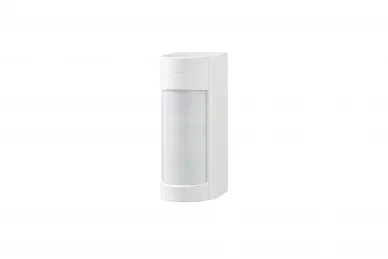

OPTEX VXI-DAM-X5 Dual technology detector with range adjustment and anti-masking

VXI-DAM-X5 provides a very reliable approach detection with a range of up to 12m for residential and commercial applications. The sensor which should be mounted at ca 1.2m height includes two PIRs providing a double layered detection area, the sensor will only trigger when both layers are activated. The VXI sensors are animal tolerant and feature digital analysis to eclude cause of false alarm. The VXI-DAM is the dual-tech (PIR and microwave) model with antimasking.

Digital analysis for enhanced reliability
The VXI sensors features a digital microprocessor which analyses the infrared emissions received and differentiate the ones generated by human from the ones generated by sunlight, animals, vegetation sway, or weather conditions. This intelligence makes the risk of false alarm very low.

Flexible detection coverage
The detection length of the VXI sensors can be set to 12m, 8.5m, 6m, 5.5m or 2.5m to adapt to the site configuration. The sensor comes as well with a choice of pre-cut masking templates to modify the detection areas and only focus on the points of interest.

Key Features

• 12m dual-tech for approach detection
• Animal tolerance
• Digital signal analysis to greater reliability
• End of line resistors option
• Active infrared antimasking

SPECYFICATION

• Detection method: passive infrared and Microwave
• PIR range: 12m, angle 90 ° / 16 zones
• PIR range adjustment: 2.5-12m (5 steps)
• Movement speed performed: 0.3 - 1.5 m/s
• Tenderness: 2 ° C at 0.6 m / s
• Power: 9.5 - 18V DC
• Power consumption: 35 mA (max.) At 12V DC
• Alarm duration: 2 (±1) s
• Trouble output: NC 28V DC 0.1 A (max.)
• Preparation to work: approx. 60 s (LED flashes)
• Alarm output: NC / NO switch set 28 V DC 0.1 A (max.)
• Tamper contact: NC 28V DC 0.1 A (max.) Open when the cover is removed
• Signal diode:
• • Red: work preparation, alarm, masking
  • Yellow: Warm-up, MW detect
• Noise immunity: No 10V / m alarm
• Working temperature: -20°C~45°C
• Humidity: 95% max.
• Housing tightness: IP55
• Mounting height: 0.8 - 1.2 m
• Dimensions:
• Weight: 600 g
