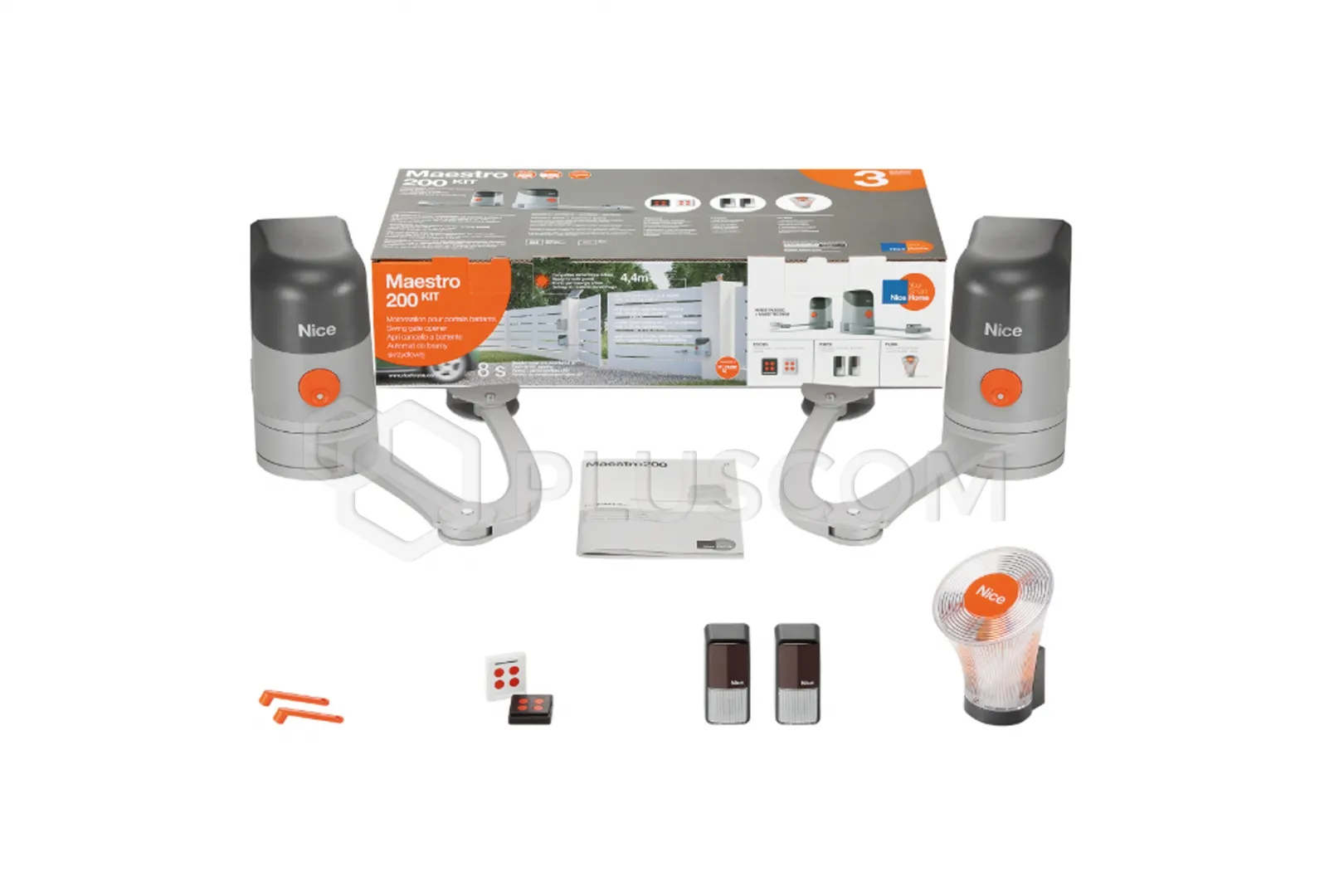

NiceHome MAESTRO200 Set for double-leaf gates up to 4.4m

Product code: #42669
Manufacturer: NiceHome
  • Maximum leaf width 2.2m
  • Maximum leaf weight 250kg
  • Power supply/Motor 230V/24V
  • Gate opening in 8s
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Photocell NiceHome PH200 NiceHome SOLEKIT solar power set NiceHome PR300 Emergency battery NiceHome PHW200 Complete set of wireless photocells NiceHome ECCO5WP 4-channel white and light pink remote control NiceHome ECCO5BW 4-channel white and black remote control NiceHome FL200 signal lamp with built-in antenna

Nice HOPP R10 ONE swing gate operator


HOPP R10 ERA ONE kit contents
NiceHome MAESTRO200 Set for double-leaf gates up to 4.4m

NiceHome MAESTRO200 Set for double-leaf gates up to 4.4m

Set for swing gates with a folding arm with a maximum leaf length of 2.2m with a maximum weight of 150kg or with a maximum weight of 250kg, with a maximum length of 1.6m.
The drive is powered by 24 V DC and is equipped with an unlocking mechanism with a key, which allows manual movement of the gate in the event of a power failure.

MAESTRO200C is equipped with a control unit, which can be used to control the operation of the entire automation. The control unit is connected to the photocells using the ECSbus system (one cable with two electric wires). MAESTRO200M is an actuator without a control unit.

FEATURES:

  • Fast: Open or close the gate in 8 seconds (opening to an angle of 90 degrees, soft start and release disabled)
  • Easy installation: Trouble-free installation of the entire set. Connection of accessories using 2-wire cables (Bus technology)
  • Safe: Possibility of equipping the set with an emergency battery, thanks to which you can open or close the gate in the event of a power failure
  • For every gate: Thanks to the use of a folding arm, it can be installed on most posts. Fits any architecture
  • User-friendly: Full compatibility with the SoleKit solar power system and the possibility of using wireless accessories

TECHNICAL DATA:

  • Power supply: 230V
  • Motor power: 150W
  • Maximum opening angle: 110°
  • Opening time of the swing gate to an opening angle of 90°: 8s
  • Maximum starting torque: 150 Nm
  • Nominal torque: 50 Nm
  • Speed without load: 3 RPM
  • Speed at nominal torque: 2.7 RPM
  • Maximum cycle frequency: 20 cycles/hour
  • Maximum continuous operation time: 10 minutes
  • Control function with intercom
  • Wind gate function
  • Works with solar panel
  • Manual unlocking in the event of a power cut
  • Battery operation in the event of a power cut
  • Accessory power supply: Electric cable (bus system)
  • Ambient operating temperature: -20°C ... +50°C
  • Protection class: IP54
  • Dimensions: 237 x 155 x 290 mm
  • Weight: 7 kg
Download
CE Declaration 0.61 MB
