NiceHome ECCO5WO 4-channel white and orange remote control

Remote control NiceHome ECCO5WO - 4-channel white and orange

Made of high-quality materials, aesthetic with a timeless appearance. The remote control is an obligatory element of automation, intended for control gate, garage and roller shutter drives.

The remote control has 5 buttons. Innovative 5th button functions depend on the control panel or the radio receiver to which it is assigned, for example: for FILO400C / FILO600C, this button is used for programming the "Presence" function.
The LED diode on the remote control signals signal transmission. Weak signal the diode or its absence indicates the need to replace the battery.

Memorizing the transmitter
A new transmitter can be memorized using one of the two available modes:

• Mode 1: can only control one automation
• Mode 2: can control more automation installations

TECHNICAL PARAMETERS

• number of channels: 4+1
• frequency: 433.92MHz
• encoding: rolling code, 64-bit (18 trillion combinations)

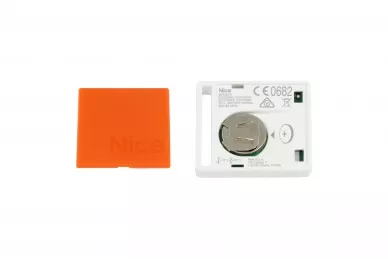

• power supply: 3V CR2032 lithium battery
• battery life: approx. 2 years, assuming 10 transfers a day


• protection class: IP40
• working temperature: -20 ° C ... + 55 ° C
• dimensions: 45x52x11mm
• weight: 20g


The transmitter is part of the Nice Home automation system, but is also compatible with Mhouse and Moovo, e.g .:

• Mhouse TX4. GTX4, GTX4C, GTX8
• Moovo MT4, MT4G, MT4V
