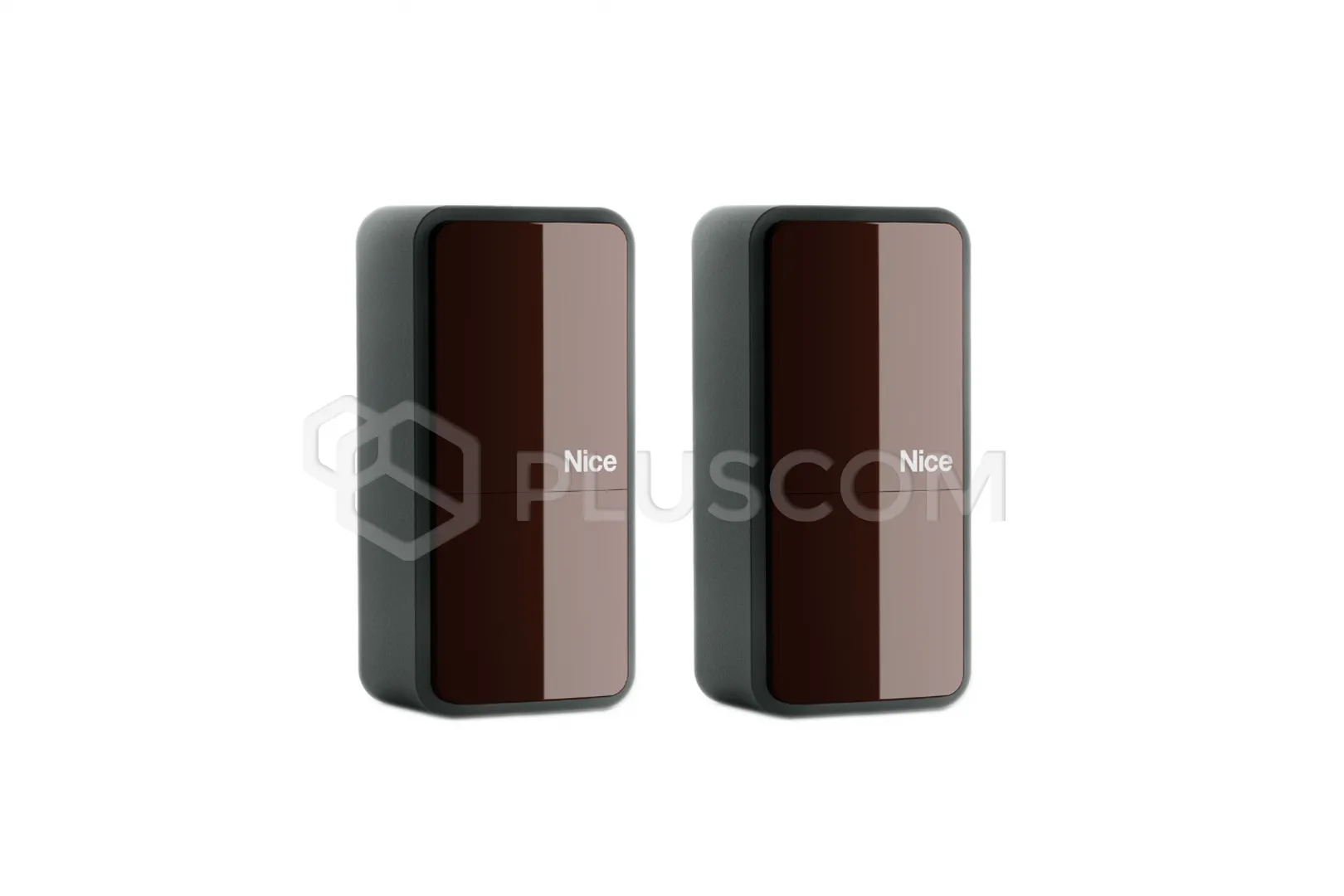

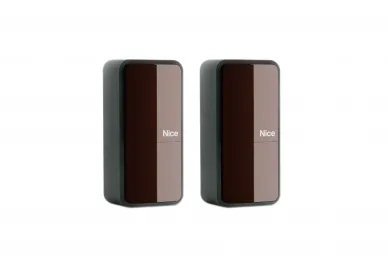

NiceHome PHW200 Complete set of wireless photocells

NiceHome PHW200 Complete set of wireless photocells

A complete set of PHW200 battery-powered wireless photocells. They operate exclusively with the WM100 radio interface associated with the NiceHome control unit.
They increase user safety, allow the reading of obstacles located on the optical axis between the transmitter (TX) and the receiver (RX); each of them is powered by a CR123 lithium battery.

PHW200 are equipped with the Nice Home Power&Free System radio technology, which allows communication with the control unit in a "wireless" manner. Several pairs of PHW200 photocells can be connected to the same control unit and each pair can be assigned the required functions, from among the available functions.

Principle of operation

After inserting the batteries, the PHW200 starts searching for the WM100 radio interface to which it should be assigned:

• If it finds a radio interface to which it was previously assigned, it goes into Standby mode
• If it finds a radio interface in listening mode, it goes into Programming. In this case, it maintains the state until the entire installation is loaded and then goes into Standby mode

TECHNICAL DATA:

• Power supply: 3V DC, with CR123 lithium battery
• Radio communication: two-way, on 7 band channels [863.5 MHz - 869.8 MHz]
• Radio protocol: high security; compatible with Power&Free radio technology Nice Home System line
• Usable radio range: 20 m
• Maximum radio range (in optimal conditions): 40 m
• Protection class: IP 44
• Operating temperature: -20°C ... +55°C
• Dimensions: 105 x 50 x 40 h mm
• Weight: 200 g
