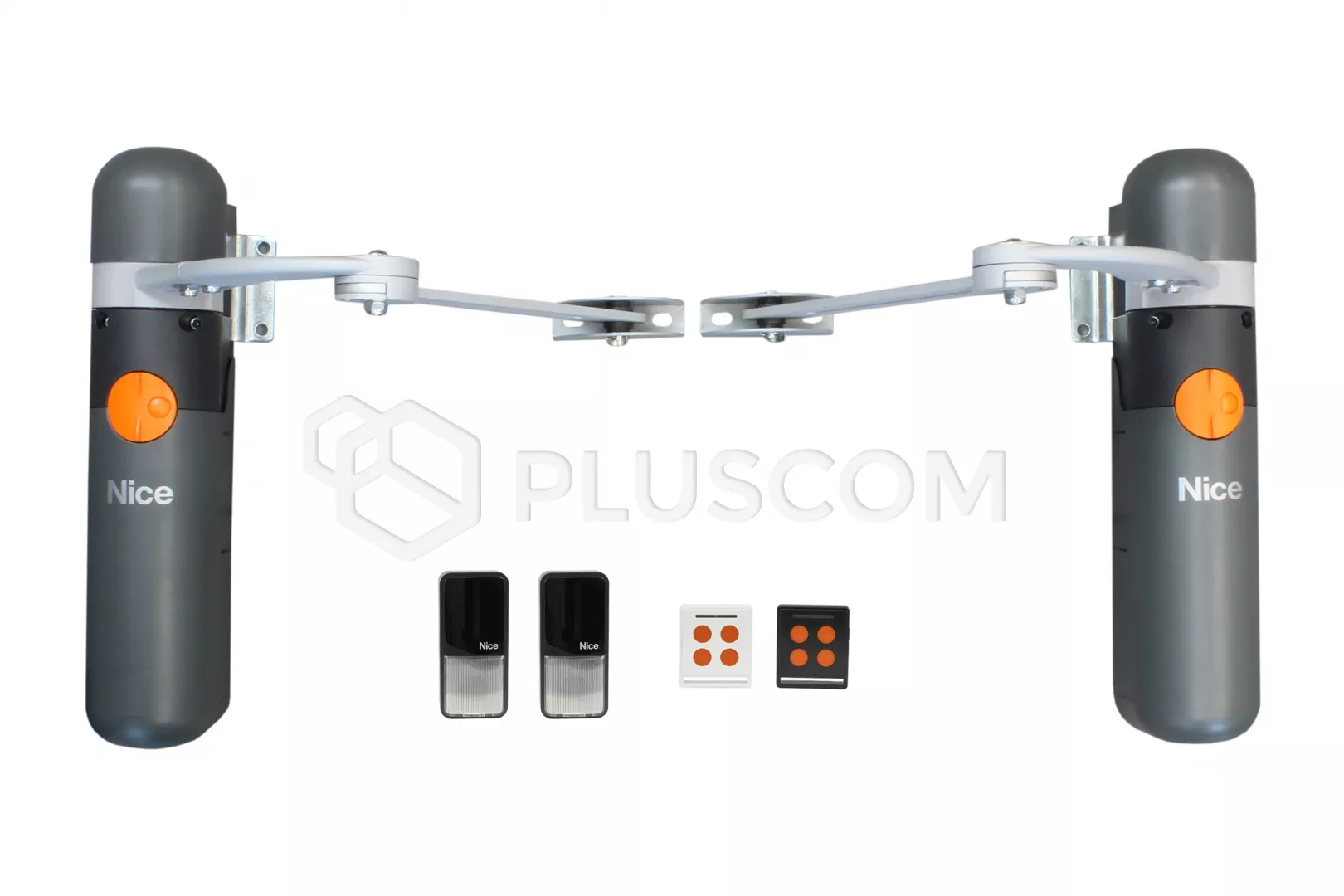

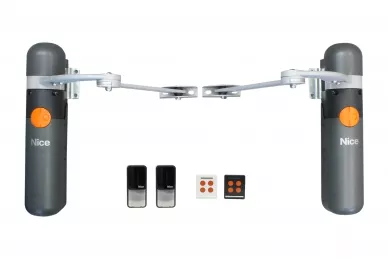

NICEHOME ALTO100 set for double-leaf gates
PACK CONTAINS:
|
NICEHOME ALTO100 set for double-leaf gates
|

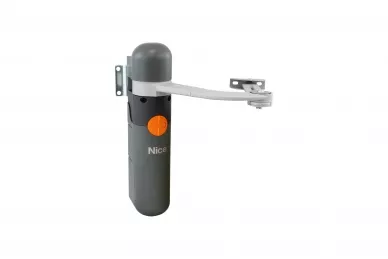

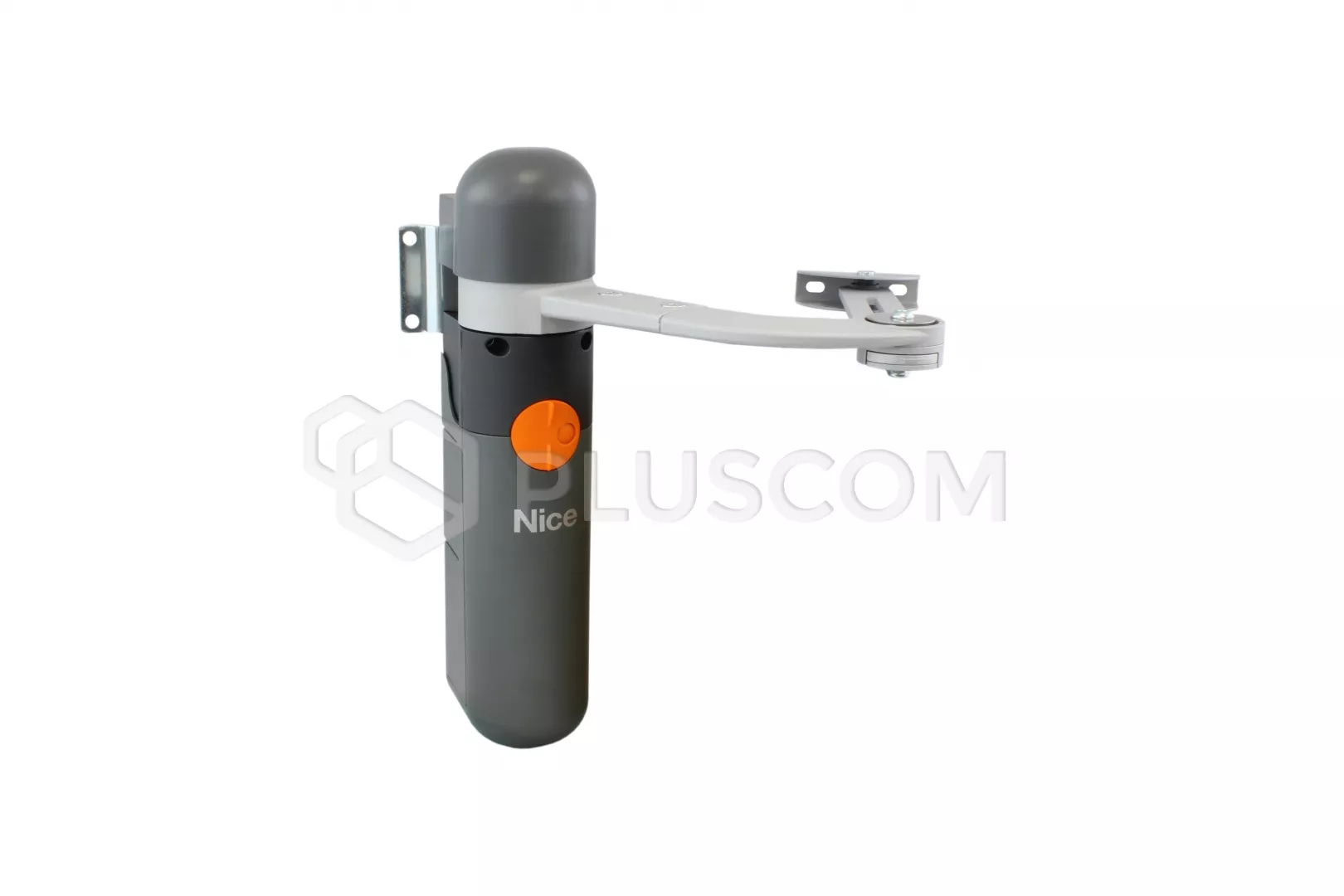

The set with the Alto100 broken arm is designed for automation
double-leaf gates with a leaf length of up to 2 m and a weight of up to 70 kg.
Excellent suitable for mounting on wide brick posts where the depth is the
hinge seat can be up to 23cm.

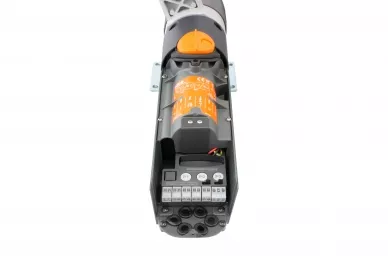

The CL204 exchange uses the ECSBus technology which enables connection
and communication of more devices via one bus cable with two electric wires.

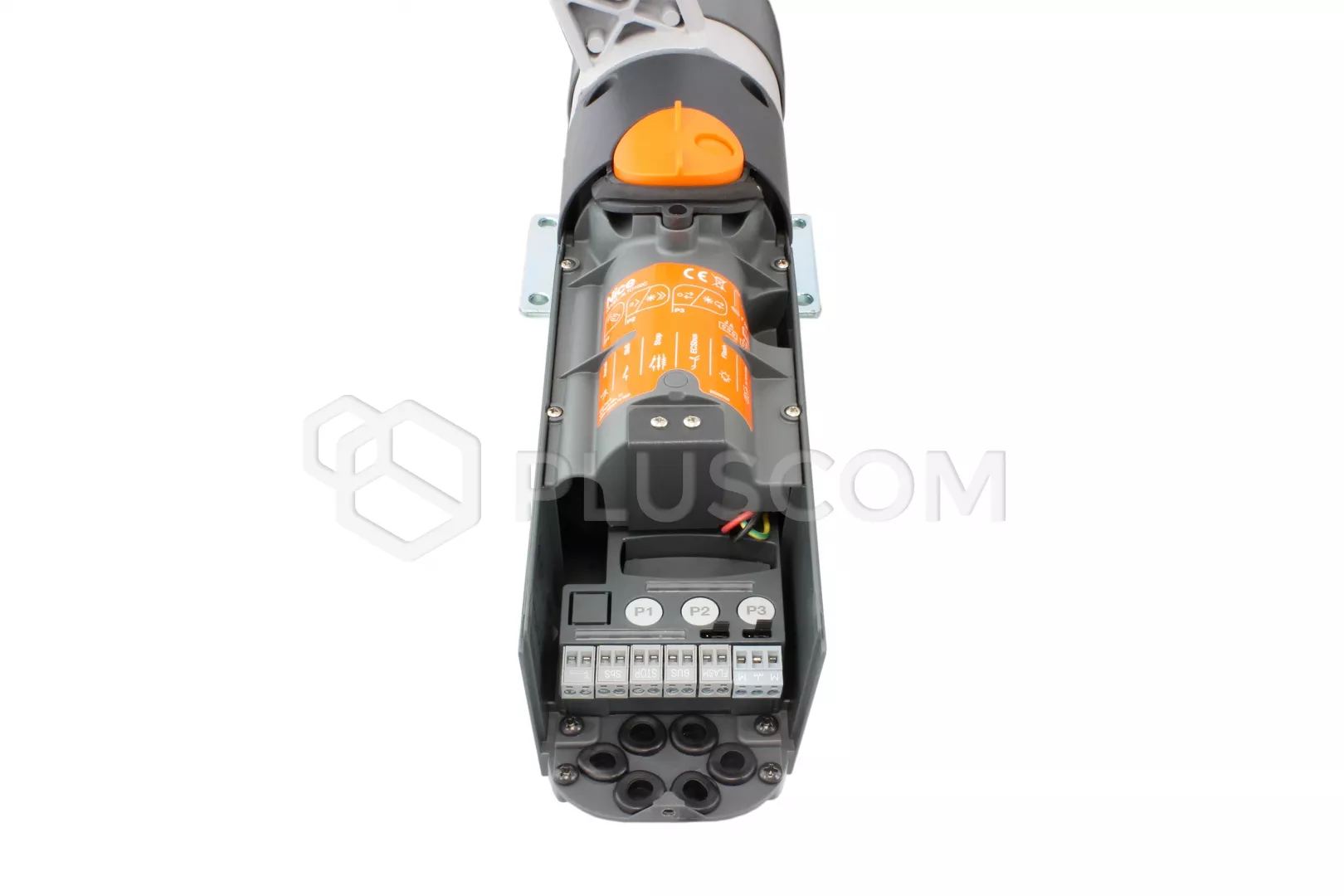

There is a built-in radio in the control unit. The system can remember up to
256 transmitters (if memorized in "Mode I") and up to 6 pairs of
photocells PH200.
DISTINGUISHING FEATURES
Fast - Open or close the gate in 7 seconds (opening to an angle of 90
degrees, soft start and deceleration disabled))
For each gate - The mounting parameters allow for installation on most
of the gates
User-friendly - Full compatibility with the power system Solar SoleKit
and the possibility of using wireless accessories

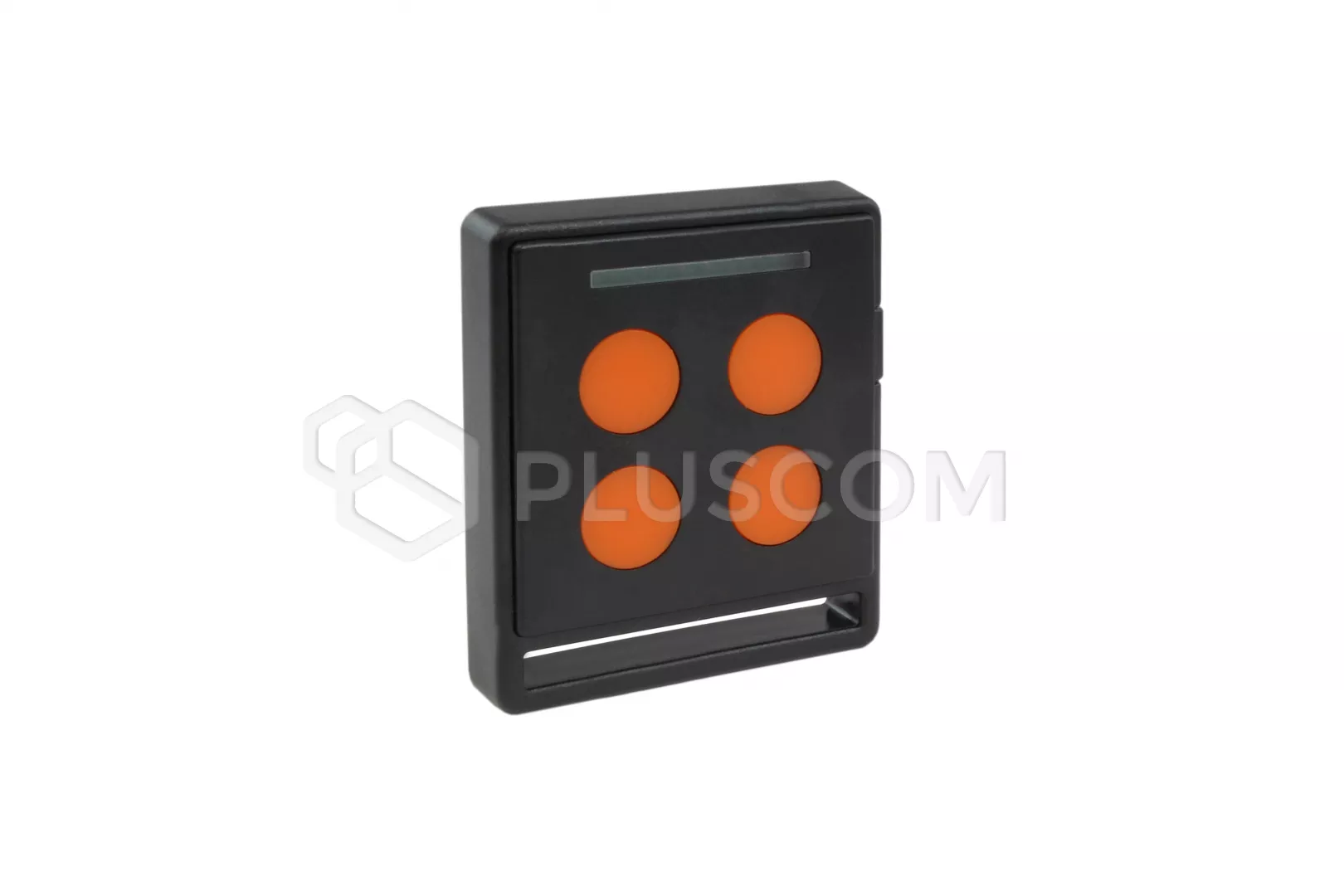

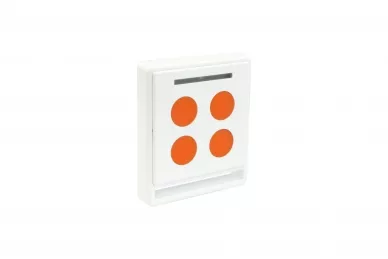

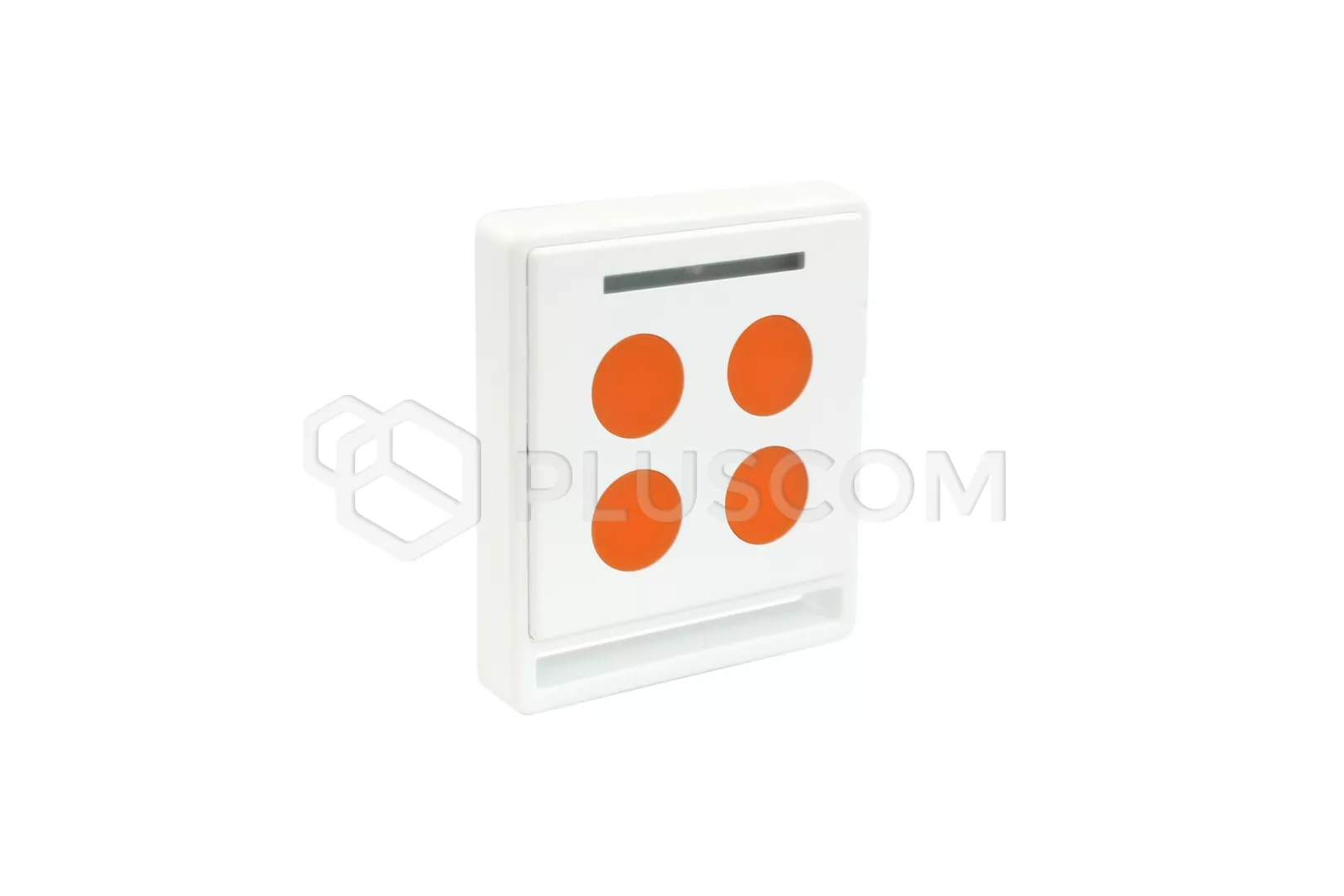

The
ECCO5 5-channel remote control has 5 buttons. Features of the
innovative 5th the button depends on the control unit or the radio to which it
is connected assigned. A new transmitter can be memorized using one of the two
available modes:
- Mode 1: can only control one automation
- Mode 2: can control more automation installations
The LED diode on the remote control indicates signal transmission. Weak
LED signal or its absence indicates the need to replace the battery.

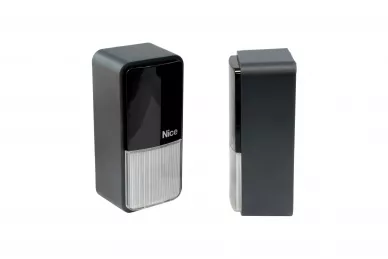

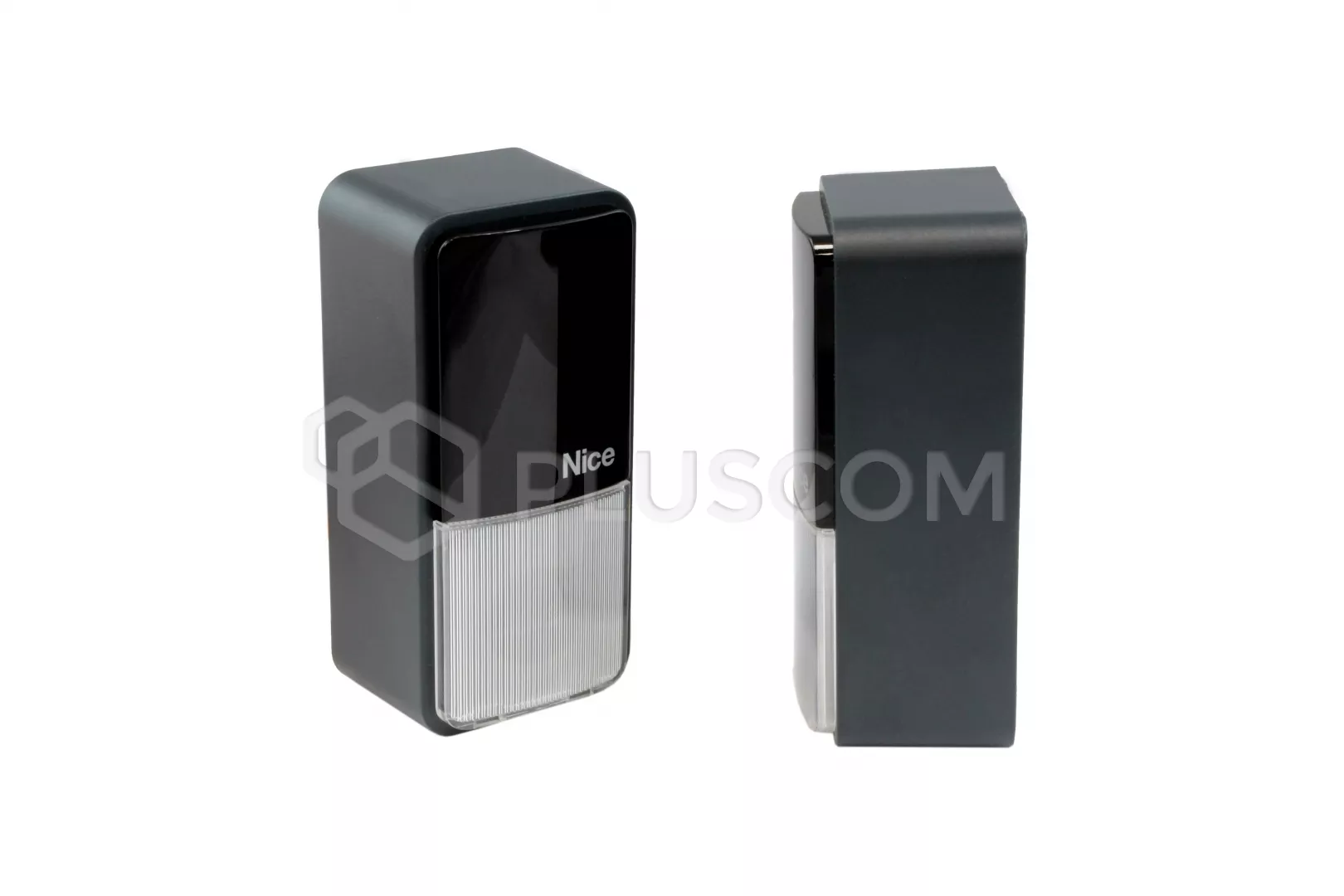

PH200 photocells are made of polycarbonate plastic material high product
durability and modern aesthetic appearance.
PH200 photocells cannot adjust the angle of inclination, so it is important is
to be mounted on vertical and parallel to each other walls. The maximum range
of the PH200 is 30m
TECHNICAL PARAMETERS:
- motor power: 24V DC
- power: 120W
- power consumption: 2A
- maximum torque: 100Nm
- nominal torque: 50Nm
- maximum time of continuous operation: 10 min
- work intensity: 50 cycles per hour
- protection class: IP44
- working temperature: -20 ° C ... 50 ° C
- dimensions: 385xx90x123mm
- weight: 4.3kg
