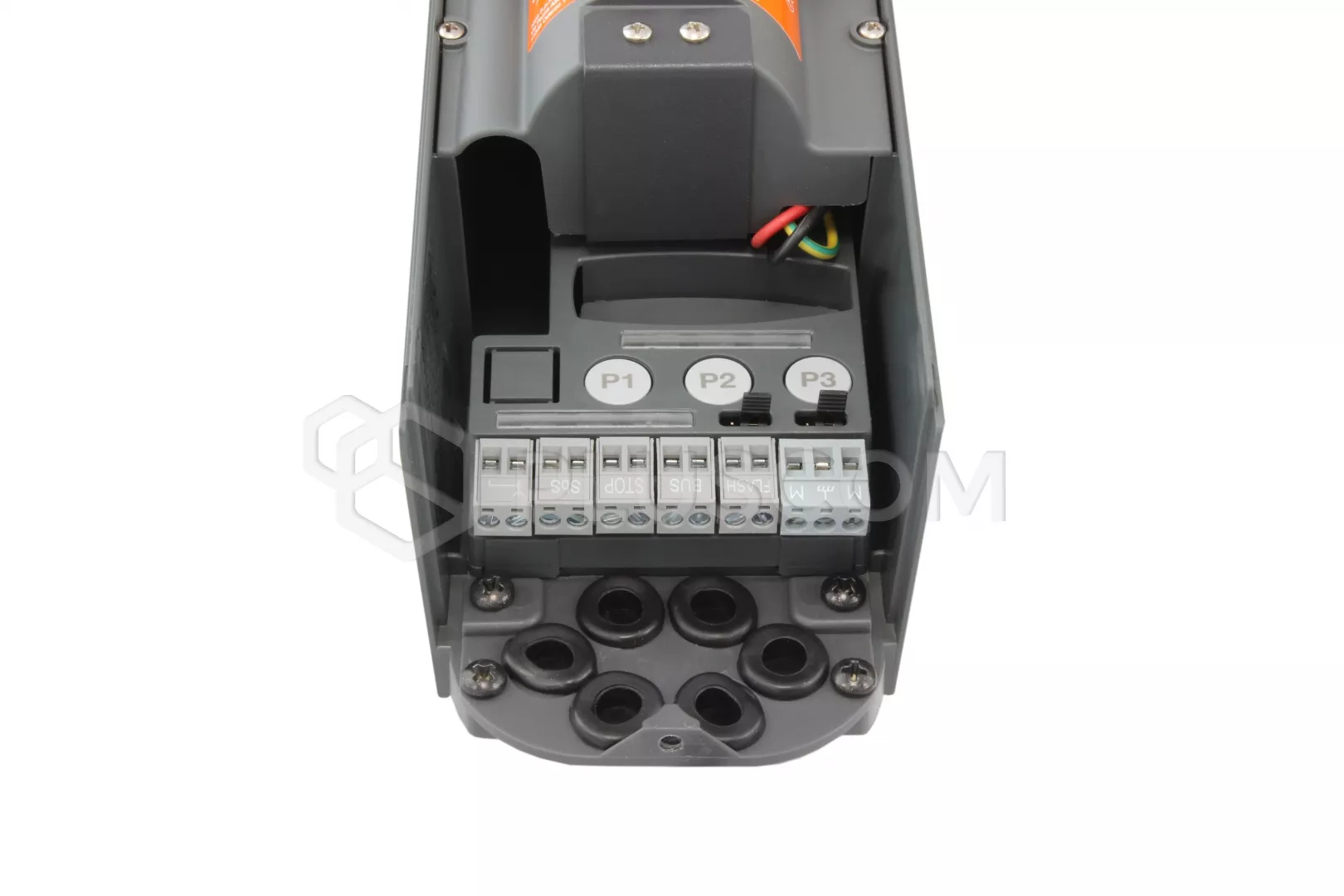

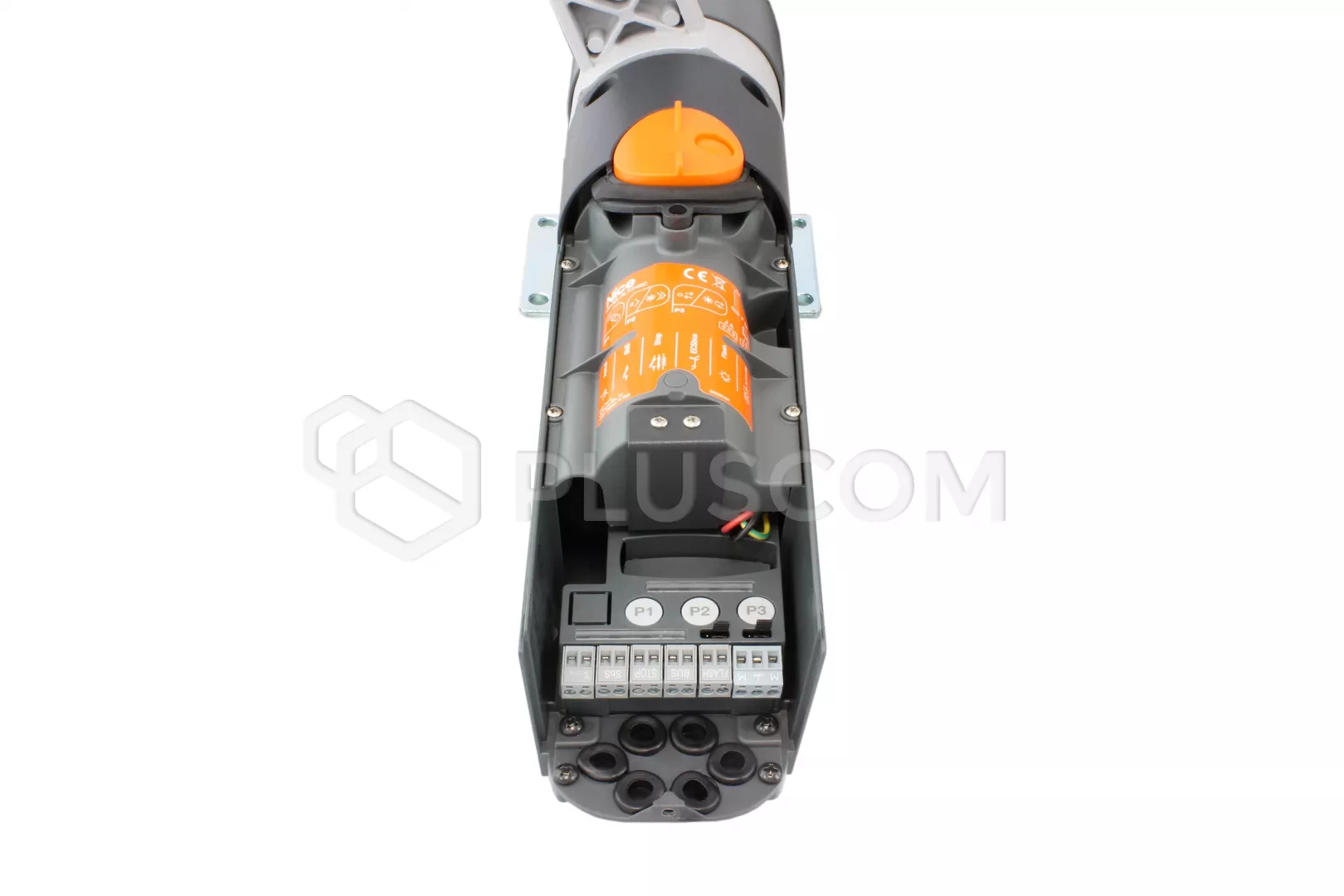

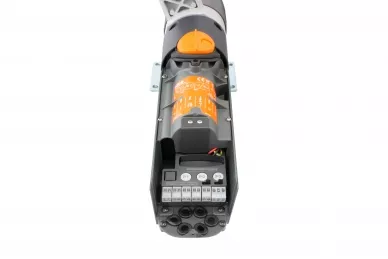

NiceHome ALTO100C actuator with control panel

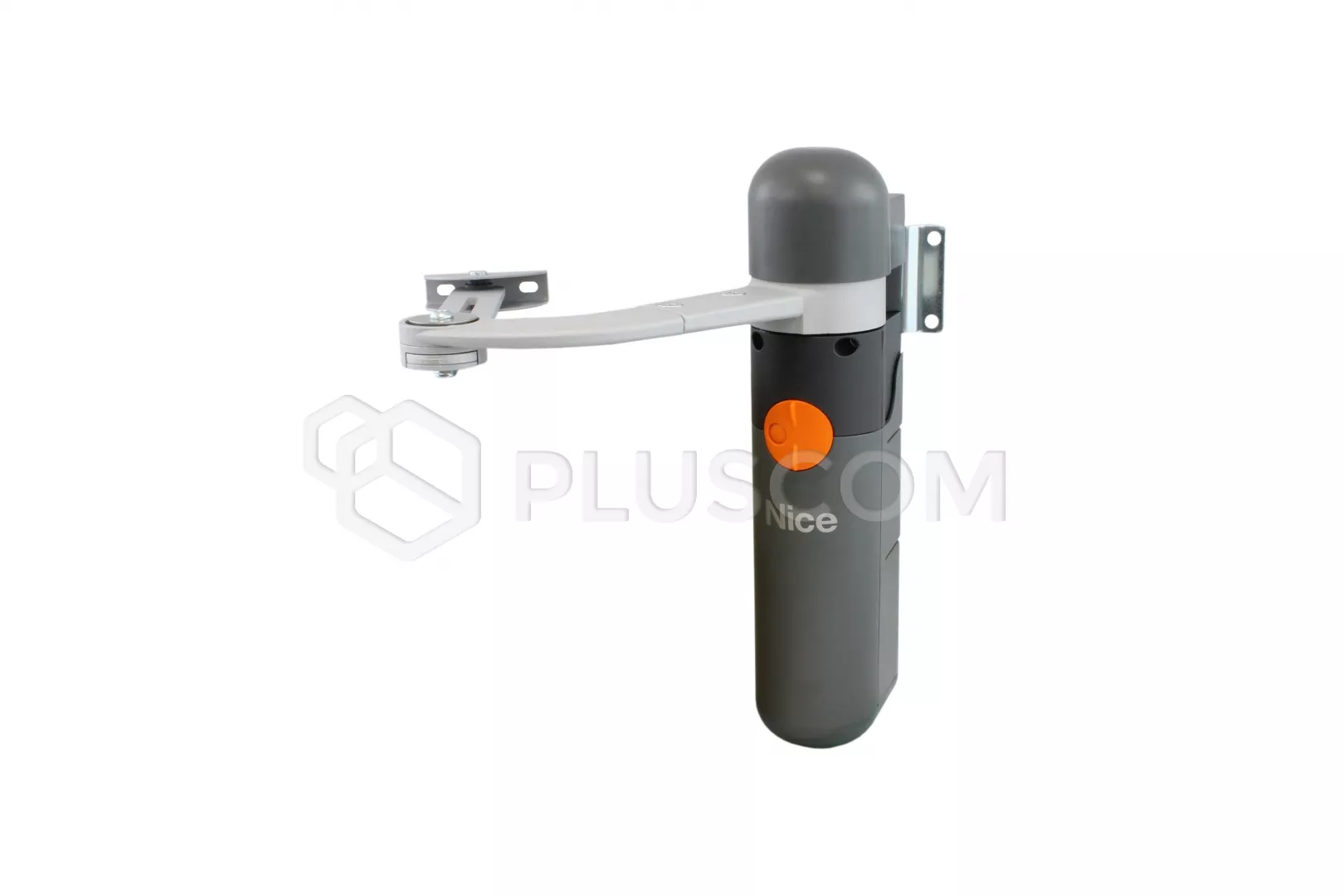

NiceHome Alto100C - actuators without a control unit for 2m / 70kg swing gates

The Alto100C broken arm actuator is designed for the automation of gates leaf length up to 2 m and weight up to 70 kg. Perfect for mounting on wide brick posts where the depth of the hinge can be up to 23cm.

DISTINGUISHING FEATURES
Fast - Open or close the gate in 7 seconds (opening to an angle of 90 degrees, soft start and deceleration disabled)
Easy installation - Seamless installation, connection accessories with 2-core cables (Bus technology)
For each gate - The mounting parameters allow for installation on most of the gates
User-friendly - Full compatibility with the power system Solar SoleKit and the possibility of using wireless accessories

TECHNICAL PARAMETERS:

• power supply: 230V AC
• motor power: 24V DC
• power: 120W

• maximum torque: 100Nm
• nominal torque: 50Nm
• maximum time of continuous operation: 10 min
• work intensity: 50 cycles per hour
• backup power: PR200

• protection class: IP44
• working temperature: -20 ° C ... 50 ° C
• dimensions: 385xx90x123mm
• weight: 4.8kg
