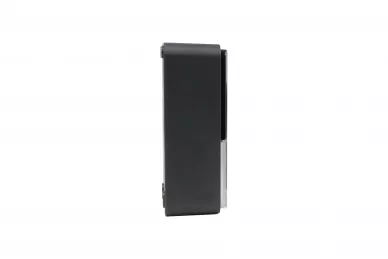

Photocell NiceHome PH200

NiceHome PH200 pair of photocells up to 30m with ECSBus technology

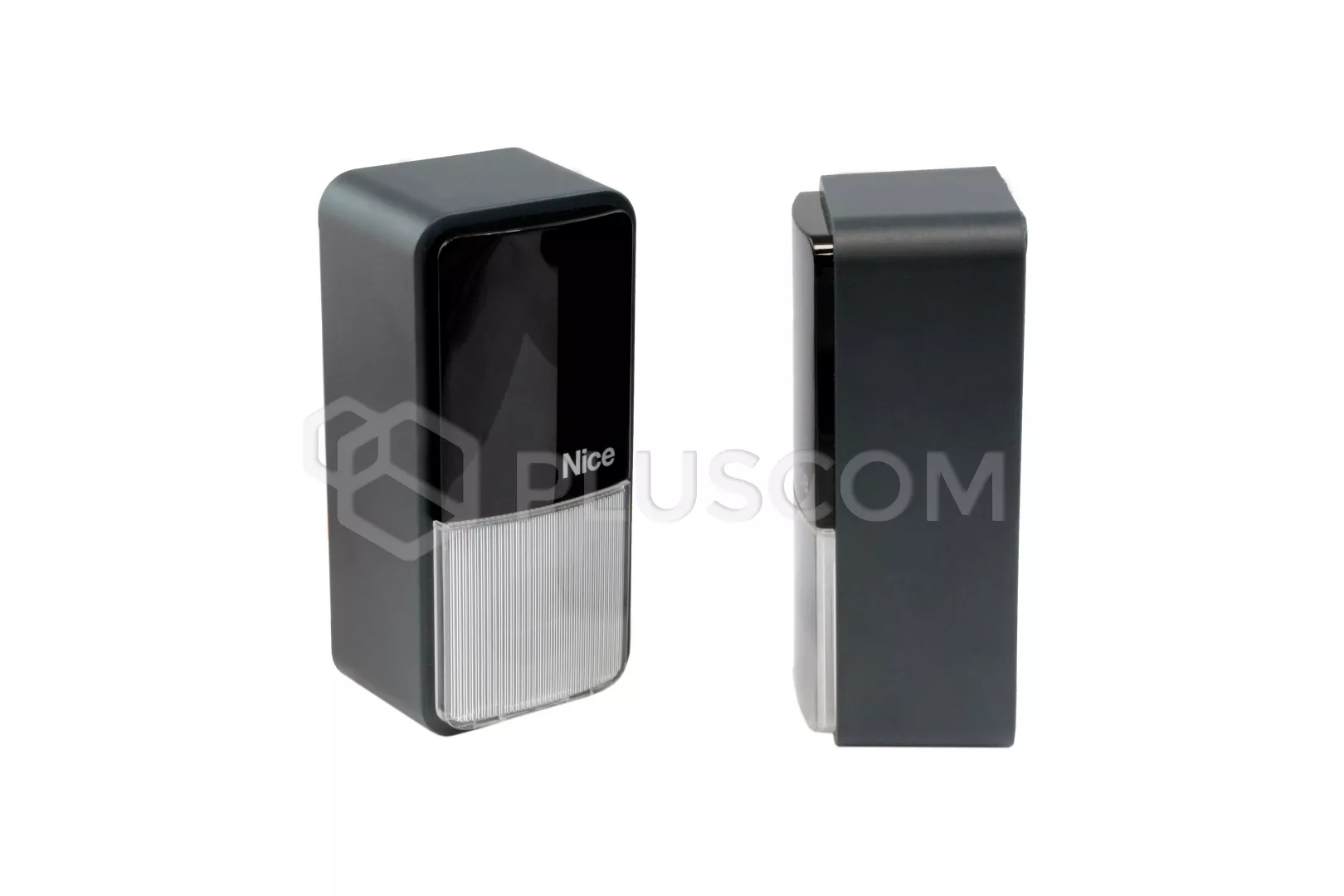

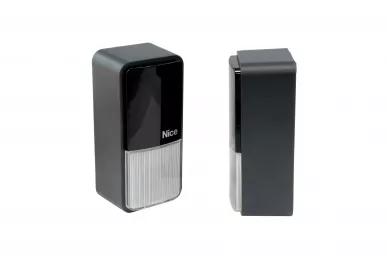

PH200 is intended to run in home automation systems by NiceHome and Mhouse. The photocells are made of polycarbonate material ensuring high product durability and modern aesthetic appearance.


The photocell housing protects the device against the ingress of dust and rain allows them to be installed outdoors and work in the field temperatures: -20 ° C ... + 50 ° C.

PH200 photocells cannot adjust the angle of inclination. Therefore it is important that they are mounted vertically and parallel to each other walls.

TECHNICAL PARAMETERS:

• power supply: from a control panel with ECSbus technology

• transmitter beam angle (TX) - 20 °
• angle of receiver detection zone (RX) - 8 °
• usable range 15m
• maximum range 30m
• degree of protection IP44
• working temperature: -20 ° C ... + 50 ° C
• dimensions: 105x50x40mm

• weight: 70g
