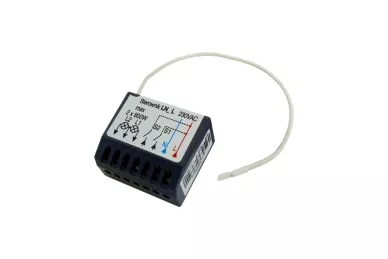

Proxima LN-L 230V AC Radio controller FLOR

Proxima LN-L Network radio controller FLOR

LN-L is a universal network radio controller powered by 2 x 800W, having 2 relay channels with a load capacity 2 x 800W. The LN-L controller can be used, for example, to control lighting with a remote control. LN-L has S1 outputs and S2, to which wall-bell buttons can be connected.
The driver is not suitable for controlling LED lighting.

FUNCTIONS

• superheterodyne receiver - range up to 200m
• pressing the switch S1 turns on / changes the state of channel 1, and pressing the switch S2 turns on / changes the state of channel 2
• accepts rolling code remotes of the leading system + any remotes with the HCS system working in the 433.92MHz band
• deleting a keyfob without its presence
• can register up to 4 buttons and 10 combinations of buttons on the four-button remote and two buttons and one button combination of the two-button remote
• with a registered remote control You can:
• using the LED to remotely read its position in the controller
• to remotely clone a remote

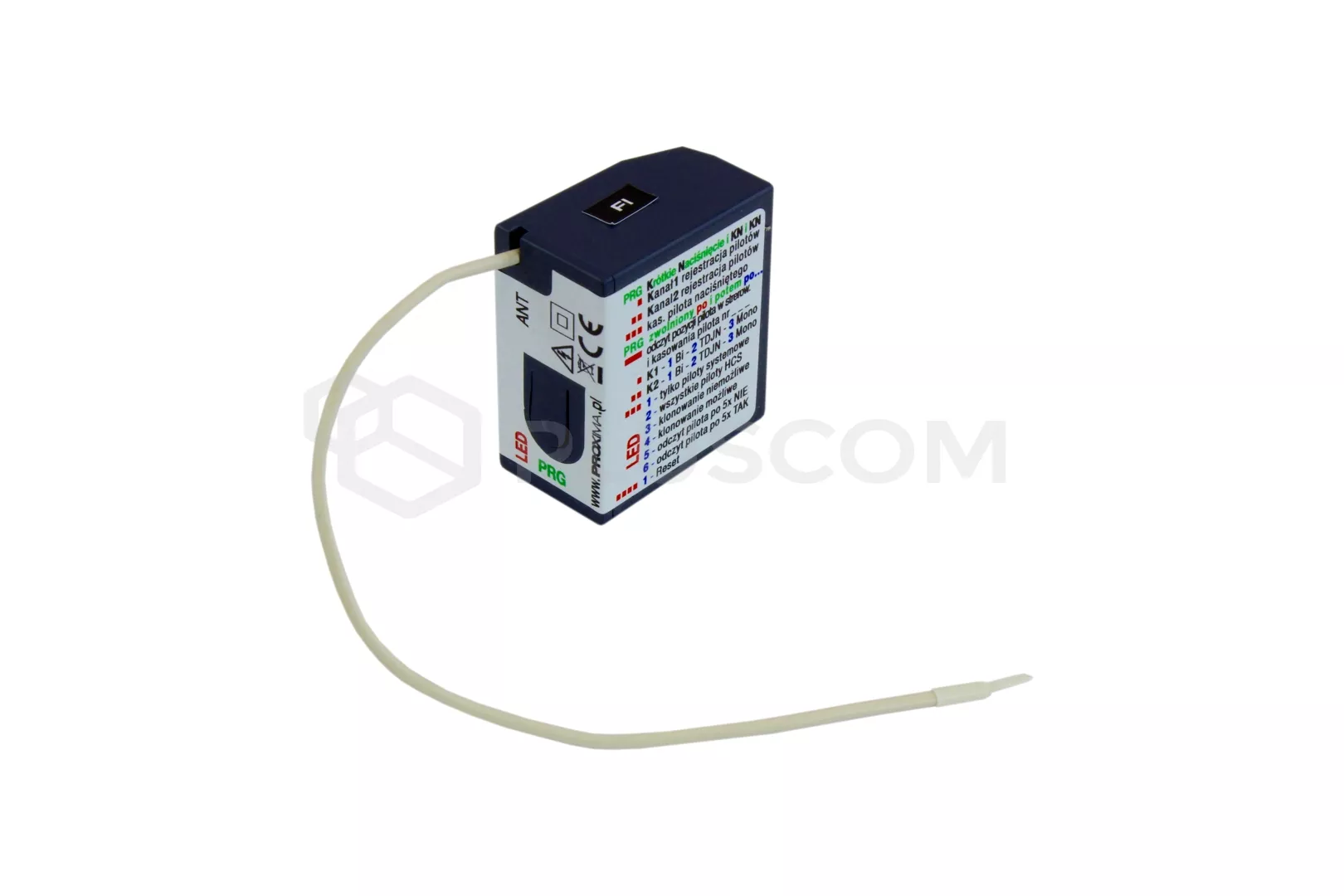

Proxima LN-L 230V AC Radio controller FLOR

Proxima LN-L 230V AC Radio controller FLOR

NOTE: The ANTENNA can be powered by 230V - do not shorten it.

TECHNICAL PARAMETERS:

• power supply: 230V AC
• power consumption: 12mA 0.6W
• outputs: 2 x 800W without fuse

• frequency: 433.92MHz
• via FLOR radio
• pilots memory: 819

• number of channels: 2
• Channel modes: Monostable (1-999 seconds), Bistable, TDJN -As Long As You Press
• dimensions: 42x36x21mm

• weight: 35g
