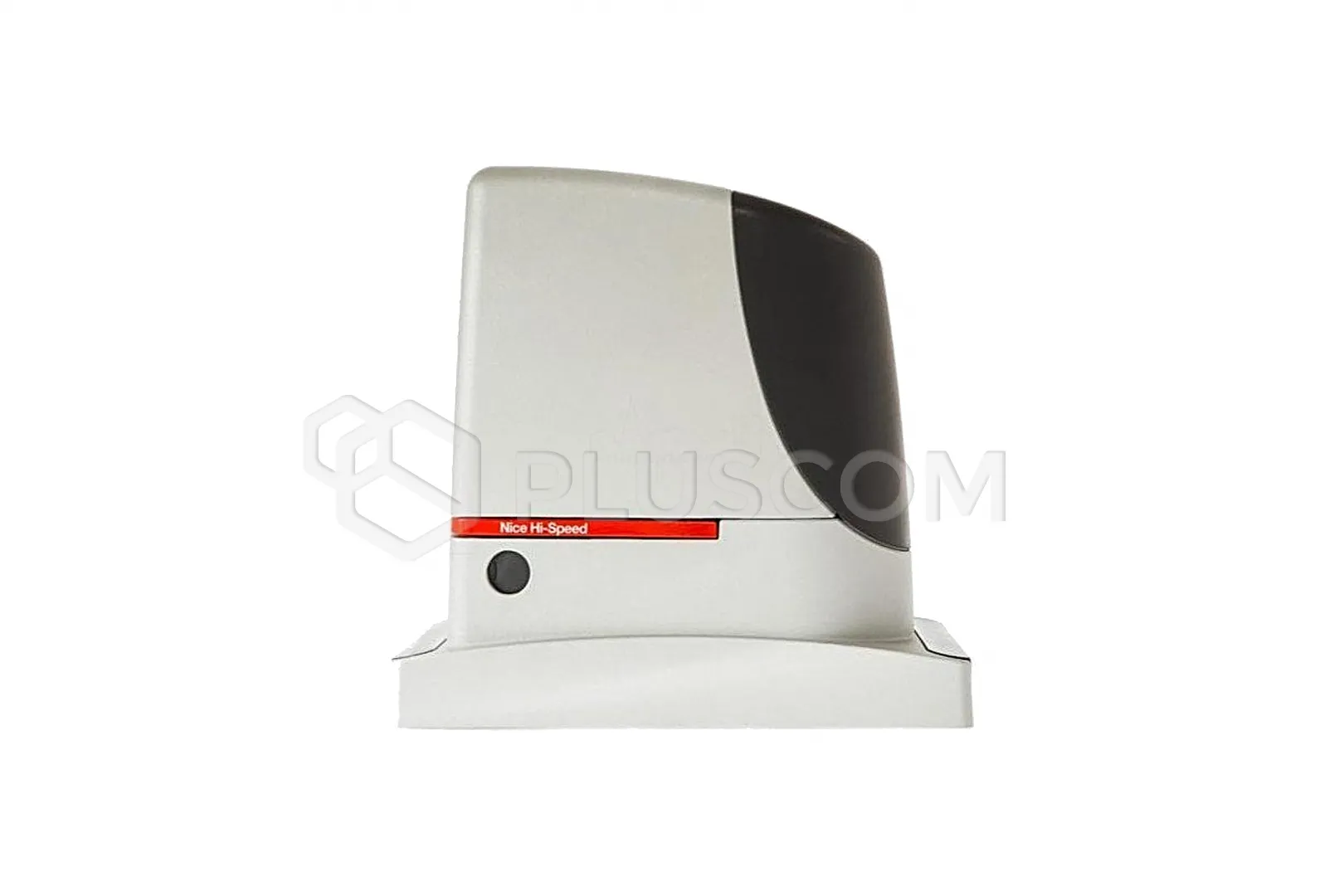

Nice RUN400HSR10 RUN 400 HI-SPEED actuator for sliding gates up to 400kg

Nice RUN400HSR10 RUN 400HSR10 actuator for sliding gates weighing up to 400 kg

DRIVE PURPOSE: RUN 400HS The electromechanical actuator enables the automation of sliding gates with: up to 400kg maximum number of cycles per hour: 11

Nice RUN400HSR10 RUN 400 HI-SPEED actuator for sliding gates up to 400kg

RUN 400HS - HI-SPEED is a version of the drive in which the travel speed is higher by 40-60% from the standard product. Maximum linear speed 35m/min causes that a gate with a width of 4m will be opened in approx 6s.


The most important advantages of the drive and the set include:

user-friendly: thanks to the Nice BlueBUS technology, the control unit can be connected to up to 7 couples of photocells, control, security and signalling devices, using two wires only
Practical: the control unit and PS524 battery charger (to which two B12-B batteries should be added) can be connected by means of a simple
Advanced: the temperature sensor adapts the motor power to the climatic conditions and at the same time thermal cut-out; a master/slave selection automatically synchronises two motors. This means it is possible to automate 2-leaf sliding gates set opposite each other.
Intelligent: thanks to the obstacle detection system and automatic programming of the working times.Self-diagnosis by means of a flashing light. 8 programming levels.
Safe: acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre.
sturdy:base and release in pressure die cast with easy to open handle.
Very quiet: gear motor on bearings.

TECHNICAL SPECIFICATIONS

ELECTRICAL DATA
power supply (Vac 50/60 Hz): 230V
absorption (A): 1,8
power (W): 700
motor power: 24V DC

PERFORMANCE DATA
speed (m/min): 35
work cycle (cycles/hour): 11

DIMENSIONAL AND GENERAL DATA
protection level (IP): 44
working temp: (°C min/max): -20...+50
dimensions (mm): 400x255x387mm
weight (kg): 24.5
