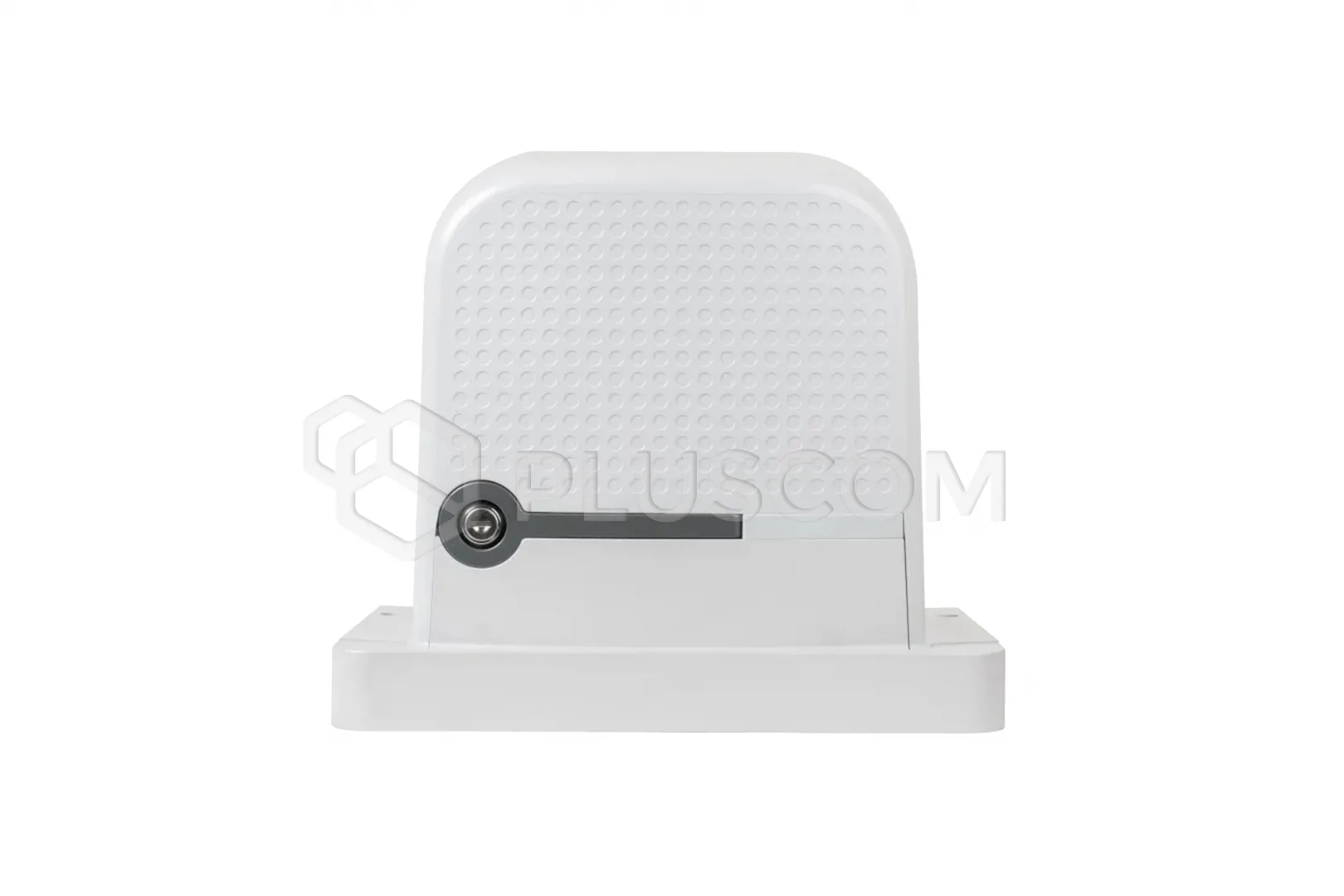

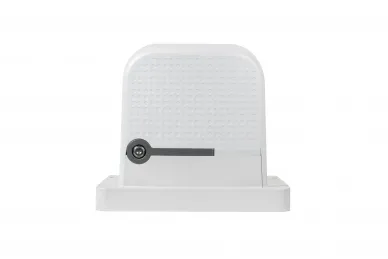

NICE ROBUS 800 sliding gate operator for gates up to 800 kg

Nice ROBUS800 ROBUS 800 Operator for Sliding Gates up to 800 kg

GATE PARAMETERS: Gate weight up to 800 kg Maximum number of cycles per hour: 35

NICE ROBUS 800 sliding gate operator for gates up to 800 kg

24 VDC sliding gate operator with control unit and integrated receiver, magnetic limit switches, for gates weighing up to 800 kg. Thanks to its advanced technical parameters, even heavy gates open quietly and smoothly.

The ROBUS operator equipped with a control unit is ready to connect various variants of expansion modules: MLAE21, MLAE22, MLAE44, thus providing additional inputs and outputs.
The new control unit has been redesigned for integration with Smart Home systems. The device has a built-in Wi-Fi module enabling remote gate control via the MyNice Pro app. Additionally, the operator reduces energy consumption by up to 90% in standby mode, switching to Standby mode. The integrated EyeCheck LED indicates the status of the automation and connected accessories.

The innovative design makes the actuator efficient and fully controllable, ensuring convenient operation of the gate automation. It operates quietly thanks to the patented arrangement of internal components, offers a convenient wicket function for partial opening, and is suitable for modern installations with Smart Home integration.

FEATURES:

• Built-in Wi-Fi module for remote control via the MyNice Pro app
• BLUEBUS technology
• EyeCheck system – integrated LED indicating automation status
• Energy savings up to 90% in standby mode
• Stand-By mode reduces energy consumption
• Made from over 50% recycled plastic
• Partial gate opening function – pedestrian function
• Temperature sensor
• Continuous monitoring of connected devices
• Soft start when opening and slowing down when closing
• Option to use inductive limit switches

EASY INSTALLATION:

• Control unit with built-in receiver provides maximum freedom in horizontal and vertical adjustment of the base
• The BlueBUS connector allows connection with just two wires between the control unit and up to 7 pairs of photocells and control, safety, and signaling devices
• Control unit expandable with accessory modules to increase the number of inputs or outputs
• Mounting compatible with previous Nice models (ROX, ROAD, ROBUS)

TECHNICAL DATA:

• Control unit power supply: 230V 50/60Hz
• Motor power supply: 24V
• Wing limit: 8 m
• Max. gate weight: 800 kg
• Current consumption: 1.1 A
• Power consumption: 230W
• Gate speed: 0.30 m/s
• Maximum starting torque: 750 N
• Nominal torque: 400 N
• Duty cycle 4 m wing: 35 cycles/hour
• Duty cycle 8 m wing: 20 cycles/hour
• Protection rating: IP44
• Operating temperature: -20°C to +50°C
• Dimensions: 340 x 220 x 303 mm
• Motor weight: 11.5 kg
