NICE RBS800BDKCER00 Robus 800 MYGO kit for
sliding gates weighing up to 800 kg
THE SET INCLUDES:
|

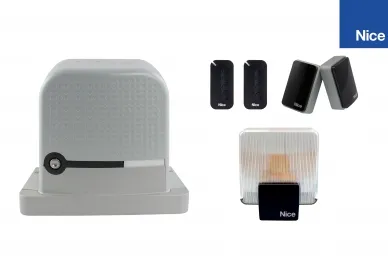

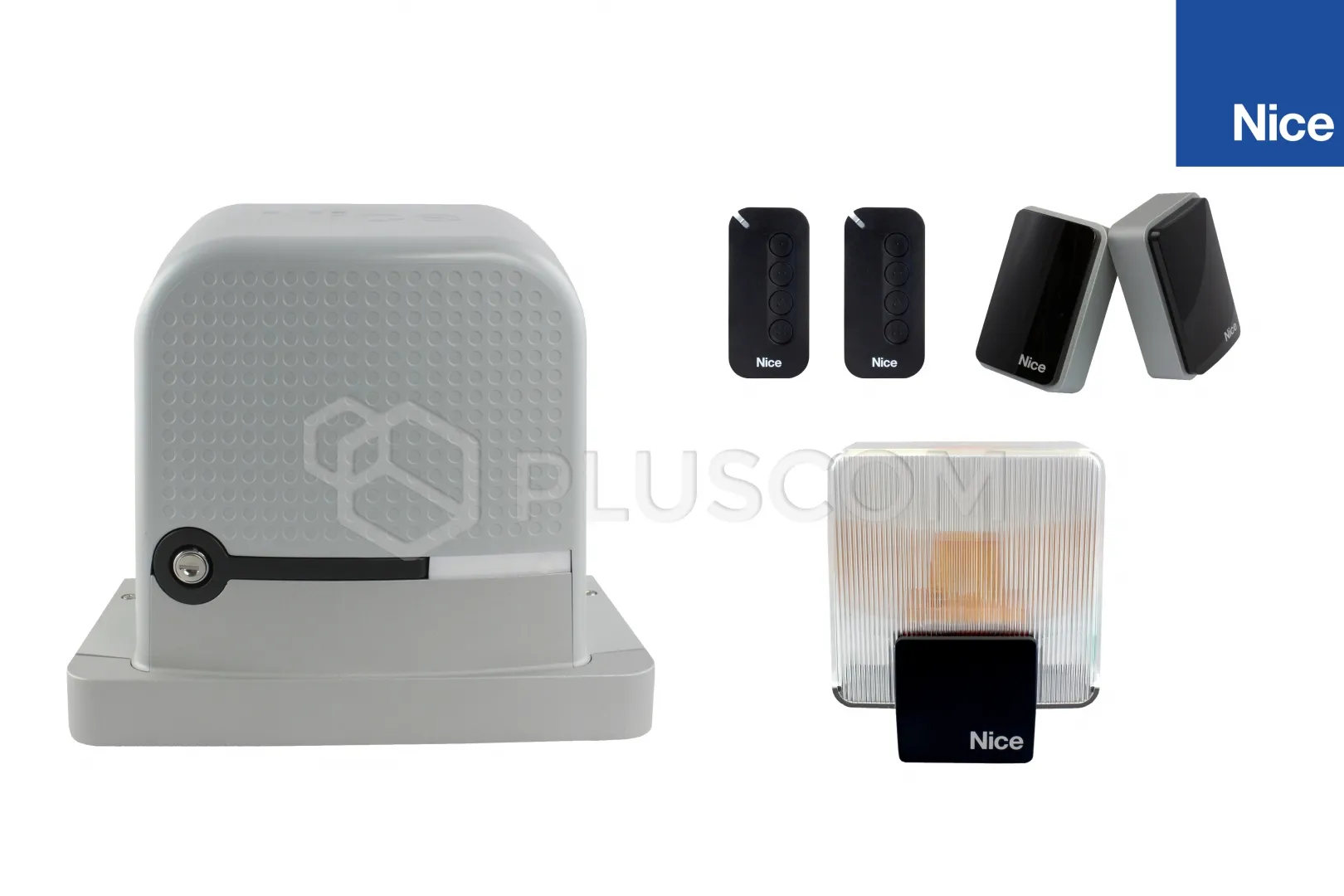

NICE ROBUS 800 MYGO sliding gate kit for gates up to 800 kg
|
24 VDC sliding gate operator with control unit and integrated receiver,
magnetic limit switches, for gates weighing up to 800 kg. Thanks to its
advanced technical parameters, even heavy gates open quietly and smoothly.
The ROBUS operator equipped with a control unit is ready to connect various
variants of expansion modules: MLAE21, MLAE22, MLAE44, thus providing
additional inputs and outputs.
The new control unit has been redesigned for integration with Smart Home
systems. The device has a built-in Wi-Fi module enabling remote gate control
via the MyNice Pro app. Additionally, the operator reduces energy consumption
by up to 90% in standby mode, switching to Standby mode. The integrated
EyeCheck LED indicates the status of the automation and connected accessories.
The innovative design makes the actuator efficient and fully controllable,
ensuring convenient operation of the gate automation. It operates quietly
thanks to the patented arrangement of internal components, offers a convenient
wicket function for partial opening, and is suitable for modern installations
with Smart Home integration.
FEATURES:
- Built-in Wi-Fi module for remote control via the MyNice Pro app
- BLUEBUS technology
- EyeCheck system – integrated LED indicating automation status
- Energy savings up to 90% in standby mode
- Stand-By mode reduces energy consumption
- Made from over 50% recycled plastic
- Partial gate opening function – pedestrian function
- Temperature sensor
- Continuous monitoring of connected devices
- Soft start when opening and slowing down when closing
- Option to use inductive limit switches
MYGO4 is a practical and elegant 4-channel remote
control, it is compatible with receivers that use the one-way radio
coding "O-Code". It provides radio control with a dynamically
changing code, with a frequency of 433.92 MHz.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with the radio coding
"O-Code".
The Nice ELDC signal lamp works with control units that supply
a voltage of 12/24V at the output of the warning lamp.
The light source
is a super bright LED diode emitting white light. An orange lampshade
has been installed above it that disperses the light. The LED diode is an
energy-saving, reliable, shock-resistant light source.
The lamp housing has an
integrated 433.92MHz antenna using a
50 Ohm RG58 coaxial cable that we connect to the control unit's antenna
output, we significantly increase the range of the remote controls.
EPMB photocells, for external mounting, are a combination of
excellent technical parameters and excellent design. The operating range of
devices is up to 30 m.
They are equipped with modern BlueBus technology, thanks to which the
connection to the control unit is made using a 2-wire cable, which is
significantly easier during installation and significantly shortens its time.
The photocell housing protects against the ingress of dust and rain, which
means they can be installed outdoors and operate in the temperature range:
-20°C...+50°C.
The choice of materials, the design of internal components and the use of
high-quality systems guarantee robustness and maximum efficiency.
90%
of the materials used to construct the drive come from recycling.
TECHNICAL PARAMETERS:
- Control unit power supply: 230V 50/60Hz
- Motor power supply: 24V
- Wing limit: 8 m
- Max. gate weight: 800 kg
- Current consumption: 1.1 A
- Power consumption: 230W
- Gate speed: 0.30 m/s
- Maximum starting torque: 750 N
- Nominal torque: 400 N
- Duty cycle 4 m wing: 35 cycles/hour
- Duty cycle 8 m wing: 20 cycles/hour
- Protection rating: IP44
- Operating temperature: -20°C to +50°C
- Dimensions: 340 x 220 x 303 mm
- Motor weight: 11.5 kg
