NICE Robus 400 MYGO set for sliding gates
weighing 400kg

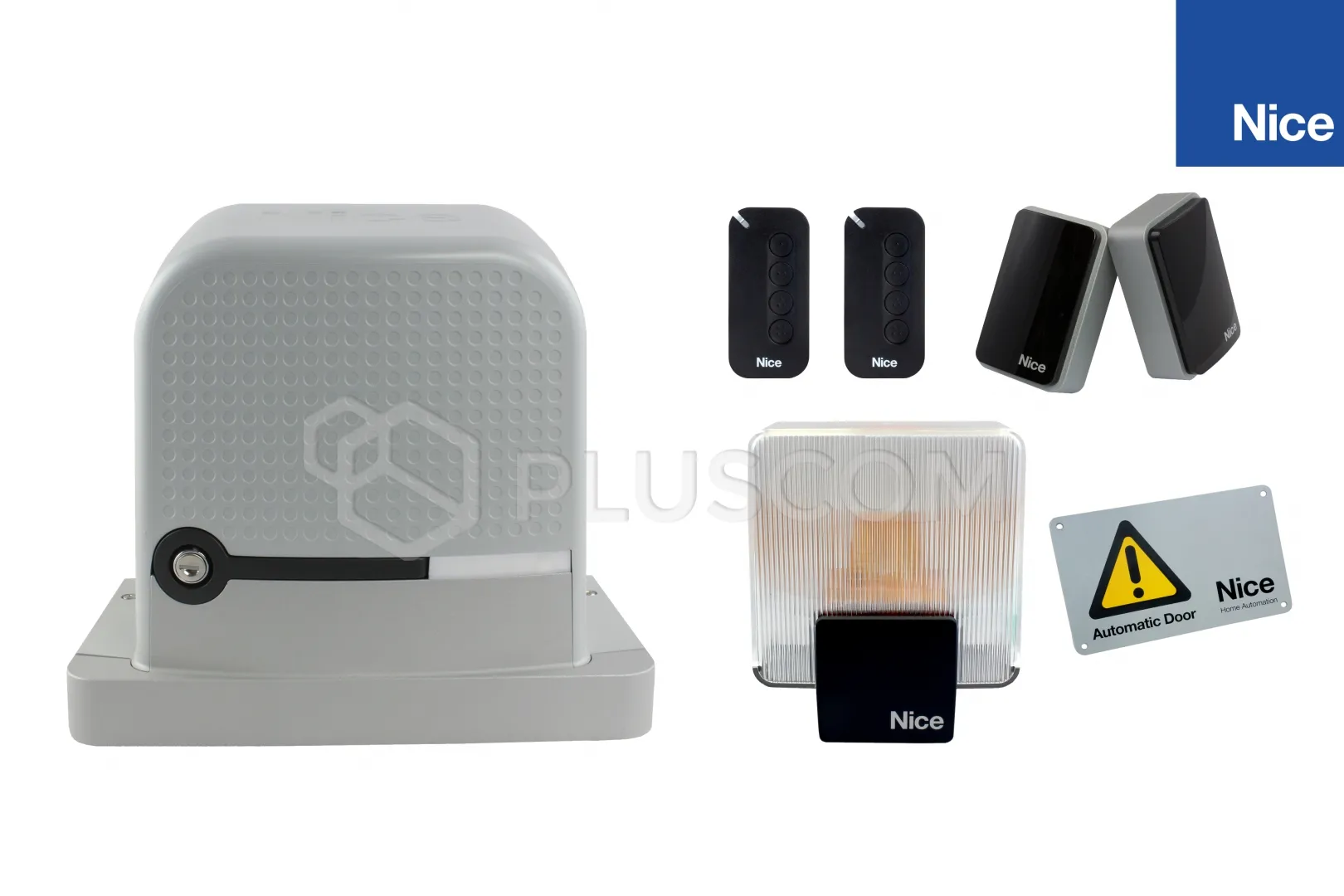

SET INCLUDES:
|
NICE RBS400BDKCE ROBUS 400 MYGO Kit
|
24 VDC sliding gate drive with control unit and integrated receiver,
magnetic limit switches, for gates weighing 400 kg. Thanks to advanced
technical parameters, even heavy gates open quietly and smoothly.
Robus 400 has an electronic control unit, a plug-in connector type
"SM" for OXI or OXIBD receivers and an integrated bidirectional
receiver.
The implementation of electrical connections to external devices is simplified
by the use of "BLUEBUS" technology.
The control unit is prepared for connecting various variants of I/O
expansion modules MLAE21, MLAE22, MLAE44 and thus obtaining additional inputs
and outputs. Each additional input/output is as personalized as if it
were an input/output of the control unit.
The control unit has a BusT4 socket to which you can connect, using the IBT4N
interface, the "ProView" interface, allowing complete and rapid
management of the installation, maintenance and diagnostics phases of the
entire automation, using the wireless connection and the My-Nice Pro
application. Once turned on, ProView automatically creates a WiFi network to
which you can connect.
Thanks to Pro-View or Bidi-WiFi and the MyNice Pro application, the
installation of Nice Gate&Door systems is even easier and more convenient, and
this gives us the possibility of programming using the application.
ROBUS600 is designed for WiFi connection, which is available in two ways:
- BiDi-Wifi interface supplied on request as an additional accessory
- Proview interface (only for MyNice Pro application), supplied on request
as an additional accessory

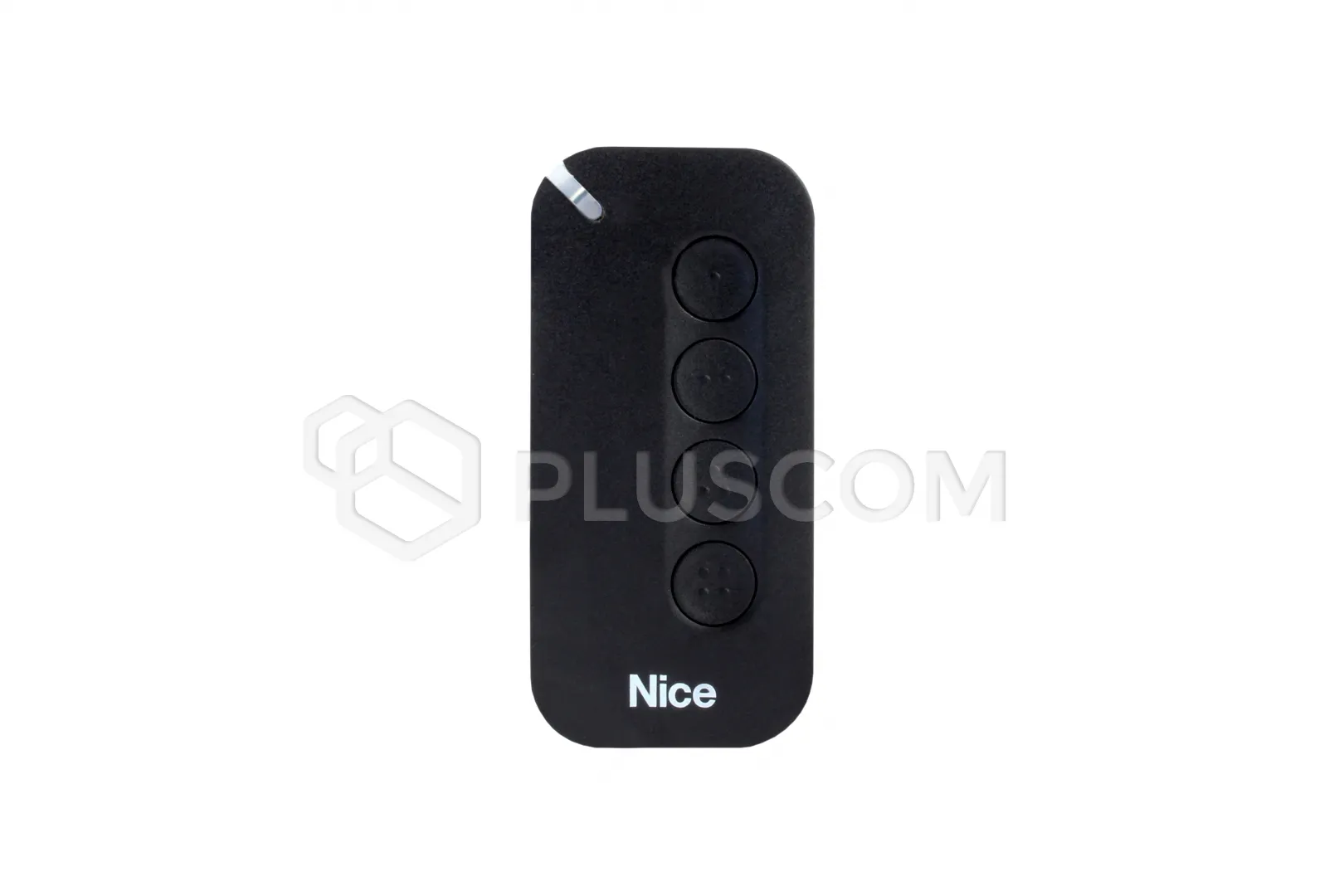

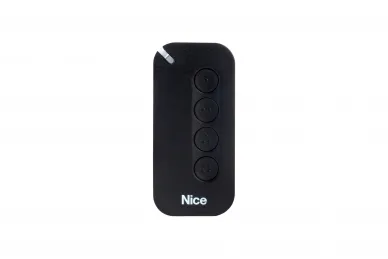

MYGO4 is a practical and elegant 4-channel remote
control, it is compatible with receivers that use the one-way radio
coding "O-Code". It provides radio control with a dynamically
changing code, with a frequency of 433.92 MHz.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with the radio coding
"O-Code".

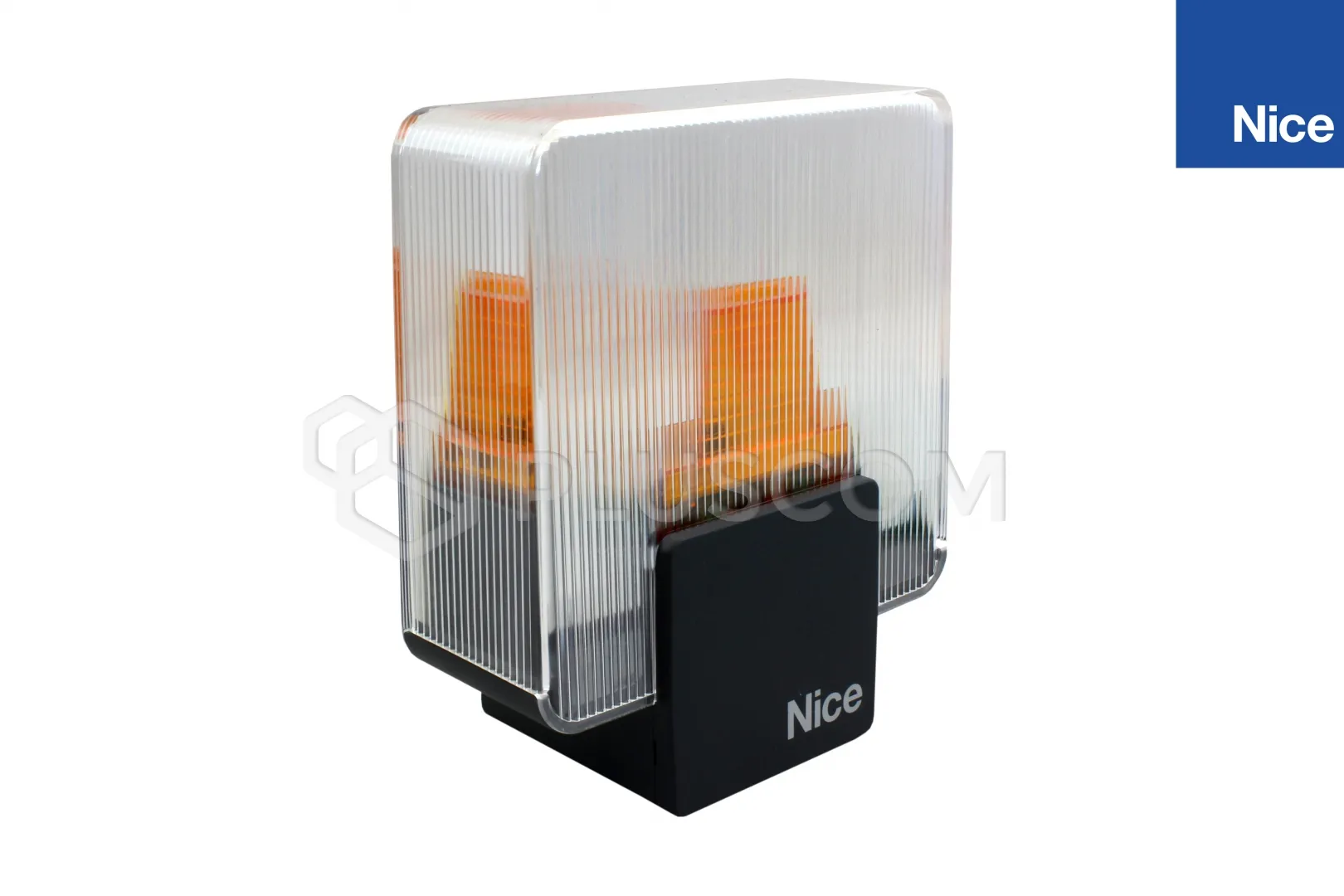

The Nice ELDC signal lamp works with control units that supply
a voltage of 12/24V at the output of the warning lamp.
The light source
is a super bright LED diode emitting white light. An orange lampshade
has been installed above it that disperses the light. The LED diode is an
energy-saving, reliable, shock-resistant light source.
The lamp housing has an
integrated 433.92MHz antenna using a
50 Ohm RG58 coaxial cable that we connect to the control unit's antenna
output, we significantly increase the range of the remote controls.

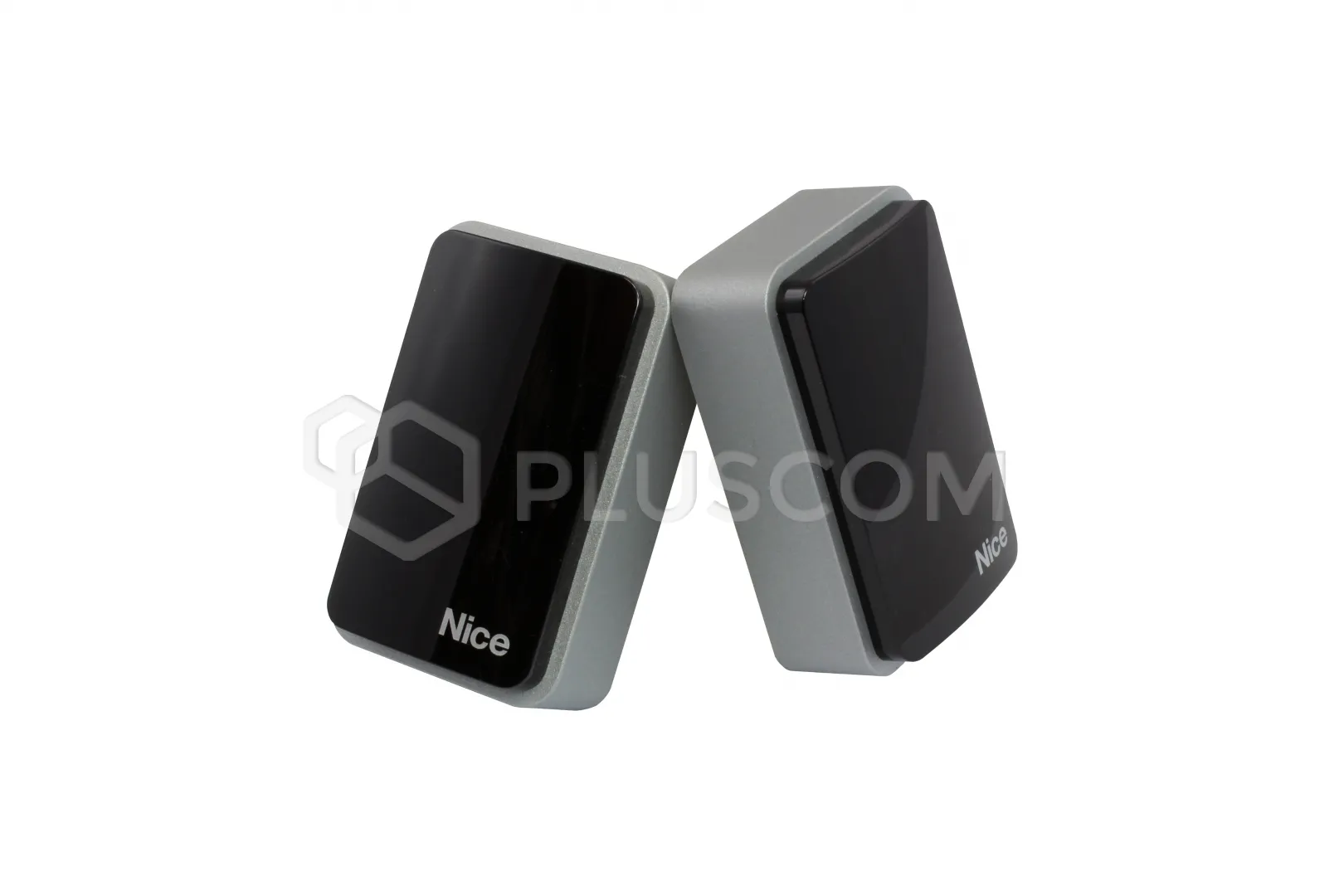

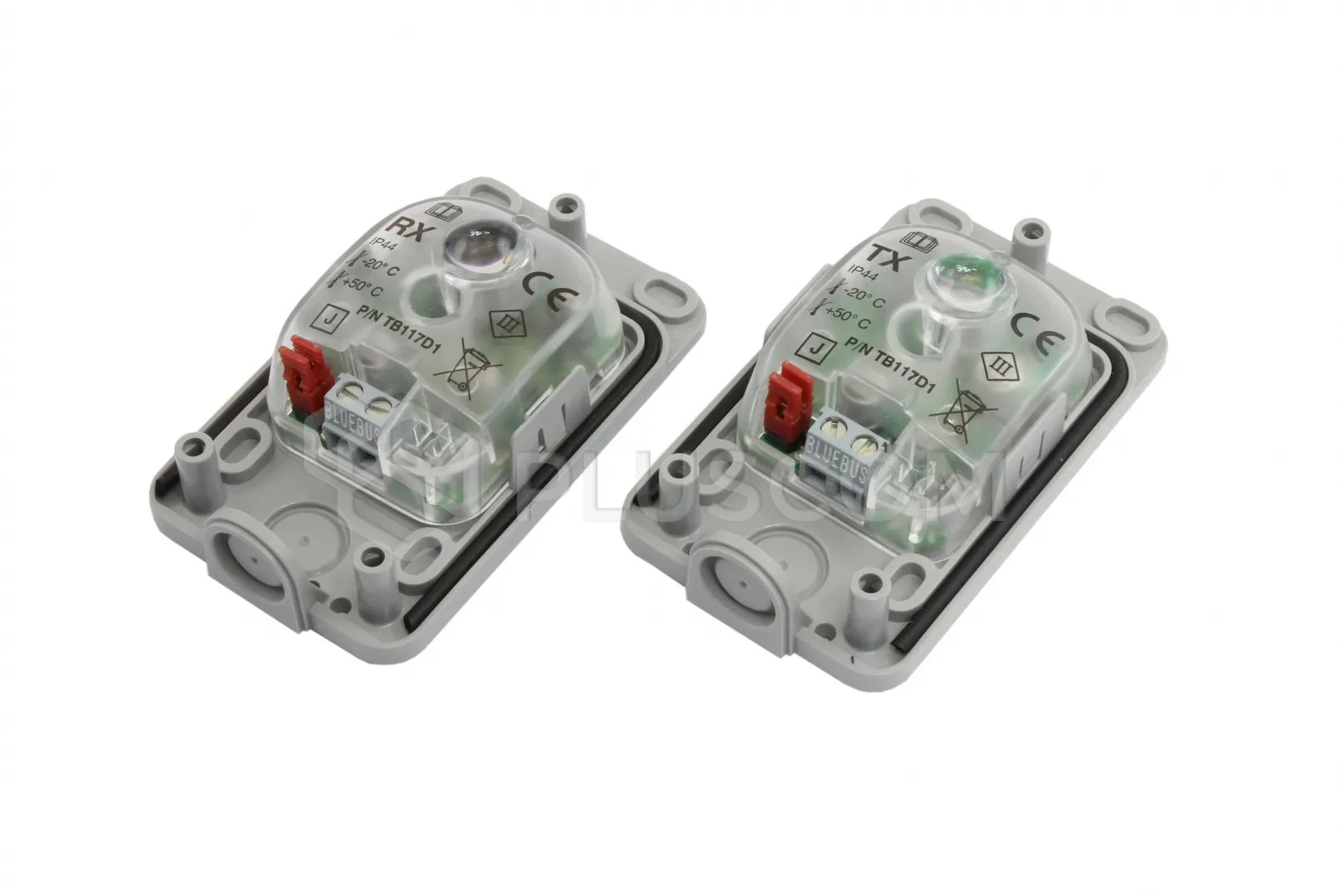

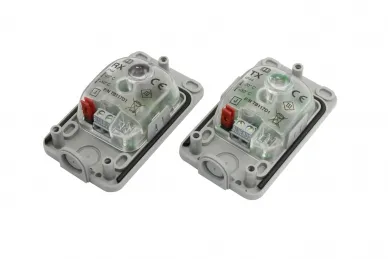

EPMB photocells, for external mounting, are a combination of
excellent technical parameters and excellent design. The operating range of
devices is up to 30 m.
They are equipped with modern BlueBus technology, thanks to which the
connection to the control unit is made using a 2-wire cable, which is
significantly easier during installation and significantly shortens its time.
The photocell housing protects against the ingress of dust and rain, which
means they can be installed outdoors and operate in the temperature range:
-20°C...+50°C.
The choice of materials, the design of internal components and the use of
high-quality systems guarantee robustness and maximum efficiency.
90%
of the materials used to construct the drive come from recycling.
TECHNICAL PARAMETERS:
- power supply: 230V AC
- current consumption 1.1A
- power: 250W
- engine power supply: 24V DC
- force: 400N
- speed: 0.34m/s
- work intensity: 35 cycles per hour
- protection class: IP44
- operating temperature: -20°C...55°C
- dimensions: 340x220x303mm
- weight: 11kg
