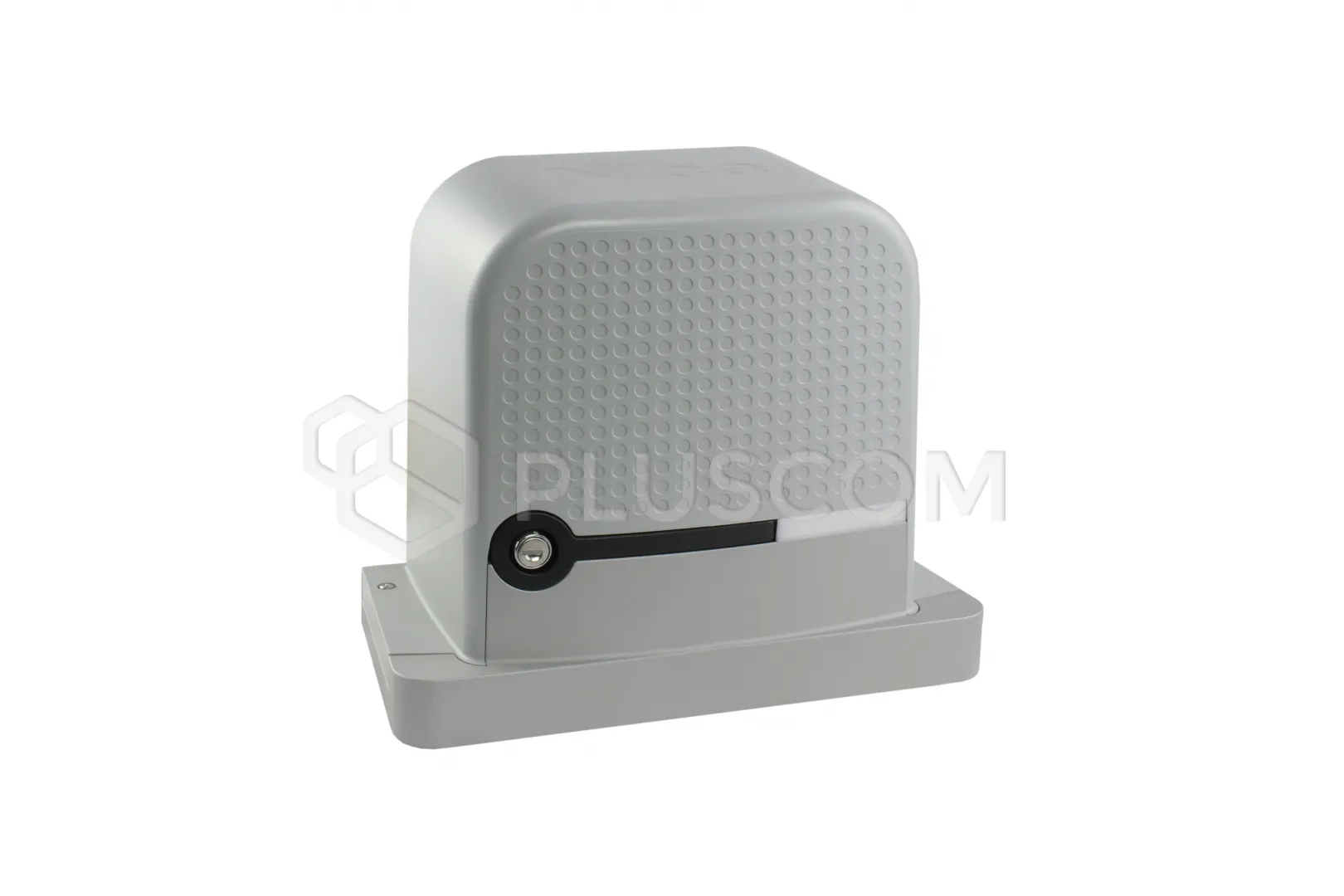

Nice RO600KLT 30 Robo 600 INTI set for sliding gates up to 600 kg

Nice RO600KLTR30 ROBUS 600 INTIset for sliding gates weighing 600 kg

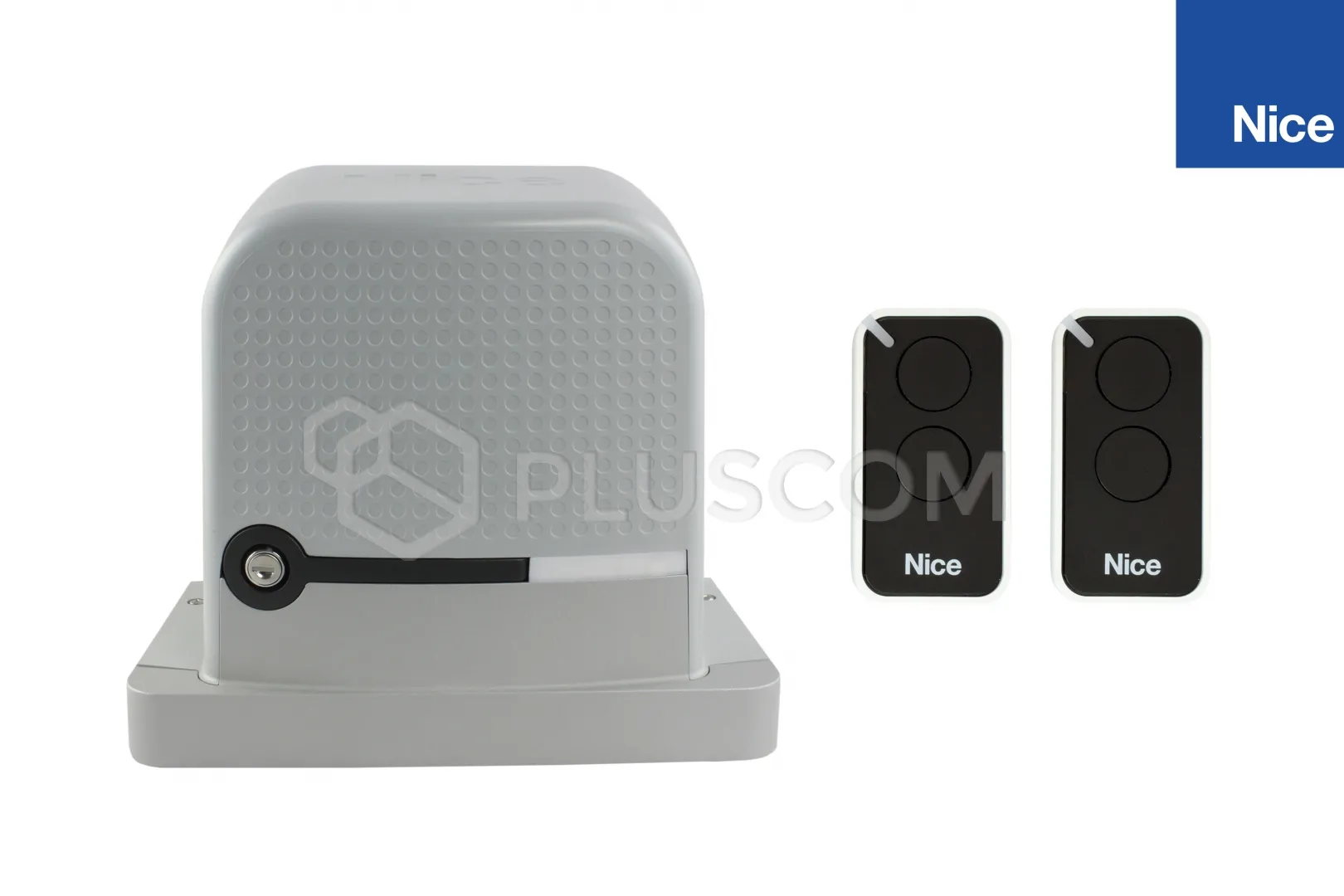

SET CONTAINS Nice Robo 600 gear motor with built-in control unit Nice Inti2 black 2-channel remote - 2 pcs

Nice RO600KLT 30 Robo 600 INTI set for sliding gates up to 600 kg

The Robo 600 is an actuator that combines a solid structure, high efficiency and innovative design and installers will appreciate it for its ease of installation and programming. Due to dimensional compatibility with current models NICE actuators (applies to the spacing of the foundation anchors), the assembly is extremely straight. The greater flexibility in the positioning of the motor guarantees the protection devices against unwanted manipulation.

The Robo 600 has an updated control board that complies with European EPD energy efficiency standards. Thanks to the advanced Stand-by mode, the device's idle state is characterized by drastically reduced power consumption.

Main differences compared to older versions of the control unit:

• Main difference – Implementation of Solemyo and Opera technologies
• Standby mode – The MCU1R30 is characterized by significantly lower power consumption in standby mode, which is important when powering the system with a solar panel.
• Smoothness – The software in this version better handles motor braking and acceleration, extending the life of the drive's mechanical parts.
• Backward compatibility – The MCU1R30 fully replaces older versions of the MCU1 and SPMCU1.

New 50% longer release lever for easier unlocking the gate provides a better grip in the event of a power failure. The lever locks also a cover to the base, providing not only protection to the automation, but it is also part of the new anti-theft system.

The cover is made of 75% regenerated ABS (acrylonitrile butadiene styrene), a thermoplastic polymer used for creating light and stiff elements.

The drive has a built-in radio receiver and is designed for automation gates weighing up to 600 kg. At a speed of 0.18 m / s, it will open a four-meter gate in just 22 seconds.

Remote maintenance has advantages for:

• installer , save time, which they gain thanks to quick operation via the My Nice Pro
• application
• user who has full control and the ability to automate via a WiFi or ZWave plug-in module. It can create different scenarios too using Z-Wave, Nice BiDirectional radio protocol, or the Yubii control panel Home

Reliability

The Robo600 is resistant to all weather conditions, from extremely cold and windy to very hot. It is also not afraid of sand. Its durability owes a redesigned gearbox, as well as the use of a new one synthetic lubricant. Elements are also an important factor of resistance mechanical made of a new special material.

TECHNICAL PARAMETERS:

• power supply: 230V AC
• nominal power: 300W
• motor power supply: 230V AC


• maximum starting torque: 18 Nm
• nominal torque: 9 Nm
• force: 500N
• speed: 11m / min

• work intensity: 20 cycles per hour

• protection class: IP44
• working temperature: -20 ° C ... 55 ° C
• dimensions: 330 x 210 x 303mm
• weight: 11kg
