Nice OX2UBP interface to Nice radios

NICE OX2UBP interface to Nice radios with two outputs relay equipped with SM connector

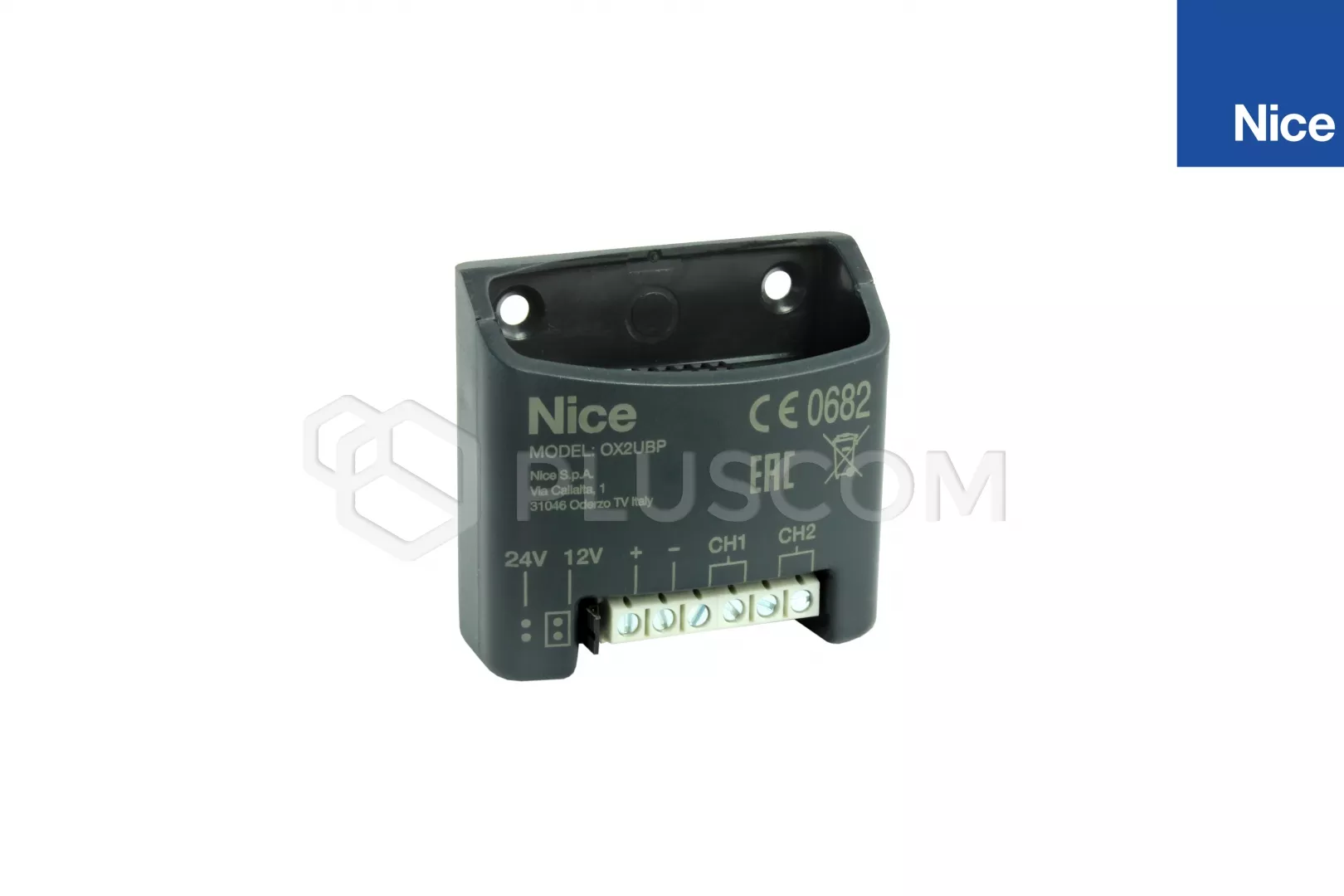

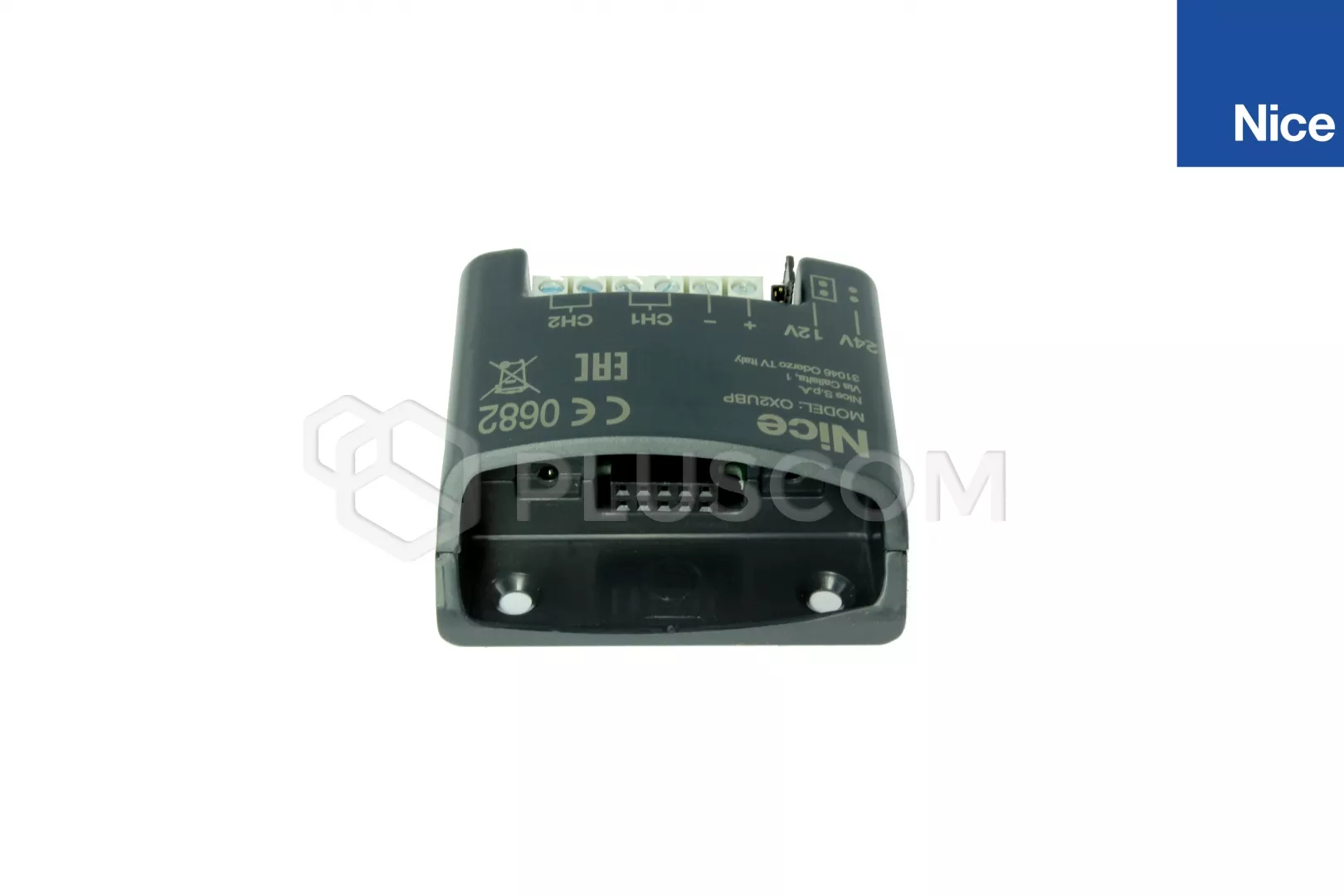

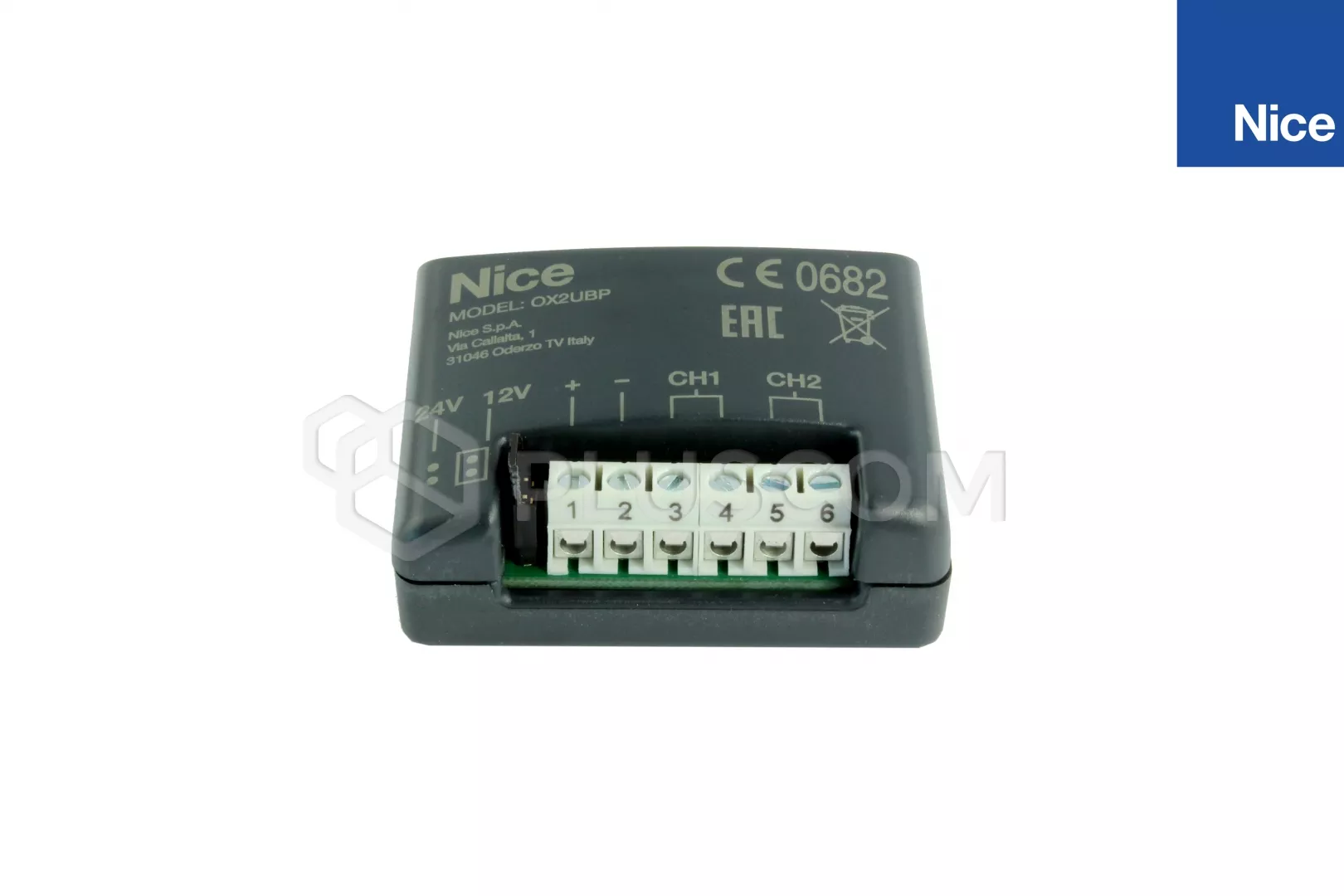

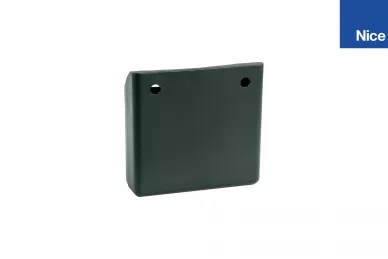

OX2UBP is a hardware interface with 2 relay outputs equipped with SM connector for radio receivers. The relay outputs are of the “dry contact” type, therefore the device can be used with any type of control unit equipped with inputs for the opening, closing or step-by-step commands. It can be wall-mounted using the screws or adhesive strip.

Technical data:

• hardware interface with 2 outputs with independent plug-in relays for receivers XI
• output type: 2 NO insulated contacts (changed to NC)
• power supply: 12 ÷ 35 Vdc; 12 ÷ 28 Vac 50/60 Hz
• standby consumption: 25 mA at 24 Vac (with OXI receiver)
• consumption of 2 active relays: 50 mA at 24 Vac (with receiver OXI)
• capacity of the relay contacts: maximum 0.5 A and maximum 48 Vac (resistive load: cos phi = 1)
• time of output relay contacts: mechanical life & gt; 1,000,000 cycles; electric & gt; 200,000 cycles (resistive load: 0.25 A; 24 Vcc)
• installation: inside the automation or inside suitable enclosures protective
• degree of protection of the housing: IP30
• operating temperature: -20 ° C ÷ + 70 ° C
• dimensions: 56x53x23 mm
• weight: 33 g
