NICE NDCM1122 Industrial Door Operator for up to 24m², SD-70-24 EL15 KEL-5, 3x400V, 70 Nm, 24 rpm.

577,18 EUR including 20.00% VAT
Product code: #40697
Manufacturer: Nice
  • Gate weight: up to 300 kg
  • Gate area: up to 24m²
  • Power supply 3x400V
  • Electronic limit switches
  • Emergency opening with chain
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

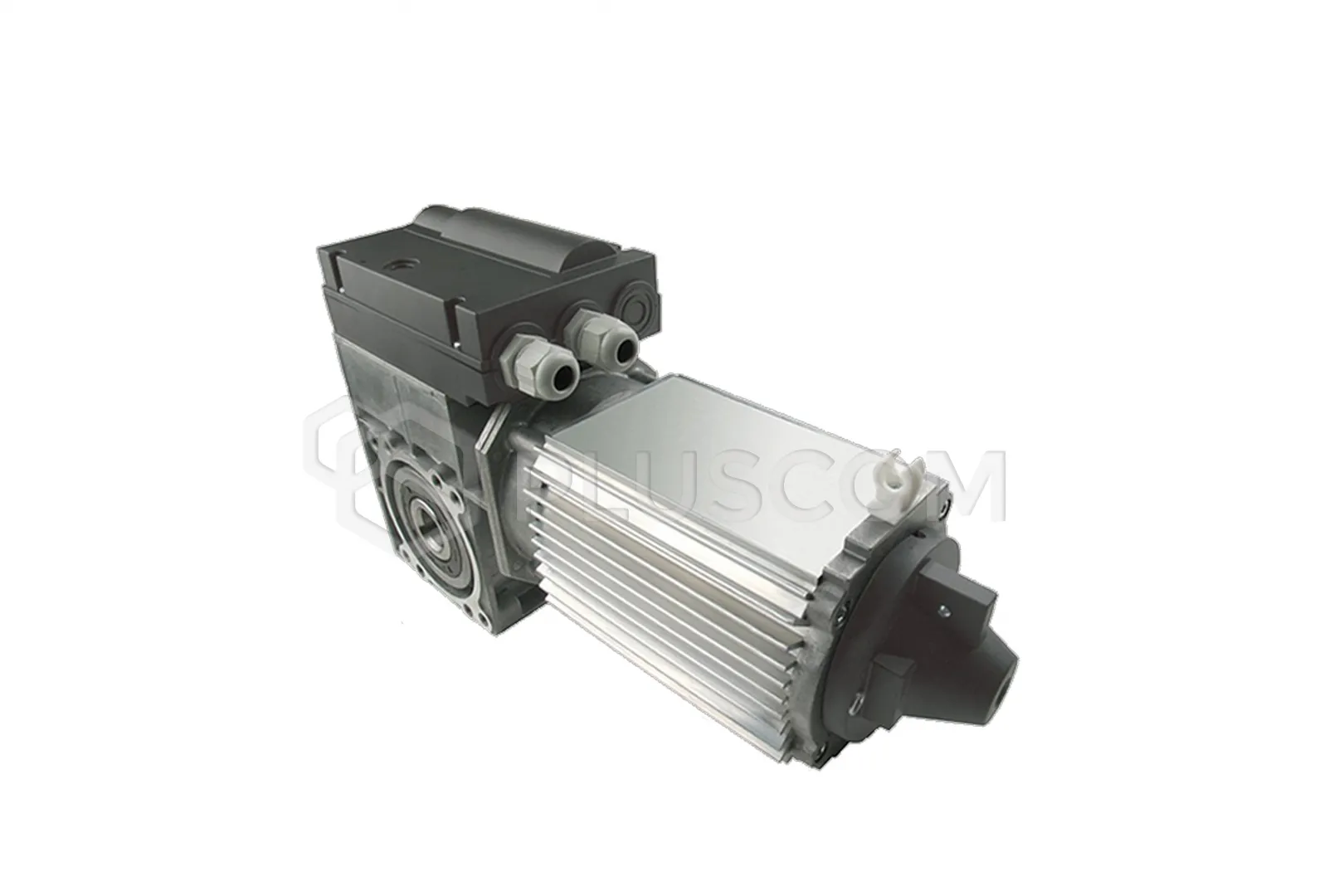

NICE NDCM1122 Industrial actuator SDN-70-24 EL1 3x400, 70 Nm, NDCC1000 control unit, 7 m cable CA0175A00


Nice NDCM1122 electromechanical actuator for industrial sectional doors up to 24m², emergency opening using a chain. Three-phase actuator for industrial sectional doors up to 24 m². Power supply 3x400V, torque 70Nm, speed up to 24 rpm, electronic limit switches. Emergency operation using a chain.
The actuator can be installed directly on the shaft of the sectional door.

FEATURES

:
  • Universal control units - choose from the D-PRO ACTION and D-PRO AUTOMATIC series. They fit most industrial engines on the market, single-phase with or without a built-in inverter, and three-phase with a maximum power of 2.2kW
  • Safe - automation compliant with current European standards and directives in the field of technology and safety
  • Easy programming - thanks to electronic limit switches, programming, adjustments and settings of limit positions are performed from the control unit
  • Quick installation in all conditions - the actuator can be installed directly on the shaft of the sectional door (for shafts with a diameter of 25.4mm or 31.75mm)
  • Easy and quick assembly - quick connectors and numbered sockets in the control unit facilitate the connection of cables, installation and start-up become extremely easy. Ready-made cables connecting the engine to the control unit are equipped with appropriate plugs

TECHNICAL DATA:

  • Max. gate weight: 300kg
  • Power supply: 3x400V
  • Speed: 24 rpm
  • Gate shaft hole diameter: 25.4mm
  • Torque: 70Nm
  • Static torque: 80Nm
  • Power consumption: 0.37 kW
  • Operating temperature: -5°C to +40°C
  • Protection class: IP54
