Nice Z70 AUTOMATIC TOT Set

840,71 EUR including 23.00% VAT
Product code: #21466
Manufacturer: Nice
  • Drive + Control panel
  • Speed: 24 rev/min
  • Gate weight up to 300kg
  • Door area up to 24m²
  • Electronic limit switches
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice 920132111001 Optosensors with Diagnosis function Nice NDA011 Junction box Nice 900029000050 Additional chain for emergency opening of the gate

Nice Z70 AUTOMATIC TOT Set for industrial gates up to 24m² TOTMAN


NDCM1122 is a drive that complies with the latest European safety and technology standards.
The actuator's power supply is 3x400V, torque 70Nm, speed up to 24 rpm, electronic limit switches. Emergency operation using a chain.
The actuator can be installed directly on the shaft of the sectional gate.
Use intensity is 60%.

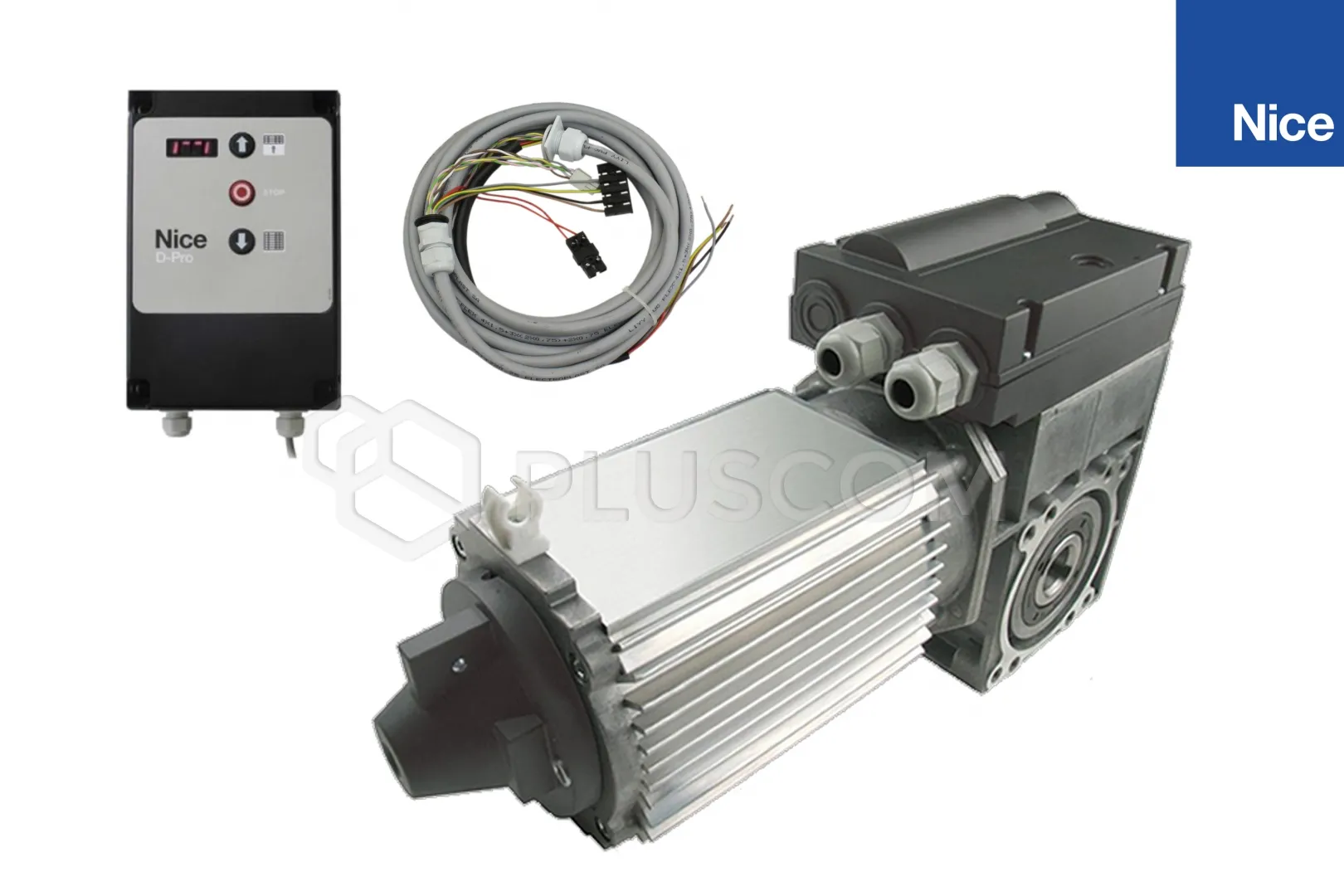

KIT INCLUDES
Nice Z70 AUTOMATIC TOT Set for sectional doors for industrial use up to 24m2 TOTMAN

Nice Z70 AUTOMATIC TOT Set for sectional doors for industrial use up to 24m2 TOTMAN
EASY TO INSTALL:
The actuator can be mounted directly on the drive shaft of the sectional door (for shafts with a diameter of 25.4 mm) and the connecting cables are equipped with appropriate plugs. In addition, the control unit has numbered sockets and quick connectors which makes installation and starting the engine exceptionally easy.

FEATURES

:
  • Universal control units - choose from the D-PRO ACTION and D-PRO AUTOMATIC series. They fit most industrial engines on the market, single-phase with a built-in inverter, or without, and three-phase with a maximum power of 2.2kW
  • Safe - automation compliant with current standards and European directives in the field of technology and safety
  • Easy programming - thanks to electronic limit switches, programming, adjustments and settings of limit positions are made from the control unit
  • Quick installation in all conditions - the actuator can be installed directly on the shaft of the sectional door (for shafts with a diameter of 25.4mm or 31.75mm)
  • Easy and quick assembly - quick connectors and numbered sockets in the control unit facilitate cable connections, installation and start-up become extremely easy. Ready-made cables connecting the motor to the control unit are equipped with appropriate plugs
D-PRO AUTOMATIC is a universal control unit, dedicated to receivers with SM or OXIBD connectors. We can expand the performance of the control unit by adding modules for additional functions, such as loop detectors, external radio receivers or semaphore lights. Thanks to the dedicated function, we can operate gates using the control unit in a sequence defined by us.
The control unit works in automatic or tutman mode.

TECHNICAL DATA:

  • Max. gate weight: 300kg
  • Power supply: 3x400V
  • Speed: 24 rpm
  • Gate shaft hole diameter: 25.4mm
  • Torque: 70Nm
  • Static torque: 80Nm
  • Power consumption: 0.37 kW
  • Operating temperature: -5°C to +40°C
  • Protection class: IP54
