Nice Z70 ACTION AUT Industrial Door Kit for up to 24m² AUTOMATIC

887,41 EUR including 23.00% VAT
Product code: #21465
Manufacturer: Nice

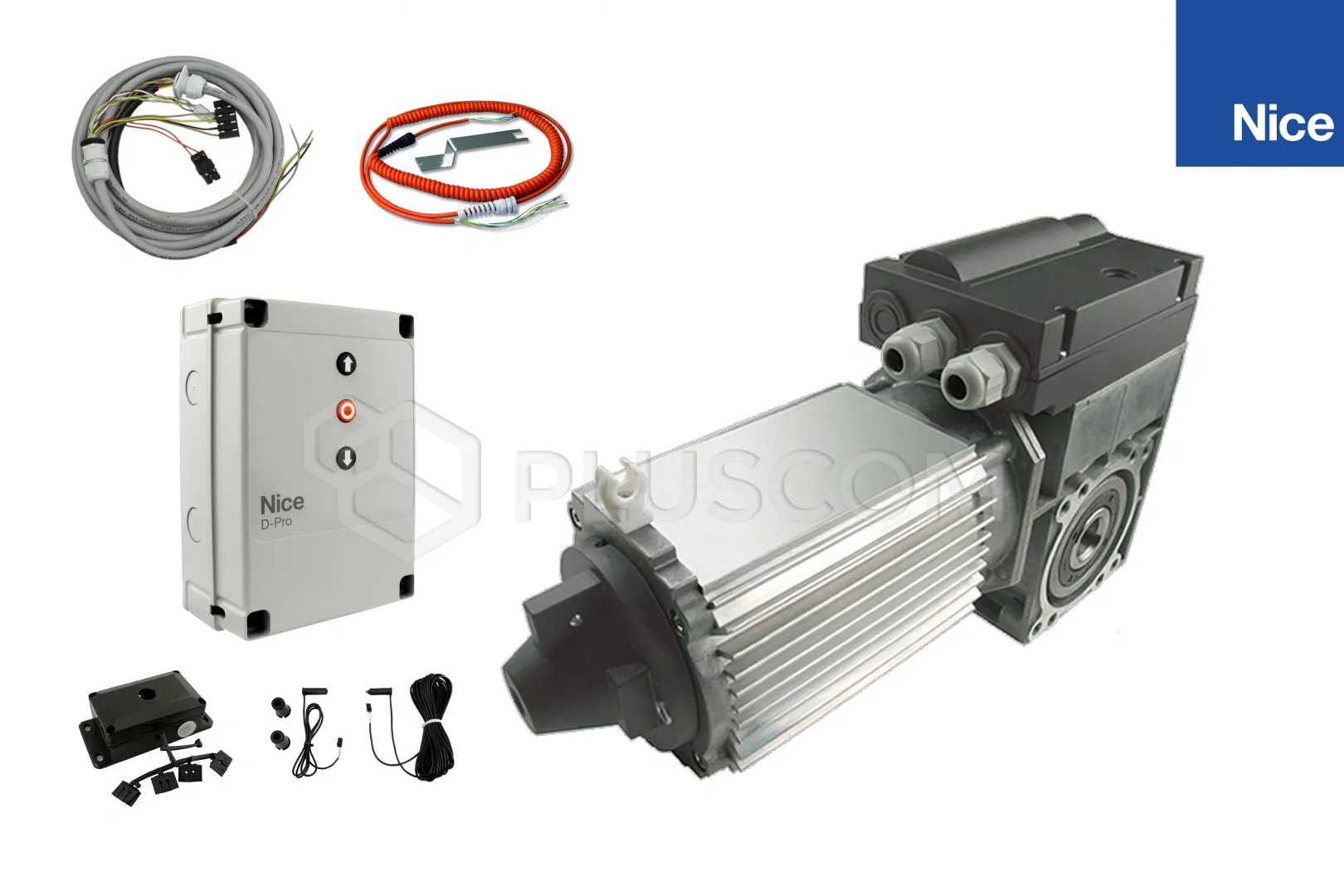

  • Drive + control panel + spiral cable + junction box + photocells
  • Speed: 24 rev/min
  • Gate weight up to 300kg
  • Door area up to 24m²
  • Electronic limit switches
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Proxima Industrial remote control PP2 PROXIMA

Nice Z70 ACTION AUT Set for industrial gates up to 24m² AUTOMAT


NDCM1122 is a drive that complies with the latest European safety and technology standards.
The actuator's power supply is 3x400V, torque 70Nm, speed up to 24 rpm, electronic limit switches. Emergency operation using a chain.
The actuator can be installed directly on the shaft of the sectional gate.
Use intensity is 60%.

KIT INCLUDES
Nice Z70 ACTION AUT Set

Nice Z70 ACTION AUT Set
EASY TO INSTALLATION:
The actuator can be mounted directly on the drive shaft of the sectional door (for shafts with a diameter of 25.4 mm) and the connecting cables are equipped with appropriate plugs. Additionally, the control unit has numbered sockets and quick connectors, which makes installation and start-up of the motor extremely easy.

FEATURES

:
  • Universal control units - to choose from the D-PRO ACTION and D-PRO AUTOMATIC series. They fit most industrial motors on the market, single-phase with a built-in inverter, or without, and three-phase with a maximum power of 2.2kW
  • Safe - automation compliant with current standards and European directives in the field of technology and safety
  • Easy programming - thanks to electronic limit switches, programming, adjustments and settings of limit positions are made from the control unit
  • Quick installation in all conditions - the actuator can be installed directly on the shaft of the sectional door (for shafts with a diameter of 25.4mm or 31.75mm)
  • Easy and quick assembly - quick connectors and numbered sockets in the control unit facilitate the connection of cables, installation and start-up become extremely easy. Ready-made cables connecting the engine to the control unit are equipped with appropriate plugs

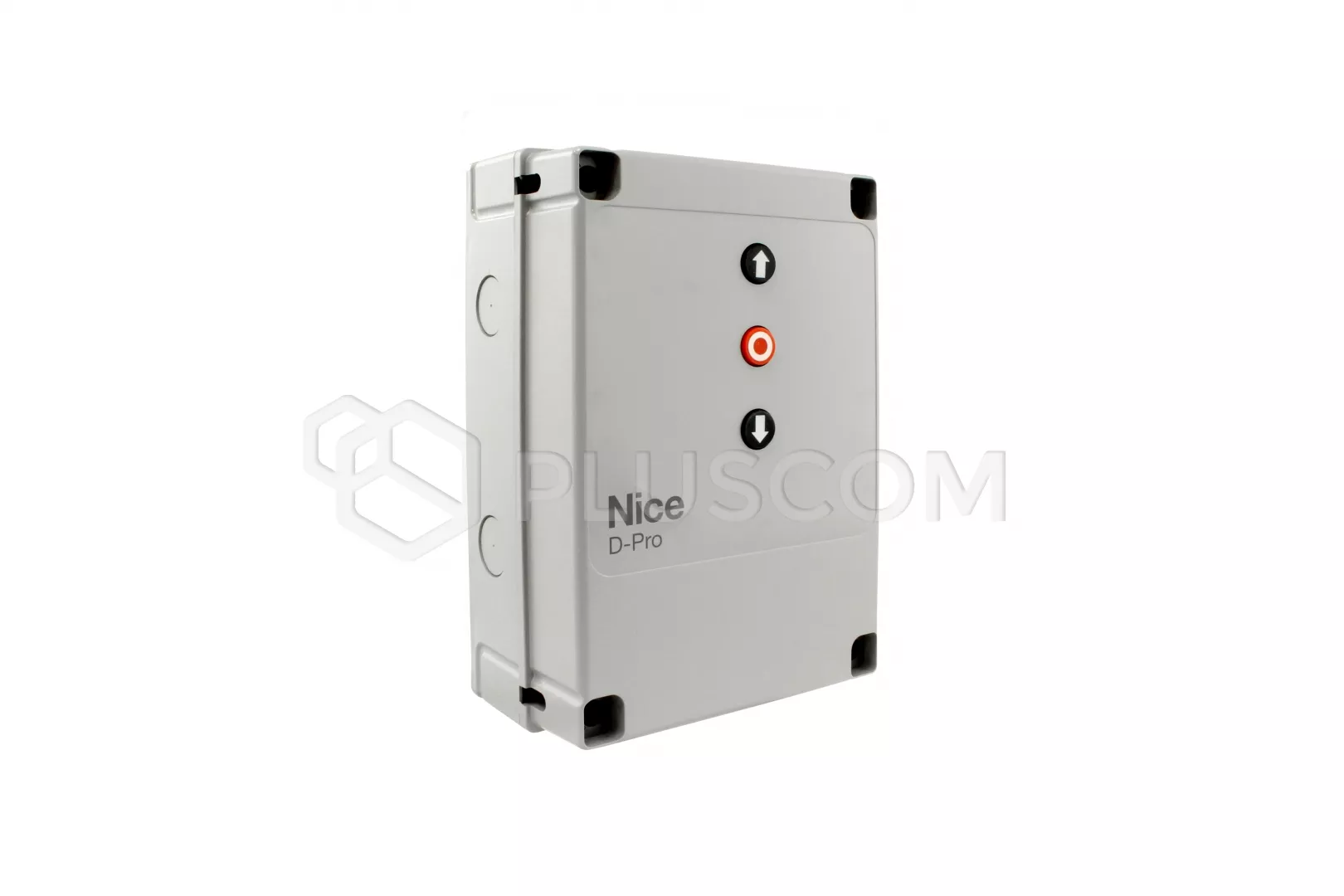

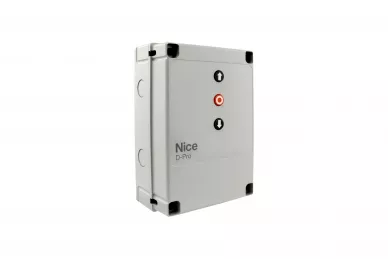

D-PRO ACTION is a universal control unit, dedicated to receivers with SM connector, and thanks to cooperation with the OVIEW programmer (IBT4N interface required) it is user-friendly for the installer. Thanks to the use of a cover to avoid electric shock, it is also safe.
It works with all types of edge strips, including wireless ones.
The control unit works in manual (Totman) or semi-automatic mode.

TECHNICAL DATA:

  • Max. gate weight: 300kg
  • Power supply: 3x400V
  • Speed: 24 rpm
  • Gate shaft hole diameter: 25.4 mm
  • Torque: 70Nm
  • Static torque: 80Nm
  • Power consumption: 0.37 kW
  • Operating temperature: -5°C to +40°C
  • Protection class: IP54
