Nice Z70 ACTION TOT - Industrial actuator set NDCM1122-70-24 EL15 3x400, 70 Nm

Nice Z70 ACTION TOT Set for industrial gates up to 24m² TOTMAN

NDCM1122 is a drive that complies with the latest European safety and technology standards.
The actuator's power supply is 3x400V, torque 70Nm, speed up to 24 rpm, electronic limit switches. Emergency operation using a chain.
The actuator can be installed directly on the shaft of the sectional gate.
Use intensity is 60%.

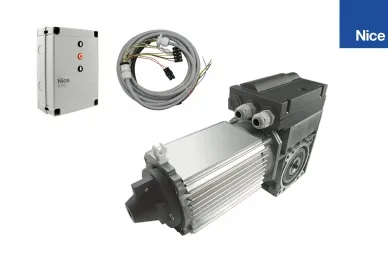

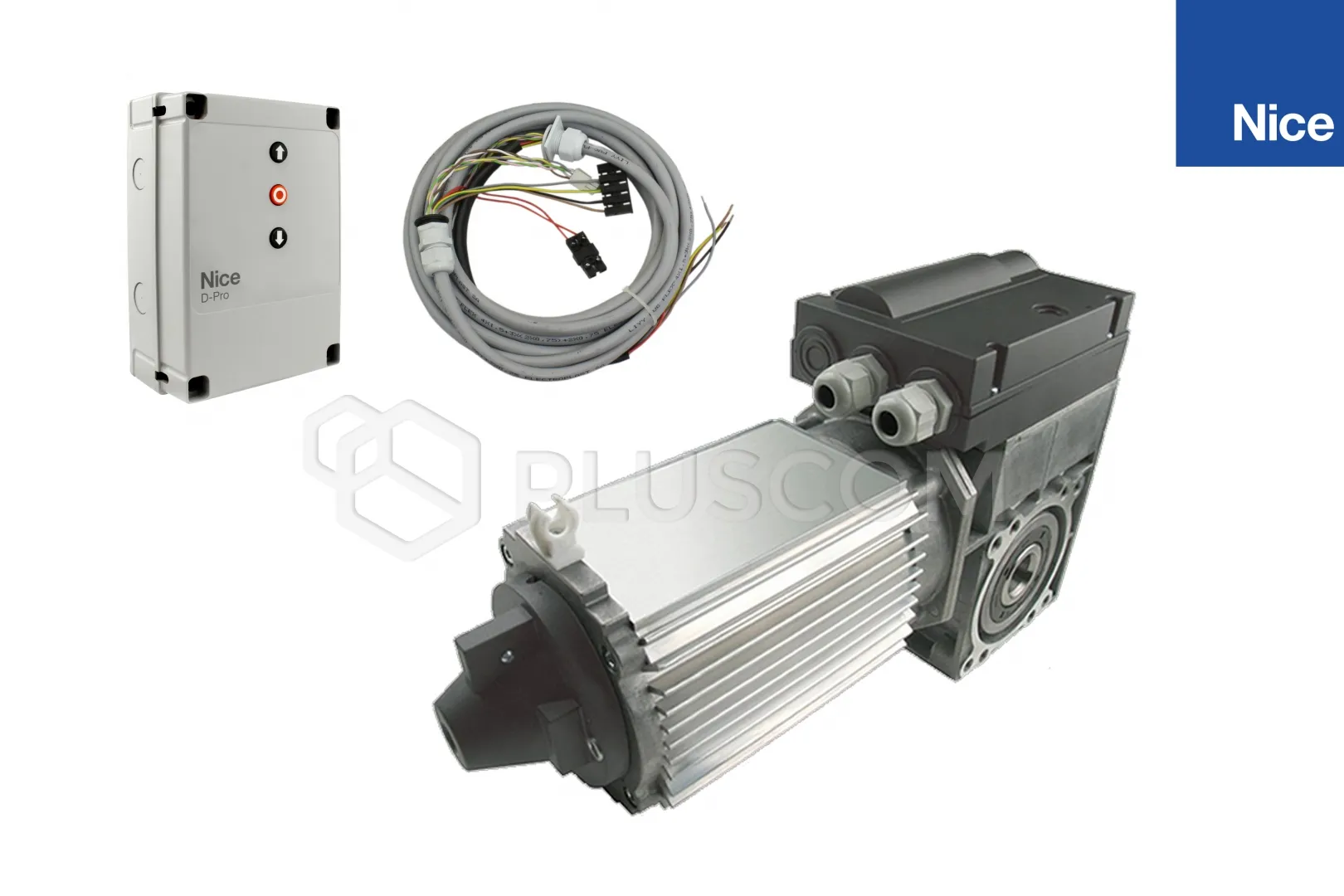

KIT INCLUDES NDCM1122 Industrial actuator SDN-70-24 EL1 Nice NDCC2000 D-PRO ACTION Control Unit Nice CA0175A00 Cable for Connecting the Operator to the Electronic Limit Switches with the D-PRO ACTION/AUTOMATIC Control Unit, 7 meters in length.

Nice Z70 ACTION TOT Set

EASY TO INSTALL:
The actuator can be mounted directly on the drive shaft of the sectional door (for shafts with a diameter of 25.4 mm) and the connecting cables are equipped with appropriate plugs. In addition, the control unit has numbered sockets and quick connectors which makes installation and starting the engine exceptionally easy.

FEATURES

:

• Universal control units - choose from the D-PRO ACTION and D-PRO AUTOMATIC series. They fit most industrial engines on the market, single-phase with a built-in inverter, or without, and three-phase with a maximum power of 2.2kW
• Safe - automation compliant with current standards and European directives in the field of technology and safety
• Easy programming - thanks to electronic limit switches, programming, adjustments and settings of limit positions are made from the control panel
• Quick installation in all conditions - the actuator can be installed directly on the shaft of the sectional door (for shafts with a diameter of 25.4mm or 31.75mm)
• Easy and quick assembly - quick connectors and numbered sockets in the control panel facilitate wire connections, installation and start-up become extremely easy. Ready-made cables connecting the engine to the control unit equipped with appropriate plugs

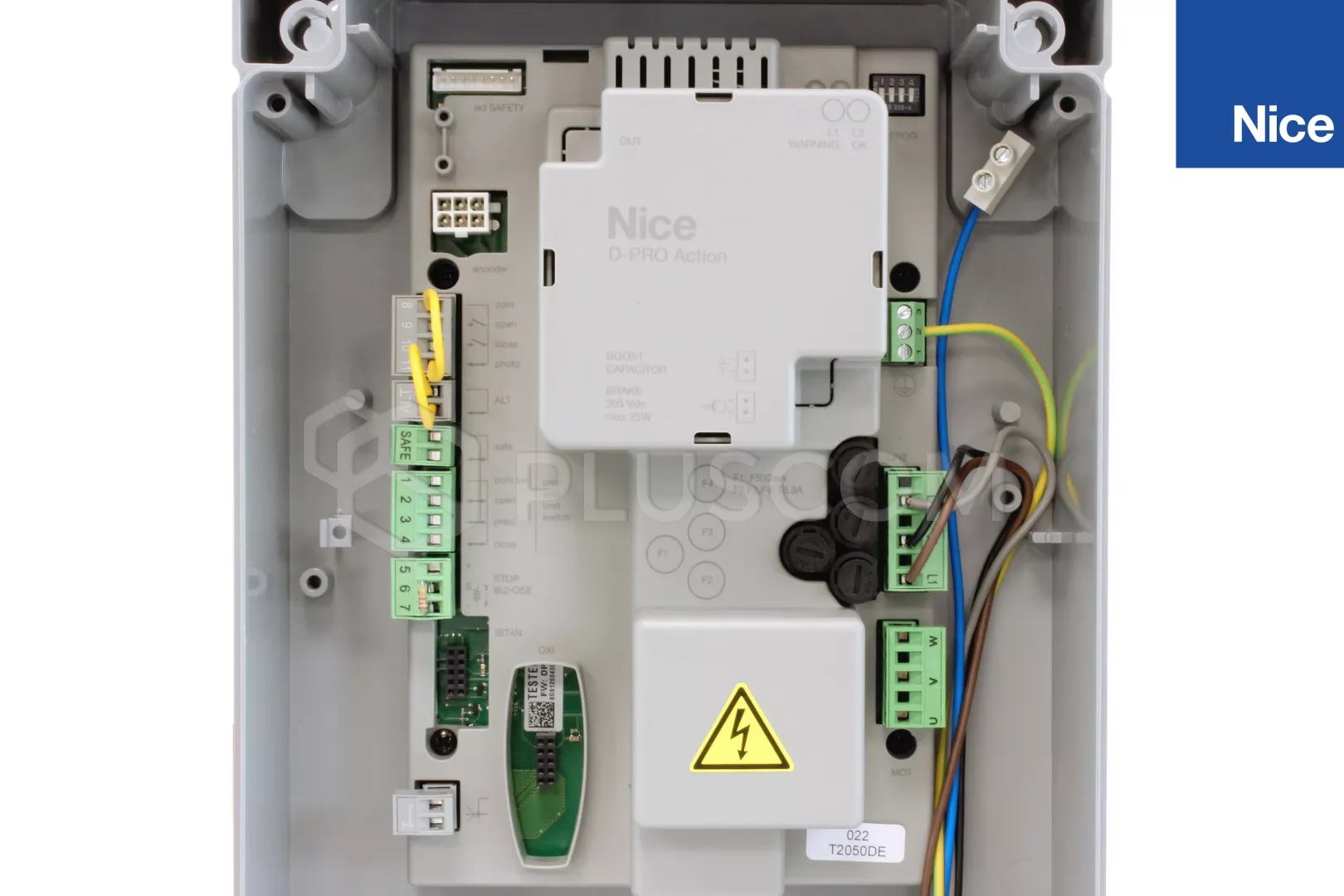

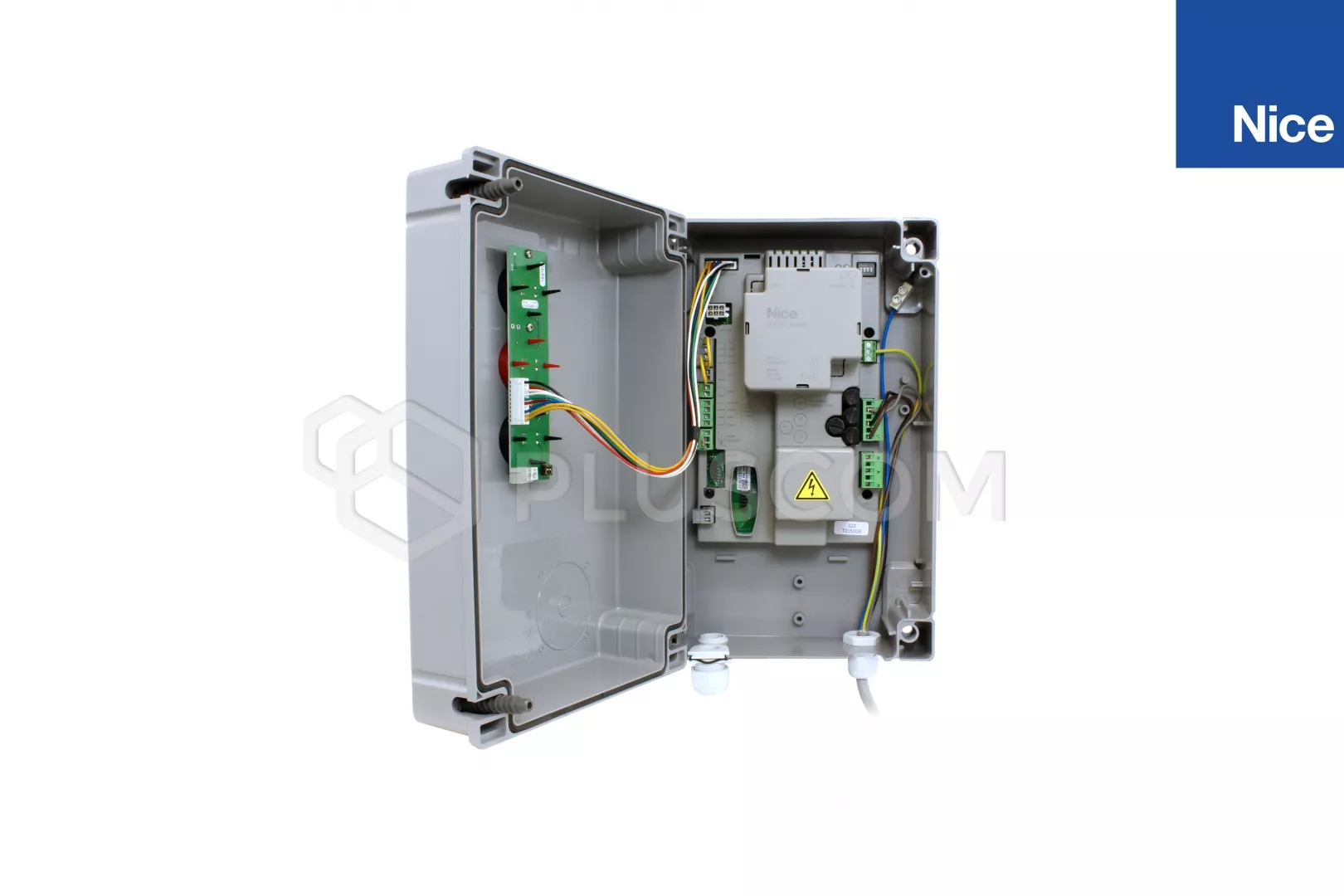

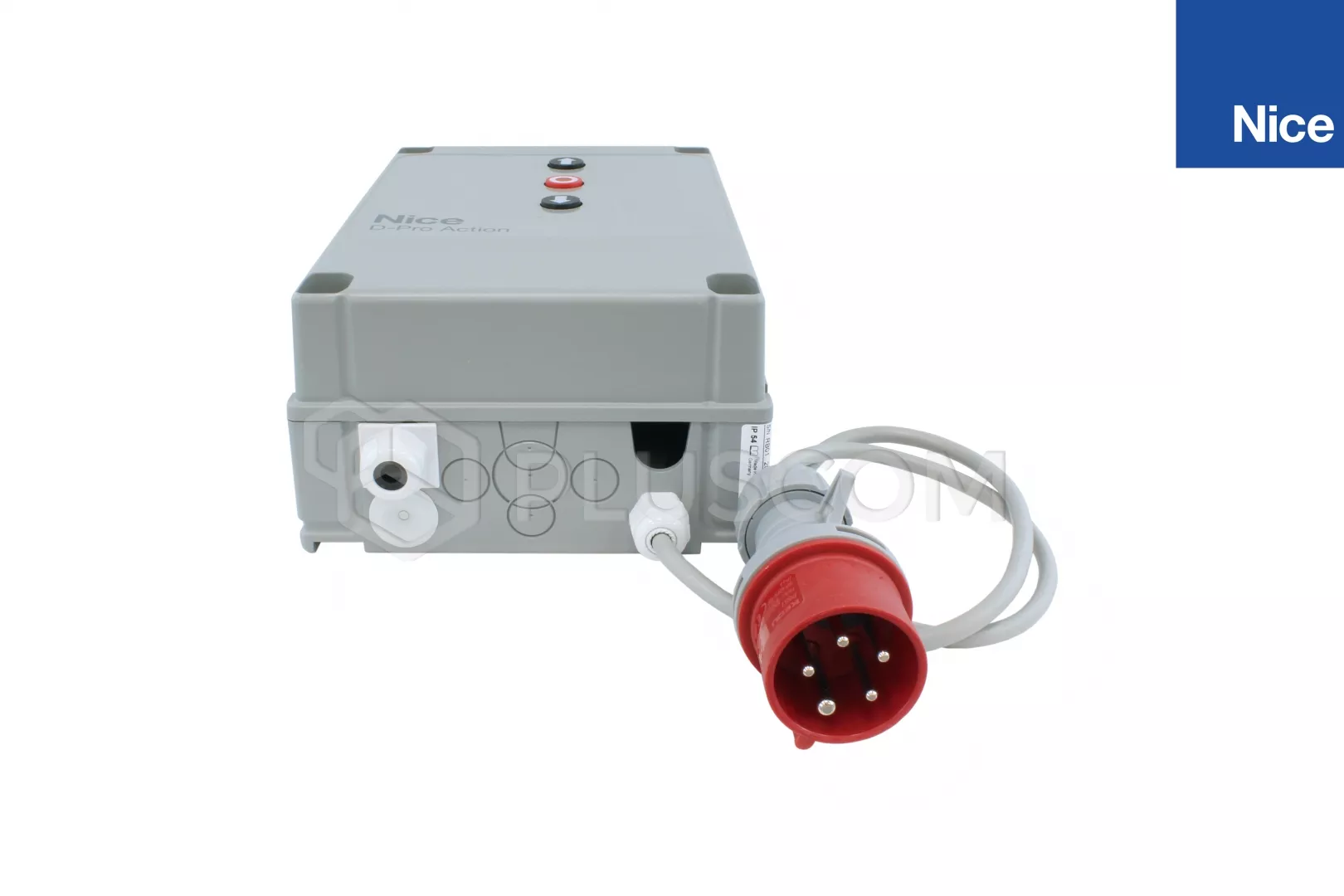

D-PRO ACTION is a universal control unit, dedicated to receivers with SM connector, and thanks to cooperation with the OVIEW programmer (IBT4N interface required) it is user-friendly for the installer. Thanks to the use of a cover to avoid electric shock, it is also safe.
It works with all types of edge strips, including wireless ones.
The control unit works in manual (Totman) or semi-automatic mode.

TECHNICAL DATA:

• Max. gate weight: 300kg
• Power supply: 3x400V
• Speed: 24 rpm
• Gate shaft hole diameter: 25.4 mm
• Torque: 70Nm
• Static torque: 80Nm
• Power consumption: 0.37 kW
• Operating temperature: -5°C to +40°C
• Protection class: IP54
