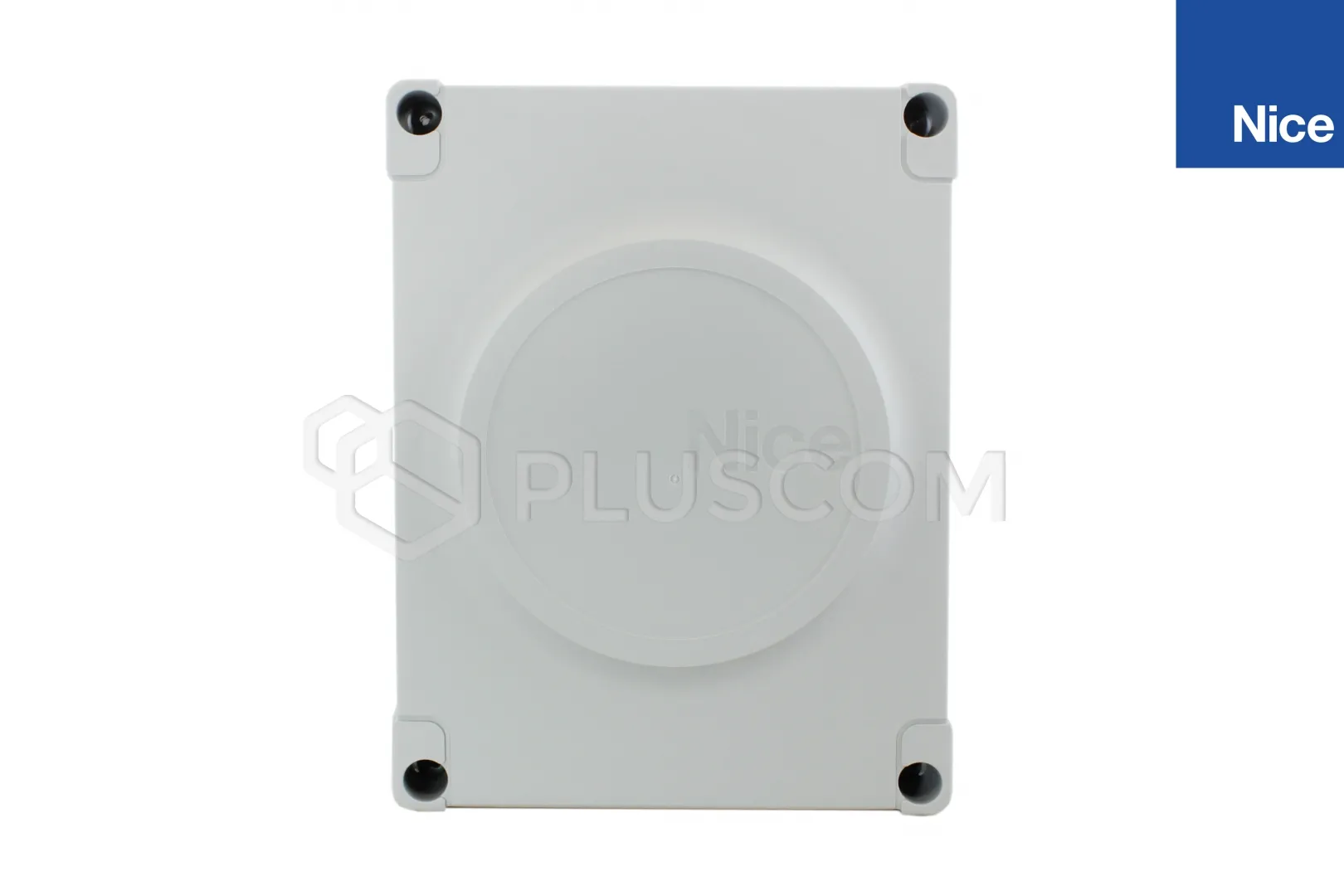

Nice MC824H R30 BLUEBUS Control Unit for 24V Actuators
Control units are one of the most important elements of an automation system.
Besides their unique design, they offer many useful features that allow you to
tailor the automation to your needs.
The MC824HR10 control unit works with a wide range of 24V actuators:
- WINGO WG3524HS
- TOO4024, TOO5024, TOO7024
The motor type selection is configured using a Dip Switch.
The MC824H R30 control unit is a modern BLUEBUS control unit.
It works
with both BLUEBUS bus photocells (MOFB, EPMB, etc.) and classic relay
photocells (BF, FK, EPM, etc.). The relay photocells are connected to
the AUX1 to AUX3 inputs (PHOTO, PHOTO1, and PHOTO2 logic). The control unit
also has a PHOTOTEST function.
The introduction of the new R30 model was necessitated by the European
Union's introduction of new, more stringent regulations regarding gate
safety, resulting in a control unit with the latest specifications provided by
the manufacturer for a given quarter (a firmware-optimized version), while
maintaining identical connection diagrams, electrical parameters, and full
functionality of the BlueBUS system and support for Yubii devices.
The R30 version consumes significantly less energy in idle mode (below
0.5 Wh, in accordance with new standards).
The latest version of the electronics features updated firmware, improved
overload characteristics (amperometrics), and improved native compatibility
with new Nice ecosystem accessories (e.g., OXIBD receivers and Smart Home
systems).
In the R30 version, the battery power connector has been changed to a 10-pin
standard dedicated to the new battery series (e.g., PSS324 / PSS124). If you
want to connect an older battery type to the new R30 control unit, you must use
a special cable adapter (e.g., Nice CABLA11R00).
MC824HR10 CONTROL UNIT FUNCTIONS
- Controls the operation of two 24V actuators with encoders
- Manual, semi-automatic, and automatic operation
- IBT4N interface for connecting BusT4 devices
- BLUEBUS technology
- Automatic programming: During initial programming, the control unit
automatically determines and stores the gate's end positions.
- Soft start and slowdown upon closing.
- Adjustable actuator speed.
- Partial gate opening function.
- Option to connect a battery, allowing the gate to open even in the event
of a power outage.
- Option to connect to a solar power system.
''Solemyo''
- Electric lock operation
TECHNICAL DATA:
- Control panel power supply: AC 230V
- Nominal power consumption: 200W
- Electric lock output
- BLUEBUS output
- STOP input
- SbS input
- OPEN input
- CLOSE input
- Security rating: IP54
- Operating temperature: -20°C...+50°C
- Dimensions: 310x232x122mm
- Weight: 4.1kg
