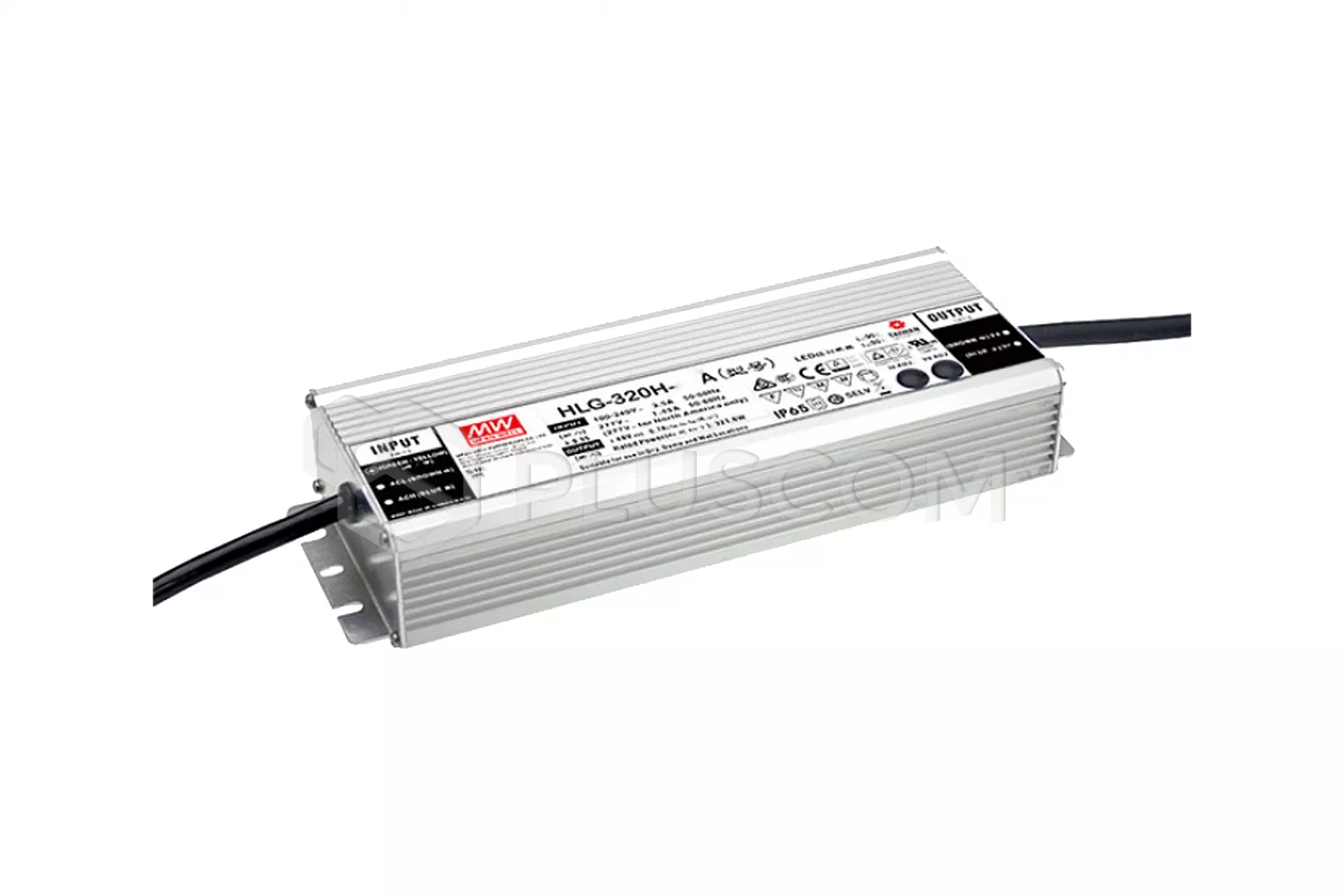

HLG-320H-54A Mean Well 54V/320W/5.95A LED power supply

151,58 EUR including 20.00% VAT
Product code: #22618
Manufacturer: Pulsar
  • Output parameters: DC 54V 5.95A max 320W
  • Output current can be adjusted by internal potentiometer
  • Built-in active PFC function
  • Lifetime > 62000h
  • IP65

Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
HLG-185H-C500B Mean Well 185W/500mA LED power supply HLG-320H-24A Mean Well 24V/320W/13.34A LED power supply HLG-150H-12B Mean Well 12V/150W/12.5A LED power supply Pulsar HLG-480H-24 HLG 24V/480W/20ALED power supply Pulsar HLG-240H-24B HLG 24V/240W/10A LED power supply Pulsar HLG-120H-24A HLG 24V/120W/5A LED power supply HLG-320H-12 Mean Well 12V/320W/22A LED power supply HLG-120H-12B Mean Well 12V/120W/10A LED power supply Pulsar HLG-185H-48 HLG 48V/187.2W/3.9A LED power supply Pulsar HLG-100H-36 HLG 36V/95.4W/2.65A power supply

MEAN WELL HLG-320H-54A LED power supply 54V/320W/5.95A


Constant voltage / constant current power supply HLG-320H-54A for lighting systems has a power of 320W and an output voltage of 54V. It is closed in a housing with IP65 and cooled by free air circulation .
HLG-320H-54A has current and output voltage regulation with a potentiometer and built-in active PFC.

PARAMETERS AND FEATURES:
  • output voltage: DC 54V
  • output voltage adjustment range: 49-58VDC
  • output current: 5.95A
  • output current adjustment range: 2.97 - 5.95A
  • power: 321.3W
  • wide input voltage range: 90-305VAC, 127-431VDC
  • protection:
    • short circuit protection
    • overcurrent
    • overvoltage
    • over temperature
  • built-in Active PFC
  • class II isolation
  • power supply life: >62000h
  • efficiency: 95%
  • IP65
  • cable
    • AC power: 0.3m
    • DC power: 0.3m
  • working temperature: -40 ° C ÷ 90 ° C
  • dimensions: 252x90x43.8mm
  • weight: 1.88kg

Download
Datasheet 0.86 MB
CE Declaration 0.32 MB
