HLG-320H-24A Mean Well 24V/320W/13.34A LED power supply

154,11 EUR including 22.00% VAT
Product code: #22616
Manufacturer: Pulsar
  • Output parameters: DC 24V 13.34A max 320W
  • Output current can be adjusted by internal potentiometer
  • Built-in active PFC function
  • Lifetime > 62000h
  • IP65

Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
HLG-185H-C500B Mean Well 185W/500mA LED power supply Pulsar HLG-600H-12 HLG 12V/480W/40ALED power supply Pulsar HLG-150H-24A HLG 24V/150W/6.3A LED power supply HLG-320H-54A Mean Well 54V/320W/5.95A LED power supply Pulsar HLG-480H-24B HLG 24V/480W/20A LED power supply HLG-150H-48B Mean Well 48V/150W/3.2A LED power supply Pulsar HLG-320H-48B HLG 48V/320W/6.7ALED power supply Pulsar HLG-150H-12A HLG 12V/150W/12.5A LED power supply HLG-320H-24B Mean Well 24V/320W/13.34A LED power supply Pulsar HLG-480H-24 HLG 24V/480W/20ALED power supply

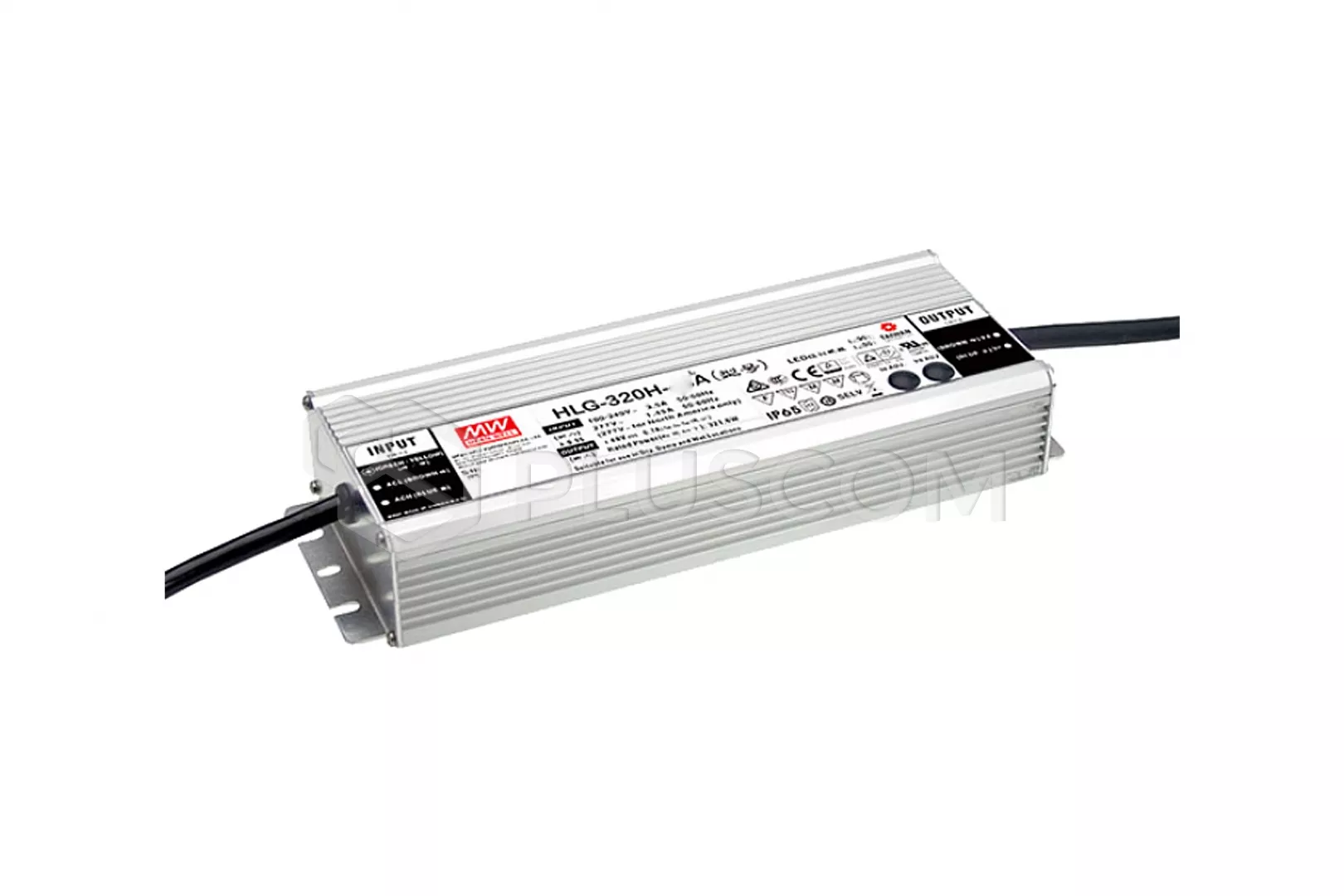

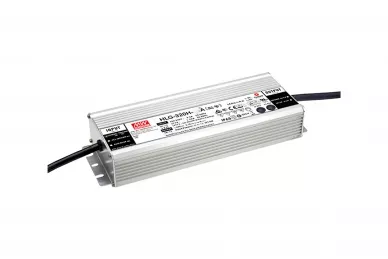

MEAN WELL HLG-320H-24A LED power supply 24V/320W/13.34A


Constant voltage / constant current power supply HLG-320H-24A for lighting systems has a power of 320W and an output voltage of 24V. It is closed in a housing with IP65 and cooled by free air circulation .
HLG-320H-24A has current and output voltage regulation with a potentiometer and built-in active PFC.

PARAMETERS AND FEATURES:
  • output voltage: DC 24V
  • output voltage adjustment range: 12-24VDC
  • output current: 13.34A
  • output current adjustment range: 6.67-13.34A
  • power: 320.16W
  • wide input voltage range: 90-305VAC, 127-431VDC
  • protection:
    • short circuit protection
    • overcurrent
    • overvoltage
    • over temperature
  • built-in Active PFC
  • class II isolation
  • power supply life: >62000h
  • efficiency: 94%
  • IP65
  • cable
    • AC power: 0.3m
    • DC power: 0.3m
  • working temperature: -40 ° C ÷ 90 ° C
  • dimensions: 252x90x43.8mm
  • weight: 1.88kg

Download
Datasheet 0.86 MB
CE Declaration 0.32 MB
