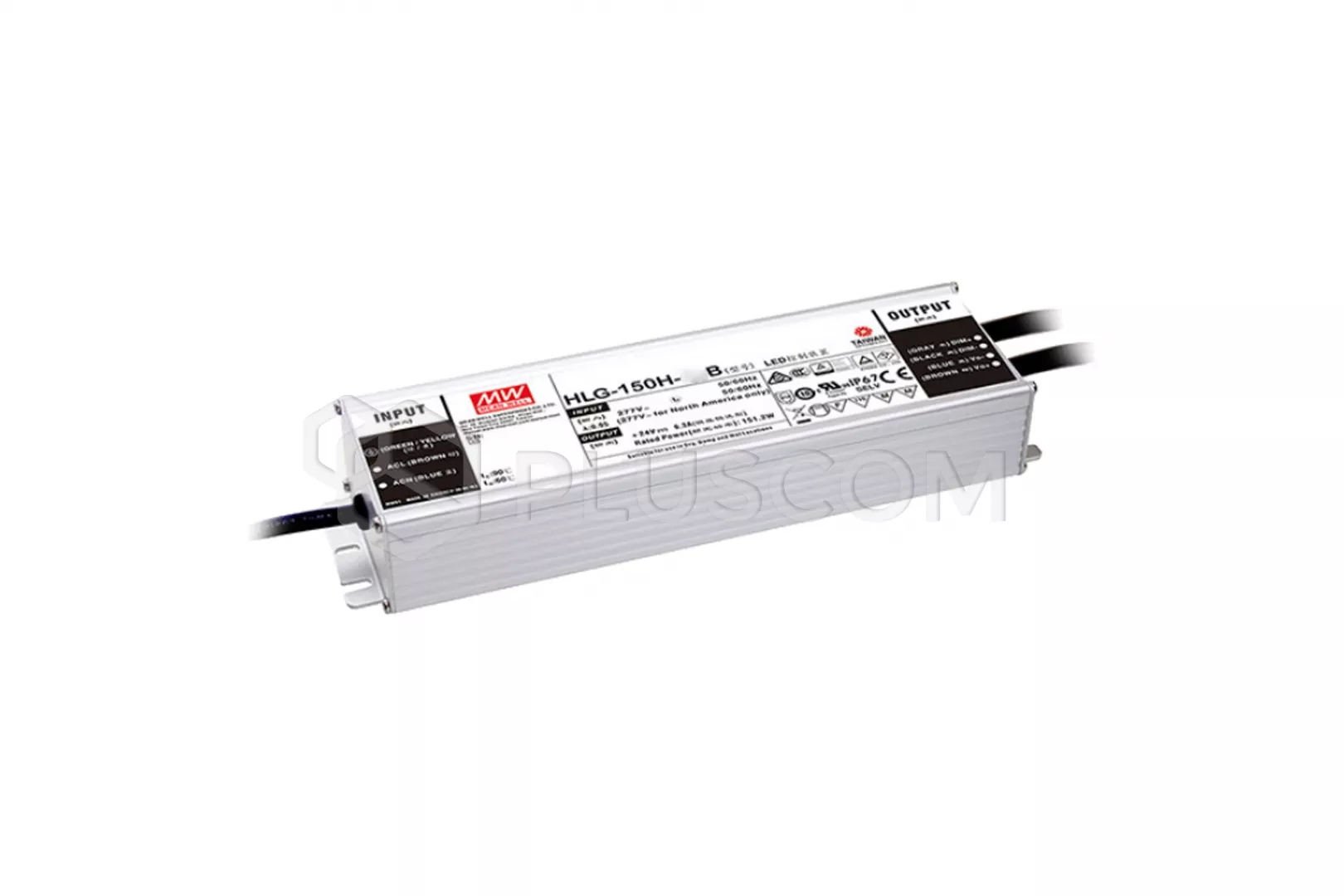

HLG-150H-48B Mean Well 48V/150W/3.2A LED power supply

89,36 EUR including 23.00% VAT
Product code: #22606
Manufacturer: Pulsar
  • Output parameters: DC 48V 3.2A max 150W
  • Possibility of remote control of output current
  • Built-in Active PFC function
  • 3 in 1 dimming
  • Lifetime > 62000h

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
HLG-185H-C500B Mean Well 185W/500mA LED power supply Pulsar HLG-185H-48 HLG 48V/187.2W/3.9A LED power supply HLG-120H-12B Mean Well 12V/120W/10A LED power supply Pulsar HLG-100H-24A HLG 24V/100W/4A LED power supply Pulsar HLG-100H-36 HLG 36V/95.4W/2.65A power supply HLG-320H-12 Mean Well 12V/320W/22A LED power supply Pulsar HLG-150H-24B HLG 24V/151.2W/6.3A LED power supply HLG-120H-12A Mean Well 12V/120W/10A LED power supply HLG-80H-12B Mean Well 12V/60W/5A LED power supply Pulsar HLG-240H-C1400B HLG 240W/1400mA LED power supply

MEAN WELL HLG-150H-48B LED power supply 48V/150W/3.2A


Constant current power supply HLG-150H-48B for lighting systems has a power of 150W and an output voltage of 48V. It is closed in a housing with IP67 and cooled by free air circulation .
HLG-150H-48B has a potentiometer output current adjustment and a remote current adjustment option output - DIN 3W1 input (1 ÷ 10VDC / PWM / resistance). It also has an active PFC function built in and a 3in1 dimming function.

PARAMETERS AND FEATURES:
  • output voltage: DC 48V
  • output voltage adjustment range: 24-48VDC
  • output current: 3.2A
  • output current adjustment range: 1.92-3.2A
  • power: 150W
  • wide input voltage range: 90-305VAC, 127-431VDC
  • protection:
    • short circuit protection
    • overcurrent
    • overvoltage
    • thermal
  • free air cooling
  • built-in Active PFC
  • class II isolation
  • power supply life: >62000h
  • efficiency: 94%
  • cable
    • AC power: 0.3m
    • DC power: 0.3m
  • working temperature: -40 ° C ÷ 90 ° C
  • dimensions: 228x68x38.8mm
  • weight: 1.15kg

Download
Datasheet 1.14 MB
CE Declaration 0.32 MB
