HLG-150H-12B Mean Well 12V/150W/12.5A LED power supply

89,36 EUR including 23.00% VAT
Product code: #22605
Manufacturer: Pulsar
  • Output parameters: DC 12V 12.5A max 150W
  • Possibility of remote control of output current
  • Built-in Active PFC function
  • 3 in 1 dimming; Timer dimming
  • Lifetime > 62000h
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
HLG-185H-C500B Mean Well 185W/500mA LED power supply HLG-40H-15A Mean Well 15V/40W/2.67A LED power supply HLG-240H-48B Mean Well 48V/240W/5A LED power supply Pulsar HLG-80H-30A HLG 30V/81W/2.7A power supply Pulsar HLG-240H-36A HLG 36V/240W/6.7A LED power supply HLG-40H-12A Mean Well 12V/40W/3.3A LED power supply HLG-240H-24 Mean Well 24V/240W/10A LED power supply Pulsar HLG-60H-24 HLG 24V/60W/2.5A LED power supply Pulsar HLG-80H-12 HLG 12V/60W/5A power supply Pulsar HLG-240H-24A

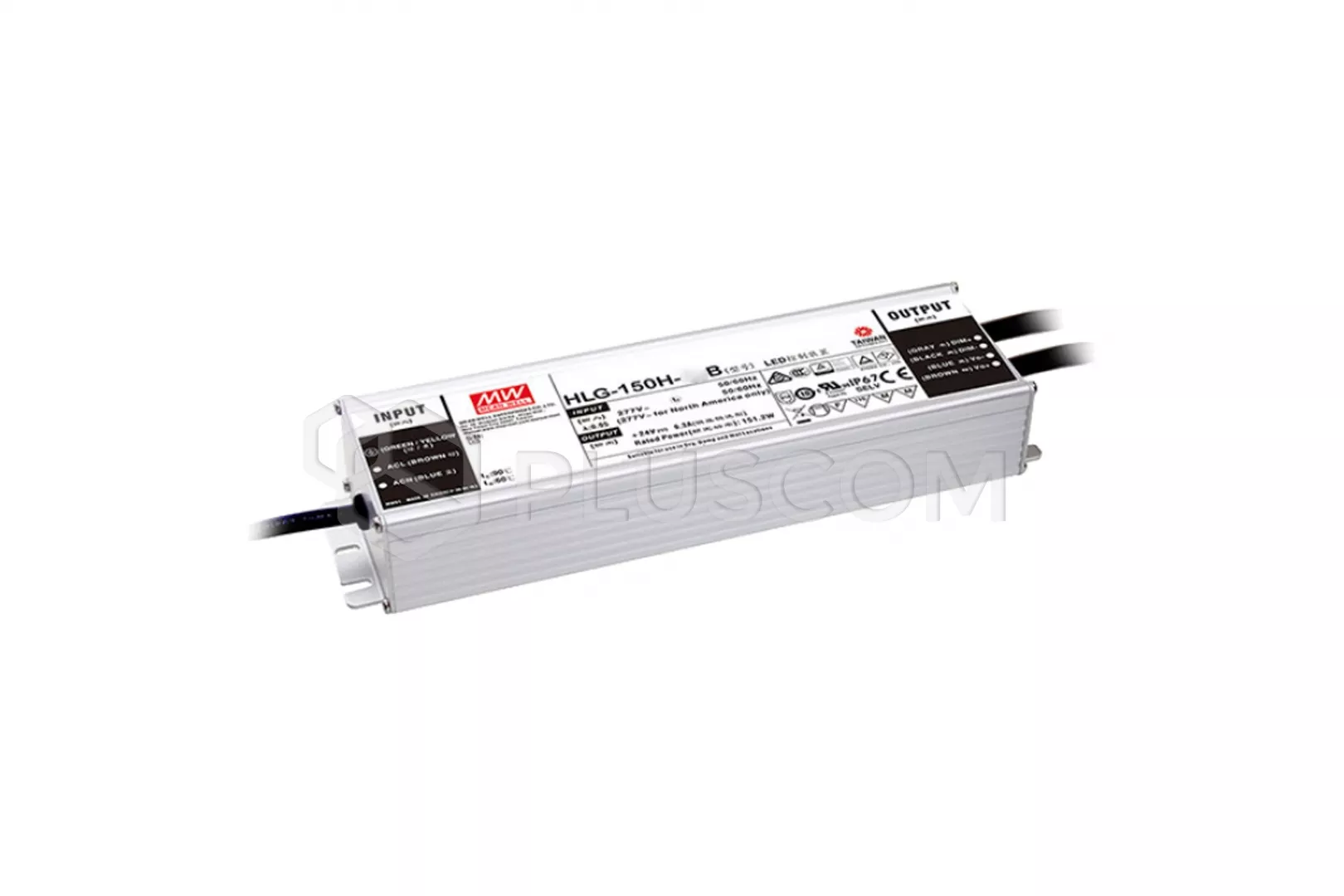

MEAN WELL HLG-150H-12B LED power supply 12V/150W/12.5A


Constant current power supply HLG-150H-12B for lighting systems has a power of 150W and an output voltage of 12V. It is closed in a housing with IP67 and cooled by free air circulation .
HLG-150H-12B has a potentiometer output current adjustment and a remote current adjustment option output - DIN 3W1 input (1 ÷ 10VDC / PWM / resistance). It also has an active PFC function built in and a 3in1 dimming function.

PARAMETERS AND FEATURES:
  • output voltage: DC 12V
  • output voltage adjustment range: 6-12VDC
  • output current: 12.5A
  • output current adjustment range: 10.8-13.5A
  • power: 150W
  • wide input voltage range: 90-305VAC, 127-431VDC
  • protection:
    • short circuit protection
    • overcurrent
    • overvoltage
    • thermal
  • free air cooling
  • built-in Active PFC
  • class II isolation
  • power supply life: >62000h
  • efficiency: 91.5%
  • cable
    • AC power: 0.3m
    • DC power: 0.3m
  • working temperature: -40 ° C ÷ 90 ° C
  • dimensions: 228x68x38.8mm
  • weight: 1.15kg
Download
Datasheet 1.14 MB
CE Declaration 0.32 MB
