Gorke NRP-102 1-channel stationary sender

GORKE NRP-102 1-channel stationary transmitter

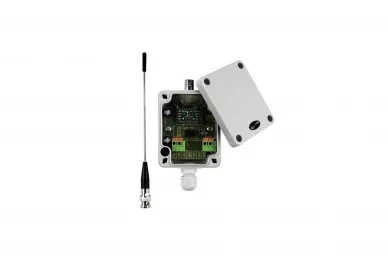

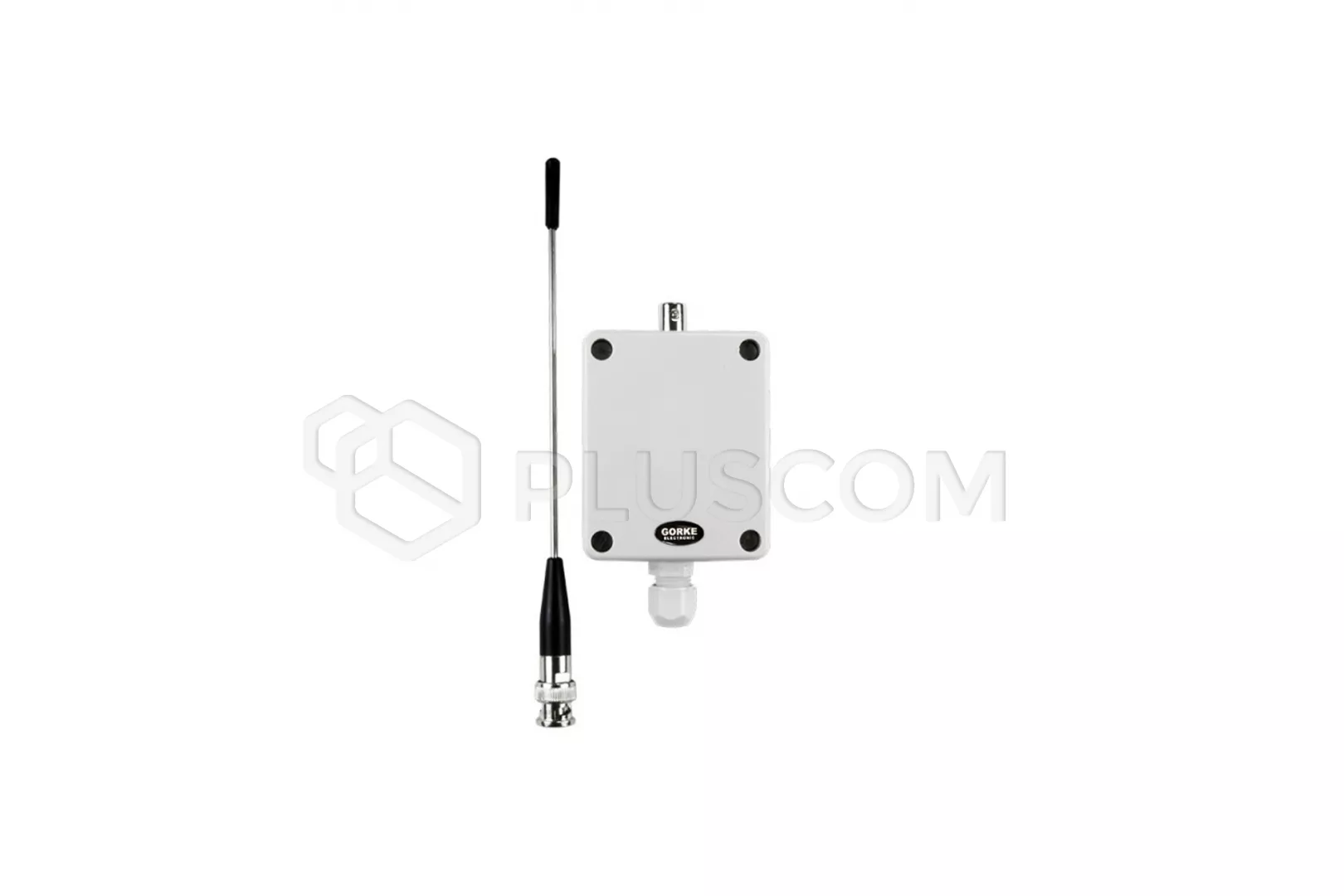

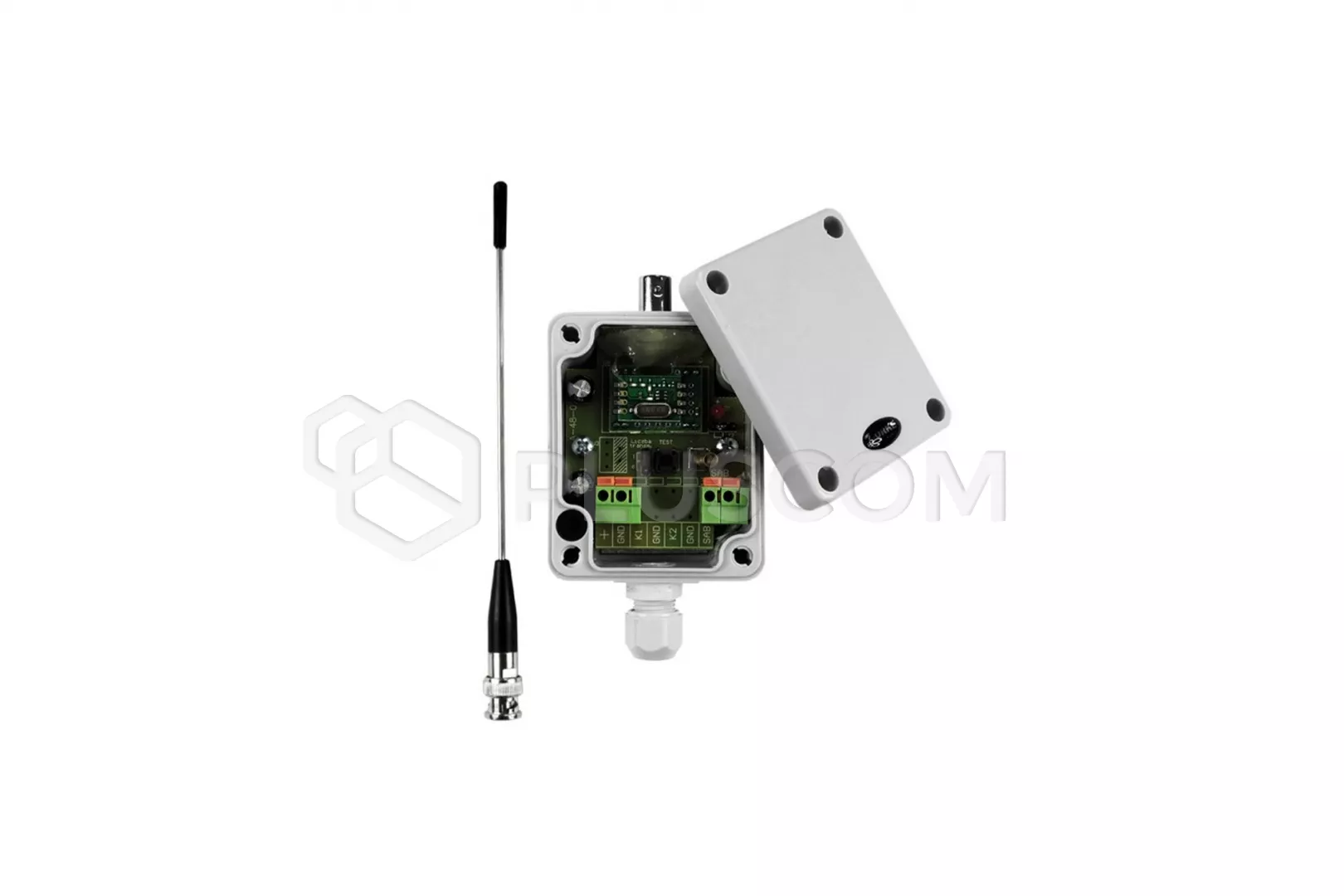

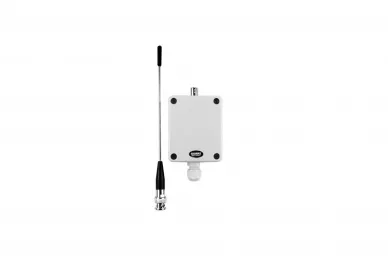

GORKE NRP-102 is a stationary transmitter with a range of up to 1000m, it serves to transmit an alarm signal from the monitored facility. It has functions test signal sent every 1 hour.

The transmitter is protected against the effects of reverse connection of the supply voltage. Built-in stabilization system additionally ensures a constant working range of the device with a supply voltage in the range of 10 to 15 V DC (no power fluctuations transmission). The operating ranges of the sets based on the NRP-102 transmitter depend on the type of receiver that works with the transmitter and can range from 500 to 1000 meters. For the transmitter, it is recommended to work with receivers with the H2 module (eg OPC), because then you can get optimal coverage.

Hermetic housing with IP65 protection class allows for installation in unfavorable conditions moisture, low temperatures.

The BNC antenna socket allows you to disconnect and raise the antenna above obstacles.

TECHNICAL DATA:

• power supply: 12V DC (10-15V DC)
• resting current consumption: 2.5mA
• maximum current consumption: 25mA
• frequency: 433.92 MHz
• encoding: rolling code
• number of channels: 1
• tamper output: 50mA/ 12V DC
• antenna: rod, 50 Ohm BNC connector
• transmission power: +10 dBm
• range: 1000 m (heterodyne H2 recommended)
• cooperation: any sA series receiver
• IP65
• operating temperature: -10 ÷ +55 °C
• humidity: max. 93% ± 3%
• transmitter dimensions: 76x58*x33mm (without antenna)
