Faac S2500I kit for gates up to 250kg/2.5m for double-leaf gates
|
ZESTAW ZAWIERA:
|

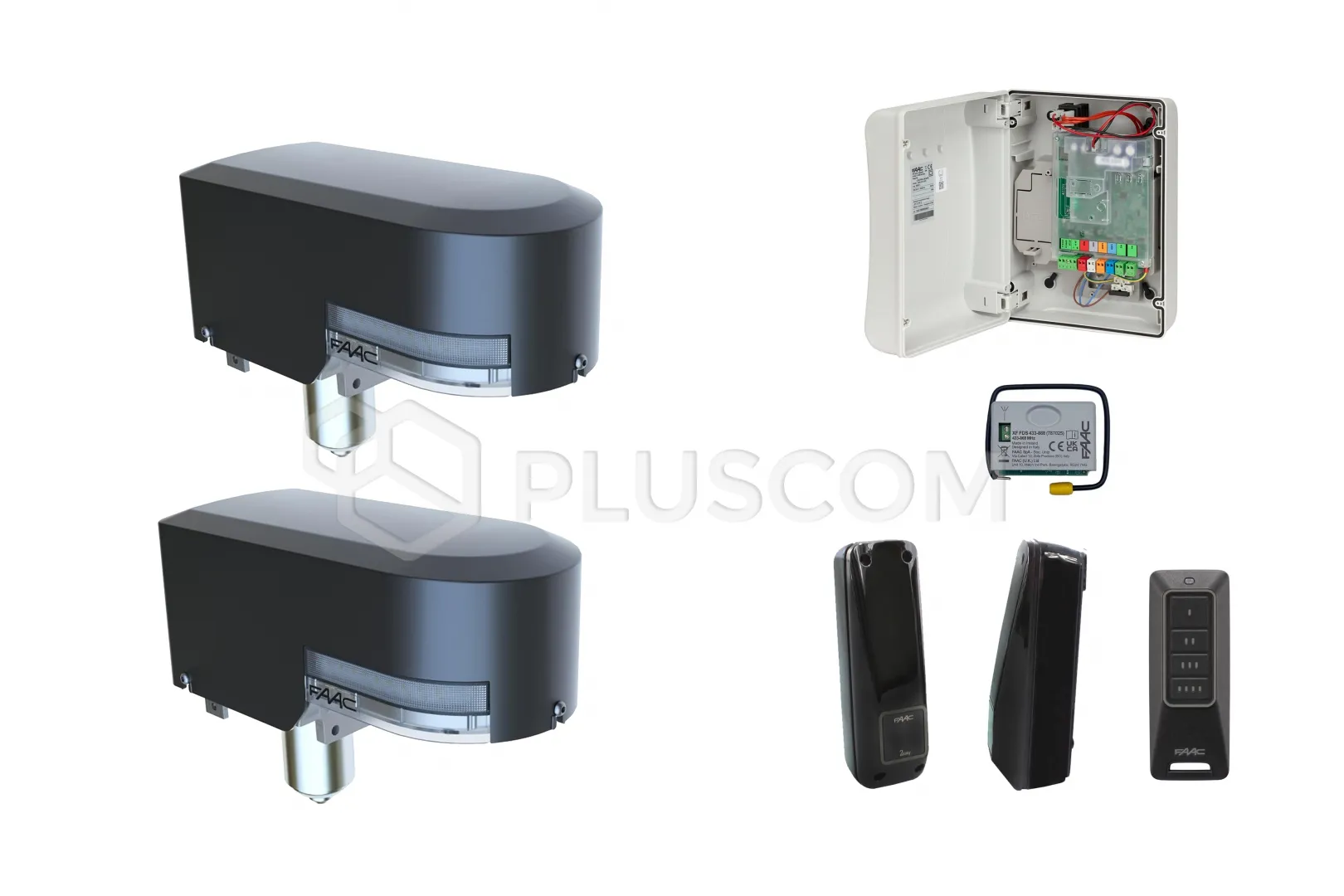

Faac S2500I Kit for gates up to 250kg/2.5m
|
The S2500I operator is designed for use on swing gates with horizontal
movement. The S2500I operator must be integrated into the gate's supporting
post using a special upper hinge (S2500I hinge, supplied separately).
Designed to meet a wide variety of architectural needs. The S2500I operator can
be integrated with metal posts with the following dimensions: 10x10 cm, 12x12
cm, and 15x15 cm.
It can be installed on newly built or existing gates, as well as at a later
date, initially requiring only the hinge and cover.
Thanks to the adjustable, integrated mechanical stops, you can precisely define
the gate's stopping points during opening and closing, adapting the
movement to your needs.
The FAAC XT4 FDS 433-868 SLH LR remote control enables
convenient and effective control of automation systems. Thanks to advanced
technology, the remote control features a rolling code, ensuring a high level
of security and protection against unauthorized access. It is characterized by
maximum anti-cloning protection. This is ensured by an advanced security scheme
based on Secure Vault hardware technology (PSA level 3 certification) and
TrustZone, a state-of-the-art method for securing digital financial
transactions and IoT High Security devices/networks. FDS is a frequency
modulation-based radio protocol with the highest performance in terms of range
and battery life; radio transmission is secured by an AES-128 symmetric
encryption algorithm with a 128-bit key. The authenticity of the remote
controls is verified using a chain of personalized FAAC security certificates.
The modern XP 20B D photocell with a 180° horizontal viewing
angle is equipped with a vertical optical self-adjustment function,
particularly useful when the monitored area is not completely flat.
The device is equipped with a BUS power supply system – only two non-polarized
wires, allowing up to 16 pairs of photocells to be connected.
The XP 20BD is protected against interference from external light sources
(e.g., vehicle headlights).
TECHNICAL DATA:
- Power supply voltage: 220-240V ~ 50/60 Hz
- Motor type: 24 V
- Max. power consumption: 40 W
- Max. torque: 320 Nm
- Square post dimensions: 10x10 cm, 12x12 cm, 15x15 cm
- Max. gate leaf width: 2 m | 2.5 m with electromagnetic lock
- Max. gate leaf weight: up to 250 kg
- Max. angular speed: 10°/s
- Max. Gate opening angle: 165°
- Number of cycles per hour: 100% continuous operation
- Protection rating: IPX4
- Operating temperature: -20°C to +55°C
