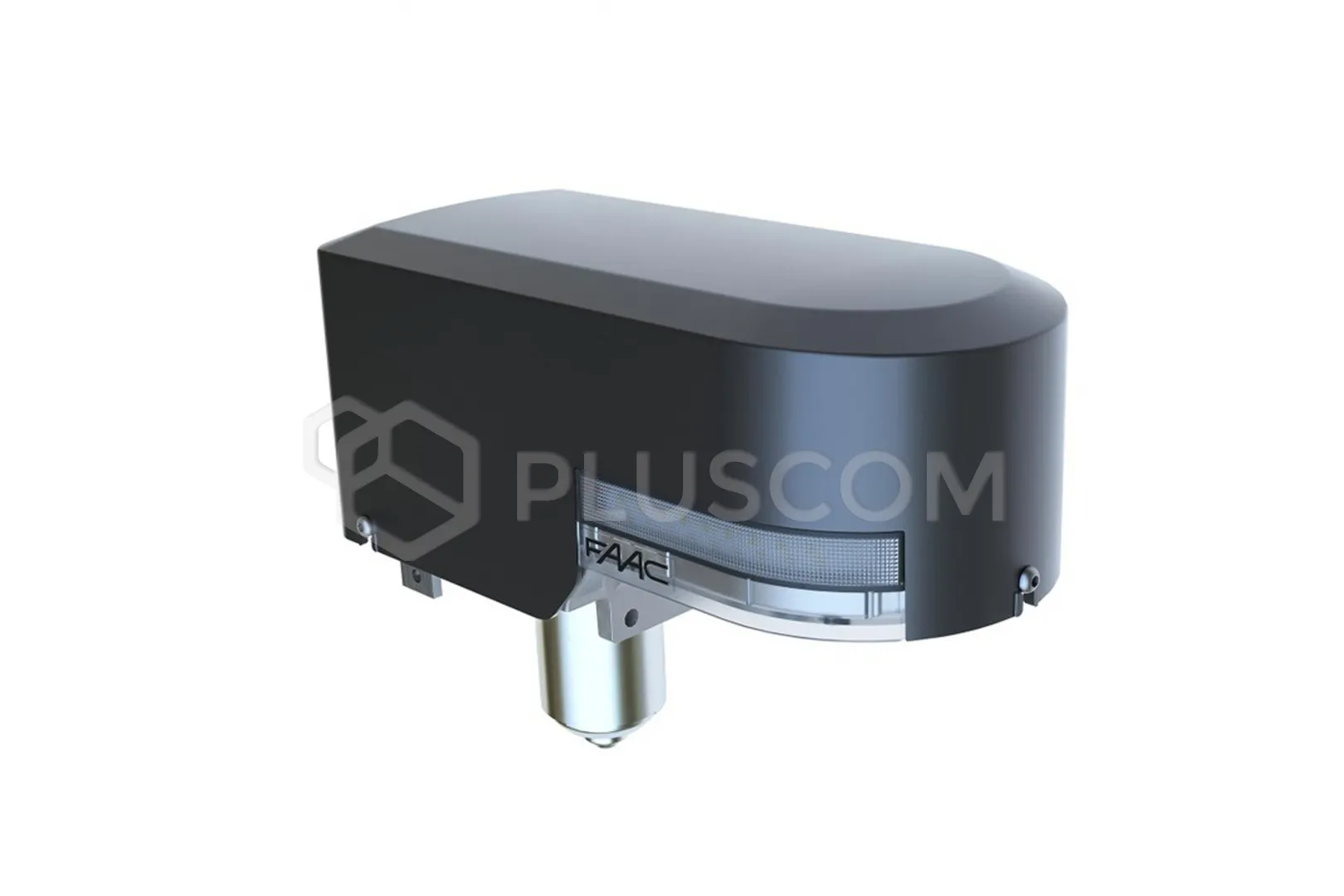

Faac S2500I Electromechanical Operator for Gates up to 250kg/2.5m
The S2500I operator is designed for use on swing gates with horizontal
movement. The S2500I operator must be integrated into the gate's supporting
post using a special upper hinge (S2500I hinge, supplied separately).
Designed to meet a wide variety of architectural needs. The S2500I operator can
be integrated with metal posts with the following dimensions: 10x10 cm, 12x12
cm, and 15x15 cm.
It can be installed on newly built or existing gates, as well as at a later
date, initially requiring only the hinge and cover.
Thanks to the adjustable, integrated mechanical stops, you can precisely define
the gate's stopping points during opening and closing, adapting the
movement to your needs.
KEY FEATURES:
Flashing light
Integrated into the structure, the gate maintains its aesthetic appeal. The
light is impact-protected and highly visible from both inside and outside.
High opening and closing speeds (adjustable)
Short waiting time. The gate can open in just 10 seconds.
Remote manual release
Easy access from both inside and outside the property. Secured with a coded
key, it can be remotely controlled using a key with a release lever.
Maximum anti-crushing safety
The integrated 24V electromechanical actuator is equipped with an absolute
encoder, which allows for full movement control and reverse operation in the
event of an obstacle.
Built-in mechanical stops
Integrated, adjustable mechanical stops allow for setting both the open and
closed positions, eliminating the need to install mechanical stops on the
ground.
TECHNICAL DATA:
- Power supply voltage: 220-240V ~ 50/60 Hz
- Motor type: 24 V
- Max. power consumption: 40 W
- Max. torque: 320 Nm
- Square post dimensions: 10x10 cm, 12x12 cm, 15x15 cm
- Max. gate leaf width: 2 m | 2.5 m with electromagnetic lock
- Max. gate leaf weight: up to 250 kg
- Max. angular speed: 10°/s
- Max. Gate opening angle: 165°
- Number of cycles per hour: 100% continuous operation
- Protection rating: IPX4
- Operating temperature: -20°C to +55°C
