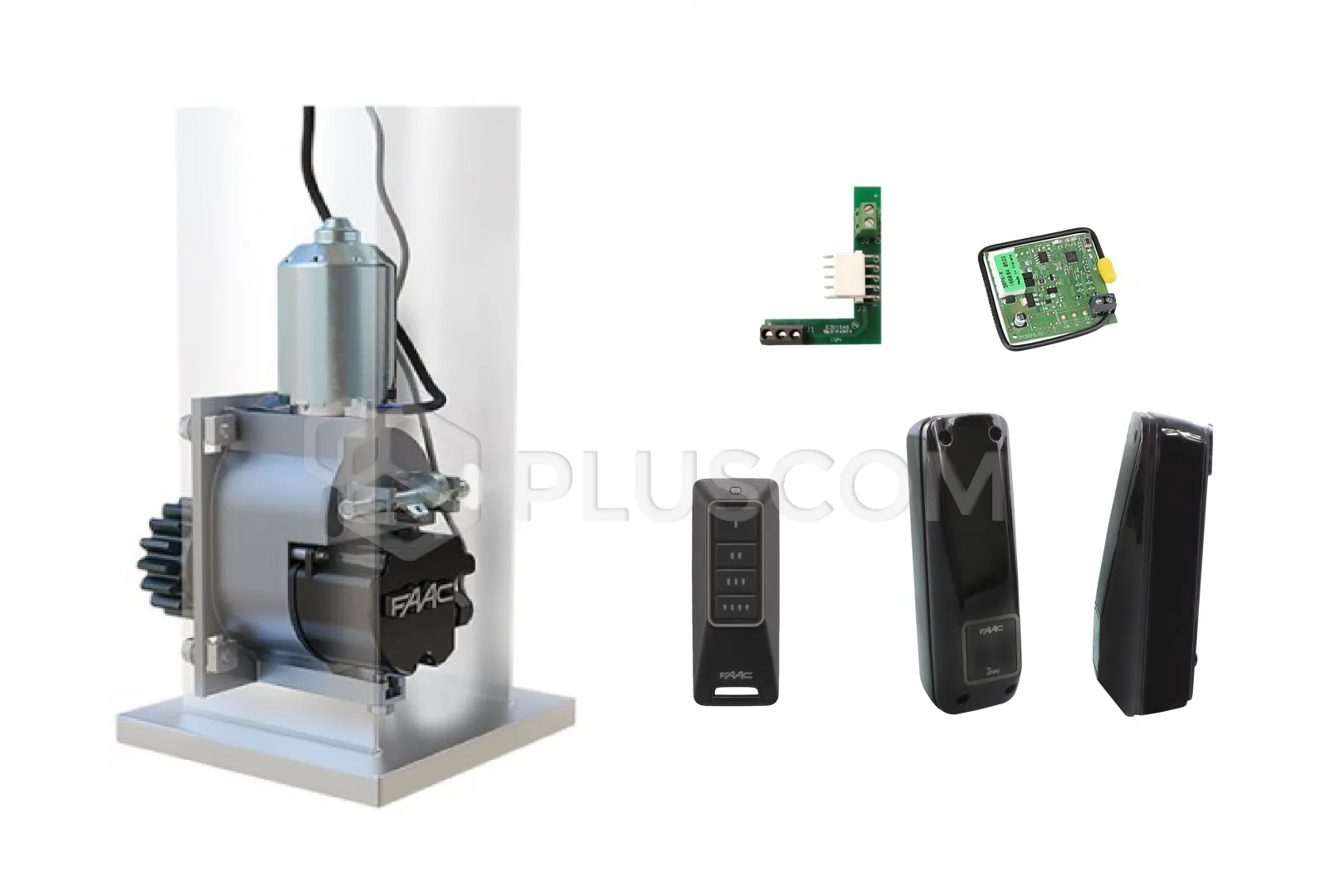

Faac C 4000I 24V Kit with E4000I control unit for built-in gates with a
maximum leaf length of 8 m and a maximum weight of 400 kg
ZESTAW ZAWIERA:
|

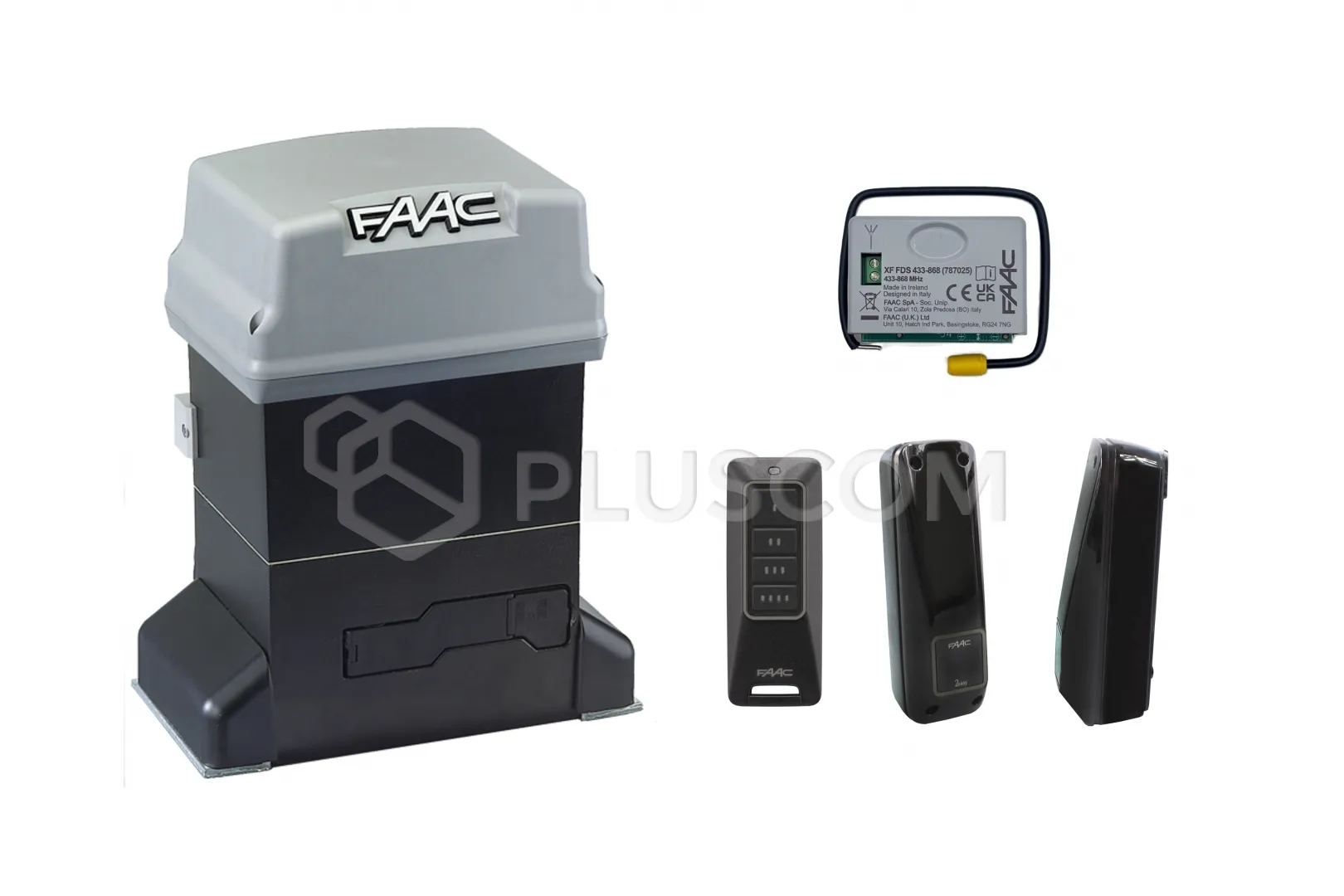

Faac 746 C Z16 drive kit with built-in E781 control unit
|
C4000I 24V electromechanical drive for sliding gates with a maximum
leaf length of 8 m and a maximum weight of 400 kg.
FEATURES:
- Compact dimensions, perfect integration with the architecture
- Modern control unit and absolute magnetic encoder (FAAC patent) used to
determine the gate leaf's end positions and enables precise control of
the gate's position and speed, thus achieving an anti-crushing function
with movement reversal upon obstacle detection.
- Manual drive release accessible from inside and outside the
property.
The FAAC XT4 FDS 433-868 SLH LR remote control enables
convenient and effective control of automation systems. Thanks to advanced
technology, the remote control features a rolling code, ensuring a high level
of security and protection against unauthorized access.
It features maximum anti-cloning protection. This is ensured by an advanced
security scheme based on Secure Vault hardware technology (PSA Level 3
certification) and TrustZone, a state-of-the-art method for securing digital
financial transactions and IoT High Security devices/networks.
The modern XP 20B D Photocell with a 180° horizontal viewing
angle is equipped with a vertical optical self-adjustment function,
particularly useful when the monitored area is not completely flat.
The photocell is mounted on a support skid equipped with top-quality lenses
designed to optimize the beam's efficiency at various angles. The
photocells can be mounted both on walls and on brackets, and the housing lock
prevents the risk of disassembly or incorrect mounting of the photocell. The
lock also guarantees compliance with the IP54 protection class requirements.
The device is equipped with a BUS power supply system – just two non-polarized
wires, allowing up to 16 pairs of photocells to be connected.
The XP 20BD is protected against interference from external light sources
(e.g., vehicle headlights).
The kit includes an RP2 FDS 433-868 MHz radio receiver and an
XIR module.
TECHNICAL DATA:
- Power supply voltage: 220-240 V AC 50/60 Hz
- Motor type: Brush, 24V DC
- Maximum power consumption: 150 W
- Maximum thrust: 125 N
- Gear: Z16 module 4
- Maximum gate leaf width (rail gate): 8 m
- Maximum gate leaf weight: 400 kg
- Maximum gate leaf weight (self-supporting gate): 250 kg
- Gate leaf speed: 16 m/min
- Ambient temperature during operation: -20°C ÷ +55°C
- Intended use: For residential use
- Frequency of use: 100%
- Protection class: IP30
- Device dimensions (WxDxH) 110 x 168.8 x 260 mm
- Device weight: 3.5 kg
- Post dimensions: 110 x 110 mm - minimum internal dimensions
