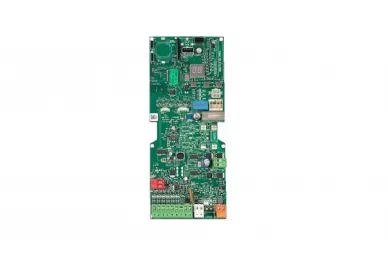

Faac 63003390 Control board E4000I

490,72 EUR including 23.00% VAT
Product code: #30092
Manufacturer: FAAC
  • Power supply: 230V AC
  • Accessories power supply: 24V
  • Inputs: BUS 2easy, 6 inputs
  • Outputs: 1 programmable output
  • Thrust: Programmable in 50 levels
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 109001 Electromechanical drive C4000I

Faac 63003390 Control board E4000I


Control board designed for FAAC C4000I drive.

Technical data:

  • Power supply voltage: 220-240V~ 50/60 Hz
  • Maximum power consumption: 150 W
  • Maximum output load: 1A
  • Accessories power supply: 24V
  • Programming: 3 keys (+, -, F) and LCD display
  • Operating logic: Automatic (A), Semi-automatic (E), Semi-automatic (B), dead-man(C)
  • Programmable functions: Logic, Pause time A, Pause time B, Thrust, opening speed, closing speed, speed slowdown, opening protection, closing protection, partial opening - wicket, Maximum force at start, opening and closing protection, opening direction, inspection request, Primary/Secondary, Sleep mode
  • Working time: Programmable (from 0 to 9 min with 50 sec stops)
  • Pause time: Programmable (from 0 to 9 min with 50 sec stops)
  • Thrust: Programmable in 50 levels
  • Speed ​​regulation: Programmable in 10 levels
  • Inputs: BUS 2easy, 6 inputs (Open A, Open B, Close, STOP, opening safety, closing safety)
  • Outputs: 1 programmable output (fail-safe, alarms, LED, lighting, can be activated via radio channel 2), lamp
  • Quick connectors: XBat battery power supply, XF 433/868 Module for OmniDEC and Simply Connect decoding
  • Ambient operating temperature: from -20°C to +55°C

Compatible with:

Faac 63003390 Control board E4000I in the diagram Faac C4000I
