Faac 109001 Electromechanical drive C4000I

915,40 EUR including 22.00% VAT
Product code: #26811
Manufacturer: Faac
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Max. leaf width: 8 m
  • Max. gate leaf weight: 400 kg
  • Post dimensions: 110 x 110 mm minimum internal dimensions
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 63003390 Control board E4000I

Faac 109001 Electromechanical drive C4000I

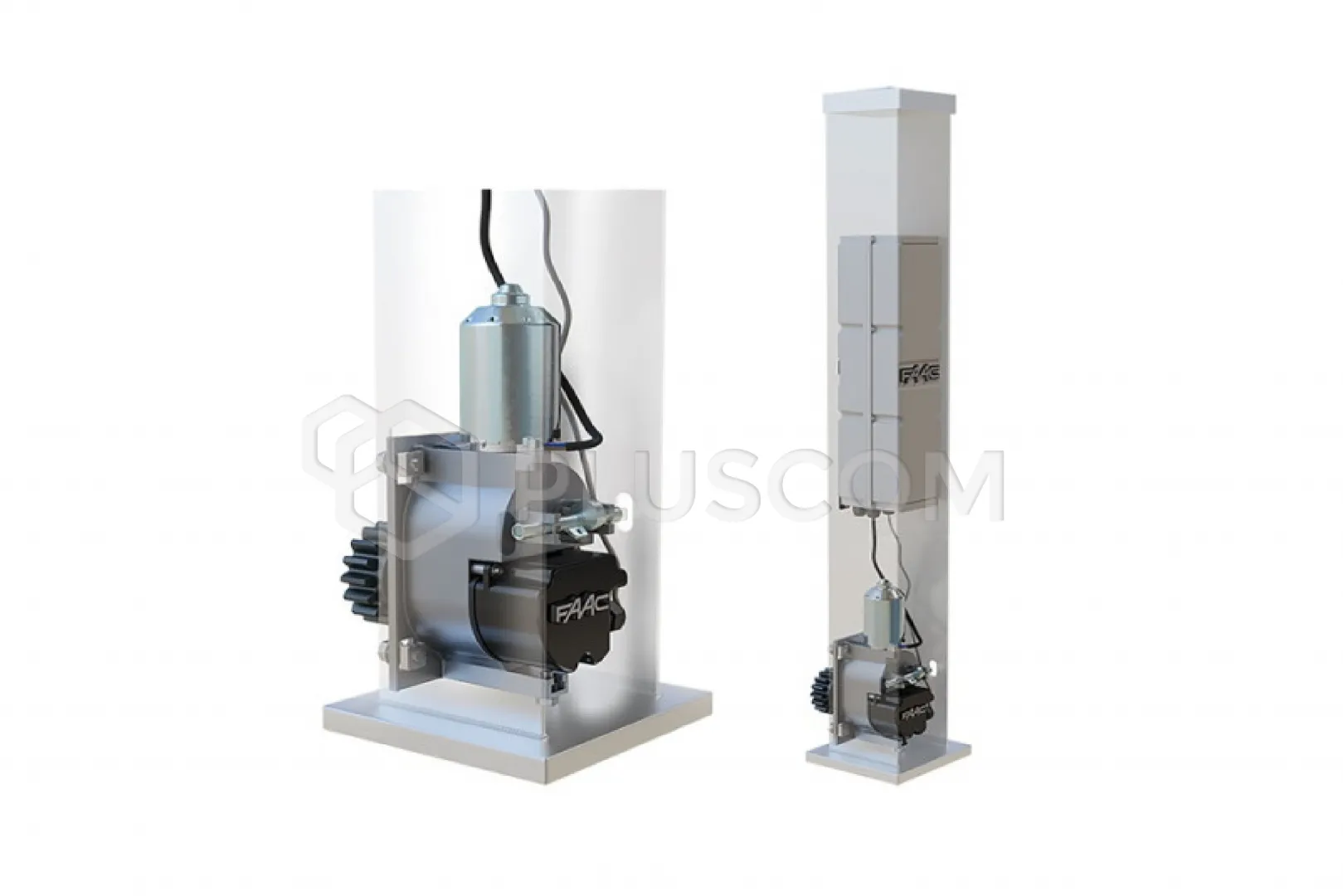

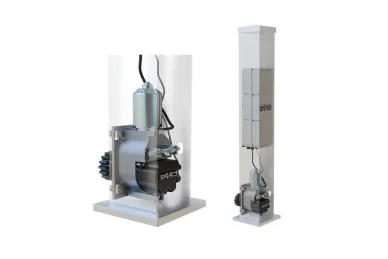

Electromechanical drive C4000I 24V for sliding gates with a maximum leaf length of 8 m and a maximum weight of 400 kg.

FEATURES:

  • Compact dimensions, perfect integration with architecture
  • Modern control unit and magnetic absolute encoder (FAAC patent), which is used to determine the gate leaf's end positions and allows precise control of the gate's position and speed, thus obtaining an anti-crushing function, with movement reversal upon detection of an obstacle
  • Manual release of the drive available from inside and outside the property
Included: electromechanical drive with 24 V motor and E4000I control unit, Z61 M4 gear wheel, key to release the drive and mounting accessories.

Technical data:

  • Power supply voltage: 220-240 V AC 50/60 Hz
  • Motor type: Brush, 24V DC
  • Maximum power consumption: 150 W
  • Maximum thrust: 125 N
  • Gear: Z16 module 4
  • Maximum gate leaf width (rail gate): 8 m
  • Maximum gate leaf weight: 400 kg
  • Maximum gate leaf weight (self-supporting gate): 250 kg
  • Gate leaf speed: 16 m/min
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Intended use: For residential use
  • Frequency of use: 100%
  • Protection class: IP30
  • Device dimensions (WxDxH) 110 x 168.8 x 260 mm
  • Device weight: 3.5 kg
  • Post dimensions: 110 x 110 mm - minimum internal dimensions
