Faac ALFA SHORT Kit for double-leaf gates up to 1.8m in length
Complete swing gate kit, suitable for swing gates up to 1.8 meters long and
with a maximum single-leaf weight of 200 kg.
|

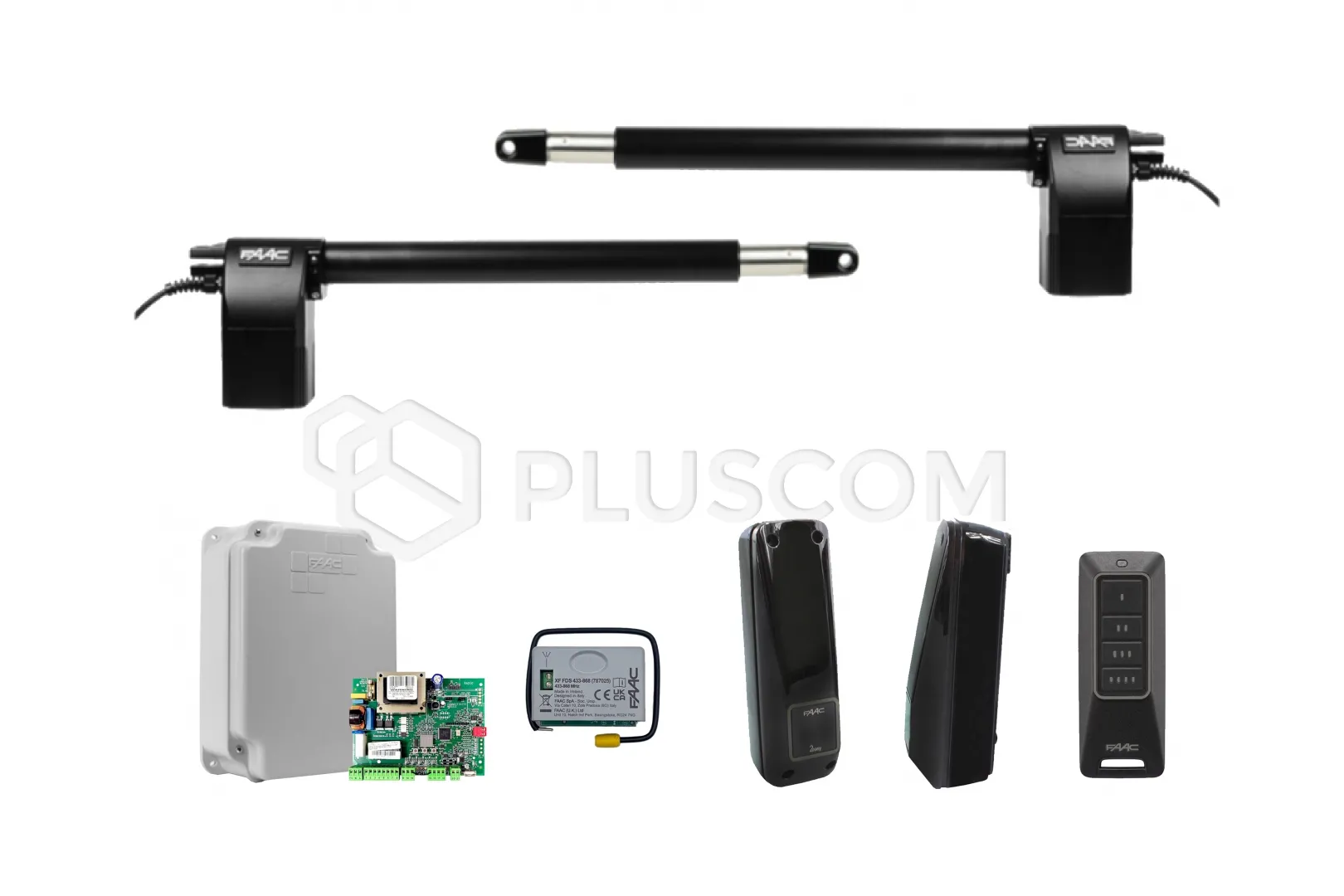

KIT INCLUDES:
|
Faac ALFA SHORT kit for double-leaf gates with a leaf length of up to 1.8 m
|
The ALFA Short is a self-locking drive with a mechanical lock when the motor is
not running. Once automated, the gate is locked in any stopping position,
eliminating the need for additional locks.
The key advantages of the drive and the kit include:
- Quick and easy installation thanks to the built-in central unit
(E045S)
- Compatible with all types of posts
- Self-locking drive - no electromagnetic lock required even in the event
of a power outage
- In the event of a power outage, a key-operated release device allows
manual opening and closing of the gate
- Optional absolute magnetic encoders (SAFEcoder) can be used as additional
anti-crushing protection
The E045S control unit can operate one or two 230V swing
gate motors. Thanks to the use of new technologies, it is only compatible with
XF 433/868 frequency modules (equipped with a 3-pin quick connector) and XP 20B
D photocells (BUS 2easy connection). To connect traditional relay photocells
(e.g., XP 20 D), use the XIB interface.
The FAAC XT4 FDS 433-868 SLH LR remote control enables
convenient and effective control of automation systems. Thanks to advanced
technology, the remote control features a rolling code, ensuring a high level
of security and protection against unauthorized access. It is characterized by
maximum anti-cloning protection. This is ensured by an advanced security scheme
based on Secure Vault hardware technology (PSA level 3 certification) and
TrustZone, a state-of-the-art method for securing digital financial
transactions and IoT High Security devices/networks. FDS is a frequency
modulation-based radio protocol with the highest performance in terms of range
and battery life; radio transmission is secured by an AES-128 symmetric
encryption algorithm with a 128-bit key. The authenticity of the remote
controls is verified using a chain of personalized FAAC security certificates.
The modern XP 20B D photocell with a 180° horizontal viewing
angle is equipped with a vertical optical self-adjustment function,
particularly useful when the monitored area is not completely flat.
The device is equipped with a BUS power supply system – only two non-polarized
wires, allowing up to 16 pairs of photocells to be connected.
The XP 20BD is protected against interference from external light sources
(e.g., vehicle headlights).
TECHNICAL DATA:
- Power Supply: 230 V
- Maximum leaf length: 1.8 m
- Maximum weight leaf weight: 200 kg
- Max. power consumption: 280 W
- Max. thrust force: 3500 N
- Max. linear speed (piston): 16 mm/sec.
- Usable working stroke: 290 mm
- Max. leaf opening angle: 110°
- Ambient temperature during operation: -20°C ÷ + 55°C
- Thermal protection: 140°C
- Protection rating: IP44
- Use frequency: 18 cycles/hour
- Max. Door leaf width: 1.8 m
- Dimensions: 991x101x172 mm
