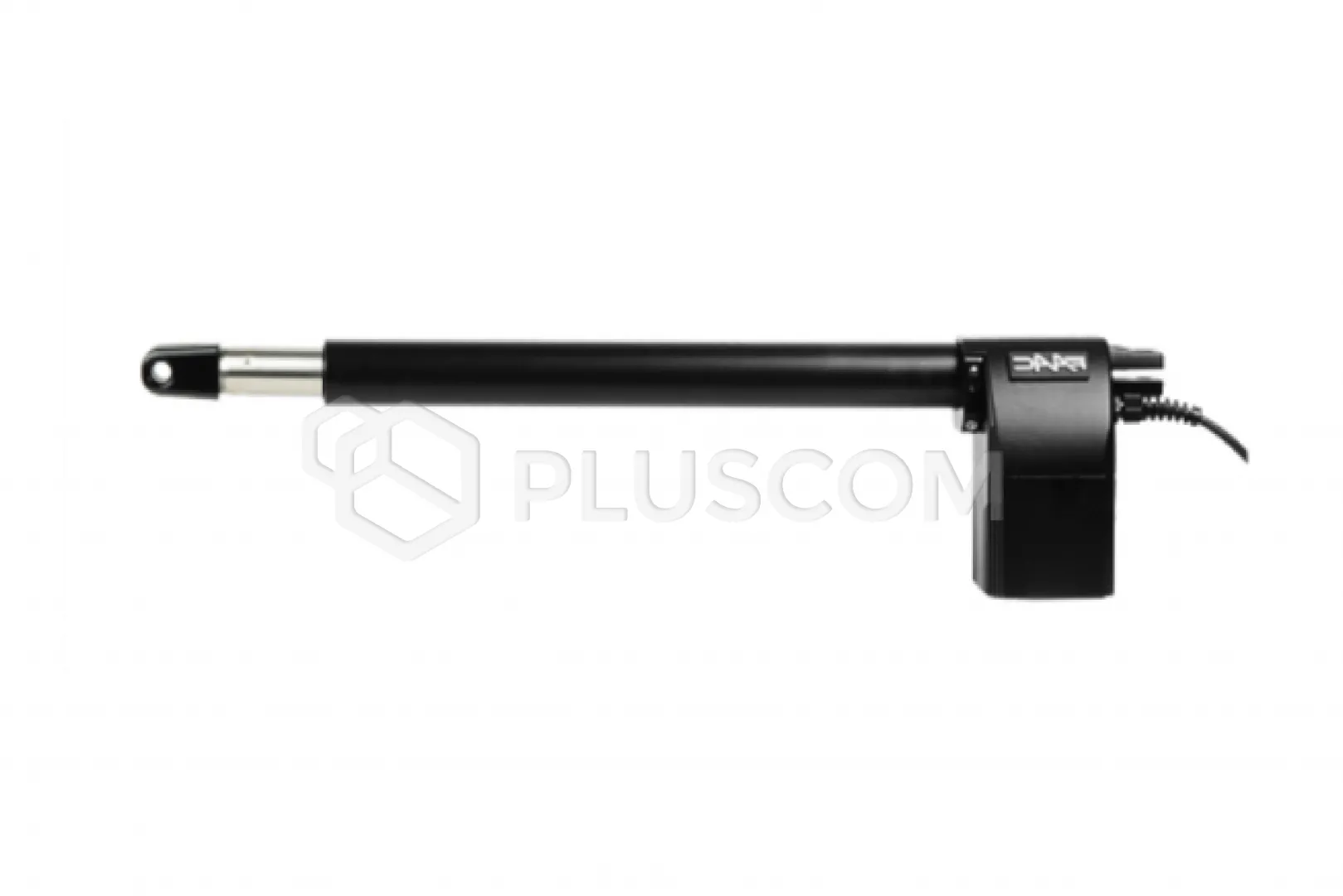

Faac ALFA Short 80 Right swing gate actuator up to 200kg

Product code: #43826
Manufacturer: Faac
  • Maximum leaf length 1.8m
  • Maximum leaf weight 200kg
  • Power supply/Motor 230V/230V
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Faac ALFA Short 80 Right swing gate actuator up to 200kg


This is a self-locking drive with a mechanical lock when the motor is not running. Once automated, the gate is locked in any stopping position, eliminating the need for additional locks.

The key advantages of the drive and kit include:

  • Quick and easy installation thanks to the built-in central unit (E045S)
  • Fits all types of posts
  • Self-locking drive - no electromagnetic lock required even in the event of a power outage
  • In the event of a power outage, the key-operated unlocking device allows manual opening and closing of the gate
  • Optional absolute magnetic encoders (SAFEcoder) can be used as additional anti-crushing protection

Technical Data:

  • Power Supply: 230 V
  • Maximum leaf length: 1.8 m
  • Maximum weight leaf weight: 200 kg
  • Max. power consumption: 280 W
  • Max. thrust force: 3500 N
  • Max. linear speed (piston): 16 mm/sec.
  • Usable working stroke: 290 mm
  • Max. leaf opening angle: 110°
  • Ambient temperature during operation: -20°C ÷ + 55°C
  • Thermal protection: 140°C
  • Protection rating: IP44
  • Use frequency: 18 cycles/hour
  • Max. Door leaf width: 1.8 m
  • Dimensions: 991x101x172 mm
