Faac E045S control unit

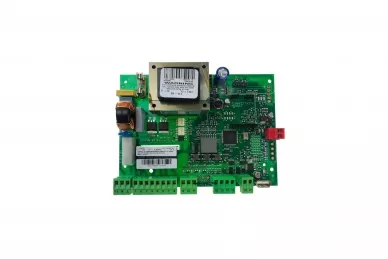

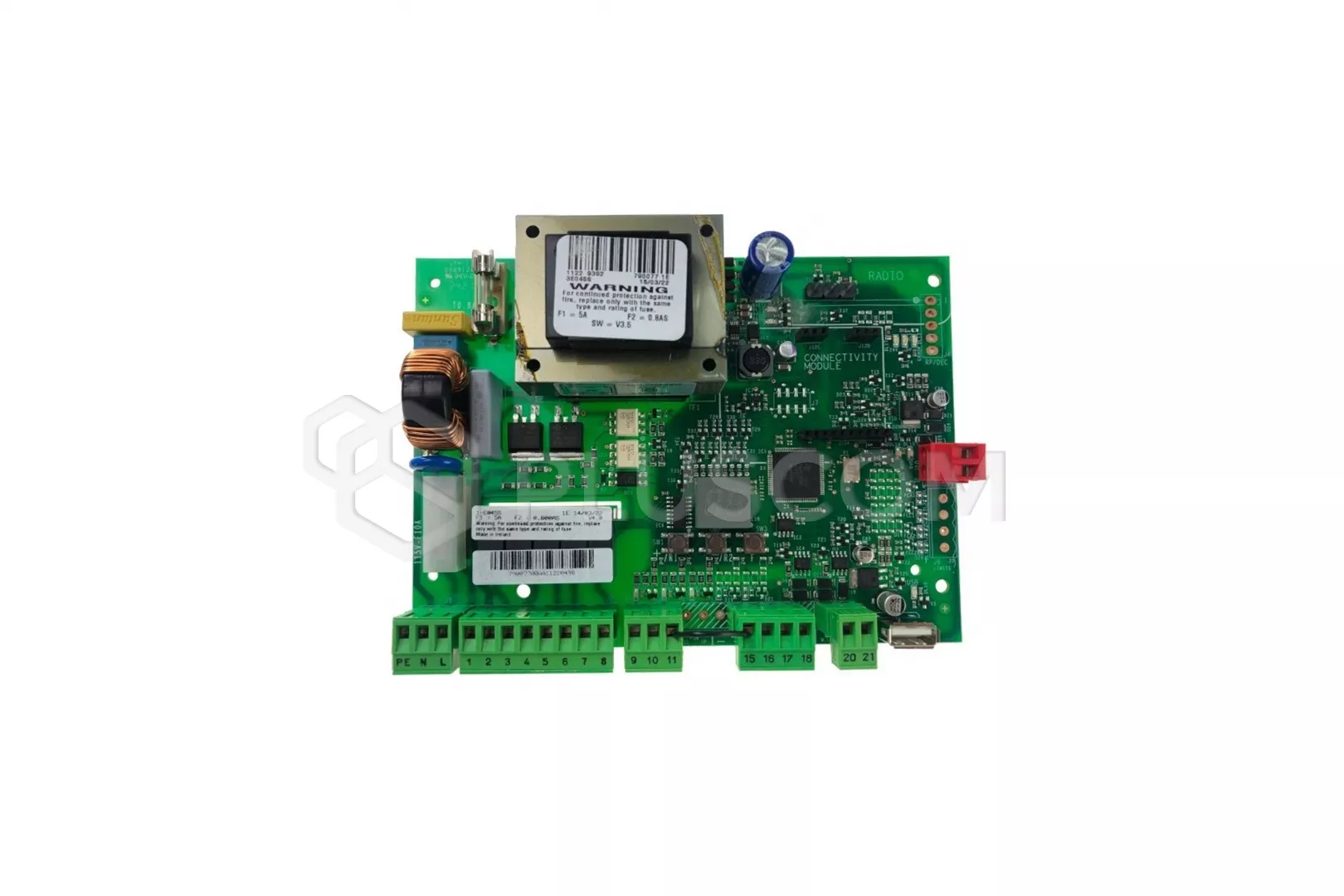

Faac E045S Electronic control unit

The E045S control unit can operate one or two 230V gate motors wingers. Thanks to the use of new technologies, it is only compatible with XF 433/868 frequency modules (equipped with 3-pin quick connector) and with XP 20B D photocells (BUS 2easy connection). For connection traditional relay photocells (e.g. XP 20 D) should be used XIB interface.

FUNCTIONS:

Work logic:

• semi-automatic (E)
• semi-automatic progressive (EP)
• automatic (A)
• automatic gradual (AP)
• safe automatic step (SP)
• semi-automatic with "Open" input and "Close" (b)
• “dead-man” (C)

Automatic gate closing: programmable (from 0 to 9 min 50 s)
Actuator force: adjustable, 50 levels for each motor separately
Closing time: programmable (from 0 to 1 min 30 s)

Learning function:

• memorizing a single wing (max. 4 min 10 s)
• recognition of the operation and release time of both leaves with one complete cycle work via the SAFEcoder
• encoder
• remembers opening / closing / releasing

Opening delay
Wing slowdown: programmable (from 0% to 99%)
Anti-crushing protection: programmable (10 levels) - if required an encoder was used
Mechanical bump detection: possible - if an encoder is used
Possibility of management via USB

Inputs:

• full opening
• partial opening (gate)
• STOP (emergency stop)
• BUS 2easy
• mains power

Outputs:

• warning lamp
• engine power
• 24V DC power supply for accessories
• 24V DC gate status signaling
• 12V AC power supply for the electromagnetic lock

TECHNICAL SPECIFICATIONS:

• Supply voltage: 230V AC (± 15%) 50/60 Hz
• Max. power consumption: 4 W (standby)
• Max. motor power: 800 W
• Accessory power supply: 24V DC 500 mA | BUS 2easy 500 mA
• Power supply for electric lock: FAAC lock 12V AC - 24V DC
• Operating temperature range: -20°C to +55°C
• Fuses: F1=5 A
