Faac 51700422 Set of two actuators (right + left) 414 230V DX + SX

846,93 EUR including 23.00% VAT
Product code: #26779
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. leaf width 3-4 m (with electromagnetic lock)
  • Max. sash opening angle: 110°
  • Max. pulling force: 3500 N
  • Usage frequency: 18 cycles/hour
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 713009 Release key 412-eurobat Faac Encoder for 414 actuator Faac E045S control unit Faac E145S control unit Faac Mounting base for embedding

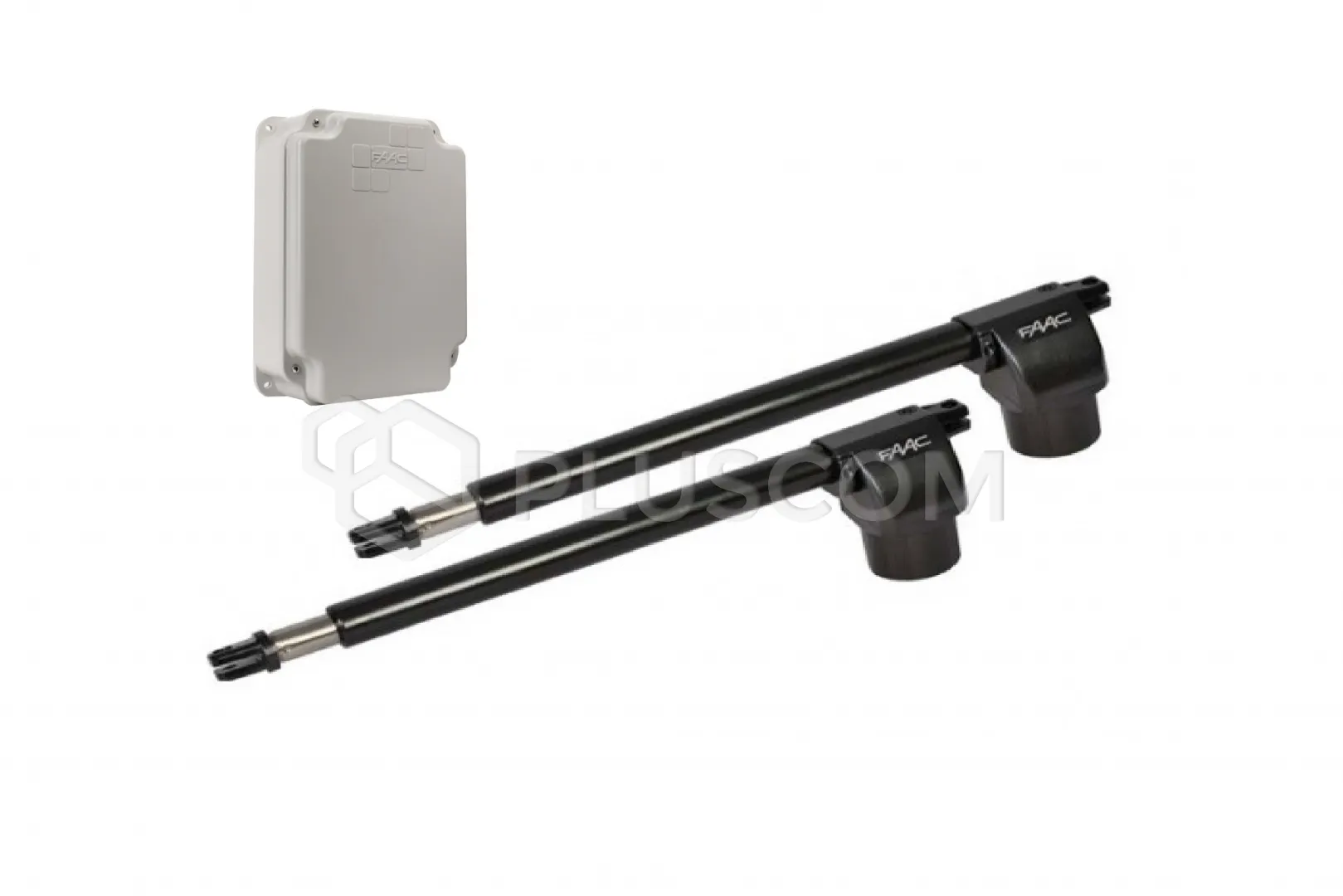

Faac 51700422 Set of two actuators (right + left) 414 230V DX + SX

The set includes:

  • 2 pcs. Actuators - right and left
  • 2 sets of mounting brackets
  • 2 pcs. Unlocking keys
  • 2 pcs. Capacitors 8 μF 400 V
  • Housing for control unit model E
Electromechanical drive for swing gates for home use for a leaf length of up to 3 m (4 m with an electromagnetic lock).

Data technical:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Asynchronous, single-phase
  • Max. power consumption - 280 W
  • Max. thrust force - 3500 N (*)
  • Max. linear speed (piston) - 16 mm/sec. (*)
  • Usable working stroke - 390 mm
  • Max. wing opening angle - 110°
  • Ambient temperature during operation - -20°C ÷ + 55°C
  • Thermal protection - 140°C
  • Protection degree - IP44
  • Weight of the device - 6.5 kg
  • Use frequency - 18 cycles/hour
  • Max. wing width - 1.80 m
  • Mounting brackets - rear bracket (to the post) for welding/screwing - front bracket (to the wing) for welding
  • Device dimensions (LxDxH) - 735x101x172 mm
  • Control unit - none
