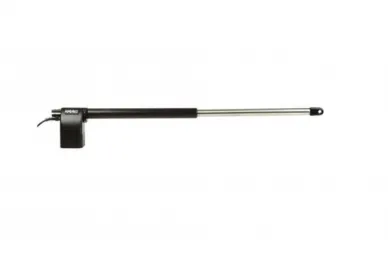

Faac 6171022 Electromechanical actuator 414 230V SX (left)

409,69 EUR including 19.00% VAT
Product code: #26778
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. leaf width 3-4 m (with electromagnetic lock)
  • Max. sash opening angle: 110°
  • Max. pulling force: 3500 N
  • Usage frequency: 18 cycles/hour
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Mounting base for embedding Faac 713009 Release key 412-eurobat Faac Encoder for 414 actuator Faac E045S control unit Faac E145S control unit Faac Model E housing for the control unit

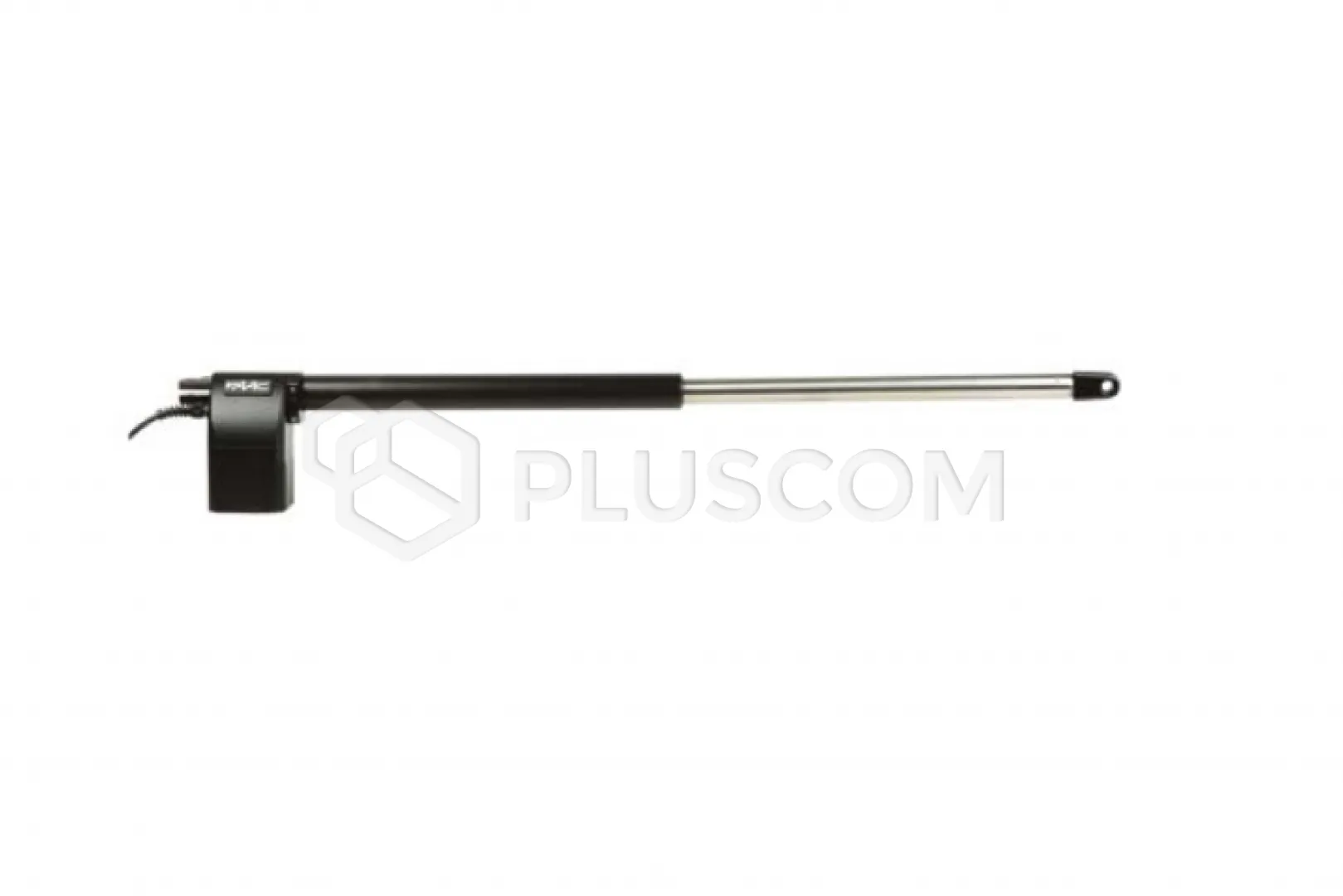

Faac 6171022 Electromechanical actuator 414 230V SX (left)


Electromechanical drive for swing gates for domestic use for a leaf length of up to 3 m (4 m with an electromagnetic lock).

FEATURES:

  • The most practical, economical and universal drive for swing gates - fits all types of posts
  • The strongest drive in its class on the market
  • Self-locking - does not require the installation of electromagnetic locks even in the case of very wide gates

Included: drive, mounting accessories, unlocking key, 8 μF 400 V capacitor.

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Asynchronous, single-phase
  • Max. power consumption - 280 W
  • Max. thrust force - 3500 N (*)
  • Max. linear speed (piston) - 16 mm/sec. (*)
  • Usable working stroke - 390 mm
  • Max. leaf opening angle - 110°
  • Ambient temperature during operation - -20°C ÷ + 55°C
  • Thermal protection - 140°C
  • Protection class - IP44
  • Weight of the device - 6.5 kg
  • Use frequency - 18 cycles/hour
  • Max. wing width - 1.80 m
  • Mounting brackets - rear bracket (to the post) for welding/screwing - front bracket (to the wing) for welding
  • Device dimensions (LxDxH) - 735x101x172 mm
  • Control unit - none
