Faac 415 LLS 230 V Kit for swing gates up to 4m

Faac 10441810001 415 LLS 24 V Kit for swing gates up to 4m

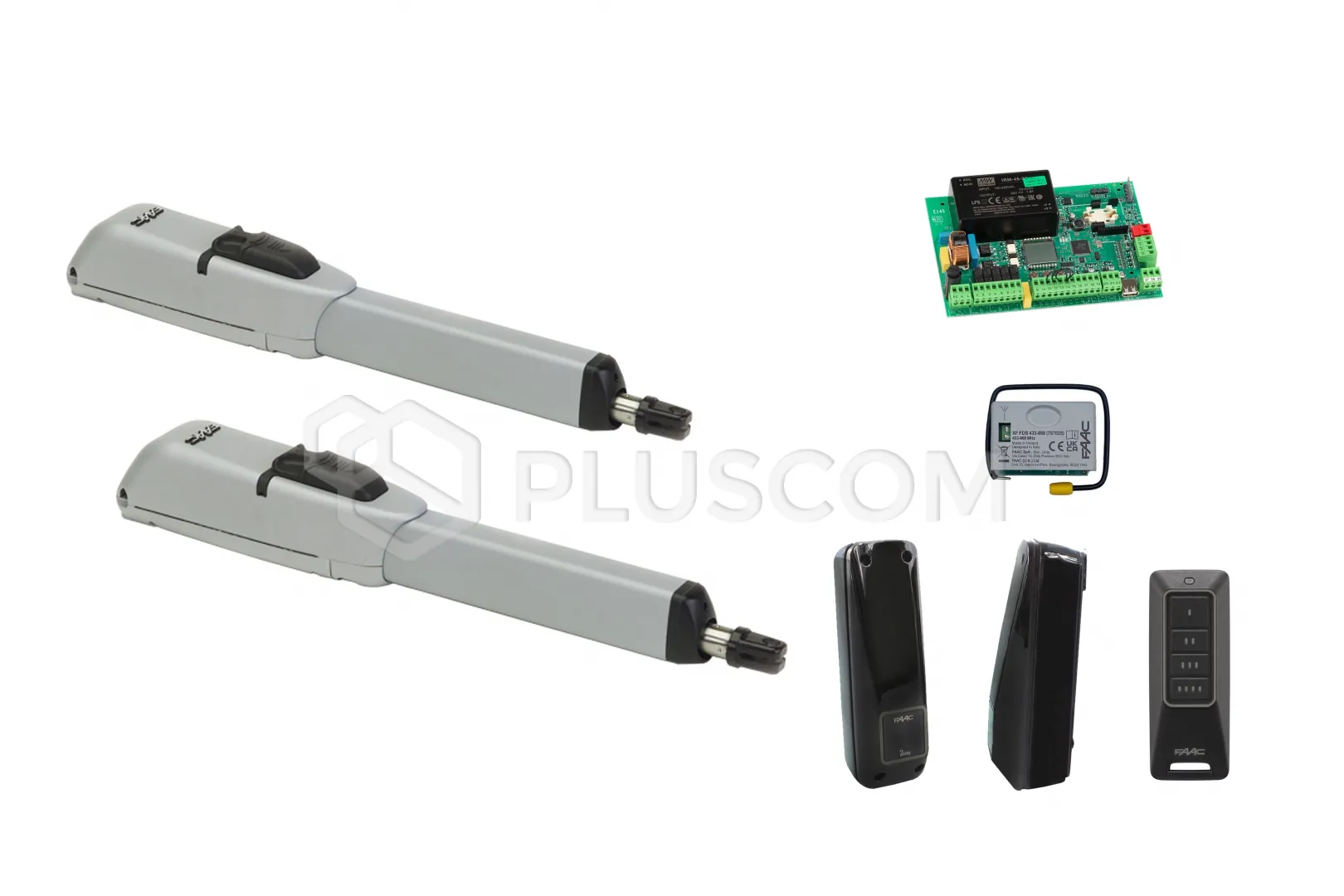

SET CONTAINS: Faac 415 LLS 230V Swing gate actuator up to 4m 2pcs. Faac E145S control unit Faac XT4 FDS 433-868 SLH LR 4-channel remote control Photocell 785103 XP 20B D with angle adjustment Faac Frequency Module FAAC XF FDS 433-868

Faac 415 LLS 230 V Kit for swing gates up to 4m

Electromechanical drive used for swing gates, equipped with opening and closing limit switches. In the event of a failure or incorrect operation of the drive, the gate leaf is blocked and the control system is blocked security and unlocking system allows manual operation of the gate.

FEATURES:

• aluminum body protected with a double protective coating, ensuring higher resistance to weather conditions
• in the event of e.g. power failure, a simple gear unlocking mechanism (secured personalized key) allows manual operation of the gate
• cables (with chokes) run horizontally, which allows the drive to be mounted very close Earth's surface

The FAAC XT4 FDS 433-868 SLH LR remote control enables convenient and effective control of automation systems. Thanks to advanced technology, the remote control features a rolling code, ensuring a high level of security and protection against unauthorized access. It is characterized by maximum anti-cloning protection. This is ensured by an advanced security scheme based on Secure Vault hardware technology (PSA level 3 certification) and TrustZone, a state-of-the-art method for securing digital financial transactions and IoT High Security devices/networks. FDS is a frequency modulation-based radio protocol with the highest performance in terms of range and battery life; radio transmission is secured by an AES-128 symmetric encryption algorithm with a 128-bit key. The authenticity of the remote controls is verified using a chain of personalized FAAC security certificates.

The modern XP 20B D photocell with a 180° horizontal viewing angle is equipped with a vertical optical self-adjustment function, particularly useful when the monitored area is not completely flat.
The device is equipped with a BUS power supply system – only two non-polarized wires, allowing up to 16 pairs of photocells to be connected.
The XP 20BD is protected against interference from external light sources (e.g., vehicle headlights).

Technical data:

• Power Supply: 230V DC
• Motor Type: Asynchronous, Single-Phase
• Max. Power Consumption: 300 W
• Max. Thrust: 3000 N
• Max. Linear Speed (Piston): 16 mm/sec.
• Usable Stroke: 400 mm
• Max. Leaf opening angle: 110°
• Ambient operating temperature: -20°C ÷ +55°C
• Thermal protection: 140°C
• Protection rating: IP54
• Device weight: 7.8 kg
• Use frequency: S3 - 30%
• Device dimensions: 942x101x148 mm
