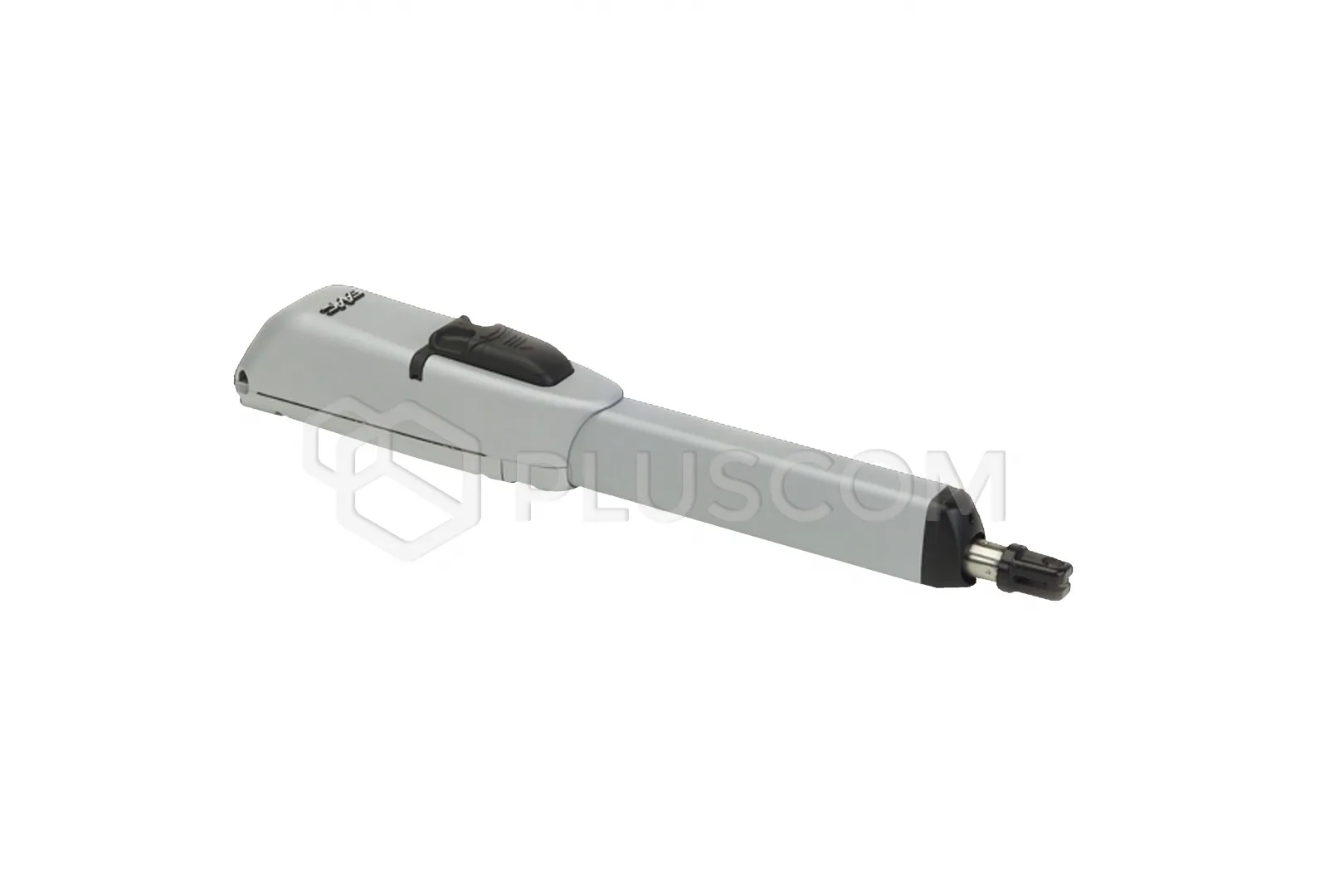

Faac 415 LLS 230V Swing gate actuator up to 4m

Product code: #43894
Manufacturer: Faac
  • Leaf length up to 4m
  • Motor power supply: 230V
  • Motor type: asynchronous, single-phase
  • Usable working stroke 400 mm
  • Max. thrust force: 23000 N
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Faac 415 LLS 24V Swing gate actuator up to 4m


Electromechanical drive used for swing gates, equipped with opening and closing limit switches. In the event of a failure or incorrect operation of the drive, the gate leaf is blocked and the control system is blocked security and unlocking system allows manual operation of the gate.

FEATURES:
  • aluminum body protected with a double protective coating, ensuring higher resistance to weather conditions
  • in the event of e.g. power failure, a simple gear unlocking mechanism (secured personalized key) allows manual operation of the gate
  • cables (with chokes) run horizontally, which allows the drive to be mounted very close Earth's surface

Technical Specifications:

  • Power Supply: 230V DC
  • Motor Type: Asynchronous, Single-Phase
  • Max. Power Consumption: 300 W
  • Max. Thrust: 3000 N
  • Max. Linear Speed (Piston): 16 mm/sec.
  • Usable Stroke: 400 mm
  • Max. Leaf opening angle: 110°
  • Ambient operating temperature: -20°C ÷ +55°C
  • Thermal protection: 140°C
  • Protection rating: IP54
  • Device weight: 7.8 kg
  • Use frequency: S3 - 30%
  • Device dimensions: 942x101x148 mm
Download
User manual 2.36 MB
