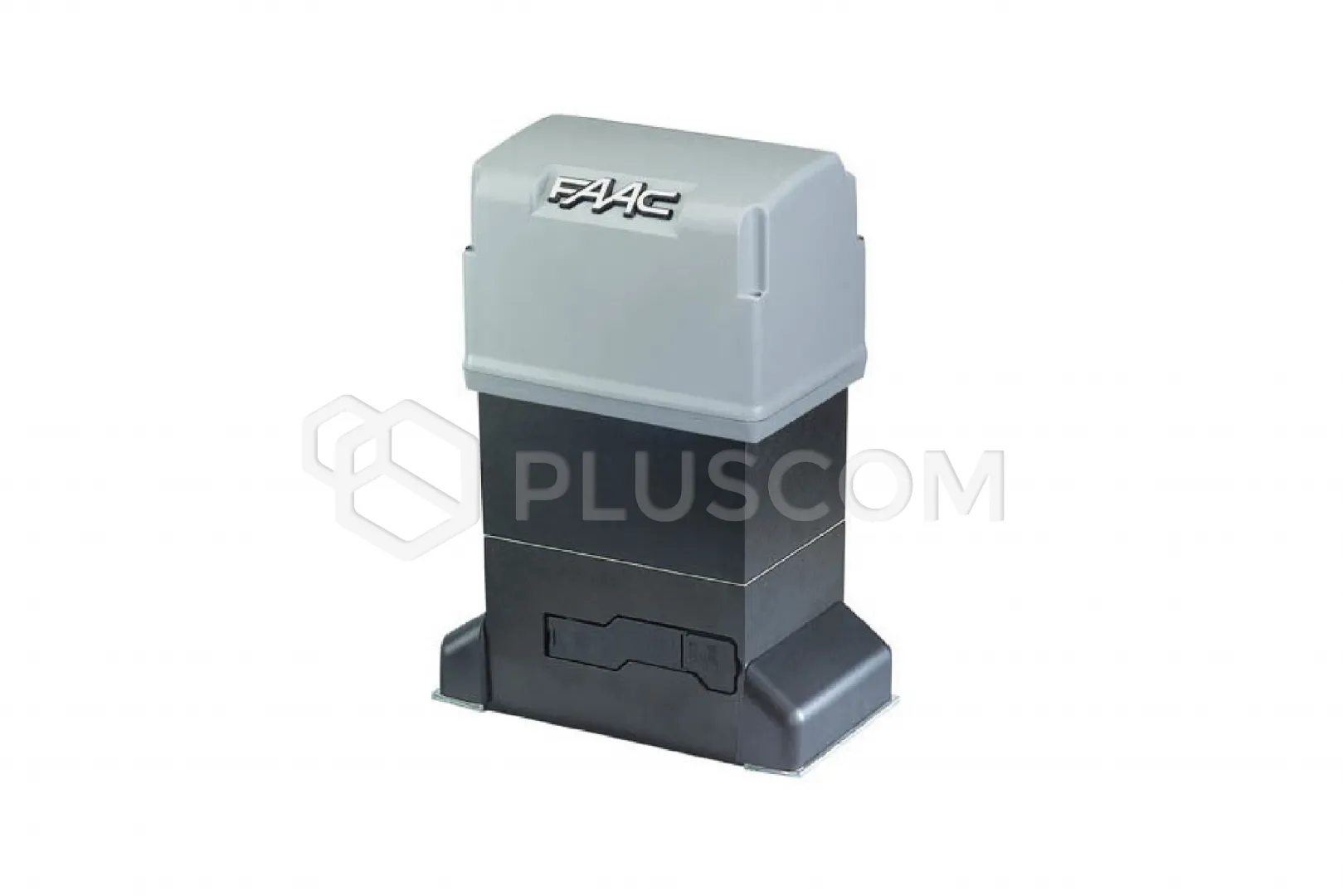

Faac 109837 844 E R Z16 Electromechanical drive with gear immersed in oil bath 230V

1853,28 EUR including 23.00% VAT
Product code: #32794
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. gate leaf weight: 1800 kg
  • Gate leaf movement speed: 9.5 m/min
  • Encoder: Magnetic, incremental
  • Limit switch: Magnetic
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 719130 Rack pinion Z16 Faac 780D control unit (without transformer) Faac 790922 Control unit board 578D Faac 737816 Optional mounting base Faac 719167 Pinion z20 Faac 71275101-10 Unlocking lock insert with personalized key Faac E145S control unit Faac Housing model LM for the control unit Faac Model E housing for the control unit Faac 720118 Model L housing for control unit

Faac 109837 844 E R Z16 Electromechanical drive with oil bath gear 230V


Electromechanical drive with oil bath gear 844 E R 230V for residential and industrial sliding gates weighing up to 1800 kg.

FEATURES:

  • Ideal for commercial and industrial applications
  • Maximum protection against crushing thanks to the use of a double-disc clutch immersed in an oil bath and a magnetic incremental encoder
  • Self-locking drive - does not require the use of an electromagnetic lock even in the event of a power failure
  • In the event of a power failure, unlocking the drive secured with a personalized key allows manual opening and closing of the gate
In the set: electromechanical drive 844 E R with a Z16 M4 gear wheel and a built-in 780 D control unit and encoder, key to unlock the drive, magnets to activate the limit switch, side covers for mounting screws and a 12.5 μF/400 V starting capacitor.

Technical data:

  • Power supply voltage: 220-240 V AC 50/60 Hz
  • Motor type: Asynchronous, single-phase
  • Maximum power consumption: 660 W
  • Maximum torque: 37 Nm
  • Maximum thrust: 1160 N
  • Reduction ratio: 1:30
  • Maximum gate wing width: 40 m
  • Gate wing travel speed: 9.5 m/min
  • Travel speed adjustment: No
  • Limit switch: Magnetic
  • Gear wheel: Z16 M4
  • Encoder: Magnetic, incremental
  • Force adjustment: By means of a double-disc clutch immersed in an oil bath and control unit (50 levels)
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Thermal protection: 120°C
  • Protection class: IP44
  • Device weight: 14.5 kg
  • Oil type: FAAC HP
  • Device dimensions (LxDxH): 277 x 155 x 388 mm
  • Maximum gate leaf weight: 1800 kg
  • Frequency of use: 70%
  • Control unit: 780D (built-in)
